Fisher-Price Kid-Tough J8211 User Manual
Fisher-price digical camera j8209,j8210,j8211
Hide thumbs
Also See for Kid-Tough J8211:
- User manual (32 pages) ,
- Instruction sheet (44 pages) ,
- Instruction booklet (60 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Instruction Booklet
Advertisement
Table of Contents
Related Manuals for Fisher-Price Kid-Tough J8211
Summary of Contents for Fisher-Price Kid-Tough J8211

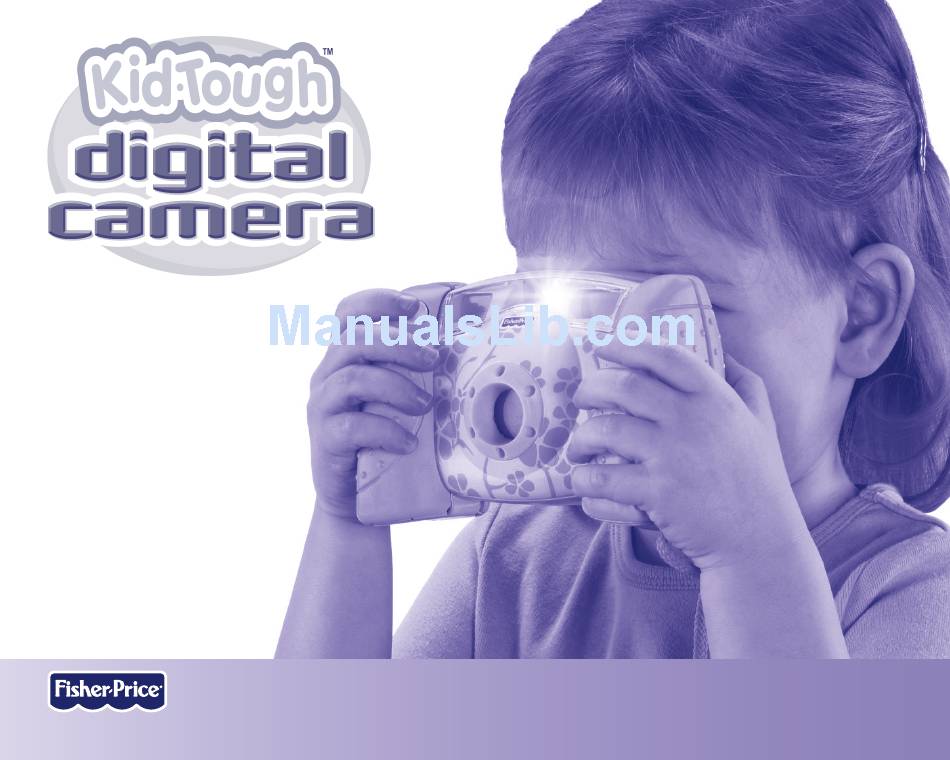

- Page 1 J8209, J8210, J8211 www.fisher-price.com...
-
Page 3: Table Of Contents
Table of Contents Getting Started Introduction ... 4 Package Contents ... 5 Your Camera ... 6 Specifications ... 9 Setting Up Your Camera “AA“ (LR6) Battery Installation ...10 CR-2032 Battery Installation ...12 Battery Safety Information and Recycling Information ... 14,15 Using Your Camera Turning the Camera On and Off ...16 Taking a Picture ...17... -
Page 4: Introduction
• Tool required for battery installation: Phillips screwdriver (not included). Loosen and tighten screws with a Phillips screwdriver. Do not over-tighten the screws. • Your Kid Tough Digital Camera includes PhotoShow ™ or edit your digital pictures. If you already have image viewing/editing/managing software installed on your computer, you do not need to use PhotoShow •... -
Page 5: Package Contents
Package Contents CD-ROM with PhotoShow Deluxe Software Camera (This is not a toy.) CR-2032 Button Cell Battery USB Cable (For adult assembly only.) (This is not a toy.) -
Page 6: Your Camera
Your Camera The Kid Tough Digital Camera is picture-perfect for your little one! It’s a real digital camera with ™ a durable, drop resistant design. It’s a perfect way for kids to get creative by taking, viewing and even printing their own digital pictures! - Page 7 Your Camera Viewfinder Image Back Image Forward Button Button USB Port Speaker LCD Screen Power Button Delete Button Back View...
- Page 8 Your Camera SD Card Slot (SD Card not included and sold separately) CR-2032 Battery Compartment “AA“ (LR6) Battery Compartment Battery Tray “AA“ (LR6) Battery Compartment Battery Compartment Door Bottom View...
-
Page 9: Specifications
Specifications Picture Resolution ...640 x 480 Internal Memory ...8 MB SDRAM (approximately 50 pictures) ...For additional memory (image storage) this camera ...accepts a SD card (sold separately and not included). Lens ...4.8 mm, f = 2.6 Focus Range ...4 ft. (1.22 m) - infinity LCD Screen ...1.3”... -
Page 10: Aa" (Lr6) Battery Installation
“AA“ (LR6) Battery Installation Battery Compartment Door... - Page 11 “AA“ (LR6) Battery Installation • Locate the battery compartment door on the bottom of the camera. • Loosen the screws in the battery compartment door. Remove the battery compartment door. • Insert four “AA” (LR6) alkaline batteries, as indicated inside the battery compartment. Hint: We recommend using alkaline batteries for longer battery life.
-
Page 12: Cr-2032 Battery Installation
CR-2032 Battery Installation CR-2032 Shown Actual Size Battery Tray Battery Compartment Door... - Page 13 CR-2032 Battery Installation The CR-2032 button cell battery provides power to your camera when you change the “AA” (LR6) batteries so that no pictures are lost. If you find that your camera loses pictures when you change the “AA” (LR6) batteries, it’s time to change the CR-2032 button cell battery. •...
-
Page 14: Battery Safety Information And Recycling Information
Battery Safety Information In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your toy. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). - Page 15 Recycling Information If your product contains replaceable button cell batteries, please remove and recycle the battery(ies). If the batteries in your product are not replaceable, please recycle your product. • Visit your nearest recycling center. For the location of the nearest recycling center, visit us online at www.service.mattel.com.
-
Page 16: Turning The Camera On And Off
Turning the Camera On and Off Power Button • Press the power button on the back of the camera to turn it on. You will hear a tone. • To turn the camera off, press and hold the power button until you hear a tone and the camera shuts off. -
Page 17: Taking A Picture
Taking a Picture • Have your child look through the viewfinder or look at the LCD screen to line up a picture. • While holding the camera steady, press the shutter button on the front of the camera to take a picture. Listen for a “shutter sound”... -
Page 18: Using The Flash
Using the Flash • If you are taking pictures in low light (dim light) and the flash is required, the flash will operate automatically. A lightning bolt • While holding the camera steady, press the shutter button to take a picture. Hint: The flash works best when your picture subject is about 4 ft. -
Page 19: Reviewing Or Deleting Pictures
Reviewing Pictures Image Back Image Forward Button Button • Press the image forward or image back buttons to review the pictures you have taken. • When you are finished reviewing, the camera switches back to normal picture taking mode in a few seconds. - Page 20 Deleting Pictures • If you decide you do not want a picture, locate it by using the image forward or back buttons. • Press the image delete button X . A trash can with a question mark LCD screen. • If you want to delete the picture press the image delete button again. •...
-
Page 21: Transferring Pictures To Your Computer System Requirements
Transferring Pictures to Your Computer System Requirements Operating System ... OS WIN ’98 and up Hardware ... Pentium Class 500 MHz processor or better Hard Drive Space ... 75 MB hard drive space recommended CD ROM ... CD-R Burner for any CD burning Input Port ... -
Page 22: Installing Photoshow Deluxe Software
Installing PhotoShow Note: Your Kid Tough Digital Camera includes PhotoShow ™ manage or edit your digital pictures. If you already have image viewing/editing/managing software installed on your computer, you do not need to use PhotoShow • Insert the PhotoShow Deluxe CD into the CD-ROM drive of your computer. -
Page 23: Connecting Your Camera To Your Computer
Connecting Your Camera to Your Computer • Insert the USB cord (smaller end) into the USB port on your camera. - Page 24 Connecting Your Camera to Your Computer • Insert the larger end of the USB cord into a USB port on your computer, generally marked with this symbol • The camera turns on automatically and USB appears on the LCD screen Note: Do not disconnect the camera or computer while pictures are importing.
-
Page 25: Importing Your Photos
Importing Your Photos Manage Button • Double click the PhotoShow Deluxe shortcut on your desktop to launch the software. ™ • Double click the Manage button. - Page 26 Importing Your Photos Select • Select the Removable Disk (E:) option from the Cameras and Memory Cards menu and the photos on your camera will import (transfer) into the software (on your computer).
- Page 27 Importing Your Photos Select All Check Box Go Button • Click the “select all” button on the top menu to import all photos. Or, to select some, click the checkbox in the lower right corner of the images you want to import. •...
- Page 28 Importing Your Photos Type Album Name Here Type Comments or Keywords Here • Name your album and enter any comment or keywords you’d like. • Your new album will now appear in your list of albums. You can edit, share or watch a slide- show of the pictures in your album.
-
Page 29: Using Photoshow Deluxe
Using PhotoShow • To edit a photo in your album, move the hand tool over the photo you would like to edit. A small menu box “pops up” with six options: Edit Rotate Clockwise Rotate Counter-clockwise • Click edit to make changes to your picture. Deluxe Hand Tool Print... - Page 30 Using PhotoShow Deluxe Help Adjustment Tools • A new window opens with several adjustment tools to change your picture. You can: crop, add text, fix red-eye and more! Hint: For further information and tips on use of these or any features in PhotoShow Deluxe, ™...
-
Page 31: Exiting Photoshow Deluxe
Exiting PhotoShow Deluxe Close Window • To exit PhotoShow Deluxe, click close window X at the top of the window. ™... -
Page 32: Disconnecting Your Camera
Disconnecting Your Camera • To disconnect your camera, click “eject disk” on your computer's task bar. • Select the “USB Mass Storage Device” (your camera) and click “stop.” • Click “OK” to confirm. • A message will appear on your computer screen advising you to remove your device (camera). •... -
Page 33: Using An Optional Sd Card
Using an Optional SD Card Add an optional SD card (not included and sold separately) to store more pictures on your camera. SD Card (not included) • Make sure the camera is turned off. • Loosen the screws in the battery compartment door. - Page 34 Using an Optional SD Card Your Kid Tough Digital Camera has an internal memory that stores approximately 50 pictures. ™ If you’d like to be able to take and store more than 50 pictures, we recommend purchasing and using an SD card (sold separately and not included). Here is the approximate image storage...
-
Page 35: Troubleshooting
Troubleshooting Problem Camera will not take pictures Photos too dark Photos too bright Flash takes too long to recharge Cause Batteries are weak or exhausted Camera is turned off Camera memory or SD card is full of images appears on the LCD screen Flash does not work because batteries are weak or exhausted You are out of the range... - Page 36 Troubleshooting Problem Photos are blurry Can not transfer pictures to the computer Camera is not recognizing SD card (not included, sold separately) Pictures on my camera were gone after changing “AA” (LR6) batteries Cause Lens may be dirty or smudged Camera moved when picture was taken Flash may not have...
-
Page 37: Care
Care • Keep water, sand and dirt off of the camera. • Keep the camera away from direct sunlight and excessive heat. • Wipe the camera with a soft, clean cloth. Do not immerse this toy. • This camera has no consumer serviceable parts. Please do not take this toy apart. •... -
Page 38: Fcc Statement
FCC Statement (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 39: Consumer Information
Call our Consumer Relations Department, toll-free at 1-800-432-5437, 9 AM - 7 PM EST Monday through Friday and 11 AM - 7 PM EST Saturday. Hearing-impaired consumers using TTY/TDD equipment, please call 1-800-382-7470. Write to us at: Fisher-Price Consumer Relations, 636 Girard Avenue, East Aurora, ®... - Page 40 Simple Star , Inc. All rights reserved. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2006 Mattel, Inc. All Rights Reserved. ® and TM designate U.S. trademarks of Mattel, Inc. PRINTED IN CHINA...
