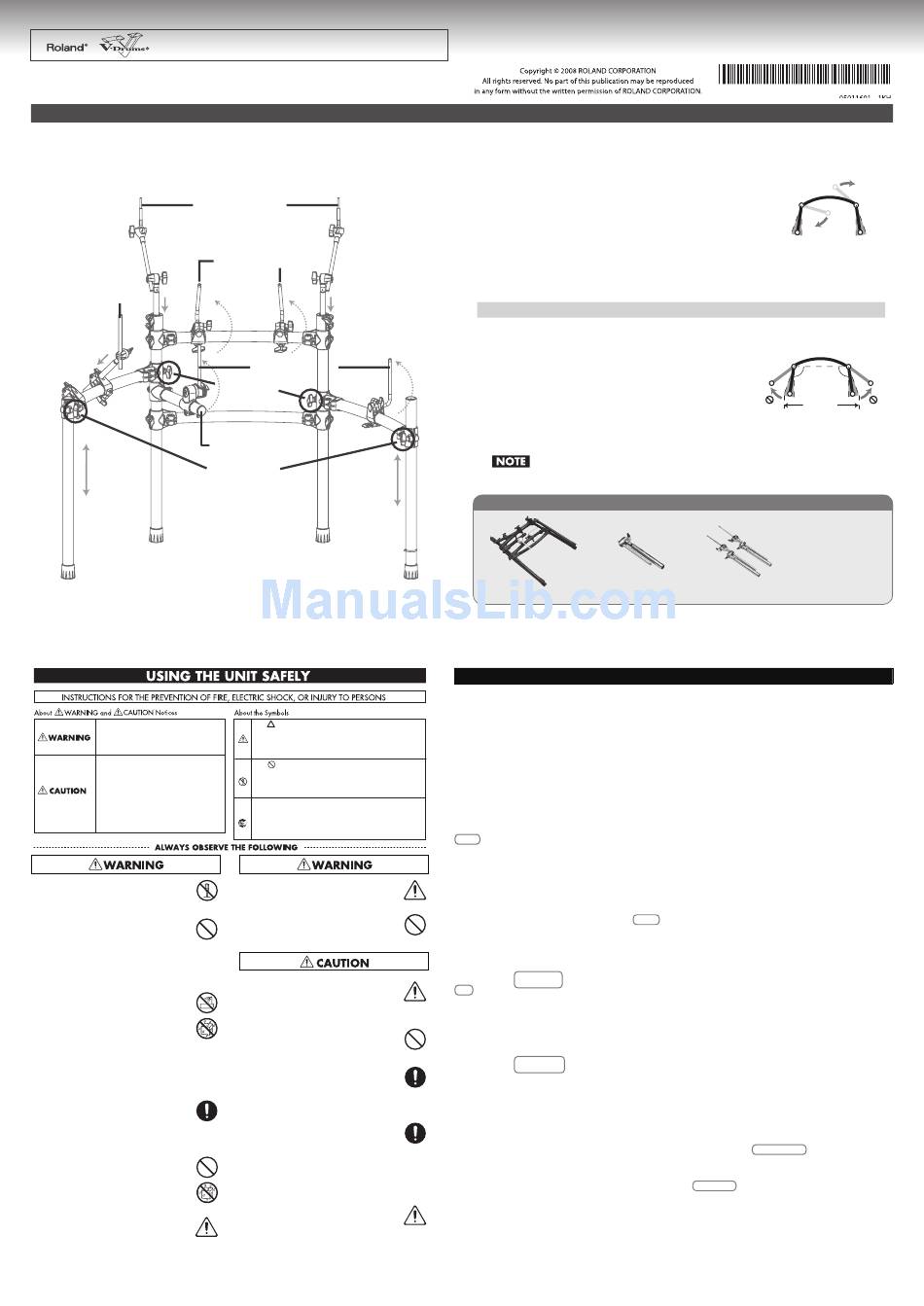

Roland V-Drums MDS-9 Owner's Manual

Drum Stand
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES. " These sections provide important infor-
mation concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided
by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.
How to Set Up the Stand
fi g.1 Fully Assembled View
D : Cymbal Mounts
E : Hi-hat mount
* If the drum stand is to be used for extended periods in the same
location, we recommend using a Roland drum mat (TDM-10/
TDM-20) to prevent discoloration of fl ooring by the rubber feet.
USING THE UNIT SAFELY
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be
improperly.
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic
animals or pets.
002a
• Do not open or perform any internal modifi-
cations on the unit.
..................................................................................................
003
• Do not attempt to repair the unit, or replace
parts within it (except when this manual
provides specific instructions directing you to
do so). Refer all servicing to your retailer, the
nearest Roland Service Center, or an autho-
rized Roland distributor, as listed on the
"Information."
..................................................................................................
004
• Never use or store the unit in places that are:
• Subject to temperature extremes (e.g.,
direct sunlight in an enclosed vehicle,
near a heating duct, on top of heat-gener-
ating equipment); or are
• Damp (e.g., baths, washrooms, on wet
floors); or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
..................................................................................................
007
• Make sure you always have the unit placed
so it is level and sure to remain stable. Never
place it on stands that could wobble, or on
inclined surfaces.
..................................................................................................
011
• Do not allow any objects (e.g., flammable
material, coins, pins); or liquids of any kind
(water, soft drinks, etc.) to penetrate the unit.
..................................................................................................
013
• In households with small children, an adult
should provide supervision until the child is
capable of following all the rules essential for
the safe operation of the unit.
..................................................................................................
MDS-9
Owner's Manual
C : Pad Mounts
C : Pad Mounts
A : Hand Knobs
B : Snare Pipe
F : Hand Knobs
The symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
used
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.
●
The symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the power-
cord plug must be unplugged from the outlet.
• To prevent accidents, never allow small
children to play near the stand.
..................................................................................................
014
• Protect the unit from strong impact.
(Do not drop it!)
..................................................................................................
104
• Try to prevent cords and cables from
becoming entangled. Also, all cords and
cables should be placed so they are out of
the reach of children.
..................................................................................................
106
• Never climb on top of, nor place heavy
objects on the unit.
..................................................................................................
118c
• Keep any screws, washers, bolts, nuts, tuning
bolts, springs, hand knobs you may remove
and the included cable ties in a safe place
out of children's reach, so there is no chance
of them being swallowed accidentally.
..................................................................................................
• Make sure to firmly tighten all clamps and
bolts after you have assembled the stand and
attached a pad or unit to it. You should
probably also try to make a habit of
checking and retightening them if necessary
before every performance. You risk injury if
you have loose screws or clamps, since a
pad or unit can fall unexpectedly.
..................................................................................................
• When setting up or storing the stand, be
careful not to pinch the fingers you use to
handle the stand.
..................................................................................................
1.
Loosen hand knobs "A" (two locations) and spread open the left and
right legs of the stand as shown in the illustration.
2.
Loosen the hand knob of the snare pipe (B), and pull out the snare
pipe toward the side of the performer.
3.
Adjust the pad mounts (C, four locations) as shown in the illustra-
tion.
* The tip of the mount is sharp. Handle it with care.
4.
Attach the cymbal mounts (D, two locations) and hi-hat mount (E) as shown in the illustration.
5.
If the stand wobbles, loosen hand knobs "F" (two locations) and adjust the height.
* Do NOT loosen any bolts other than Hand Knobs except when changing the parts or cables for repairing.
Caution in Setting Up the Stand
* Regarding the way of mounting a Sound Module, Pads, or Cymbals, please
refer to the Owner's Manual supplied with them.
* Do not spread open the stand farther than 135 degrees as shown in the
illustration. Nor should you spread the stand wider than 1.2 meters (48
inches).
When the MDS-9 was shipped from the factory, it was confi gured for a right-handed drummer.
If you wish to make left-handed set up, contact the nearest Roland Service Center, or an authorized
Roland distributor.
• Stand (MDS-9) • Hi-hat mount
* In the interest of product improvement, the specifi cations and/or appearance of this unit are subject to change
without prior notice.

IMPORTANT NOTES

Placement
354a
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise
subject it to temperature extremes. Excessive heat can deform or discolor the unit.
Maintenance
401a
• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove
stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with
a soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.
Additional Precautions
553
• Use a reasonable amount of care when using the hand knobs, pipes, and mounts. Rough handling can lead to be damaged.
