Poulan Pro Pro RT900 Repair Parts Manual
Rear tine tiller
Hide thumbs
Also See for Pro RT900:
- Operator's manual (44 pages) ,
- Repair parts manual (13 pages) ,
- Operator's manual (20 pages)
Advertisement
Quick Links
Download this manual
See also:
Repair Parts Manual
Advertisement
Related Manuals for Poulan Pro Pro RT900
Summary of Contents for Poulan Pro Pro RT900

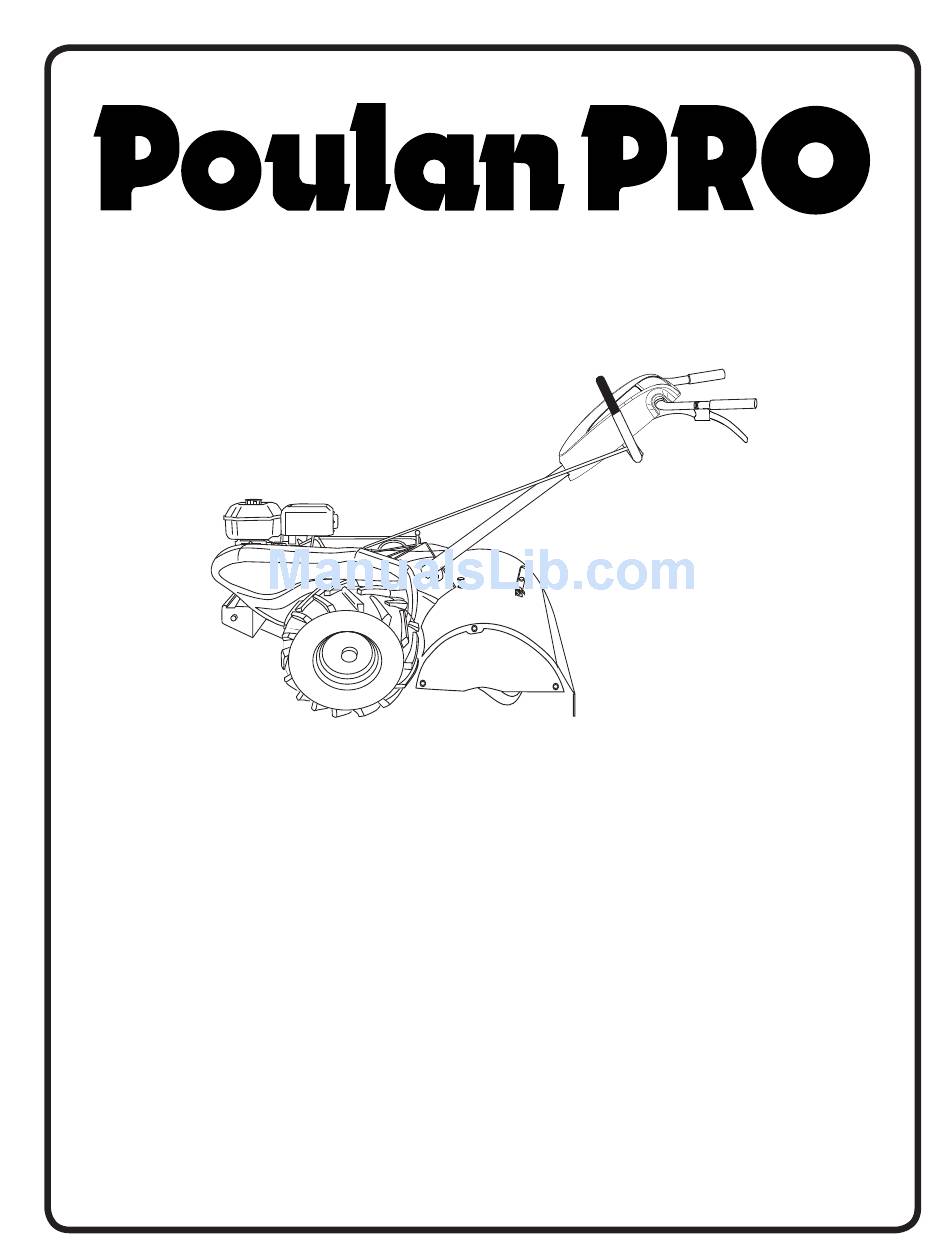

- Page 1 IMPORTANT MANUAL Do Not Throw Away REPAIR PARTS MANUAL MODEL: REAR TINE TILLER ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulanpro.com 10.26.11 SR 532 44 67-83 Printed in U.S.A.
-
Page 2: Repair Parts
REPAIR PARTS TILLER - - MODEL NUMBER RT900, (MFG. ID. NO. 96092002900) HANDLE ASSEMBLY 12 13 handle_assy_105 PART PART DESCRIPTION DESCRIPTION 532 42 76-43 Grip, Handle 532 19 31-29 Handle 532 44 64-65 Panel, Control 873 90 04-00 Nut, Hex Flange 1/4-20 unc 532 12 47-97 Grip, Handle 532 15 06-96 Bolt, Pivot 532 12 47-88 Clip, Hairpin... - Page 3 REPAIR PARTS TILLER - - MODEL NUMBER RT900, (MFG. ID. NO. 96092002900) MAINFRAME, LEFT SIDE mainframe_left_25 KEY PART KEY PART DESCRIPTION DESCRIPTION 873 22 06-00 Nut, Hex 3/8-16 532 13 28-01 Belt, V 532 43 24-20 Shield, Inner Belt Guard RT 532 10 46-79 Pulley, Idler 532 16 43-29 Screw, Shift Lever 812 00 00-32 Ring, Klip...
- Page 4 REPAIR PARTS TILLER - - MODEL NUMBER RT900, (MFG. ID. NO. 96092002900) MAINFRAME, RIGHT SIDE KEY PART KEY PART DESCRIPTION DESCRIPTION 873 97 05-00 Locknut, Hex, Flange 5/16-18 – – – – – – Engine, B&S 12T402-1613-F8 532 10 23-32 Bracket Reinforcement RH (446085)(Order parts from engine 532 10 21-73 Counter Weight, manufacturer.)
- Page 5 REPAIR PARTS TILLER - - MODEL NUMBER RT900, (MFG. ID. NO. 96092002900) TRANSMISSION 13 15 18 32 transmission_24 PART PART DESCRIPTION DESCRIPTION 532 18 85-54 Transmission Assembly 532 14 30-08 Bearing, Shaft, Ground Drive R.H. (In cludes Key Nos. 2-53) 532 10 63-88 Spacer 0.70 x 1.00 x 1.150 532 18 84-82 Gearcase, L.H.
- Page 6 REPAIR PARTS TILLER - - MODEL NUMBER RT900, (MFG. ID. NO. 96092002900) TINE SHIELD PART PART DESCRIPTION DESCRIPTION 873 90 05-00 Nut, Lock Hex Flange 5/16-18 532 00 44-40 Hinge 532 00 83-93 Pin, Stake, Depth 872 14 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5 812 00 00-35 Ring, Klip 532 12 47-17 Cap, Vinyl 532 18 08-47 Bolt, Rdhd Sqnk 5/16-18 x 3/4...
- Page 7 REPAIR PARTS TILLER - - MODEL NUMBER RT900, (MFG. ID. NO. 96092002900) TINE ASSEMBLY PART PART DESCRIPTION DESCRIPTION 532 00 44-59 Tine, Outer, L.H. 532 13 27-22 Assembly, Hub and Plate, R.H. 532 13 26-73 Clevis Pin 532 00 65-55 Tine, Inner, R.H. 873 54 06-00 Nut Crownlock 3/8-24 532 00 65-54 Tine, Inner, L.H.
- Page 8 REPAIR PARTS TILLER - - MODEL NUMBER RT900, (MFG. ID. NO. 96092002900) DECALS PART DESCRIPTION 532 43 22-78 Decal, B&S 900 A/C 532 43 22-25 Decal, Blt Grd 532 11 06-14 Decal, Hand Placement 532 10 21-80 Decal, Shift Indicator 532 42 29-72 Decal, Caution 532 12 00-76 Decal, Warning, Rotating Tines 532 40 91-43 Decal, Engine Tank...
-
Page 9: Service Notes
SERVICE NOTES... -
Page 10: Parts And Service
Model Number/Manufacturer's I.D. Number b. Description of part. For Technical Assistance: call 1-800-829-5886 For a Parts Manual, go to our website: www.poulan-pro.com/support.asp NOTE: HOP provides parts and service through its au thor ized dis tribu tors and dealers; there fore, all requests for parts and service should be directed to your local dealer(s).
