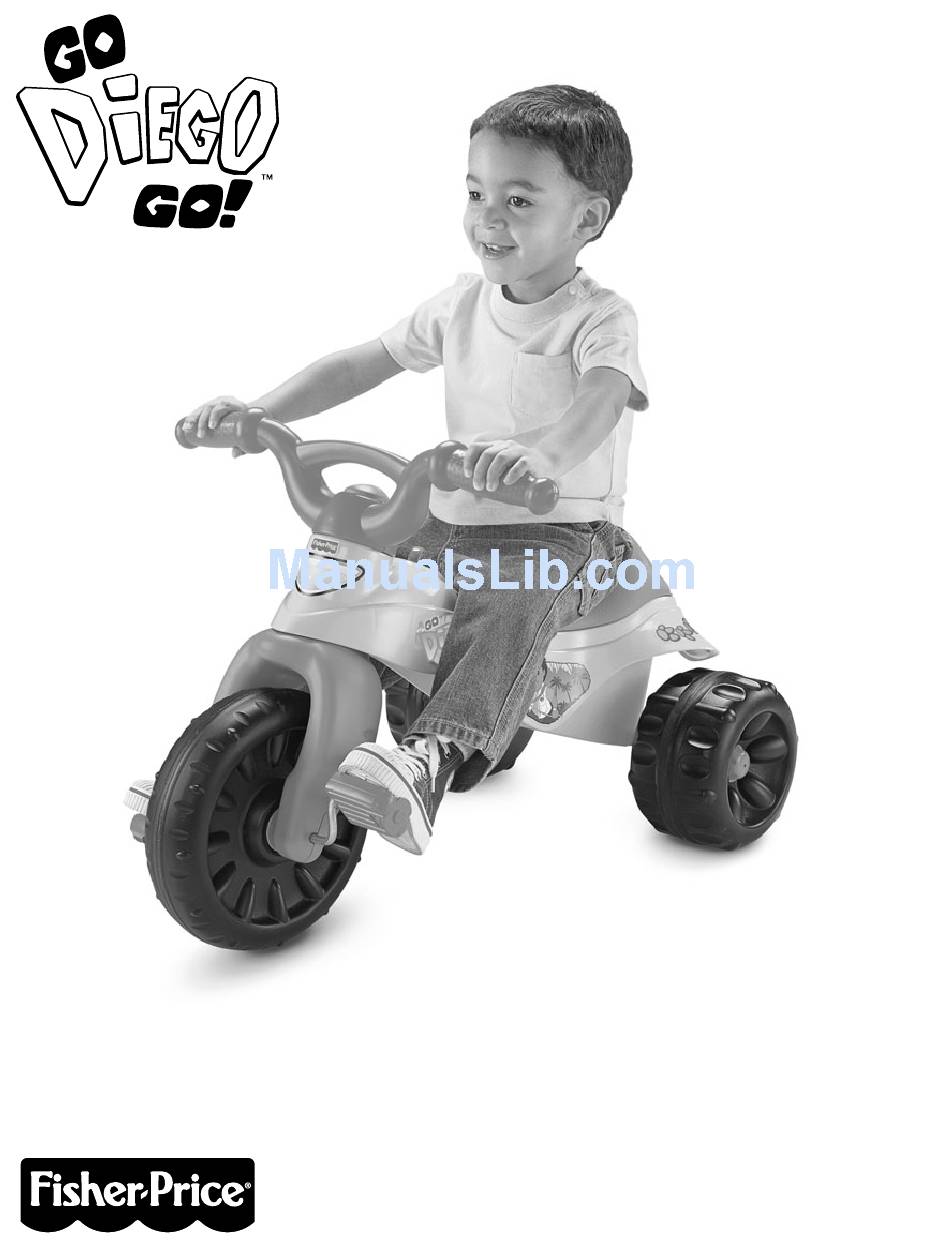

- Page 1 K6673 Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Tools required for assembly: Phillips Screwdriver, Hammer and Scrap Block of Wood (not included). Age: 2-5 years Weight limit: 55 lbs (25 kg). www.fi...
-
Page 2: Consumer Information
WARNING To avoid serious injury: • Adult supervision is required. • Never use near cars and other motor vehicles, near streets, steps, sloped driveways, hills, roadways, alleys, swimming pool areas or other bodies of water. • Always wear shoes or sneakers. •... - Page 3 PUSH Seat • Fit the seat onto the frame. • Push fi rmly near the back end of the seat to "snap" it into place. (Grooved Side Down) Rear Wheel (Indented Side Down) Straight Axle • Place one end of the straight axle into the cap nut. Tap the end of the straight axle with a hammer.
- Page 4 • Fit the cap nut on the end of the straight axle. • Tap the cap nut with a hammer. Gently pull the rear wheel to be sure the cap nut is securely attached to the straight axle. Hint: You may need the help of another adult to hold the other end of the straight axle in place.
-
Page 5: Label Decoration
Assembly Fork Covers • Insert the fork post up through the hole in the neck of the frame. Make sure the fork is positioned so that the fork covers face the rear wheels. Handlebar Front Handlebar Back ¾" Screw 2¼" Screw •... -
Page 6: Consumer Assistance
Viacom International, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2010 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Inc., unless otherwise indicated.
