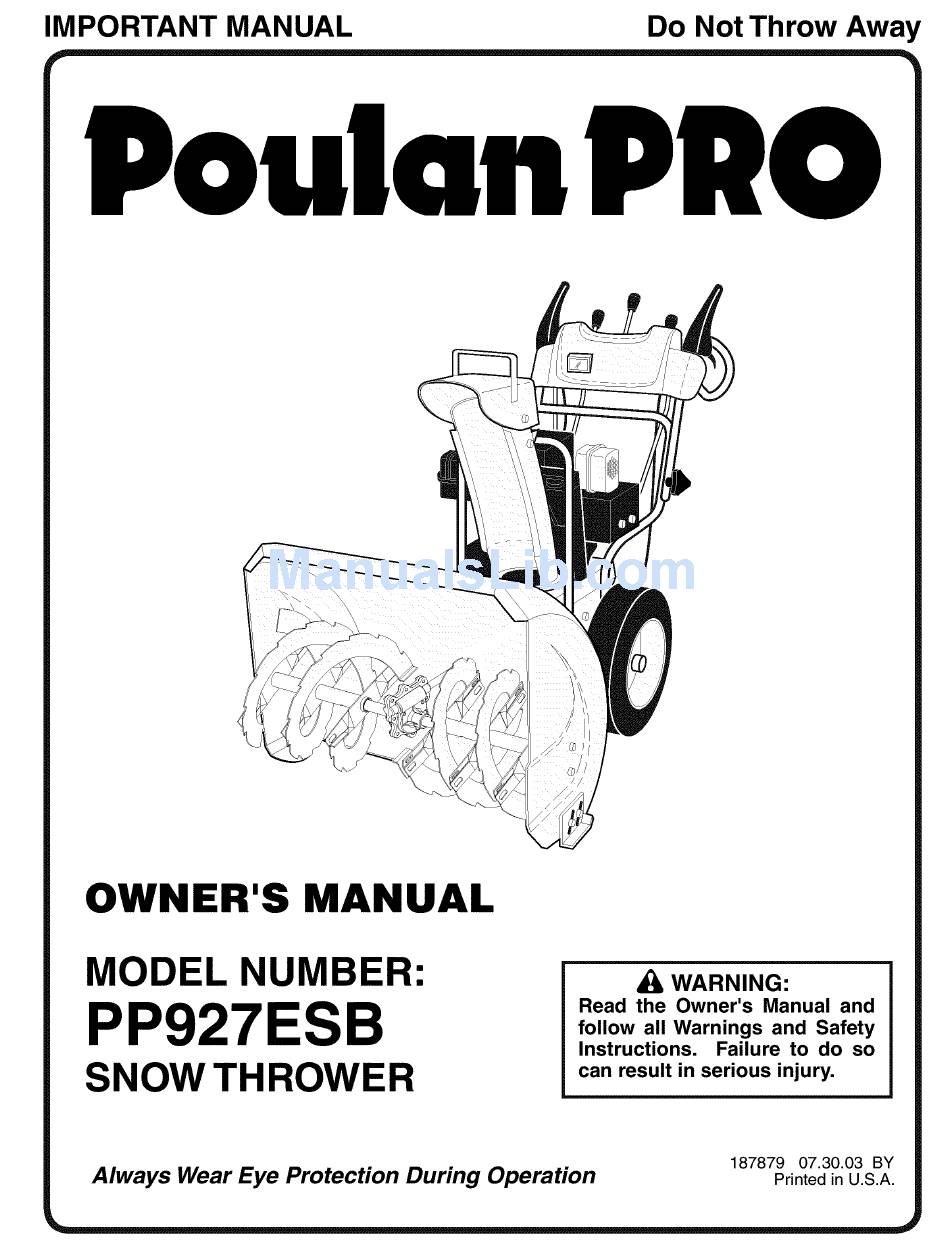

- Page 1 IMPORTANT MANUAL Do Not Throw Away Pou/an OWNER'S MANUAL MODEL NUMBER: _L WARNING: PP927ESB Read the Owner's Manual follow all Warnings and Safety Instructions. Failure to do so SNOW THROWER can result in serious injury. 187879 07.30.03 Always Wear Eye Protection During Operation Printed in U.S.A.
- Page 2 SAFETY RULES Safe Operation Practices for Snow Throwers IMPORTANT: This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. Do not operate the equipment without wearing ade- quate winter outer garments.
-
Page 3: Maintenance And Storage
• Donotputhands orfeetnearor under rotating parts. • Do not overload the machine capacity by attempting Keepclearofthe discharge o pening andfrontauger to clear snow at too fast a rate. areaat alltimes. • Never operate the machine at high transport speeds • Exercise e xtreme caution when operating o nor cross- on slippery surfaces. - Page 4 SAFETY RULES ............MAINTENANCE ............. 14-15 PRODUCT SPECIFICATIONS ........MAINTENANCE SCHEDULE ........CUSTOMER RESPONSIBILITIES ........ SERVICE AND ADJUSTMENTS ......16-18 WARRANTY ..............STORAGE ..............ASSEMBLY / PRE-OPERATION ....... TROUBLESHOOTING ..........OPERATION ............8-13 REPAIR PARTS ............20-31 PARTS PACKED SEPARATELY IN CARTON (3) RETAINER SPRINGS (1) TRACTION DRIVE CONTROL ROD...
-
Page 5: Assembly / Pre-Operation
ASSEMBLY / PRE-OPERATION Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow thrower. Your new snow thrower has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. - Page 6 ASSEMBLY / PRE-OPERATION INSTALL TRACTION DRIVE CONTROL ROD INSTALL AUGER CONTROL ROD (See Figs. 5 and 6) (See Figs. 3 and 4) The auger control rod has the short loop on the end of the spring as shown. The traction drive control rod has the long loop on the end of the spring as shown.
- Page 7 ASSEMBLY / PRE-OPERATION INSTALL CHUTE DEFLECTOR REMOTE CONTROL INSTALL DISCHARGE CHUTE/CHUTE ROTATER HEAD (See Figs. 8 and 9) (See Fig. 7) Install remote cable bracket to discharge chute with NOTE: The multi-wrench provided in your parts bag may 5/16-18 carriage bolt, 5/16 flat washer and 5/16-18 be used to install the chute rotater head.
-
Page 8: Operation
OPERATION KNOW YOUR SNOW THROWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your snow thrower or in literature supplied with the product. - Page 9 OPERATION SPARK ENGINE OIL CAP AUGER DISCHARGE CHUTECONTROLLEVER -WITH DIPSTICK CONTROL SAFETY DEFLECTOR REMOTE LEVER\ DRIVE SPEED IGNITION CONTROL LEVER GASOLINEFILLERcAP NN_NTROL LEVER CHUTE CHOKE DRIVE DEFLECTOR CON- CONTROL LEVER LH TURN TRIGGER THROTTLE / ENGINE CONTROL OIL DRAIN PLUG RECOIL POWER (AUXILIARY)
-
Page 10: How To Use Your Snow Thrower
OPERATION The operation of any snow thrower can result TO USE CHOKE CONTROL (See Fig. 13) in foreign objects thrown into the eyes, which The choke control is located on the engine. Use the choke can result in severe eye damage. Always wear control whenever you are starting a cold engine. - Page 11 OPERATION DISCHARGE CHUTE CAUTION: Do not move speed control lever CONTROL LEVER when traction drive control lever is engaged. Damage to the snow thrower can result. • Slower speeds are for heavier snow and faster speeds are for light snow and transporting the snow thrower. It is recommended that you use a slower speed until you are familiar with the operation of the snow thrower.
-
Page 12: Before Starting The Engine
OPERATION TO ADJUST SKID PLATES (See Fig. 18) NOTE: The wrench provided in your parts bag may be used fuel. Do not store, spill or use gasoline to adjust the skid plates. WARNING: Wipe off any spilled oil or near an open flame. Skid plates are located on each side of the auger housing and adjust the clearance between the scraper bar and the ground surface. -
Page 13: Snow Throwing Tips
OPERATION COLD START- ELECTRIC STARTER ELECTRIC STARTER Insert safety ignition key into the ignition slot until it Connect the power cord to the engine. clicks. DO NOT turn the key. Keep the extra safety Plug the other end of the power cord into a three-hole ignition key in a safe place. -
Page 14: Maintenance
MAINTENANCE MAINTENANCE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE 1 Check for Loose Fasteners Clean / Inspect Snow Thrower Check/Replace V-Belts Lubrication Chart Check Engine Oil Level Change Engine Oil Inspect Muffler Check/Replace Spark Plug Empty Fuel Tank GENERAL RECOMMENDATIONS LUBRICATION CHART... - Page 15 MAINTENANCE V-BELTS TO CHANGE ENGINE OIL Check V-belts for deterioration and wear after every 50 Determine temperature range anticipated before next oil hours of operation and replace if necessary. The belts change. All oil must meet API service classification SF-SJ. are not adjustable.
-
Page 16: Service And Adjustments
SERVICE AND ADJUSTMENTS Disengage all controls and move throttle control to WARNING: To avoid serious injury, STOP position. Wait for all moving parts to stop. before performing any service or ad- Disconnect spark plug wire from spark plug and place justments: it wear it cannot come in contact with spark plug. - Page 17 SERVICE AND ADJUSTMENTS TO REPLACE BELTS (See Fig. 22) The auger and traction drive belts are not adjustable. If the HINT: Insert a 3/8" drive ratchet (in the "ON" position) into belts are damaged or begin to slip from wear, they should the square hole in idler arm and rotate ratchet clockwise be replaced.
- Page 18 TO REMOVE WHEELS (See Fig. 23) NOTE: To seal punctures or prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts • Remove the klik pin and remove wheel from axle. dealer.Tire sealant also prevents tire dry rot and corrosion. IMPORTANT: When installing wheel, be sure to use the axle hole closest to the end of the shaft - do not use the ENGINE...
-
Page 19: Troubleshooting
TROUBLESHOOTING See appropriate section in manual unless directed to a qualified service center. PROBLEM CAUSE CORRECTION Does not start Fuel shut-off valve (if so Turn fuel shut-off valve to OPEN position. equipped) in OFF position. Safety ignition key Insert safety ignition key. is not inserted. - Page 20 REPAIR PARTS SNOW THROWER- MODEL NUMBER PP927ESB AUGER HOUSING / IMPELLER ASSEMBLY 44 27 4321 20 23 24...
- Page 21 REPAIR PARTS SNOW THROWER - MODEL NUMBER PP927ESB AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 53847 Washer, Flat 181083 Pulley, Impeller 175323 Bearing Assembly, Flange 155377 Nut, Hex Flange 5/16-18 180355 Bolt, Flat Head, Carriage 5/16-18 x 5/8 72270505 Bolt, Carriage...
- Page 22 REPAIR PARTS SNOW THROWER- MODEL NUMBER PP927ESB CONTROL PANEL / DISCHARGE CHUTE \.---'\ 11 12...
- Page 23 REPAIR PARTS SNOW THROWER - MODEL NUMBER PP927ESB CONTROL PANEL / DISCHARGE CHUTE PART DESCRIPTION 183334 Knob, Lever Screw #10-24 x 5/8 17501010 179096X479 Control Assembly, Deflector 73800600 Nut, Lock 3/8-16 19131316 Washer, Flat 3/8 178659 Control Assembly, Chute Rotater...
- Page 24 REPAIR PARTS SNOW THROWER- MODEL NUMBER PP927ESB HANDLES...
- Page 25 REPAIR PARTS SNOWTHROWER - MODEL NUMBER PP927ESB HANDLES PART DESCRIPTION 178875X479 Lever, Auger Control, RH 178648X479 Lever, Traction Drive Control, LH 179439 Nut, Cage 1/4-20 178888 Bushing, Flange 169675 Retainer, Hairpin 180402 Screw, Hex Head 1/4-20 x 3/4 178652 Rod, Interlock...
- Page 26 REPAIR PARTS SNOW THROWER- MODEL NUMBER PP927ESB DRIVE .,_-...
- Page 27 REPAIR PARTS SNOWTHROWER - MODEL NUMBER PP927ESB DRIVE PART DESCRIPTION 146315 Screw, Hex Head 5/16-18 x 5/8 73800500 Nut, Lock 5/16-18 155415 Washer, Flat 17490508 Screw, Hex Head 5/16-18 x 1/2 180017 Bearing, Flange 180134 Shaft, Auxiliary 179270 Spacer, Plate...
- Page 28 REPAIR PARTS SNOW THROWER- MODEL NUMBER PP927ESB CHASSIS / ENGINE / PULLEYS...
- Page 29 REPAIR PARTS SNOW THROWER - MODEL NUMBER PP927ESB CHASSIS / ENGINE / PULLEYS KEY PART NO. NO. DESCRIPTION 181044 Spring, Traction Idler 180522 Pulley, Idler (2-1/4) Engine, Tecumseh, Model Number OSHK90 (Order parts from Engine manufacturer) 74780520 Screw, Hex Head 5/16-18 x 1-1/4...
- Page 30 REPAIR PARTS SNOW THROWER- MODEL NUMBER PP927ESB WHEELS / DECALS ¢ 25 24...
- Page 31 REPAIR PARTS SNOWTHROWER - MODEL NUMBER PP927ESB WHEELS / DECALS PART DESCRIPTION 187872 Wheel Assembly, 16", Power Steering, LH 155443 Pin, Klik 1/4 181843 Cover, Power Steering 184471 Shoulder Bolt, Hex Head #10-24 x 1/2 73800500 Nut, Lock 5/16-18 155415...
-
Page 32: Limited Warranty
