MTD 521 Operator's Manual

Gas lawn edger
Hide thumbs Also See for 521:

Advertisement

Available languages

Available languages

Quick Links

Safety • Assembly • Operation • Tips & Techniques • Maintenance
• Troubleshooting • Parts Lists • Warranty
OF
A
O
A
AL

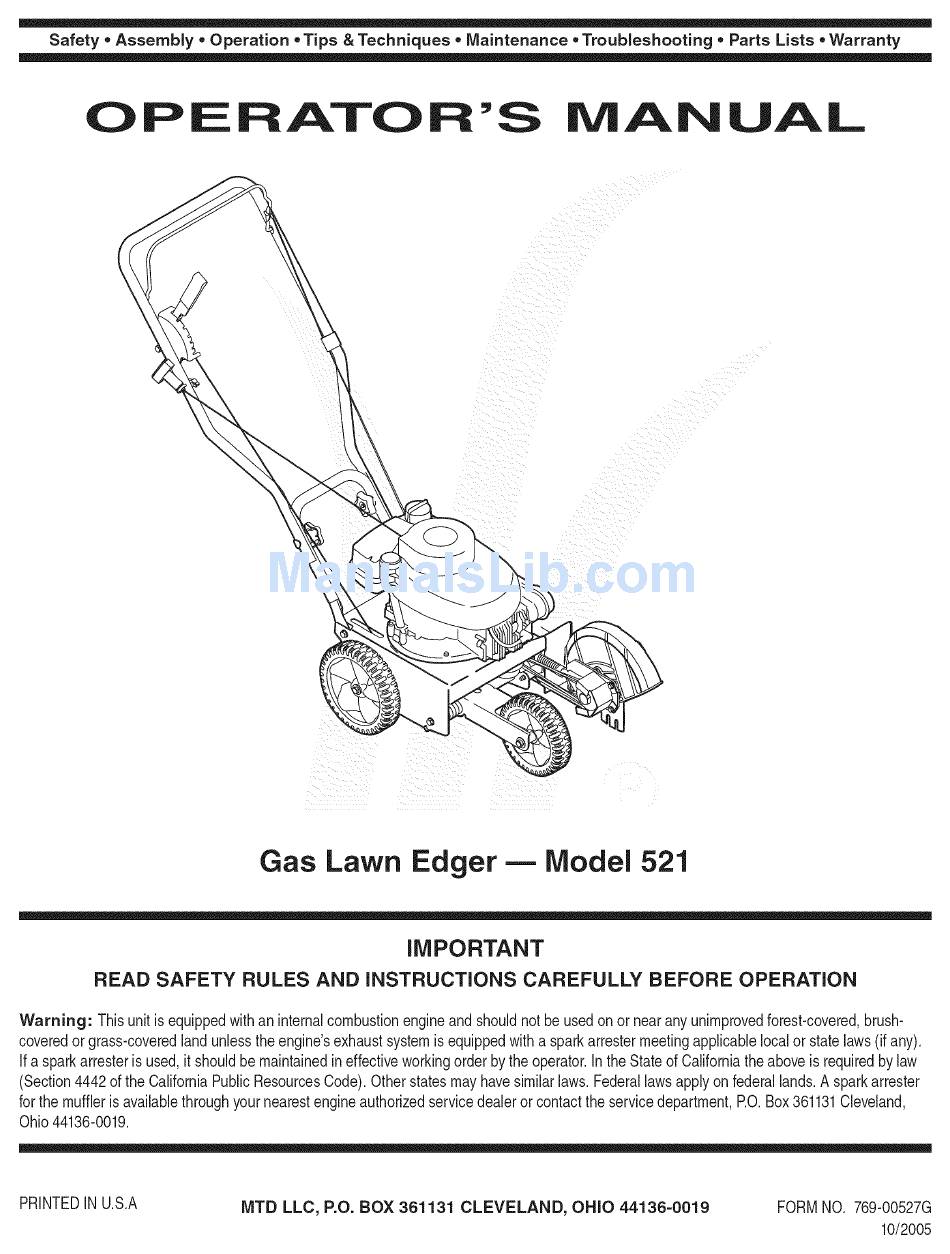

Gas Lawn Edger-
Model 521
iMPORTANT
READ SAFETY
RULES AND iNSTRUCTiONS
CAREFULLY
BEFORE
OPERATION
Warning:
This unit is equippedwithan internal combustionengineand shouldnot be usedon or nearany unimproved forest-covered, b rush-
coveredor grass-covered land unlesstheengine'sexhaustsystemis equippedwith a sparkarrestermeetingapplicablelocalor statelaws(if any).
If a sparkarresteris used,it shouldbe maintainedin effectiveworkingorder by the operator.In theState of Californiathe aboveis requiredbylaw
(Section4442 of the CaliforniaPublicResources Code). Otherstatesmay havesimilarlaws.Federallaws applyon federallands.A sparkarrester
for the muffleris availablethroughyour nearestengineauthorizedservicedealeror contactthe servicedepartment,RO. Box361131 Cleveland,
Ohio 44136-0019.
PRINTEDIN U.S.A
MTD LLC, P.O. BOX 361131 CLEVELAND,
OHIO 44136-0019
FORMNO. 769-00527G
10/2005
