Grizzly H8165 Installation Instructions

Introduction
These noise reduction kits significantly reduce
the noise level of cyclone dust collectors without
causing efficiency loss.
Installation Instructions
The mufflers are best installed in the outlet hose,
as close to the filter as possible. The installation
consists of removing a section of the outlet hose
and installing the muffler in its place. Wire hose
clamps are provided to secure the muffler to the
outlet hose (see Figure 1).
To install the muffler:
1.
Measure the size of the muffler body (see
Figure 2).
2. Using a felt-tip marker, mark a section of
the outlet hose equal in length to the muffler
body. IMPORTANT: Leave at least 4" of out-
let hose between the filter and the muffler.
3. Remove the portion of the outlet hose marked
in Step 2.
4.
Fit the wire hose clamps over the ends of the
outlet hose and slide them back at least 2"
from the opening.
5. Apply the 3 x 15mm foam tape to the top and
bottom rims of the muffler (see Figure 2).
6.
Fit the ends of the outlet hose completely
over the ends of the muffler.
7.
Slide the wire hose clamps down to the end
of the hose near the body, then tighten them
to secure the muffler in place.
COPyRIghT © NOveMbeR, 2006 by gRIzzLy INdUSTRIAL, INC. RevISed NOveMbeR, 2009.
WaRNINg: NO pORTION OF THIS MaNUaL MaY bE REpRODUCED IN aNY SHapE
OR FORM WITHOUT THE WRITTEN appROvaL OF gRIzzLY INDUSTRIaL, INC.
MODEL H8165/66/67/68
NOISE REDUCTION KIT
FOR CYCLONE DUST
If you need help installing the noise reducing kit,
call our Tech Support at: (570) 546-9663.
#TR8803 PRINTed IN TAIWAN
COLLECTORS

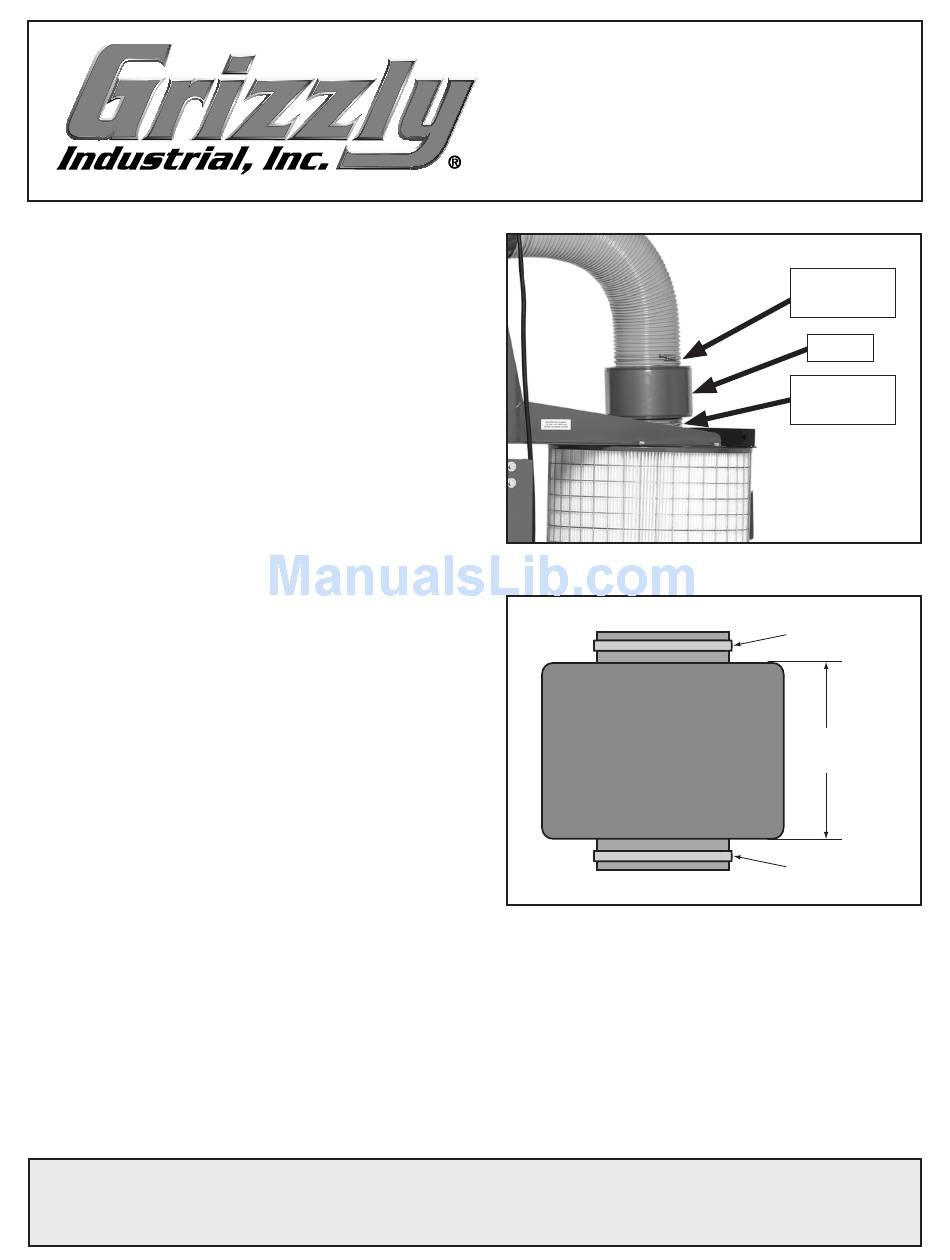

Noise reducing kit installed.
Figure 1.
Size of muffler body.
Figure 2.
Wire hose
Clamp
Muffler
Wire hose
Clamp
Foam
Tape
Muffler
Body
Foam
Tape
