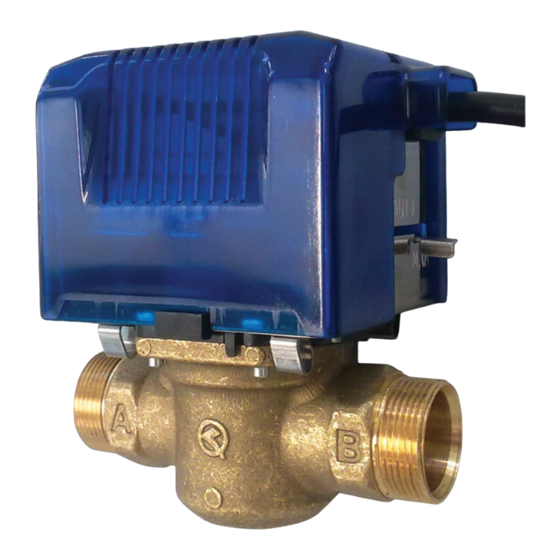

- Page 1 Salus SBMV22 (2 port 22mm) Manual.qxd:Layout 1 9/1/11 10:57 Page 1 2 PORT MOTORISED VALVE (22 mm) Model No SBMV22 Instruction Manual...
- Page 2 Salus SBMV22 (2 port 22mm) Manual.qxd:Layout 1 9/1/11 10:57 Page 2 SBMV22 INSTRUCTION MANUAL...
-
Page 3: Product Compliance
• EC Marking Directive 93/68/EEC SAFETY INFORMATION These instructions are applicable to the Salus Controls model stated on the front cover of this manual only, and must not be used with any other make or model. These instructions are intended to apply in the United Kingdom only, and should be followed along with any other statutory obligations. - Page 4 There are two types of motorised valve used in domestic heating systems: two port (also called zone valves), and three port (also called mid position valves). Salus Controls offers both types of valve in a range of standard port sizes.
-
Page 5: Before Installation
Salus SBMV22 (2 port 22mm) Manual.qxd:Layout 1 9/1/11 10:57 Page 5 INSTALLATION Please read the important safety information at the start of this manual before you begin to install the device. Before Installation This valve must only be installed in compatible systems. Before installing, please check that: •... -
Page 6: Operation
Salus SBMV22 (2 port 22mm) Manual.qxd:Layout 1 9/1/11 10:57 Page 6 OPERATION Two way valves A two way motorised valve has port A normally closed with no power to the valve. When the electrical supply is activated, the actuator motor overcomes the force of the internal spring and opens the valve fully. - Page 7 Salus SBMV22 (2 port 22mm) Manual.qxd:Layout 1 9/1/11 10:57 Page 7 MANUAL LEVER There is a lever on the side of the actuator cover: this lever allows manual operation of the valve, e.g. for refilling and draining of the system or if the actuator fails.
-
Page 8: Maintenance
(please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs should only be carried out by Salus Controls or their appointed agents. -
Page 9: Product Specification
Salus SBMV22 (2 port 22mm) Manual.qxd:Layout 1 9/1/11 10:57 Page 9 PRODUCT SPECIFICATION Model: SBMV22 Type: Motorised valve designed for domestic heating applications. Electrical Switching Voltage: 230V AC / 50Hz Power Consumption: Response Opening: 12 seconds Closing: 5 seconds Differential Pressure... - Page 10 Salus SBMV22 (2 port 22mm) Manual.qxd:Layout 1 9/1/11 10:57 Page 10 Operating Temperatures Min Fluid Temperature: 5 ºC Max Fluid Temperature: 88 ºC Environment Operating Temperature: 0 ºC to + 50 ºC Storage Temperature: - 20 ºC to + 60 ºC...
- Page 11 Salus SBMV22 (2 port 22mm) Manual.qxd:Layout 1 9/1/11 10:57 Page 11 SBMV22 INSTRUCTION MANUAL...
