Pro Flight Rudder Pedals
USER MANUAL
GETTING STARTED
Introduction

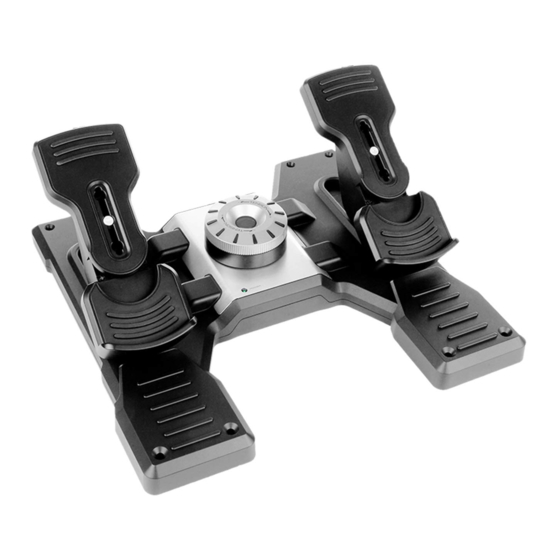

The Saitek Pro Flight Rudder Pedals are solid 3-axis rudder pedals designed to maxi mise realism by enabling foot control of the
rudder function in flightsimulation PCGames. The Pro Flight Rudder Pedals work with any Saitek PC Flight Stick, but are designed
specifically to complement the Saitek X52 Flight Control System to enhance flight sim experiences.
Features:
Self-centering pedals with adjustable tension
Silent, smooth action for optimum control and precision
Toe brakes
Tension adjustment - choose resistance to suit the way you fly
Pedals adjust to fit all sizes and include non-slip materials
High quality, solid, construction for long life
Advanced SST Programming
Installation for Users of Windows® XP and Windows XP64
A) Drivers Only For Typical Users
1.
With your computer switched on, close down any programs that are currently running and insert the Saitek Smart
Technology CD into your CD-ROM drive.
2.
When the Introduction Screen appears, click Install Software to continue. If the CD does not run automatically, select Start
from the Windows® Taskbar,then Run and type D:\Setup.exe and click OK - where D:\ is letter of your CD-ROM drive.
3.
When the Welcome screen appears, click Next to continue.
4.
After reading the Disclaimer, select the I accept the terms of the Disclaimer optio n and click Next to continue.
5.
At the Driver Setup screen, if you haven't already done so, plug the USB cable into one of your computer's USB ports and
click on Next.
6.
When the Saitek Controller test screen appears, try out your rudder pedals'controls to show that they are working properly.
When you have finished, click OK
7.
At the Software Setup screen, select Do not install the SST Programming Software and click Next. The Programming
Software can be installed at a laterdate by following instruction (B). below
8.
At the Registration screen, select Check this box to register now and follow the on -screen instructions, or you can choose
to select this option later.
9.
Click on Finish to complete the installation.
B) Drivers and Programming Software For Advanced Users
1 of 5
19/12/2006 16:43

Summary of Contents

  • Page 1

    Introduction The Saitek Pro Flight Rudder Pedals are solid 3-axis rudder pedals designed to maxi mise realism by enabling foot control of the rudder function in flightsimulation PCGames. The Pro Flight Rudder Pedals work with any Saitek PC Flight Stick, but are designed specifically to complement the Saitek X52 Flight Control System to enhance flight sim experiences.

  • Page 2

    Saitek Magic Mouse, HID-compliant mouse, Sait ek Magic Keyboard and HID Keyboard Device (these are what XPcalls the various elements of your Saitek controller). Con tinue to click on Next and Finish to accept the installation until the Registration screen appears.

  • Page 3

    Despite a level of sophistication previously unseen in the m arket, and because of the Saitek Smart Technology inside, the software remains simple and intuitive to use. For a complete guide on h ow to program your Saitek controller, visit the Saitek website at www.saitek.com.

  • Page 4

    Click on apply when this is set Note - When using the in game test page the Saitek Pro Flight Rudder Pedals will no t respond unless they are the only controller plugged in - the ingame controller test screen only responds to the first controlle r to be plugged in.

  • Page 5

    To find your local Saitek Technical Support Center , please see the separate Technical Support C enter sheet that came packaged with this product.
