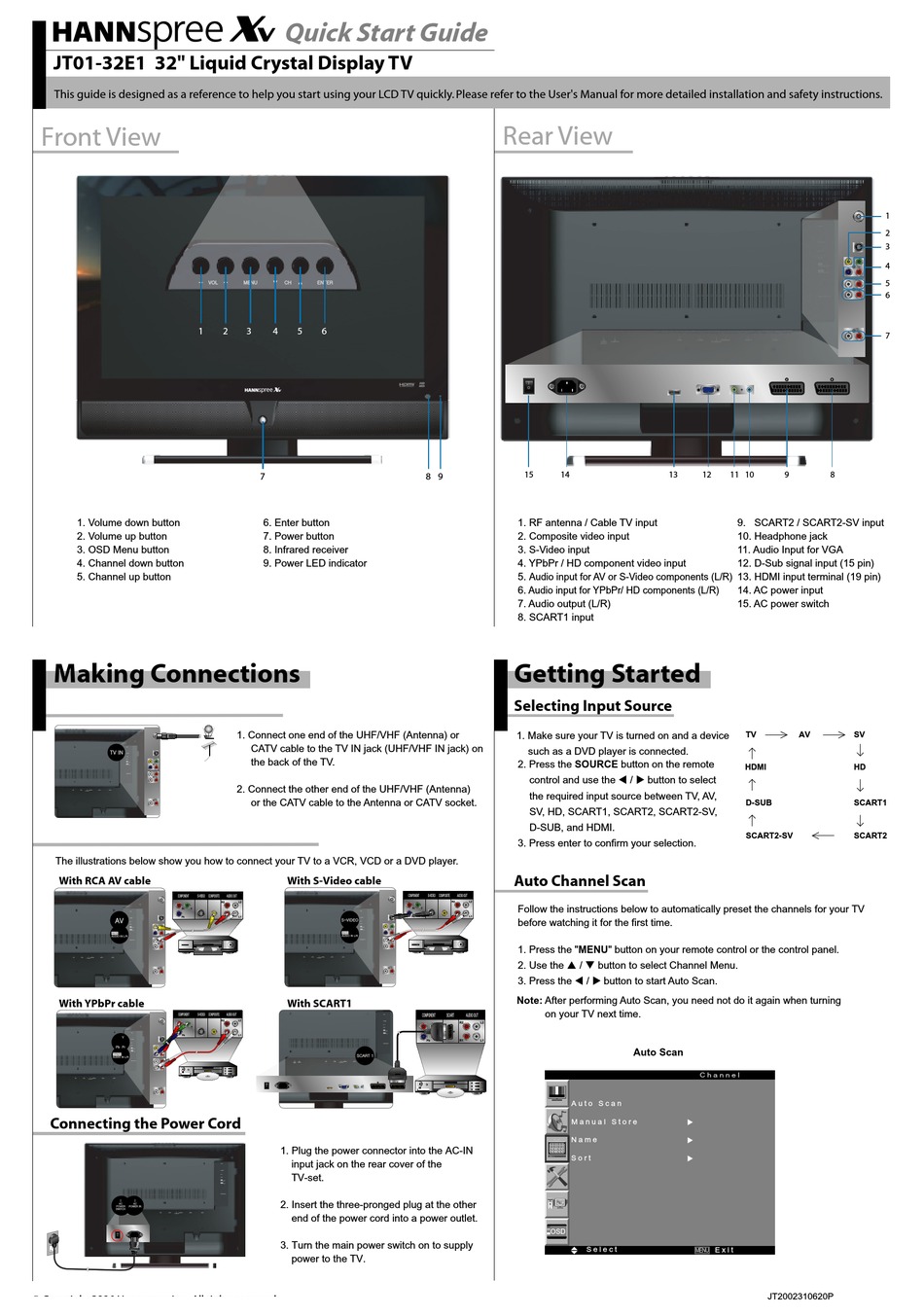

JT01-32E1 32" Liquid Crystal Display TV
This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.
Front View
Front View
1
1. Volume down button
2. Volume up button
3. OSD Menu button
4. Channel down button
5. Channel up button
Making Connections
The illustrations below show you how to connect your TV to a VCR, VCD or a DVD player.
With RCA AV cable
With YPbPr cable
Connecting the Power Cord
© Copyright 2006 Hannspree, Inc. All rights reserved.
Quick Start Guide
2
3
4
5
6
7
6. Enter button
7. Power button
8. Infrared receiver
9. Power LED indicator
1. Connect one end of the UHF/VHF (Antenna) or
CATV cable to the TV IN jack (UHF/VHF IN jack) on
the back of the TV.
2. Connect the other end of the UHF/VHF (Antenna)
or the CATV cable to the Antenna or CATV socket.
With S-Video cable
With SCART1
1. Plug the power connector into the AC-IN
input jack on the rear cover of the
TV-set.
2. Insert the three-pronged plug at the other
end of the power cord into a power outlet.
3. Turn the main power switch on to supply
power to the TV.
Rear View
Rear View
15
14
8
9
1. RF antenna / Cable TV input
2. Composite video input
3. S-Video input
4. YPbPr / HD component video input
5. Audio input for AV or S-Video components (L/R)
6. Audio input for YPbPr/ HD components (L/R)
7. Audio output (L/R)
8. SCART1 input
Getting Started
Selecting Input Source
1. Make sure your TV is turned on and a device
such as a DVD player is connected.
2. Press the SOURCE button on the remote
control and use the t / u button to select
the required input source between TV, AV,
SV, HD, SCART1, SCART2, SCART2-SV,
D-SUB, and HDMI.
3. Press enter to confirm your selection.
Auto Channel Scan
Follow the instructions below to automatically preset the channels for your TV
before watching it for the first time.
1. Press the "MENU" button on your remote control or the control panel.
2. Use the p / q button to select Channel Menu.
3. Press the t / u button to start Auto Scan.
Note: After performing Auto Scan, you need not do it again when turning
on your TV next time.
A u t o S c a n
M a n u a l S t o r e
N a m e
S o r t
OSD
S e l e c t
13
12
11
10
9
9. SCART2 / SCART2-SV input
10. Headphone jack
11. Audio Input for VGA
12. D-Sub signal input (15 pin)
13. HDMI input terminal (19 pin)
14. AC power input
15. AC power switch
TV
AV
HDMI
D-SUB
SCART2-SV
Auto Scan
C h a n n e l
E x i t
MENU
JT2002310620P
1
2
3
4
5
6
7
8
SV
HD
SCART1
SCART2
