Configuring Skype for Business using
Grandstream CPE Devices
Thank you for your interest in configuring Grandstream's SIP devices for Skype's SIP
Trunking Service. This document describes the basic configuration needed to begin using
Skype for SIP Service with Grandstream's GXW400x Analog Gateway Series and GXE502x
Series IP PBX.

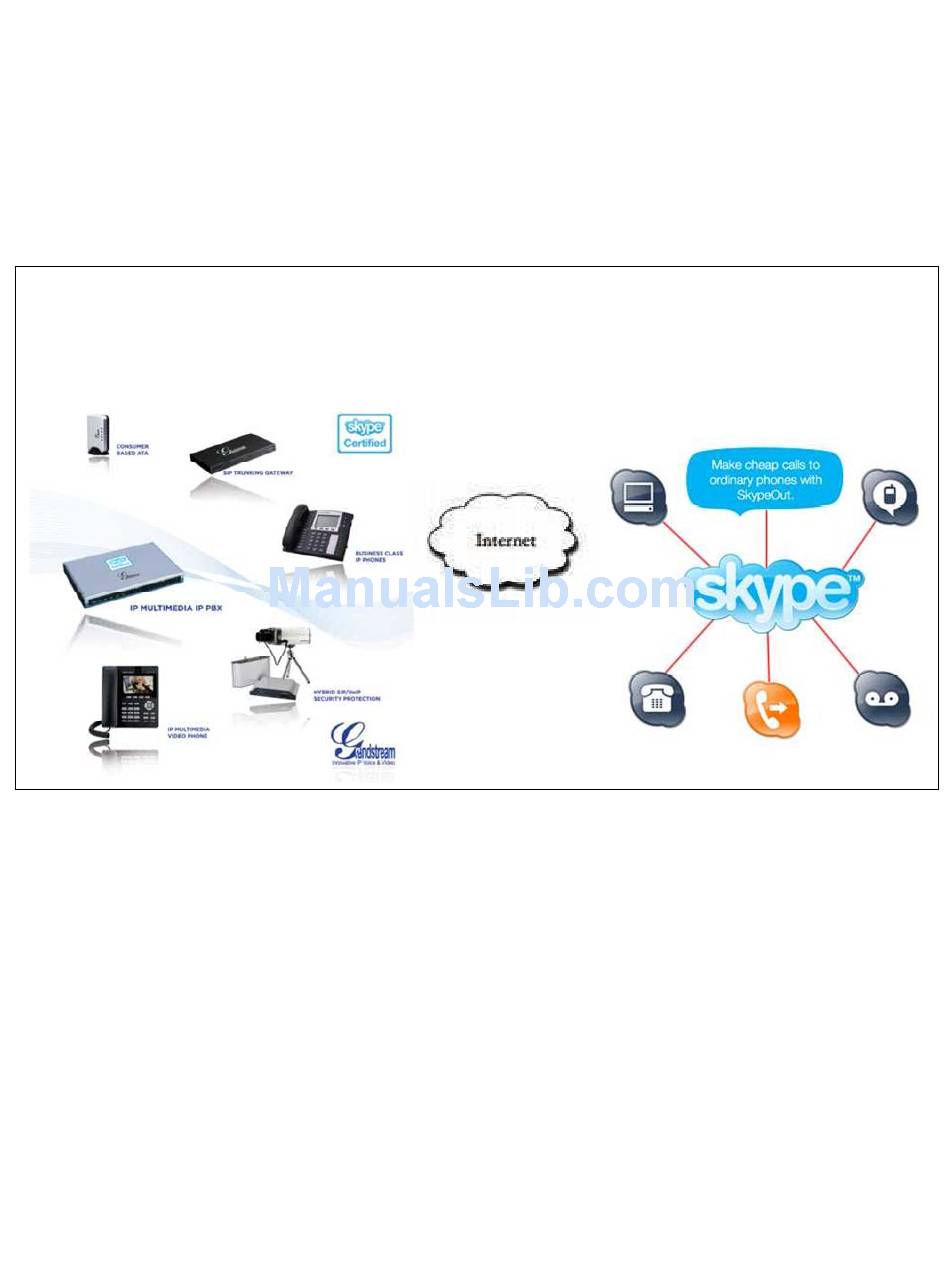

Configuration BCP Skype for Business
Grandstream Network
Skype Connect Network
Advertisement
Related Manuals for Grandstream Networks Skype
Summary of Contents for Grandstream Networks Skype
- Page 1 Configuring Skype for Business using Grandstream CPE Devices Thank you for your interest in configuring Grandstream’s SIP devices for Skype’s SIP Trunking Service. This document describes the basic configuration needed to begin using Skype for SIP Service with Grandstream’s GXW400x Analog Gateway Series and GXE502x Series IP PBX.
- Page 2 Skype for SIP with the GXW400x Configuration BCP Skype for Business GXW400x Skype Connect Network Pots Configuring Skype for SIP Trunk 1. Click on ProfileX in the configuration page (Figure 6-1). 2. Fill in the Primary Sip Server with the credentials provided by Skype as shown below. 3.
- Page 3 Figure 6-1 Note: Below we provide a match of what it is obtained from Skype's BCP and the ProfileX and FXS Port pages in the GXW40xx. • SIP User → Sip User ID and Authenticate ID • Password → Password •...
- Page 4 Figure 6-2 The Profile ID number needs to correspond with the Profile number where you entered the Skype Sip server.
- Page 5 Skype for SIP with the GXE502X Configuration BCP Skype for Business GXE and Multimedia Skype Connect Network Phones Configuring Skype for SIP Trunk 1. Click on Trunk/Phone Lines on the left menu bar and then click on “SIP Trunk” to load the SIP Trunk configuration page (Figure 7-1). 2.
- Page 6 Skype BCP and GXE5024 Web Interfaces (Figure 7-1) 3. To set a limit on the number of calls allowed through this trunk, please set the “Max Concurrent Calls Allowed” field to the limit allowed by Skype provider, or a lower number if you wish. 4.
- Page 7 This may include using a prefix to access the SIP for Skype Trunk, Digit Manipulation for Local Digit Dialing, Permissions and so forth. more information please refer User Manual:http://www.grandstream.com/support/gxe_series/gxe502x/documents/gxe502x_user manual_english.pdf...
-
Page 8: Quick Start Guide
Skype for SIP Quick Start Guide This quick start guide outlines the main steps to set up the open beta version of Skype for SIP. Skype for SIP Beta is set up via Skype’s Business Control Panel (BCP). For detailed information on how to use Skype’s BCP, please refer to the Skype for SIP Business Control Panel User Guide and Skype for SIP IT Guide about implementing and using Skype for SIP. - Page 9 Configure your Skype Enter the number of channels you require and complete the for SIP certified PBX for purchase instructions on screen Outbound Calls (this is the amount of concurrent calls you would like to use with your Skype for SIP Beta product Enter your SIP Profile credentials created and that these channels are in the previous step and configure your...
- Page 10 Associate that Online Number to the SIP Profile you have created. Assign the newly created Business Account in the Calling section to the SIP Profile you created during step 2. Make a test Inbound Call from a landline or mobile phone Call the Online Number from a landline or mobile phone.
- Page 11 Important Information about your SIP enabled PBX configuration Skype for SIP open beta needs to authenticate your requests against the generated SIP User name and password that was created when you set up your SIP profile in the BCP. In your SIP enabled PBX's configuration ensure you have the following: SIP registrations and authentication...
