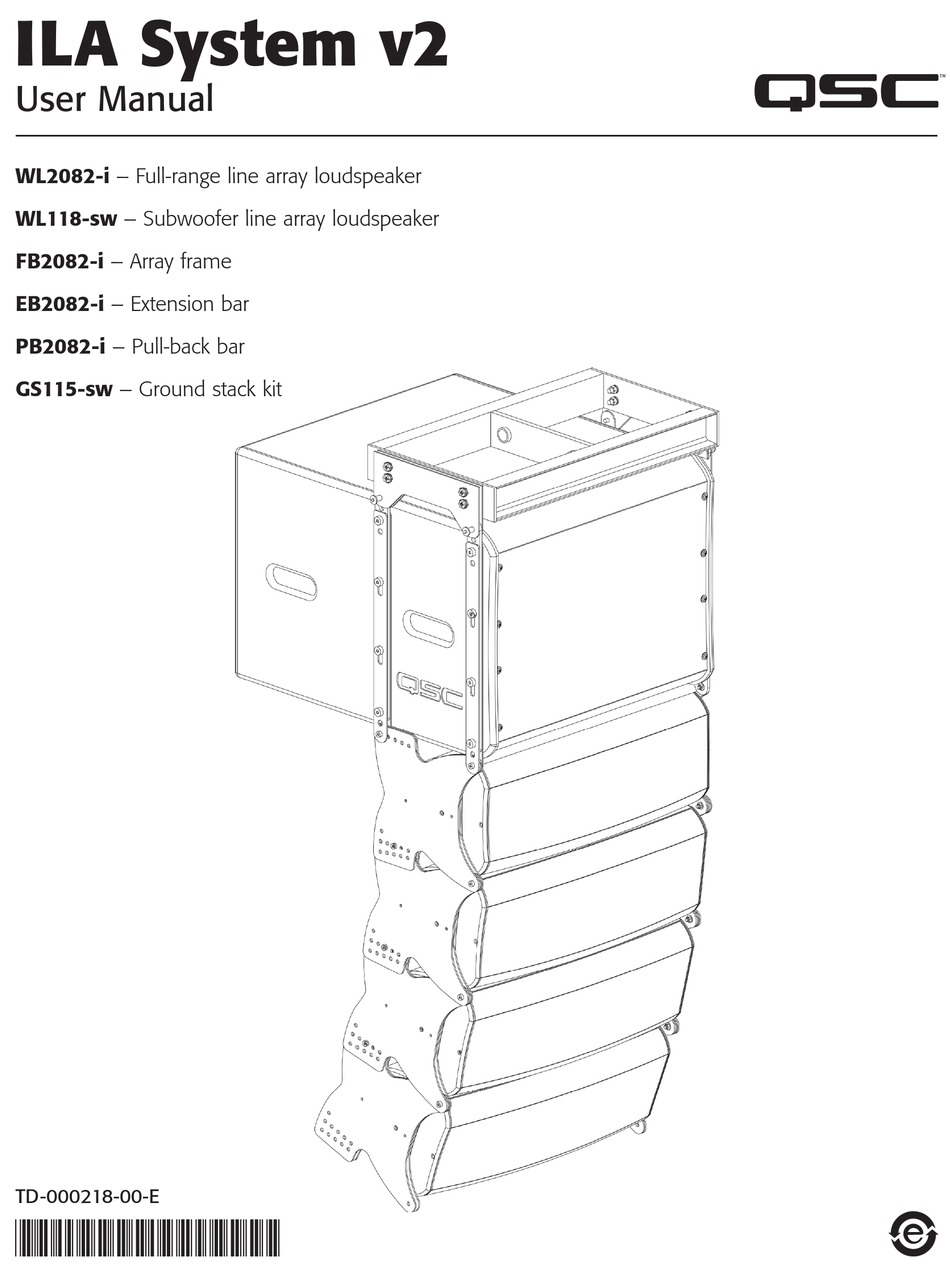

Page 1: User Manual

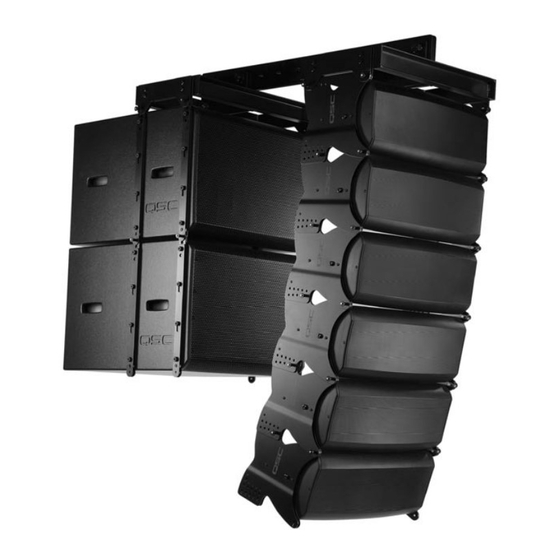

ILA System v2 User Manual WL2082-i – Full-range line array loudspeaker WL118-sw – Subwoofer line array loudspeaker FB2082-i – Array frame EB2082-i – Extension bar PB2082-i – Pull-back bar GS115-sw – Ground stack kit TD-000218-00-E *TD-000218-00*... -
Page 2: Important Safety Precautions And Explanation Of Symbols
Periodically, this warranty is updated. To obtain the most recent version of QSC’s warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com. The QSC limited warranty is valid for a period of three (3) years from date of purchase in the United States and many (but not all) other countries. - Page 3 Excellent high-frequency output and clarity are provided by a pair of 1.75" voice coil, neodymium magnet compression drivers with titanium diaphragms. These drivers are mounted to QSC’s patented* multiple-aperture diffraction waveguide that provides an extremely wide horizontal cover- age of 140º. As a result, systems will rarely require side or center fill speakers and solid stereo imaging is preserved across the listening area.
- Page 4 Introduction (continued) WL118-sw The WL118-sw subwoofer extends the system’s low-frequency capability to 35 Hz. Its ceramic magnet, 4" voice coil, 18" transducer provides 850 watt continuous power handling capability. Many users of line array systems have found that suspending the subwoofers with the array provides audible benefit. Additionally, many venues lack physical space for floor-mounted subs.
- Page 5 Introduction (continued) FB2082-i Array Frame " (20 mm) screw pin anchor shackle) Shackle holes (accept 3/4 Center support bar Rigging plates Rigging plate retaining bolts Rigging plate attachment holes WARNING! Use only shackle holes for suspension of array! PB2082-i Pull-Back Bar Shackle hole (accepts 5/8 "...
- Page 6 Rigging the Installation Line Array Rules for Suspension • Correct use of all suspension hardware and components is imperative in sound system rigging and deployment. • Always calculate suspended loads before lifting to ensure suspension components and hardware are used within their respective load limits. •...
- Page 7 Ensure the notched rigging plate is on the right hand side (the system can only be installed one way. Note the QSC logo on the input plate will be right side up when the enclosure is oriented properly). During assembly, ensure your splay angles are as desired.
-
Page 8: Extension Bar
Attaching the WL118-sw to the Array Frame (Figure 4) All orientation of product is to be as viewed from the rear of the enclosure. The QSC logo on the input plate will appear right side up when the enclosure is oriented properly. - Page 9 Ensure the notched rigging plate is on the right hand side (the system can only be installed one way; the QSC logo on the input plate will appear right side up when the enclosure is oriented properly). During assembly, ensure your splay angles are as desired.
- Page 10 Assemble the array of WL2082-i loudspeakers on the ground using the included mating hardware. Ensure the notched rigging plate is on the right hand side (the system can only be installed one way. Note the QSC logo on the input plate will appear right side up when the enclosure is oriented properly.
-
Page 11: Mode Selection Switch
WL2082-i Controls and Connections MODE Selection Switch (Figure 11) BI AMP: When set to BI AMP, an internal shading network removes the mid frequencies from one of the low-frequency drivers. The BI AMP HORIZONTAL SHADING switch will select which transducer is shaded. TRI AMP: Shading network is NOT applied (shading must be provided by upstream signal processing). - Page 12 WL118-sw Connections Input Connections The WL118-sw input connectors are a pair of Neutrik NL8s wired in parallel for use in a 4-way system. A pair of Neutrik NL4's in Parallel are added for use as a stand alone subwoofer (Table Table 3: WL118-sw Connector Pinout NL8 Connectors NL4 Connectors...
- Page 13 WL2082-i / WL118-sw Specifications WL2082-i WL118-sw Configuration 3-way, bi-amp or tri-amp mode Direct radiating vented box Transducers Dual 50 W, 8Ω 1" exit, 1.75" titanium diaphragm, — High-frequency neodymium magnet assembly 850 W, 8Ω 18" woofer with a 4" voice coil, ceramic Low-frequency Dual 200 W, 16Ω...
- Page 14 WL2082-i Dimensions 13.4" 27.4" (340 mm) (696 mm) 11.9" 10.4" (302 mm) (264 mm) Working Load Limit Information Component Weight 7:1 Design Factor 10:1 Design Factor 12:1 Design Factor WL2082-i Loudspeaker 37 lb (16.8 kg) 889 lb (403.2 kg) 634 lb (288.3 kg) 445 lb (201.8 kg) WL118-sw Dimensions 27.7"...
- Page 15 EB2082-i Specifications Material Aluminum 6061-T6 Finish Black powder coat (White optional) Working Load Limit Information Component Weight 7:1 Design Factor 10:1 Design Factor 12:1 Design Factor EB2082-i Extension Bar 38 lb (17.3 kg) 1714 lb (779.2 kg) 1200 lb (545.5 kg) 1000 lb (454.5 kg) 47.8"...
- Page 16 FB2082-i Specifications Material Aluminum 6061-T6 Finish Black powder coat (White optional) Working Load Limit Information Component Weight 7:1 Design Factor 10:1 Design Factor 12:1 Design Factor FB2082-i Array Frame 17 lb (7.7 kg) 740 lb (336.4 kg) 518 lb (235.5 kg) 432 lb (196.2 kg) 27.4"...
- Page 17 PB2082-i Specifications Material Aluminum 6061-T6 Finish Black powder coat (White optional) Working Load Limit Information Component Weight 7:1 Design Factor 10:1 Design Factor 12:1 Design Factor PB2082-i Pull-Back Bar 6 lb (2.7 kg) 423 lb (192.2 kg) 296 lb (134.5 kg) 247 lb (112.1 kg) 27.5"...
- Page 18 GS115-sw Specifications Material Aluminum 6061-T6 Finish Black powder coat (White optional) Weight 5 lb (2.3 kg) per set 29.0" (737 mm) 3.75" 0.25" (95.3 mm) (6.4 mm) 10.75" 10.75" (273.1 mm) (273.1 mm) 2.0" 2.0" (51 mm) (51 mm) 2.8" (71 mm) 1.5"...
-
Page 19: Mailing Address
© 2009 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and other countries. Speakon and Neutrik are trademarks of Neutrik. All other trademarks are the property of their respective owners. US Pat. 7,177,437. Other patents may apply or be pending. - Page 20 Passionate About Sound...
