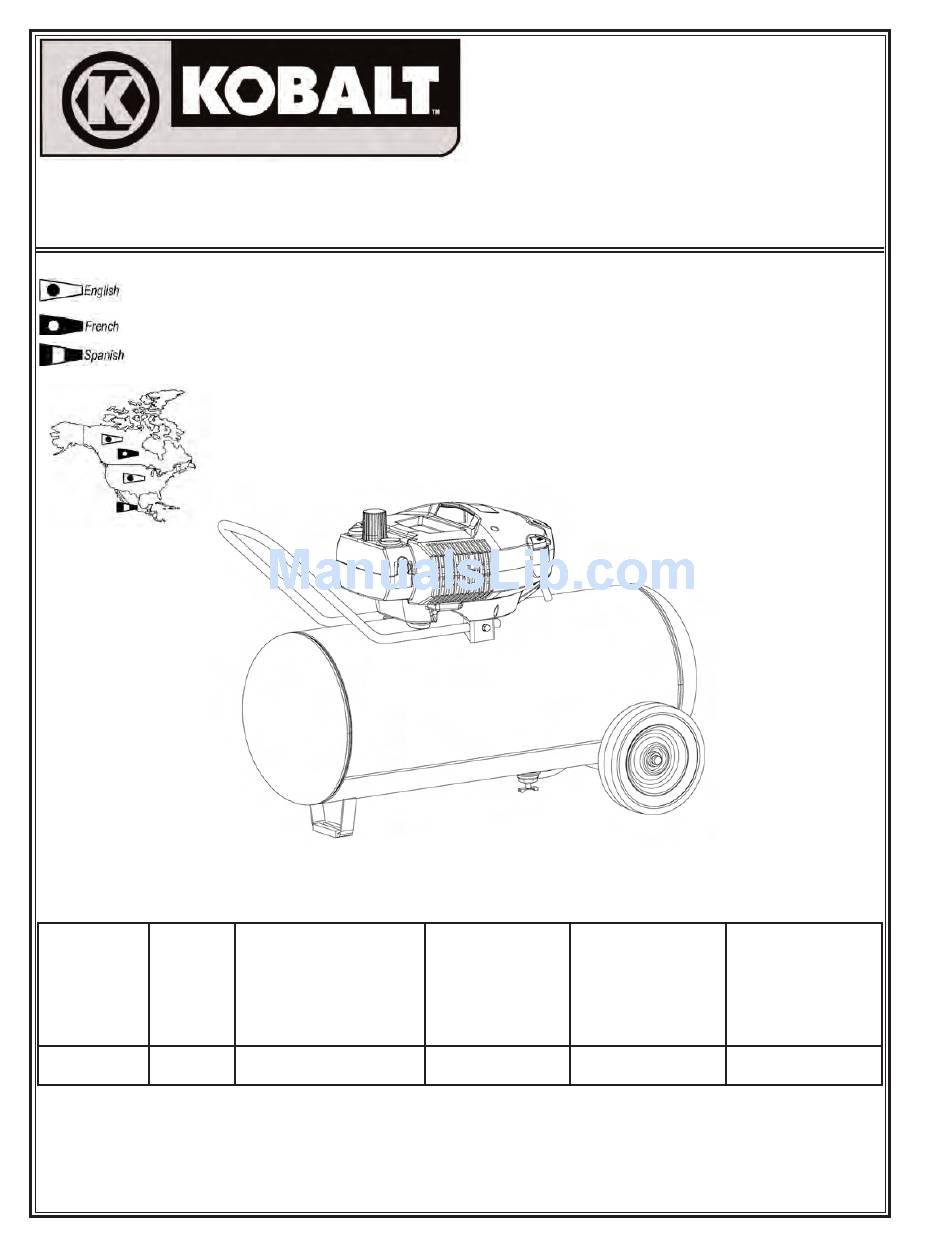

Parts Manual / Manuel de pièces / Manual de piezas
Oilless, Single Stage, Direct Drive, Electric Air Compressor
Sans l'huile, d'un seule étape, à prise directe, compresseur d'air électrique
Sin aciete, de una sola etapa, de mando directo, compresor de aire eléctrico
Specification Chart____Tableau des spécifications___Cuadro de especificaciones
ITEM #
RUNNING
(ARTICLE)
H.P.
(ARTÍCULO)
(CV)
215902
1.3
?
Questions? See back pages.__Questions ? Consultez la pages final.__¿Preguntas? Vea la páginas final.
Printed in U.S.A.
TANK CAPACITY
GALLONS
(CAPACITÉ DU
RÉSERVOIR - LITRES)
(CAPACIDAD DEL
TANQUE - LITROS)
15 (57)
Item # / Article / Artículo
VOLTAGE/
KICK-IN
AMPS/PHASE
PRESSURE
(TENSION/
(PRESSION
AMPS/PHASE)
D'OUVERTURE)
(VOLTAJE
(PRESION DE
AMP/FASE)
CONEXION)
115/15/1
(8,62 bar)
215902
KICK-OUT
PRESSURE
(PRESSION DE
FERM.)
(PRESION DE
DESCONEXION)
125
155
(10,69 bar)
200-2431_ Rev A_12-04
Advertisement
Related Manuals for Kobalt 215902
Summary of Contents for Kobalt 215902
- Page 1 Item # / Article / Artículo 215902 Parts Manual / Manuel de pièces / Manual de piezas Oilless, Single Stage, Direct Drive, Electric Air Compressor Sans l’huile, d’un seule étape, à prise directe, compresseur d’air électrique Sin aciete, de una sola etapa, de mando directo, compresor de aire eléctrico Specification Chart____Tableau des spécifications___Cuadro de especificaciones TANK CAPACITY VOLTAGE/...
- Page 2 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: Torque to 10-15 lb-in. Serrez de 10 À 15 lbs-in. Torsión hasta 1,1-1,7 N•m Torque to 50-75 lb-in. Serrez de 50 À 75 lbs-in. Torsión hasta 5,7-8,5 N•m Torque to 15-35 lb-in.
- Page 3 PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 061-0152 Screw, plastite #10-14 x 1” ..Vis ..........Tornillo 061-0151 Screw, plastite #8-16 x 1/2” ..Vis ..........Tornillo 142-0128 Shroud, top ........Enveloppe .........Guardera 142-0130 Shroud, handle......Enveloppe .........Guardera 059-0313...
- Page 4 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: Torque to 3-5 lbs-in Torque to 125-150 lbs-in Serrez de 3 à 5 lbs-in Serrez de 125 à 150 lbs-in Torsión hasta ,3 - ,6 Nlm Torsión hasta 14,1 - 17,0 N m Note: Tighten compression nut handtight plus 1 full turn.
- Page 5 PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 092-0020 1 Knob ........Molette .........Perilla Pin ...........Broche .........Contacto 055-0078 1 Spring ........Ressort ........Resorte 105-0015 1 Regulator repair kit ....Jeu de pièces de réparation Juego de reparación 032-0056 2 Gauge........Manomètre......Manómetro 041-0055 1...
- Page 6 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS Head Bolt Torque Sequence Sequence #’s 1, 2, 3 & 4 Séquence De Serrage Des Boulons À Tête Séquence De Serrage Des Boulons 1, 2, 3 et 4 Secuencia De Los Pernos Del Cabeza # De Secuencia 1, 2, 3 y 4 Torque to 120-150 lbs-in Serrez de 120 à...
-
Page 7: Parts And Service
PARTS AND SERVICE Replacement parts and service are available from your Attach your sales receipt at bottom right. nearest authorized Service Center. If the need arises, contact Product Service as listed at right. When needing service, please contact the nearest authorized Service Center or call: When consulting with a Service Center or Product Service, refer to the model number and serial number... - Page 8 DO NOT RETURN TO STORE! CALL US FIRST! IMPORTANT - Please Read Thank you for purchasing this product. This compressor was built to meet the highest quality standards and factory tested to assure satisfactory use. If you have any questions which are not addressed in the owner’s manual, or need service information, call us toll free at 1-866-307-4104.
