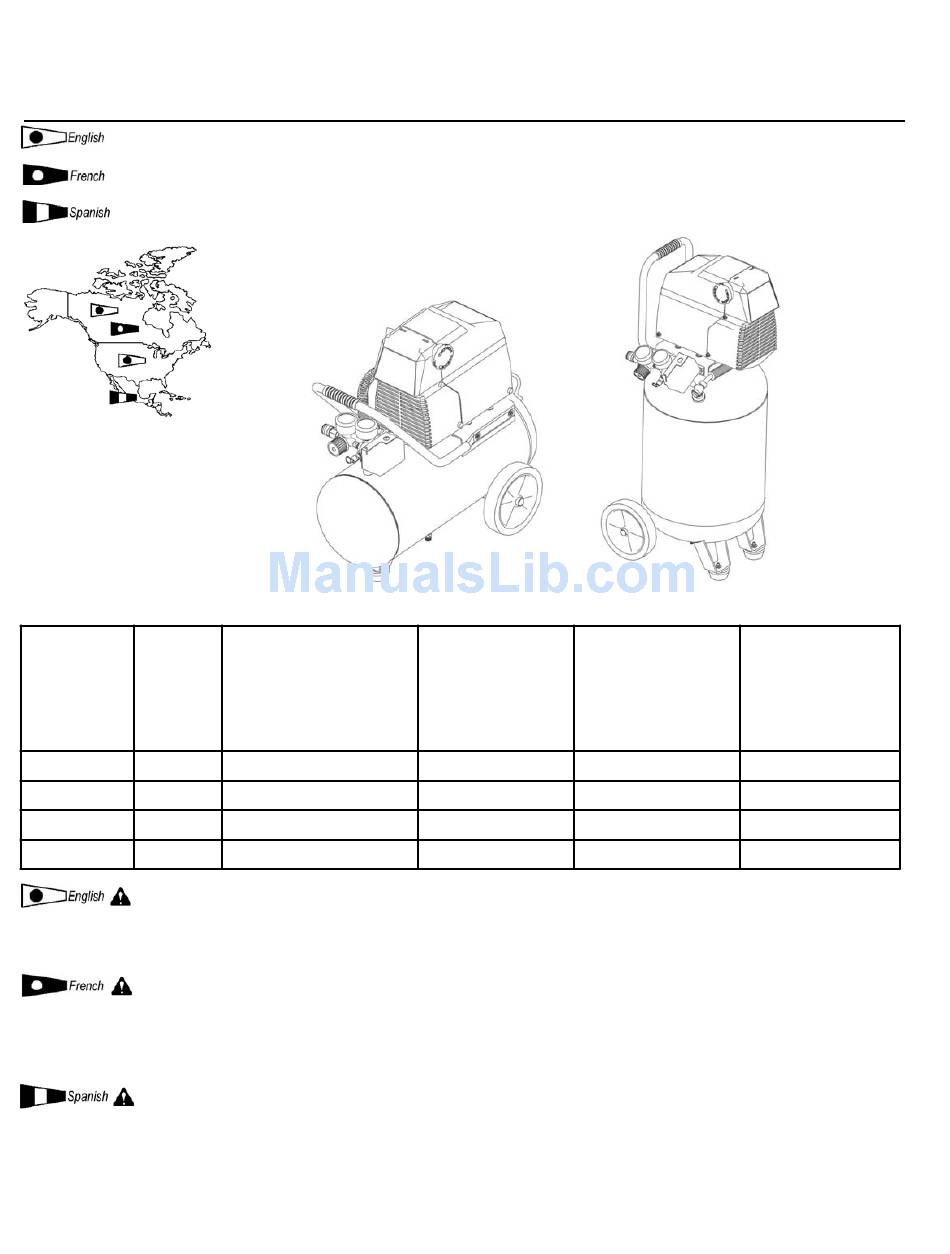

Operator-Parts Manual
Manuel de l'opérateur - Manuel de pièces
Manual del operador - Manual de piezas
Oilless, Single Stage, Direct Drive, Electric Air Compressor
Sans l'huile, d'un seule étape, à prise directe, compresseur d'air électrique
Sin aciete, de una sola etapa, de mando directo, compresor de aire eléctrico
Product style and configuration
may vary.
Le style et la configuration du
produit peuvent varier.
El estilo y la configuración del
producto puede variar.
Specification Chart________Tableau des spécifications_______Cuadro de especificaciones
MODEL NO.
RUNNING
(MODÈLE)
H.P.
(MODELO)
(CV)
VLF1581219
1.5
VLF1582019
1.5
VPF1580719
1.5
VPF1581719
1.5
WARNING: Read and understand all safety precautions in this manual before operating. Failure to comply with
instructions in this manual could result in personal injury, property damage, and/or voiding of your warranty. The
manufacturer WILL NOT be liable for any damage because of failure to follow these instructions.
AVERTISSEMENT : Lisez et veillez à bien comprendre toutes les consignes de sécurité de ce manuel avant
d'utiliser l'appareil. Toute dérogation aux instructions contenues dans ce manuel peut entraîner l'annulation de la
garantie, causer des blessures et/ou des dégâts matériels. Le fabricant NE SAURA être tenu responsable de dommages
résultant de l'inobservation de ces instructions.
ADVERTENCIA: Lea y comprenda todas las precauciones de seguridad contenidas en este manual antes de
utilizar esta unidad. Si no cumple con las instrucciones de este manual podría ocasionar lesiones personales, daños a la
propiedad y/o la anulación de su garantía. El fabricante NO SERÁ responsable de ningún daño por no acatar estas
instrucciones.
?
Questions? See back page._____Questions ? Consultez la page final._____¿Preguntas? Vea la página final.
TANK CAPACITY
GALLONS
(CAPACITÉ DU
RÉSERVOIR - LITRES)
(CAPACIDAD DEL
TANQUE - LITROS)
12 (45,4)
20 (75,7)
7 (26,5)
17 (64,3)
VOLTAGE/
AMPS/PHASE
PRESSURE
(TENSION/
(PRESSION
AMPS/PHASE)
D'OUVERTURE)
(VOLTAJE
(PRESION DE
AMP/FASE)
CONEXION)
120/15/1
95 (6,55 bar)
120/15/1
95 (6,55 bar)
120/15/1
95 (6,55 bar)
120/15/1
95 (6,55 bar)
200-2703
KICK-IN
KICK-OUT
PRESSURE
(PRESSION DE
FERM.)
(PRESION DE
DESCONEXION)
125 (8,62 bar)
125 (8,62 bar)
125 (8,62 bar)
125 (8,62 bar)
200-2703 (E103540)_ Rev A_7-08
E103540
Revision A

Advertisement

Table of Contents
loading

Summary of Contents for Powermate 200-2703 E103540

  • Page 1 Operator-Parts Manual 200-2703 Manuel de l’opérateur - Manuel de pièces E103540 Manual del operador - Manual de piezas Revision A Oilless, Single Stage, Direct Drive, Electric Air Compressor Sans l’huile, d’un seule étape, à prise directe, compresseur d’air électrique Sin aciete, de una sola etapa, de mando directo, compresor de aire eléctrico Product style and configuration may vary.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY GUIDELINES ......3 Checking the Relief Valve ....14 OVERVIEW .
  • Page 3: Safety Guidelines

    SAFETY GUIDELINES The following information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the following symbols. Please read the manual and pay attention to these sections. – A POTENTIAL HAZARD THAT WILL CAUSE SERIOUS INJURY OR LOSS OF LIFE. DANGER: –...
  • Page 4: Consignes De Sécurité

    CONSIGNES DE SÉCURITÉ Les informations suivantes concernent VOTRE SÉCURITÉ et LA PROTECTION DU MATÉRIEL CONTRE LES PANNES. Pour vous aider à identifier la nature de ces informations, nous utilisons les symboles suivants. Veuillez lire le manuel et prêter attention à ces sections. –...
  • Page 5: Pautas De Seguridad

    PAUTAS DE SEGURIDAD La información que sigue se refiere a la protección de SU SEGURIDAD y la PREVENCIÓN DE PROBLEMAS DEL EQUIPO. Como ayuda para reconocer esta información, usamos los siguientes símbolos. Lea por favor el manual y preste atención a estas secciones. PELIGRO: - UN POSIBLE RIESGO QUE CAUSARÁ...
  • Page 6: Overview

    OVERVIEW \ VUE D’ENSEMBLE \ RESUMEN GENERAL BASIC AIR COMPRESSOR COMPONENTS Fig. 1 Oilless air compressors are factory lubricated for life and do not require any oil. The basic components of the air compressor are the electric motor, pump, pressure switch, and tank. The electric motor (see A) powers the pump.
  • Page 7: Assembly

    ASSEMBLY / ASSEMBLAGE / MONTAJE l’humidité du réservoir. ASSEMBLING THE COMPRESSOR Unpack the air compressor. Inspect the unit for damage. If Raccorder le tuyau pneumatique (non inclus) à la sortie du the unit has been damaged in transit, contact the carrier compresseur (voir A).
  • Page 8: Compressor Controls

    COMPRESSOR CONTROLS / COMMANDES DU COMPRESSEUR / CONTROLES DEL COMPRESOR Sortie d’air (voir F) COMPRESSOR CONTROLS Raccorder le tuyau pneumatique à cette sortie. ON/OFF Switch (see A) This switch turns on the compressor. It is operated CONTROLES DEL COMPRESOR manually, but when in the ON position, it allows the compressor to start up or shut down automatically, without warning, upon ON/OFF Interruptor (vea A) air demand.
  • Page 9: Electrical Power Requirements

    ELECTRICAL POWER REQUIREMENTS SPÉCIFICATIONS DE L'ALIMENTATION ÉLECTRIQUE REQUERIMIENTOS DE ALIMENTACIÓN ELÉCTRICA S'il l'utilisation d'une rallonge est inévitable, le cordon ELECTRICAL WIRING électrique ne doit pas dépasser 15 m (50 pi) et doit être d'un Refer to the air compressor’s serial label for the unit’s calibre minimum de 12 (AWG).
  • Page 10: Requerimientos De Alimentación Eléctrica

    REQUERIMIENTOS DE ALIMENTACION ELECTRICA Figura 1 CABLEADO ELÉCTRICO Caja de tomacorriente Consulte el rótulo del número de serie del compresor de aire puesta a tierra para ver los requerimientos de voltaje y amperaje de la unidad. CORDONES PROLONGADORES Tomacorriente puesta NOTA: Evite el uso de cordones prolongadores.
  • Page 11: Operating Instructions

    OPERATING INSTRUCTIONS \ MODE D’EMPLOI \ INSTRUCCIONES OPERATIVAS DAILY STARTUP Turn the ON/OFF switch to the OFF position (see A). Close the tank drain valve (see D). Turn in the clockwise direction. Plug in the power cord. WARNING: High temperatures are generated by the electric motor and the pump.
  • Page 12: Instrucciones Operativas

    INSTRUCCIONES OPERATIVAS ARRANQUE DIARIO Coloque el interruptor ON/OFF en la posición OFF (vea A). Cierre la válvula de desagüe del tanque (vea D). Hágalo girar hacia la derecha. Enchufe el cordón eléctrico. AVERTENCIA: El motor eléctrico y la bomba producen altas temperaturas. Para evitar quemaduras y otras lesiones, NO toque el compresor durante su funcionamiento.
  • Page 13: Maintenance

    MAINTENANCE \ ENTRETIEN \ MANTENIMIENTO El mantenimiento regular asegurará una operación sin MAINTENANCE problemas. Su compresor de aire con alimentación eléctrica representa lo mejor en ingeniería y construcción; sin embargo, WARNING: To avoid personal injury, always shut off and aún la maquinaria de mejor calidad requiere un mantenimiento unplug the compressor and relieve all air pressure from periódico.
  • Page 14: Checking The Relief Valve

    MAINTENANCE \ ENTRETIEN \ MANTENIMIENTO CHECKING THE RELIEF VALVE REVISIÓN DE LA VÁLVULA DE ALIVIO Pull the relief valve daily to ensure that it is operating Tire de la válvula de alivio todos los días para asegurarse de properly and to clear the valve of any possible obstructions. que esté...
  • Page 15: Troubleshooting Chart

    TROUBLESHOOTING CHART Note: Troubleshooting problems may have similar causes and solutions. PROBLEM POSSIBLE CAUSE SOLUTION Tank drain valve is open Low pressure or not Close drain valve enough air Check fittings with soapy water. Tighten or reseal leaking fittings. Fittings Leak DO NOT OVERTIGHTEN.
  • Page 16: Dépannage

    DÉPANNAGE Remarque : Les problémes de dépannage peuvent avoir des causes et des solutions similaires. PROBLÉME CAUSE POSSIBLE SOLUTION La valve de robinet de vidange Soupape de vidange étroite Faible pression ou de réservoir est ouverte manque d'air Vérifier les raccords à l'eau savonneuse. Resserrer ou étanchéifier Fuite des raccords compresseur les raccords.
  • Page 17: Cuadro De Detección De Fallos

    CUADRO DE DETECCIÓN DE FALLOS Nota: Los problemas de detección de fallos pueden tener causas y soluciones similares. CAUSA POSIBLE SOLUCION PROBLEMA Presión baja o insuficiente La válvula de desagüe del tanque está Válvula de desagüe cercana cantidad de aire. abierta o bien Revise las conexiones con agua jabonosa.
  • Page 18: Parts Drawing/List

    PARTS DRAWING \ DESSIN DES PIÈCES \ ESQUEMA DE LA PIEZAS VLF1582019 20 GALLON VERT Item 44 VLF1581219 12 GALLON VERT Item 44 200-2703...
  • Page 19 PARTS LIST \ LISTE DE PIÈCES \ LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Descripton Descripción 142-0229 Shroud, Rear Enveloppe Guardera 040-0420 Motor/Pump Asm Ensemble pompe/moteur Conjunto de bomba/motor Elbow, 90 degree Coude Codo 142-0230 Shroud, Front Enveloppe...
  • Page 20 PARTS DRAWING \ DESSIN DES PIÈCES \ ESQUEMA DE LA PIEZAS VPF1580719 7 GALLON HORIZONTAL Item 43 VPF1581719 17 GALLON HORIZONTAL Item 43 200-2703...
  • Page 21 PARTS LIST \ LISTE DE PIÈCES \ LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Descripton Descripción Air Filter, Cap Chapeau de filtre à air Casquillo del filtro de aire Order item 43 Air Filter, Element Élément de filtre à...
  • Page 22 PARTS DRAWING \ DESSIN DES PIÈCES \ ESQUEMA DE LA PIEZAS PUMP/MOTOR ASSY (F2B2) 040-0420 200-2703...
  • Page 23 PARTS LIST \ LISTE DE PIÈCES \ LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Descripton Descripción Screw, m6 x 1 x 35mm Tornillo Washer, Lock, m6 Rondelle Arandela 042-0130 Head Tête Cabeza 043-0221 Valve plate assembly Ensemble du plaque Conjunto de placa Order item # 17...
  • Page 24: Parts And Service

    PARTS AND SERVICE Replacement parts and service are available from your When needing service, please contact the nearest nearest authorized Service Center. If the need arises, authorized Service Center or call: contact Product Service as listed at right. PRODUCT SERVICE When consulting with a Service Center or Product Service, refer to the model number and serial number located on the serial label of the compressor.
