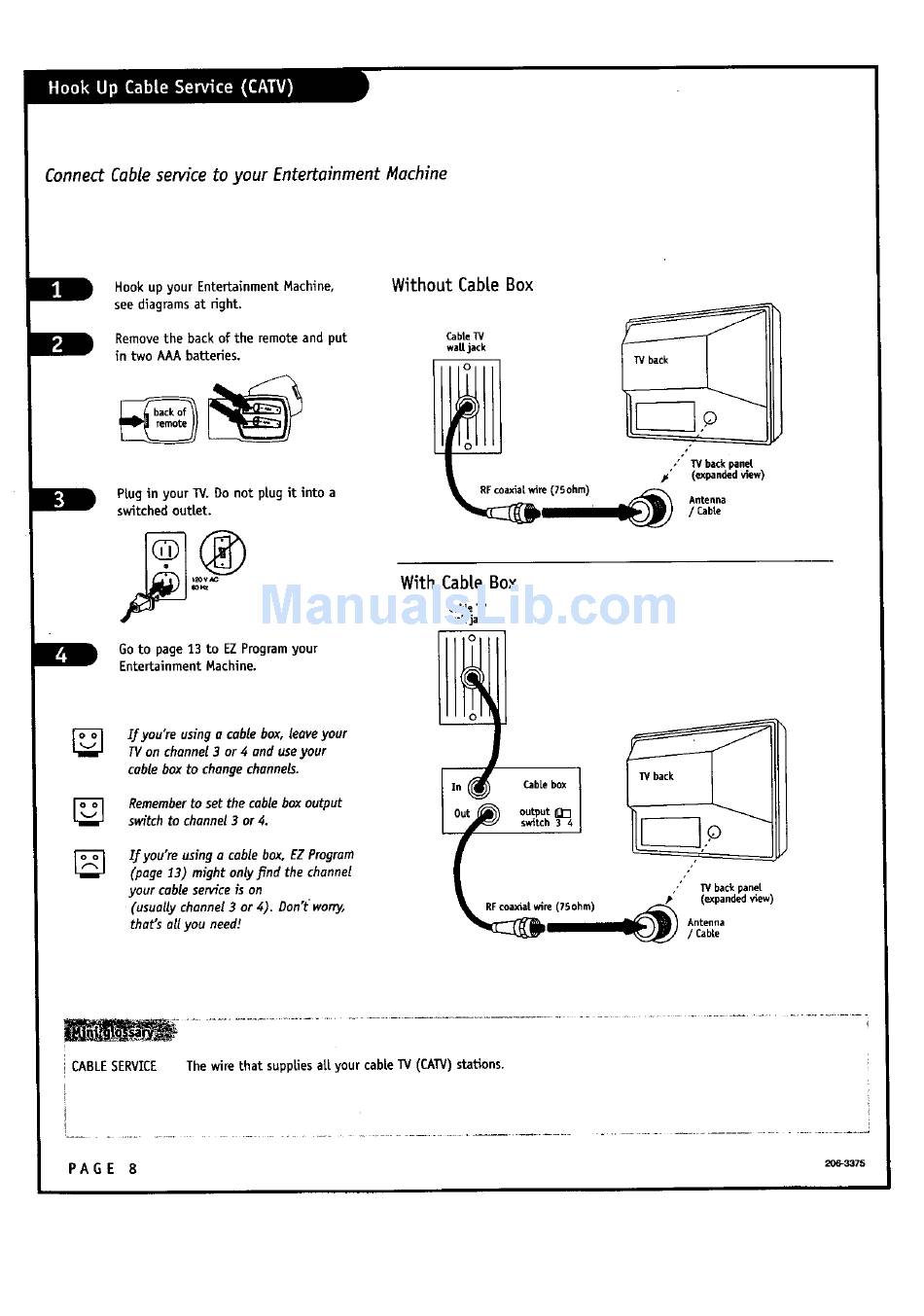

Connect Cable service to your Entertainment Machine
Hook up your Entertainment Hachine,
see diagramsat right.
Removethe back of the remote and put
in two AAA batteries.
Ptug in your W. Do not plug it into a
switchedoutlet.
Go to page 13 to EZ Program your
Entertainment Machine.
Without Cable Box
CableTV
waLL jack
/' W back panel
(expanded view)
Antenna
/ Cable
With Cable Box
Cable TV
watt jack
[]
Ifyou'reusing a cable box,leaveyour
Wan channel3 or 4 and useyoor
cable boxto changechonneb.
Remember t o set the cableboxoutput
switchto channel3 or 4.
If you're usingo cable box, EZProgram
(page 13) might onlyfind the channel
your cable serviceis on
(usually channel 3 or 4). Don't worry,
that's nil you need!
CabLe box
output
switch 3 4 I
i
RFcoaxial wife (75ohm)
• W back panel
(expanded view)
AnteNna
/ Cable
CABLE SERVICE The wire that suppliesaLL yourcable TV(CAW) stations.
PAGE 8 _6-_:,s
