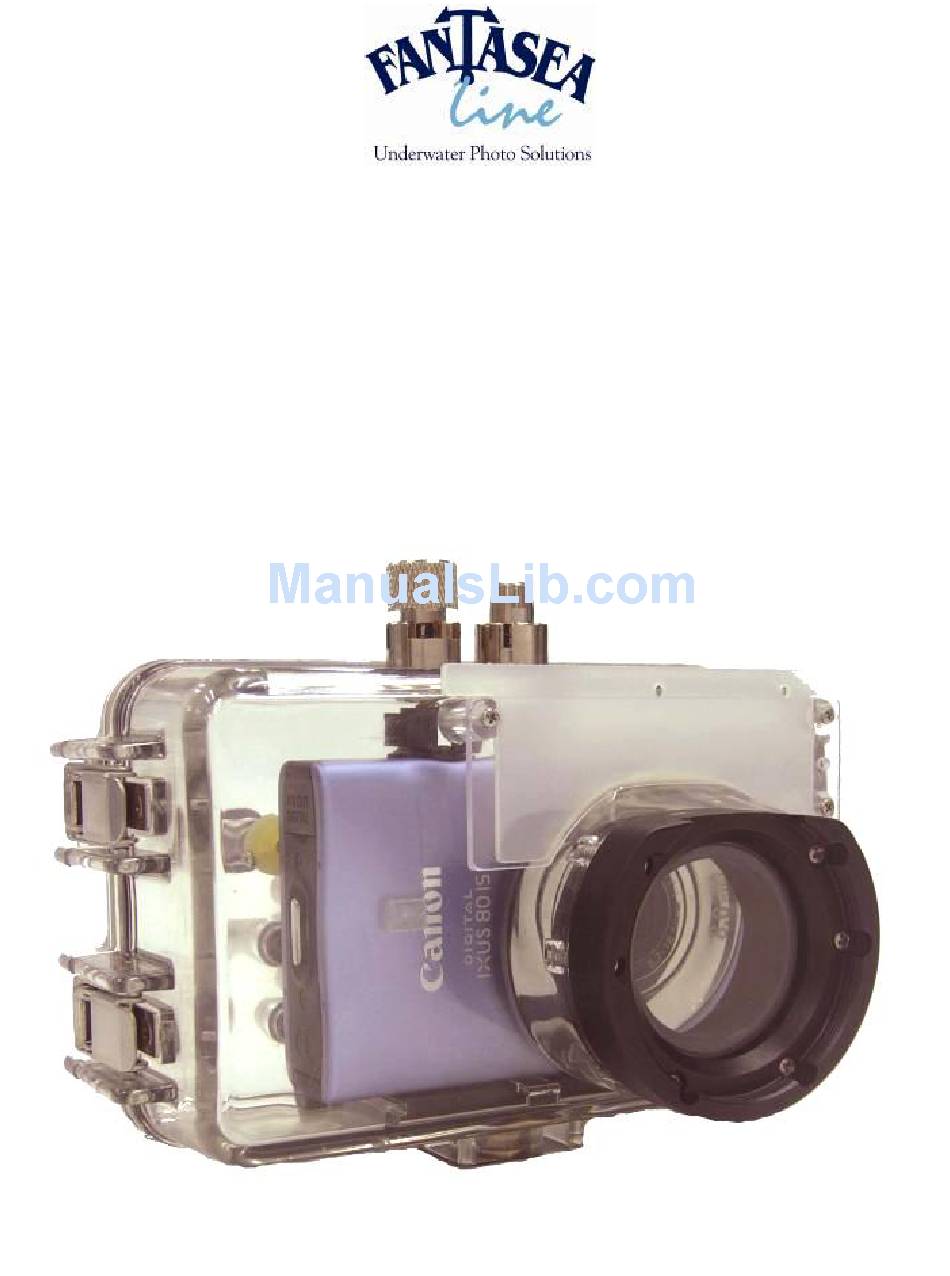

  • Page 1 FSD-770 Housing Operator's Manual For Canon PowerShot SD770 IS / IXUS 85 IS & SD1100 IS / IXUS 80 IS Digital Cameras...

  • Page 2: Table Of Contents

    ......................9 ENERAL ESCRIPTION OF AMERAS SD770 SD1100 F ..............10 ANON OWER EATURE IGHLIGHTS USING THE FANTASEA FSD-770 HOUSING ..................11 ..........................11 PENING THE OUSING ............................11 NSERTING AMERA ..........................12 HECKING THE RING ..........................13 LOSING THE OUSING VIEWING THE SUBJECT ...........................

  • Page 3: General Information

    GENERAL INFORMATION The Fantasea FSD-770 Housing Fantasea has specially designed the FSD-770 housing for the Canon PowerShot SD770 / IXUS 85 IS and SD1100 IS / IXUS 80 IS digital cameras. This housing is ideal for outdoor and underwater photographers who enjoy the camera’s automatic exposure features for capturing fast action pictures easily and creatively.
  • Page 4 Top / Front Side of Housing 2. Power On/Off 1. Shutter Release / Zoom In/Out 3. Removable Flash Diffuser 5. Buckles to Secure Housing 4. Threaded Lens Port Numbered description below refers to corresponding numbers on above graphic. Shutter Release This is a two stage shutter-release button.
  • Page 5 Threaded Lens Port Refer to the section "Inserting Camera" for useful information. Buckles to Secure Housing Refer to the section "Using the Fantasea FSD-770 Housing" on how to open and close the camera housing. Back Side of Housing Buttons 6. Print / Share 7.
  • Page 6 Numbered description below refers to corresponding numbers on the page above. 6. Print / Share  Registering settings to the Print / Share button- You can register a function that you often use when shooting with the Print / Share button: o Press the Menu button.
  • Page 7 9. Flash  Press the Flash button.  Use the multi-selector left/right arrows to choose the desired flash mode (Off, On or Auto), and press FUNC / Set.  Pressing the Menu button when this screen is displayed will allow you to set flash functions such as Slow Sync, Red-Eye Correction and Red-Eye Lamp.
  • Page 8 13. Menu Convenient settings for shooting, playback or printing can be set with these menus.  Press the Menu button.  Use the multi-selector left/right arrows to switch between menus.  Use the multi-selector up/down arrows to select a menu item. ...

  • Page 9: General Description Of Cameras

    GENERAL DESCRIPTION OF CAMERAS The Canon PowerShot SD770 IS and SD1100 IS cameras, known as the IXUS 85 and IXUS 80 IS in Europe, are solid point and shoot tools, combining an 8MP sensor on the SD1100 camera and a 10MP sensor on the SD770 camera, with a 3x zoom lens that lets you view images and menus on a high resolution 2.5 inch screen.

  • Page 10: Canon Powershot Sd770 And Sd1100 Feature Highlights

    CANON POWERSHOT SD770 AND SD1100 FEATURE HIGHLIGHTS Proven optical lens shift VR Image Stabilization Field proven technology originally developed for interchangeable lenses used in Canon SLR camera systems, optical lens shift VR image stabilization provides the ability to shoot at shutter speeds as much as three steps slower without blurring the image, whilst also producing a smoother image when shooting.

  • Page 11: Using The Fantasea Fsd-770 Housing

    1. Release all four latches at the same time, and lift off back half to open housing. INSERTING CAMERA Since the Fantasea FSD-770 is specifically designed for the PowerShot SD770 and SD1100 digital cameras, inserting the camera into the housing is quite simple.

  • Page 12: Checking The O-Ring

    1. It is recommended to make some camera settings prior to inserting camera into the housing. Please refer to the PowerShot owner's manual for menu options and personal Notes: preferences. 2. Take a few test shots: it is recommended to turn the camera "on"...

  • Page 13: Closing The Housing

    CLOSING THE HOUSING 1. Place housing back over front and align the complete mating surface of the housing and the O-ring, forming a proper seal. 2. Position all four latches over latch hooks in ready position. 3. Close one of the bottom latches first, maintaining pressure on the other side. Proceed by closing the other side's top latch.

  • Page 14: Viewing The Subject

    VIEWING THE SUBJECT The SD770 and SD1100 cameras do not have a standard eyepiece, but underwater photographers and outdoor photographers will appreciate the large 2.5 inch LCD viewing monitor for composing photographs. The LCD monitor allows you to see your subject in sharp focus and framed properly. Hold the camera housing in your outstretched arm at a position that is both comfortable and also allows you to easily see the LCD monitor, for best compositional options.

  • Page 15: Battery Life

    BATTERY LIFE Rechargeable Li-ion Battery NB-4L (SD1100)/ NB-5L (SD770) There are certain things that users can do to help with battery life. The most important is to set the camera to turn the LCD off after a short time, during periods of non-use. It can then be automatically turned back on if you depress the shutter release control half way.

  • Page 16: Using The Flash

    USING THE FLASH The PowerShot has a built-in flash, which will illuminate nearby underwater subjects. For subjects that are farther away, an accessory slave flash is recommended (see below). A built-in flash diffuser is supplied which will help achieve a wider and softer light source thereby providing more coverage and less likelihood of backscatter (the unattractive snowstorm affect of the flash reflecting off the suspended particles in the water).

  • Page 17: Lens Accessories

    Below you can see one sample system. For more information please refer to our website or to the Fantasea Dealer where you purchased your housing.

  • Page 18: Shooting Techniques

    SHOOTING TECHNIQUES EXPOSURE MODES (PRE-SET BEFORE CAMERA INSERTION) There are several exposure modes for photographers to choose from, depending on the situation. Underwater, it is recommended that you shoot in the Auto mode on the camera, in which ambient light and artificial light will be automatically controlled by the camera according to the lighting conditions.

  • Page 19: Camera Power Saving

    CAMERA POWER SAVING You can access the camera's menu to select different power saving options. In order to do this, enter the Setup Menu, select Power Saving, activate the “Auto Power Down” function and select the inactivity period before the LCD turns off. It is recommended that the inactivity time selected is quite short, in order to conserve battery power.

  • Page 20: Care & Maintenance

    8. Never dive with the Fantasea FSD-770 housing to a depth greater than 200 ft/60 meters. 9. It is recommended that you select the shortest time option on the menu, for placing the camera into standby during periods of inactivity.
  • Page 21 12. It is recommended to have all Fantasea housings serviced once a year at an authorized Service Center. This includes visual inspection and possible changing of all seals, gaskets and O-rings.
