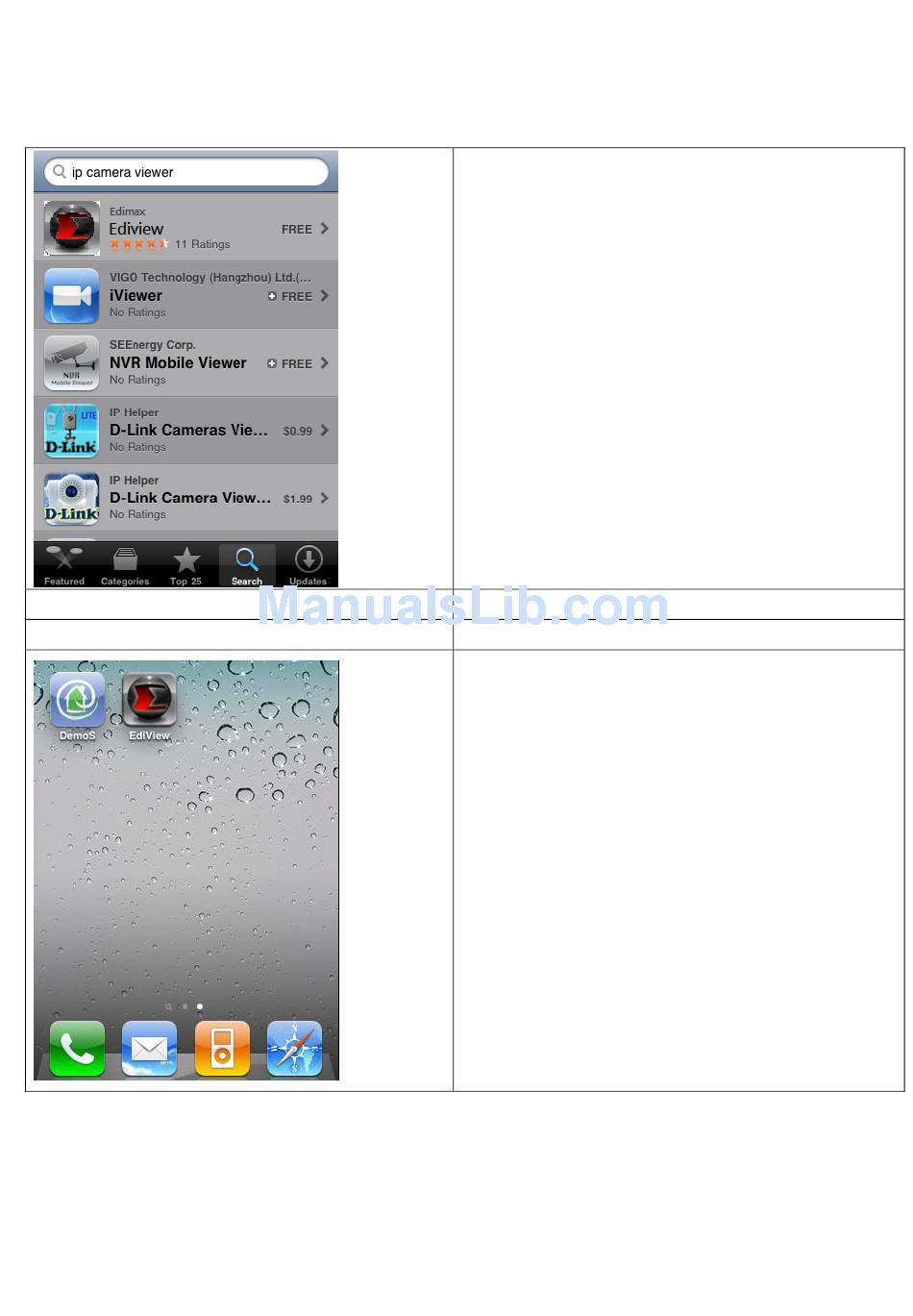

- Page 1 To Install EdiView IP camera utility on iPhone, follow the following instructions: Please download ‘Ediview’ application from Apple’s Appstore. You can launch EdiView by clicking ‘EdiView’ icon. You’ll see welcome screen and please wait for few seconds.
- Page 2 When you launch EdiView, it will attempt to connect to existing configured IP cameras. Please make sure you’re connected to wireless access point if your Edimax IP camera is located on your local area network. If you want search for IP cameras on your local area network, or you want to add an Ediamx IP camera on Internet, please click ‘Cameras’...
- Page 3 You can manage IP cameras in ‘Cameras’ list. To add a new IP camera, click ‘Add New Camera’. EdiView will search for IP camera on your local area network, and list all IP cameras found here. To add an IP camera manually or add an IP camera on Internet, click ‘Add Camera Manually’...
- Page 4 In this page, you can input IP camera’s parameters manually: Camera Type: Switch operating mode between Cloud and IP. In cloud mode you have to input Cloud ID**; In IP mode you have to input IP address or host name of IP camera.
- Page 5 (cont.) You can also setup video parameters of this IP camera: Brightness: Select video brightness (1 to 5, darkest to brightest). Saturation: Select video saturation (1 to 5, lowest to highest). Sharpness: Select video sharpness (1 to 5, lowest to highest).
- Page 6 Click ‘Delete’ button to delete IP camera. Now you can back to ‘Live’ menu, if you see a snapshot appear, it indicates the IP camera is correctly configured. Click snapshot picture to enlarge video view.
- Page 7 If IP camera you connected supports pan/tilt control, you can click the button on the upper-right corner to switch to ‘Gesture’ mode and use your finger to slide on the live image view, and IP camera will move as your finger slides. A white arrow will also appear to indicate the direction of camera movement.
- Page 8 Other Functions – Event To view events (motions detected by IP camera), click ‘Events) button below in IP camera’s live view. All IP cameras will be listed and you can choose one to see its events list. All events of selected IP camera will be listed here. You can click an event to see enlarged photo.
- Page 9 Event’s snapshot and event date / time will be displayed. Click the button with IP camera’s name (upper-left corner) to go back.
- Page 10 Other Functions – Map You can use this function to mark your IP camera on Google map, so you can locate them and remember their physical location easily. Please note that you need active Internet connection to show map on your iPhone. Click ‘Map’...
- Page 11 When you found the location where IP camera is installed, click ‘Locate’ button located at upper-right corner of your iPhone, and a camera list will be shown. Select the IP camera you wish to mark on the map, and click ‘Done’ when done.
