Samsung series 9 950 User Manual

Series 9 950
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

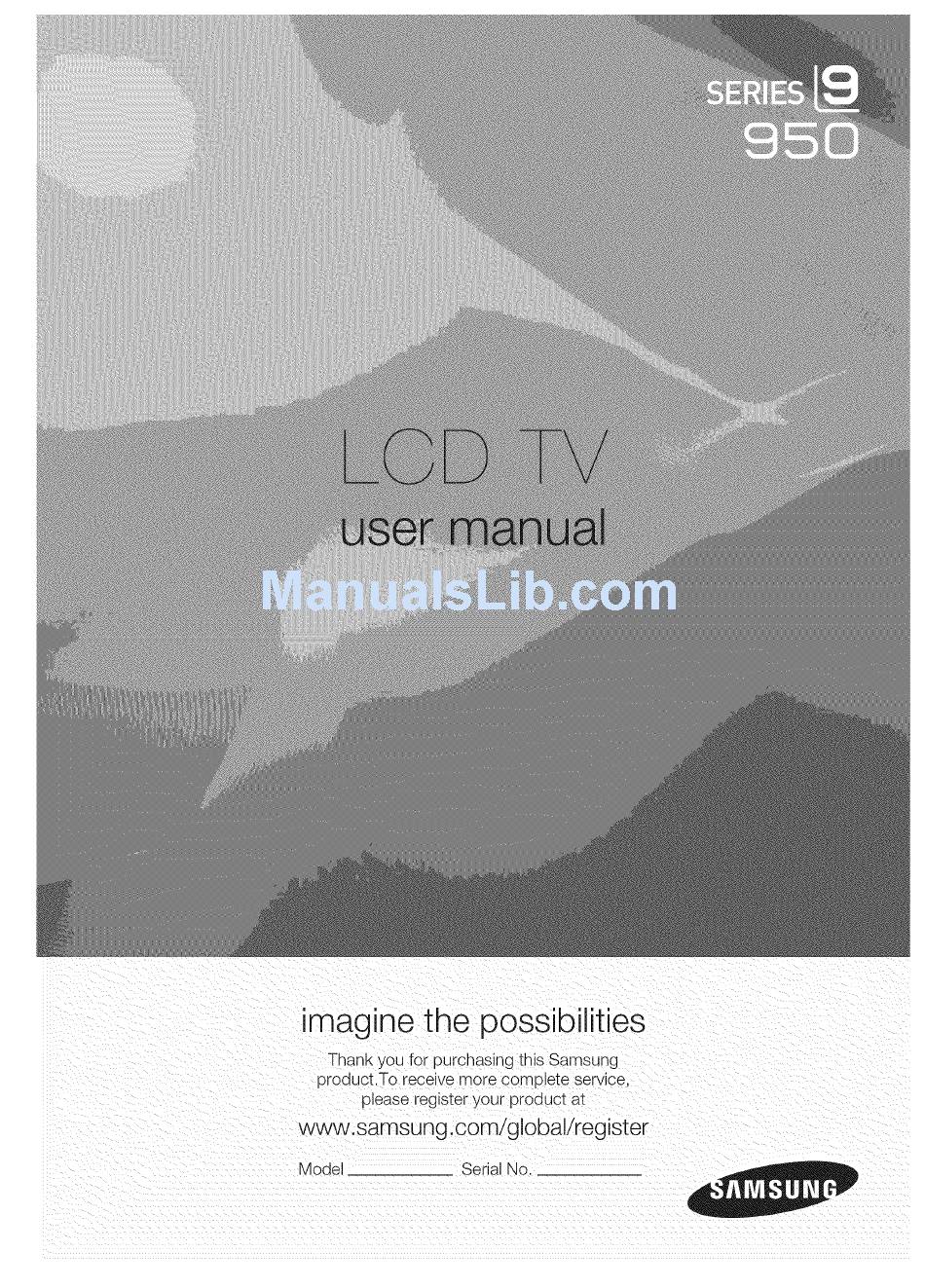

imagine the possibilities
Thank you for purchasing this Samsung
product.To
receive more complete
service.
please register your product a_
www.samsung.com/global/register
Model
Serial No

Advertisement

Table of Contents
loading

Related Manuals for Samsung series 9 950

Summary of Contents for Samsung series 9 950

  • Page 1 Thank you for purchasing this Samsung product.To receive more complete service. please register your product a_ www.samsung.com/global/register Model Serial No...
  • Page 2 On LCD models that offer picture sizing features, use these controlsto view different formatsas a full screen picture. Be careful in the selectionand duration of television formatsused for viewing. Uneven LCD aging as a result of format selectionand use, as wett as burned-in images, are not covered by your Samsung limited warranty. U.S.A Only The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties.

  • Page 3: Table Of Contents

    Contents ,, List of Features ..............3 = Managing Channels ............46 = Accessories ........• Clearing Scrambled Channels - Digital......53 = Viewing the Control Panel ..........4 ,, Fine Tuning Analog Channels.......... 53 = Viewing the Connection Panel ........... 5 = Checking the Digital-Signal S[rength .......
  • Page 4 ,, Network Connection - Cable .......... 118 = Troubleshooting ............. 13_ ,, Network Connection - Wireless ........120 = Installing the Stand ........... = Network selection ............120 = Disconnecting the Stand ..........= Cable Network Setup ..........= Auto Wali-MountAdjustment (Sold separately) ..... 13£ ,, Wireless Network Setup ...........

  • Page 5: List Of Features

    With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-Top Box) needed. • You can view News, Weather, and Stock information over the network (SAMSUNG InfoLink's Service). • You can listen to music files and view pictures on USB Mass Storage Class (MSC) devices.

  • Page 6: Viewing The Control Panel

    Viewing the Control Panel Buttons on the Lower=Right Part of the Panel The buttons on the lower-right panel control your TV's basic features, including the on-screen menu. To use the more advanced features, you must use the remote control......................source _ENU SAMSgNG...

  • Page 7: Viewing The Connection Panel

    Viewing the Connection Panel Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD/Blu-Ray players or a VCR. For more information on connecting equipment, see pages 9~15. [TV Rear Panel] [TV Side Panel ®®...
  • Page 8 - Connect the video cable to the COMPONENT IN 1 [Y/VIDEO] jack and the audio cable to the COMPONENT IN 1 JR-AUDIO-L] jacks. Connect a LAN cable to this port to connect to the Network (SAMSUNG InfoLink's Service). (See pages 118~119) EX-LINK Connect this to the jack on the optional wall mount bracket.

  • Page 9: Remote Control

    Channel list, WISELINK Pro, Press to exit the menu. etc. DMA (Digital Media Adapter) Use this when connecting Controls the caption decoder. a SAMSUNG DMA device through an HDMI interface E.MODE switching to DMA mode. Press to select the preset...

  • Page 10: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control Lift the cover at the back of the remote control upward as shown in the figure. Install twoAAAsize batteries. Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

  • Page 11: Connecting Vhf And Uhf Antennas

    Connections Connecting VHF and UHF Antennas If your antenna has a set of leads that look like the diagram to the right, see "Antennas with 300 _ Flat Twin Leads" below. If your antenna has one lead that looks like the diagram to the right, see "Antennas with 75 _ Round Leads".
  • Page 12 Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A!B) switch and four lengths of RF cable. (These items are available at most electronics stores.) Find and disconnect the cable that is connected to the ANT IN terminal on...

  • Page 13: [] Connecting A Dvdiblu-Ray Player Or Cable Box Satellite Receiver (Set-Top Box) Via Hdmi

    Connecting a OVO/Blu.Ray p layerorCable8ox/Satellite receiver(Set.Top80×)via HDMi This connection can only be made if there is an HDMI Output connector on the external device. Connect an HDMI Cable TV Side Panel DVD/Blu-Ray player or Cable Bo×/Satellite between the HDMI IN receiver (Set-Top Box} Rear Panel (1,2, 3 or 4) jack on...

  • Page 14: Connecting A Dvd/Blu-Ray Player Or Cable Box

    Connectinga DVD/Blu.Ray p layer or CableBox/Satellite receiver(Set.Top Box)via Component c ables The rear panel jacks on your TV make it easy to connect a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) to your TV. Connect a Component TV Rear Panel Cable between the COMPONENT IN DVD/Blu-Ray...

  • Page 15: Connecting A Vcr

    If your VCR is stereo, you must connect two cables. S=Video Connection Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture as compared to a standard VCR.) To begin, follow steps...

  • Page 16: Connecting A Digital Audio System

    Connecting a Digital Audio System The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV. Connect an Optical Cable between the "DIGITAL AUDIO Digital Audio System TV Rear Panel OUT (OPTICAL)"...

  • Page 17: Connecting A Pc

    Connecting a PC Using the D-Sub Cable Connect a D-Sub Cable TV Rear Panel between PC IN [PC] connector on the TV and the PC output connector on your computer. Connect a PCAudio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.

  • Page 18: Turning The Tv On And Off

    Operation Turning the TV On and Off Press the POWER(b button on the remote control. POWER You can also use the POWER(b button on the TV. IV_) ..MODE ON/OFF Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently. Press the POWER button on the remote control.
  • Page 19 The TV will begin memorizing all of the available channels. >- To stop the search before it has finished, press the ENTER _ button with "Stop" selected. After all the available channels are stored, it starts to remove scrambled channels (see page 53). And then, the Auto program menu reappears. Press the ENTER _ button when channel memorization is complete.

  • Page 20: Changing Channels

    Changing Channels Using the Channel Buttons Press the OH v or OH A button to change channels. _'- When you press the OH v or OH ^ button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels).

  • Page 21: Viewing The Display

    Viewing the Display The display identifies the current channel and the status of certain audio-video settings. Press the INFO button on the remote control. The TV will display the channel, the type of sound, and the status of certain picture and sound settings. >- Press the INFO button once more or wait approximately 10 seconds and the display disappears automatically.

  • Page 22: Using The Tools Button

    Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The "Tools" menu changes depending on which external input mode you are viewing. Press the i. or _' button to select a menu. Press the TOOLS button.
  • Page 23 Storing Channels in Memory (Automatic Method) Press the MENU button to display the menu. Press the A or T button to select "Channel", then press the ENTER button. Press the A or T button to select "Auto Program", then press the ENTER button.

  • Page 24: Setting Upyour Remote Control

    Setting Up Your Remote Control After the television has been set up properly, your remote control can operate in POWER different modes: TV, VCR, DVD, Set-Top Box. Pressing the corresponding _ v_Ro;os S button on the remote control allows you to switch between these modes and control whichever piece of equipment you choose.
  • Page 25 POWER Setting Up the Remote to Operate Your 8TB ; v_2 0;0 s _ Turn off your STB. Press the MODE button and make sure that the STB LED is illuminated. Press the SET button on your TV's remote control. Using the number buttons on your remote control, enter three digits of the STB code listed on page 26 of this manual for your brand of STB.

  • Page 26: Remote Control Codes

    Remote Control Codes T' Code Brand Code Brand SAMSUNG 000 001 002 003 004 005 077 078 079 MONTGONERY WARD ,i,,020 ADMIRAL 002 025 MULTITECH 002 005 025 038 AIWA AKAI 004 027 032 AUDIO DYNAMICS 007 026 OPTIMUS i 020 _ 073 074 075 076 BELL&HOWELL...
  • Page 27 8AMSUNG DVD Product Code Product Code 000 001 002 022 Home Theater VCR COMBO 014 015 016 DVDR 003 004 HDD Recorder COMBO BD Record 005 006 TWiN TRAY COMBO VCR COMBO 007 008 009 010 011 STB DVD COMBO VCR Record DVD Receiver DHR COMBO...
  • Page 28 090 098 ECHOSTAR 025 069 070 071 117 118 EXPRESSVU ,¢ SAMSUNG 000 001 002 003 004 008 009 010 011 :h ................................. 012 013 014 075080 078 079 081 082 GENEP_LiNSTRUMENT 046 047 048 083 064 076 077 SCIENTIFIC ATLANTA...

  • Page 29: To Select The Source

    To Select the Source Use to select TV or other external input sources such as DVD players or Cable Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice. Press the MENU button to display the menu. Press the A or T button to select "input", then press the ENTER _ button.

  • Page 30: Changing The Picture Standard

    Picture Control Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements. Press the MENU button to display the menu. Press the ENTER _ button to select "Picture". Press the ENTER _ button to select "Mode".

  • Page 31: Adjusting The Detailed Settings

    Adjusting the Detailed Settings Samsung's new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings. Activating Detailed Settings Press the MENU button to display the menu. Press the ENTER _ button to select "Picture".
  • Page 32 Adjusting the Gamma You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 ~ +3) Press the A or T button to select "Gamma", then press the ENTER button. Press the 4 or !_ button to decrease or increase the value. Press the ENTER _ button.
  • Page 33 Adjusting the White Balance You can adjust the color temperature for more natural picture colors. 17, Press the A or T button to select "White Balance", then press the ENTER _ button. 18. Select the required option by pressing the A or _r button, then press the ENTER [:_ button.

  • Page 34: Resetting The Picture Settings To The Factory Defaults

    Setting the xvYCC Setting the xvYCC mode to "On" increases detail and color space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. 24. Press the A or T button to select "xvYCC", then press the ENTER C ,_ button.

  • Page 35: Configuring Picture Options

    Configuring Picture Options Activating Picture Options Press the MENU button to display the menu. Press the ENTER _ button to select "Picture". Press the A or T button to select "Picture Options", then press the ENTER 1:_ button. >- Press the A or T button to select a particular item. Press the ENTER button.
  • Page 36 >-When Double ([_, r-m ) mode has been set in PIP, the Picture Size cannot be set. >- Temporary image retention may occur when viewing a static image on the set for more than two hours, > After selecting "Zoom1", "Zoom2"...
  • Page 37 Setting the Digital Noise Reduction If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 33) Press the A or T button to select "Digital NR", then press the ENTER C _ button.
  • Page 38 Setting the Fiirn Mode The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 33) Press the A or T button to select "Film Mode", then press the ENTER button.
  • Page 39 Setting the Auto Motion Plus 120Hz Removes drag from fast scenes with a lot of movement to provide a clearer picture. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 33) Press the _, or _' button to select "Auto Motion Plus 120Hz", then press the ENTER C_ button.

  • Page 40: Viewing Picture-In-Picture

    Viewing Picture-in-Picture You can use the PIP feature to simultaneously watch the TV tuner and one external video source. (See page 44 to select the PIP picture sound.) This product has one built-in tuner, which does not allow PIP to function in the same mode. Please see 'PIP Settings' below for details.
  • Page 41 Changing the PiP Channel Press the A or T button to select "Air/Cable", then press the ENTER button. Press the A or T button to select "Air" or "Cable", then press the ENTER c_ button. Press the A or T button to select "Channel", then press the ENTER button.

  • Page 42: Changing The Sound Standard

    Changing the Sound Standard You can select the sound mode to best suit the programming you're watching. Press the MENU button to display the menu. Press the A or T button to select "Sound", then press the ENTER _ button. Press the ENTER _ button to select "Mode".

  • Page 43: Setting The Trusurround Xt

    Press the A or _' button to select a particular frequency to adjust. Press the 4 or _ button to increase or decrease the level of the particular frequency. * Medei selects the sound mode among th e predefined Settingsl , Balance L/R: Adjusts the balance between the right and left speaker, , Bandwidth Adjustment (!0OHz, 300Hz, lkHz, 2kHz, 3kHz, !0kHz): To adjust the leve! of different bandwidth frequencies.

  • Page 44: Choosing Preferred Language

    Choosing Preferred Language The digitaI-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). Select the language you would like to hear the audio track in. Press the MENU button to display the menu. Press the A or T button to select "Sound", then press the ENTER C *J button.

  • Page 45: Automatic Volume Control

    Automatic Volume Control Reduces the differences in volume level among broadcasters. Press the MENU button to display the menu. Press the A or T button to select "Sound", then press the ENTER C_' button. Press the A or T button to select "Auto Volume", then press the ENTER 1:_ button.

  • Page 46: [] Listening To The Sound Of The Sub

    Listening to the Sound of the Sub (PIP) Picture When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. Press the MENU button to display the menu. Press the A or T button to select "Sound", then press the ENTER C+-' b utton. Press the A or T button to select "Sound Select", then press the ENTER button.

  • Page 47: Resetting The Sound Settings To The Factory Defaults

    Resetting the Sound Settings to the Factory Defaults You can restore the Sound settings to the factory defaults. Press the MENU button to display the menu. Press the A or T button to select "Sound", then press the ENTER C*-'button. Press the A or T button to select "Sound Reset", then press the ENTER button.

  • Page 48: Managing Channels

    Channel Control Managing Channels Using this menu, you can Add/Delete or set Favorite channels and use the program guide for digital broadcasts. Viewing AH Channels Show all currently available channels. To use the Channel List function, first run "Auto Program" (see page 21). Press the MENU button.
  • Page 49 Erasing and Adding Channels You can delete or add a channel to display the channels you want. Press the MENU button. Press the A or T button to select "Channel", then press the ENTER button. Press the _, or T button to select "Channel List", then press the ENTER _ button.
  • Page 50 Setting Your Favorite Channels You can set channels you watch frequently as favorites. Press the MENU button. Press the A or v button to select "Channel", then press the ENTER button. Press the A or v button to select "Channel List", then press the ENTER _ button.
  • Page 51 Reserving a Program (Timer Viewing) If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a program, set the current time first. See pages 58~59. Reserved channels can only be set if they are in the "Channel List"...
  • Page 52 Confirming a Viewing Reservation You can view, modify or delete a reservation. Press the MENU button. Press the A or T button to select "Channel", then press the ENTER button. Press the A or v button to select "Channel List", then press the ENTER _ button.
  • Page 53 Labeling Channels = Analog Channels can labeled so that their call letters appear whenever the channel is selected. Press the MENU button. Press the A or v button to select "Channel", then press the ENTER button. Press the A or v button to select "Channel List", then press the ENTER button.
  • Page 54 Selecting and Deselecting All Channels Press the MENU button. Press the A or T button to select "Channel", then press the ENTER button. Press the A or T button to select "Channel List", then press the ENTER button. Press the A or T button to select a channel, then press the TOOLS button. Press the A or T button to select "Select All"...

  • Page 55: Clearing Scrambled Channels - Digital

    Clearing Scrambled Channels - Digital The "Clear Scrambled Channel" function is used to filter out scrambled channels after "Auto Program" is completed. This process may take up to 20~30 minutes. Press the MENU button to display the menu. Press the A or T button to select "Channel", then press the ENTER button.

  • Page 56: Checking The Digital-Signal S

    Checking the Digital-Signal Strength Unlike analog channels, which can vary in reception quality from "snowy" to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel.

  • Page 57: Using Your Tv As A Computer

    Windows and your particular video card. However, even if !our actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) First, click on "Control Panel" on the Windows start menu.

  • Page 58: Setting Up The Tv With Your Pc

    Setting up the TV with your PC How to Auto Adjust Use the Auto "Adjust function" to have the TV set automatically adjust the video signals it receives. The function also automatically fine-tunes the settings and adjusts the frequency values and positions. _'- This function does not work in DVI-Digital mode.
  • Page 59 Changing the Screen Position Adjust the PC's screen positioning if it does not fit the TV screen. >- Preset: Press the SOURCE button to select PC mode. Press the MENU button to display the menu. Press the A or T button to select "Picture", then press the ENTER C ,_ button.

  • Page 60: Setting The Clock

    Time Setting Setting the Clock Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Option 1: Setting the Clock Manually Press the MENU button to display the menu.
  • Page 61 Option 2: Setting the Clock Automatically The Clock can be set automatically if you are receiving a digital signal. Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER _ button.
  • Page 62 Setting the Sleep Timer The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes). Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER _ button.
  • Page 63 Setting the On/Off Timer Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER button. Press the A or T button to select "Time", then press the ENTER _ button.

  • Page 64: Selecting A Menu Language

    Function Description Selecting a Menu Language Press the MENU button to display the menu. Press the A or _' button to select "Setup", then press the ENTER _ button. Press the A or _r button to select "Language", then press the ENTER button.
  • Page 65 The "V-Chip" screen will appear. Press the _t, or Y button to select "Change PIN", then press the ENTER C# button. The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the "Confirm New PIN"...
  • Page 66 How to Set up Restrictions Using the TV Parental Guidelines First, set up a personal identification number (PIN) and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating. Press the MENU button to display the menu.
  • Page 67 How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR The MPAA rating system uses the Motion Picture Association of America (MPAA) system and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).
  • Page 68 How to Set up Restrictions Using the Canadian English Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER _ button. Press the A or T button to select "V-Chip", then press the ENTER button.
  • Page 69 How to Set up Restrictions Using the Canadian French Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER _ button. Press the A or T button to select "V-Chip", then press the ENTER button.
  • Page 70 Using the V-Chip for Digital channels Parental restriction information can be used while watching DTV channels. Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER _ button. Press the A or T button to select "V-Chip", then press the ENTER button.

  • Page 71: Viewing Closed Captions Ion-Screen Text Messages) - Analog

    Viewing Closed Captions (On-Screen Text Messages) -Analog The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to TV. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.) Press the MENU button to display the menu.

  • Page 72: Viewing Closed Captions (On-Screen Text Messages) - Digital

    Viewing Closed Captions (On-Screen Text Messages) - Digital The Digital Captions function operates on digital channels. Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER _ button. Press the A or T button to select "Caption", then press the ENTER button.

  • Page 73: [] Adjusting The Tv On/Off Melody Sound

    Adjusting the TV On/Off lVlelodySound A melody sound can be set to come on when the TV is powered On or Off. Press the MENU button to display the menu. Press the _, or T button to select "Setup", then press the ENTER _ button.

  • Page 74: Setting The Entertain "Nent Mode

    Setting the Entertainment mode The "Entertainment" mode enables you to select the optimal display and sound for sports, cinema and games. Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER _ button.

  • Page 75: Upgrading The Software

    Upgrading the Software Samsung may offer upgrades for TV's firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG (726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on your TV.

  • Page 76: Self Diagnosis

    "Yes". >- If the test pattern is properly displayed, select "No". * Yes: There may be a problem with the TV. Contact the Samsung Ca!l center at 1-800 SAMSUNGI , No: There may be a problem with your external equipment. Please check your connections: If the problem still persists;...

  • Page 77: Using The Wiselink Pro Function

    Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. Do not disconnect the USB device while it is loading.
  • Page 78 Using the Remote Control Button in WISELiNK Pro Menu Wheel Move the cursor and select an item. (A/T/4/_) • Select the currently selected item. ENTER _ While playing a slide show, movie, or music file: - Pressing the ENTER _ button during play pauses play.

  • Page 79: Using The Photo List

    Using the Photo List This menu shows Photo files saved on an USB memory device. Photo List Press the W.LINK button on the remote control to display the "WISELINK Pro" menu. Press the 4 or !_ button to select "Photo", then press the ENTER button.

  • Page 80: Sorting

    Currently selected photo Shows the currently selected photo. Current Sort Standard Press the A or T button to change the standard for sorting photos. ("Monthly', "Timeline', "Color", "Composition", "Folder", "Preference") The item that is selected as the sorting standard is highlighted in the Photo Information Window. View Groups Shows the sorting groups.
  • Page 81 Monthly You can sort and play photos by month. >- It sorts and shows photos in the file by month. It sorts only by month (from January to December) regardless of year. Select "Monthly" as the sorting standard in the Photo List. Press the 4 or !_ button to select from the sublist of photos grouped by Month.
  • Page 82 Composition You can sort and play photos by composition. Select "Composition" as the sorting standard in the Photo List. Press the 4 or !_ button to select from the sublist of photos grouped by compositon. > To move to the previous / next composition group, press the 1_ (REW) or _ (FF) button.
  • Page 83 Preference You can sort and play photos by preference. (Favorite) Select "Preference" as the sorting standard in the Photo List. Press the 4 or !_ button to select from the sublist of photos grouped by preference. To move to the previous / next preference group, press the [_ (REW) or [_ (FF) button.
  • Page 84 Deleting the Photo file Press the 4 or !_ button to select the desired photo in the Photo list. Press the TOOLS button. Press the A or T button to select "Delete", then press the ENTER C# button. >- The "Delete this file?" message appears. Press the 4 or !_button to select "OK", then press the ENTER _ button.

  • Page 85: Viewing A Photo Or Slide Show

    Viewing a Photo or Slide Show Viewing a Slide Show Press the W.LINK button on the remote control to display the "WISELINK Pro" menu. Press the 4 or !_ button to move to "Photo", then press the ENTER button. > Photo files are displayed. Press the 4 or !_ button to select the desired photo in the Photo list.
  • Page 86 Viewing a photo Press the W.LINK button on the remote control to display the "WISELINK Pro" menu. Press the 4 or !_ button to move to "Photo", then press the ENTER button. >- Photo files are displayed. Press the _ or _- button to select the desired photo in the Photo list. Then Press the Yellow button to select only one file.
  • Page 87 Zoom You can zoom into images in full screen mode. Press the A or _' button to select "Zoom", then press the ENTER _ button. Press the _ or _ button repeatedly to increase or decrease the Zoom effect. (xl -* x2 -_ x4) To move the enlarged photo image, press the ENTER _ button, then press the A/T/4/!_ buttons.
  • Page 88 Background Music Betting You can set the background music. Press the A or v' button to select "Background Music Setting", then press the ENTER _ button. > If you turn off the "Background Music", even if the "Background Music Settings" have been set up, the background music will not be played. Music files must be loaded and playing to change the BGM mode.

  • Page 89: Using The Music List

    Using the Music List This menu shows MP3 files from among the files saved on a USB memory device. Press the W.LINK button on the remote control to display the "WISELINK Pro" menu. Press the 4 or !_ button to select "Music", then press the ENTER button.

  • Page 90: Sorting Music List

    O Item Selection Information Shows the number ofmusic files t hat are selected by pressing the Yellow button. O Help I tems - Red(Device) button: Selects a connected device. , Green(Favorites Setting) button: Changes the favorites setting for the selected music. Press this button repeatedly until the desired value appears.
  • Page 91 Artist You can sort and play music files by artist. It sorts the music file by artist in alphabetical order. Select "Artist" as the sorting standard in the Music List. Press the 4 or _ button to select from the sublist of music files grouped in alphabetical order.
  • Page 92 Genre You can sort and play music files by genre. Select "Genre" as the sorting standard in the Music List. Press the 4 or !_ button to select from the sublist of music files grouped by Genre. >- To move to the previous / next genre group, press the _ (REW) or (FF) button.
  • Page 93 Deleting the Music file Press the 4 or I_ button to select the desired music file in the music list. Press the TOOLS button. Press the A or T button to select "Delete", then press the ENTER C# button. >- The (for example) "Delete this file?" message appears. Press the 41i o r I_ button to select "OK", then press the ENTER _ button.

  • Page 94: Playing A Music File

    Playing a Music File Playing a music file Press the W.LINK button on the remote control to display the "WISELINK Pro" menu. Press the 4 or !_ button to select "Music", then press the ENTER button. Music files are displayed. Pressing the _ or b,-button to select a music file to be played, then press the ENTER {3_ button.
  • Page 95 Playing the selected music flies Press the W.LINK button on the remote control to display the WISELINK Pro menu. Press the 4 or !_ button to select "Music", then press the ENTER button. Press the 4 or _ button to select the desired music file, then press the yellow button.

  • Page 96: Using The Movie List

    Using the Movie List This menu shows Movies files and folders saved on an USB memory device• Movie List Press the W.LINK button on the remote control to display the "WISELINK Pro" menu. Press the _ or !_ button to select "Movie", then press the ENTER button.

  • Page 97: Sorting Movie List

    0 View Groups Shows the sorting groups. The sorting group including the currently selected movie is highlighted. Current Device Shows the currently selected device name. Press the Red button to select a device. Item Selection Information Shows the number of movie files that are selected by pressing the Yellow button. Help Items , Green(Favorites Setting} button: Changes the favorites sett ng for the selected movie, press this button repeatedly unti! the desired value appears, (Refer to page 97)
  • Page 98 Timeline You can sort and play movie files by timeline. It sorts and shows movies by date. It sorts by year and month from the earliest movie. Select "Timeline" as the sorting standard in the Movie List. Press the 4 or !_ button to select from the sublist of movie files grouped by Timeline.
  • Page 99 Deleting a Movie file Press the 4 or !_ button to select the desired movie in the Movie list. Press the TOOLS button. Press the A or T button to select "Delete", then press the ENTER (:_ button. >- The "Delete this file?" message appears. >- When a read-only file is deleted, the "Read-only file(s).

  • Page 100: Playing A Movie File

    Playing a Movie File Playing a movie file Press the W.LINK button on the remote control to display the "WISELINK Pro" menu. Press the 4 or !_ button to select "Movie", then press the ENTER button. Pressing the _ or !_ button to select a movie to be played, then press the ENTER _ button.
  • Page 101 Playing movie continuously If you exit playing movie, playing it continuously later is possible. With 'Play continuously' function, you can watch movie without watching again from beginning or bothering searching. Select movie file you want to 'Play continuously' by pressing the 41 or m,, button from the Movie List.

  • Page 102: Wiselink

    Picture/Music Settings Using WISELINK When watching a SlideShow or listening to music using WISELINK, you can set the picture and sound. Picture Setting Press the TOOLS button during a Slide Show or while music is playing. Press the A or T button to select "Picture Setting". Press the 4 or _- button to select the "Picture Mode"...
  • Page 103 Slide Show Speed Select to control the slide show speed. Press the A or _' button to select "Slide Show Speed". Press the 41 or !_ button to select "Fast", "Normal" or "Slow". Music Repeat Mode Select to repeatedly play music files. Press the A or v' button to select "Music Repeat Mode".

  • Page 104: Setting The Dlna Network

    WISELINK Pro-DLNA Setting the DLNA Network DLNA allows you to watch videos and pictures saved on your PC on your TV through a network connection in Wiselink Pro mode. This removes the need to copy them to a USB storage device and then connect the device to your TV. To use DLNA, the TV must be connected to the network and the DLNA application must be installed on your PC.

  • Page 105: Installing The Dlnaapplication

    >- Alternatively, you can download the file from www.samsung.com. Install the SAMSUNG PC Share Manager as shown in the figures below. When the installation is complete, the PC Share Manager icon appears on your Desktop. >- Double-click the icon to run the program.

  • Page 106: Using The Dlnaapplication

    Using the DLNAApplication The Program Screen Layout QFo_d_rl 2008-02-20 _Fotder2 2008-02-20 P.,. _Fold_r3 2008-02_20 P... _Fold_r4 2808-02-20 P... _Foider5 ZgOS-0Z-ZO P-. Menus: The following application menus are provided :"File", "Share", "Server", and "Help". Click to share the selected PC server folder (see page 106) Click to cancel sharing (see page 106) Click to refresh the PC folder and files.
  • Page 107 File Property: Shows information on the selected file or folder......... Method 1: Select a file or folder and select the "File" menu and •°'° then select the "Property" sub-menu. Fl,_a_r4 z0_Hz-_0 P. Method 2: Select a file or folder, right-click over the selected file or folder and then select "Property"...
  • Page 108 Share Sharing a Folder You can share a folder from your PC to the TV. The maximum number of folders that can be shared is 32. Your PC will operate as a server to the TV. Method 1: Select a folder in "My Computer", select the "Share" menu and then select the "Share Folder"...
  • Page 109 Applying the Current Settings Perform this when synchronization is necessary due to a new shared folder or canceling a shared folder. The "Set Changed j _y cemp_ State" menu applies changes to shared folders to the data saved with the PC share program. Since applying changes to the internal data is a time-consuming process, this function enables users to apply changes to the data only when required.
  • Page 110 Server Server You can run or stop using your PC as a server. Start Server at Windows start You can determine whether to start the PC server automatically when Windows starts. Change server name You can rename the PC server. Enter a new name and click "OK". The new name will appear at the top right of the window and will appear on the TV.

  • Page 111: Using The Dlna Function

    Using the DLNA Function Using the DLNA Menu DLNA (Digital Living Network Alliance) enables content saved on a DLNA server (usually your PC) connected to your TV or over a network to be played. Wiselink Pro enables playing content saved on a USB memory device connected to the TV, while DLNA enables playing content saved on a DLNA server (your PC) connected to your TV or over the network.
  • Page 112 Movie ) Movie List - Sorting Movie List: Refer to page 95 - Viewing the Information: Refer to page 97 - Playing a Movie file: Refer to page 98 ) While Playing a Movie File - Play & Pause: Refer to page 99 - Repeat Mode: Refer to page 99 Setup - Slide Show Speed: Refer to page 101...

  • Page 113: Using The Content Library

    Content Library Using the Content Library The "Content Library" enables you to view or play the built-in contents on the TV or stored on your USB device. The Delete, Move and Update functions will not work with the built-in content on the TV. Usin_qthe Content Library Menu Press the MENU button.

  • Page 114: Using The Tv Memory Contents

    YOU IN THE CONTENTS LIBRARY IS OBTAINED OR COMPLIED FROM SOURCES WE BELIEVE TO BE RELIABLE, SAMSUNG CANNOTAND DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS OR COMPLETENESS OF ANY INFORMATION OR DATAMADE AVAILABLE TO YOU FOR ANY PARTICULAR PURPOSE. UNDER NO...
  • Page 115 Cooking You can view various recipes that you can then easily follow step by step. Enjoy these contents which give you great ideas for meals. Press the 4 or !_ button to select "Cooking" in the "Content Library" main menu. Then press the ENTER C ,_ button.
  • Page 116 >- More detail instructions on how to play a game is given at the beginning of each game page. >- Mini Game Pack, IQ Academy and Sudoku+ are trial versions. You can purchase a full version or additional games at www.samsung.com or www.nurisam.com Color Buttons for Games...
  • Page 117 Children This is educational and interactive content that children can watch repeatedly. Enjoy existing stories, songs and games with the Boowa and Kwala characters. Press the 4 or !_ button to select "Children" in the "Content Library" main menu. Then press the ENTER C_ button. Press the A or T button to select "Story", "Song"...
  • Page 118 , Massage: Manage your health and release your stress through the easy to follow massage& >- The "Basic Stretches" contents for the Samsung TV are based on the book Stretching by Suzanne Martin which is published by DK and the "Massage"...

  • Page 119: Using Additional Content Using External Usb Memory Storage

    Take care as removing the USB memory device while saving data to the USB memory device may cause the data to be lost. Downloading New Contents New content other than the built-in contents will be provided via the Samsung.com website with or without charge. Downloading Content Visit the www.samsung.com website and open the Content Library...

  • Page 120: Network Connection - Cable

    Network Settings and infoLink To access Samsung's Infolink network feature, you must make one of the connections on the following pages. Network Connection - Cable LAN Connection for a DHCP Environment The procedures to set up the network using Dynamic Host Configuration Protocol (DHCP) are described below. Since an IP address, subnet mask, gateway, and DNS are automatically allocated when DHCP is selected, you do not have to enter them manually.
  • Page 121 LAN Connection for Static IP Environment The procedures to set up the network using a static IP address are described below. You have to manually enter the IP address, subnet mask, gateway, and DNS that are provided by your Internet Service Provider (ISP). Connect the [LAN] TV Rear Panel port on the rear...

  • Page 122: Network Connection - Wireless

    >- You must use the Samsung Wireless LAN Adapter for InfoLink(WIS-08BG) to use a wireless network. >- The Samsung Wireless LAN Adapter for InfoLink is sold separately. Contact a Samsung Electronics agent or service center for purchasing. >- To use a wireless network, your TV must be connected to a wireless IP sharer.

  • Page 123: Cable Network Setup

    Cable Network Setup >- First, the "Network selection" must be set to "Cable". (See page 120) Auto Setup If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP) Settings are automatically configured. >- Please check if the LAN cable is connected. (See page 118) Press the MENU button to display the menu.
  • Page 124 3. The internet connection may fail due to a firewall problem In this case. comact your Internet service provider. If you cannot connect to the Internet even if you have followed the procedures of your Internet service provider, please contact a Samsung Electronics Service Center.

  • Page 125: Wireless Network Setup

    Wireless Network Setup >- The menu is activated only if the Samsung Infolink Wireless adapter is connected. (See page 120) Auto Setup >- If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP) Settings are automatically configured.
  • Page 126 Access Point Select You can select the IP sharer to use when using a wireless network. Press the MENU button to display the menu. Press the A or T button to select "Setup", then press the ENTER _ button. Press the A or v' button to select "Wireless Network Setup", then press the ENTER _ button.
  • Page 127 PC (such as your TV) to the Internet. If you cannot connect to the Internet even if you have followed the procedures of your Internet service provider, please contact 1-800-SAMSUNG...

  • Page 128: Using Lnfolink

    OF THE AGREEMENT BETWEEN THEM. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG OR THE CONTENT PROVIDER BE HELD LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, ORANY OTHER DAMAGES WHATSOEVER...
  • Page 129 Using the Weather Service Press the INFO.L button on the remote control. Press the 4 or _ button to move to the "Weather" service and press the ENTER _ button. Set up the Region Press Yellow button, input the postal (zip) code of the region by pressing the number buttons on the remote, then press the ENTER _ button.
  • Page 130 Using the Stock Service Press the INFO.L button on the remote control. Press the 4 or _ button to move to the "Stocks" service and press the ENTER _ button. Press the Red button while using the service to change the "Stocks" service option.

  • Page 131: Infolinksetu3

    InfoLink Setup Press the INFO.L button on the remote control. Press the 4 or !_ button to select "Setup", then press the ENTER _ button. Press the A or _' button to select the desired option. ("Auto Launch", "Display Time", "Font Size", "Background Color", "lnfoLink's Position") Press the A or T button to select an option, then press the ENTER button ' Auto Launohi Determines whether to launch !nfo[..ink automatically...

  • Page 132: Product Guide

    Product Guide The Product Guide gives you information on the most important features of this TV. Press the MENU button to display the menu. Press the A or T button to select "Application", then press the ENTER button. Press the A or T button to select "Product Guide", then press the ENTER button.

  • Page 133: What Is Anynet

    Connecting Anynet + Devices The Anynet + system can be used only with Samsung devices that have the Anynet + feature. To be sure your Samsung device has this feature, check if there is an Anynet + logo on it.

  • Page 134: Setting Upanynet

    Setting Up Anynet+ The following settings help set the Anynet + functions. To use the Anynet+ Function, Anynet + (HDMI-CEC) must be set to On Press the MENU button. Press the A or T button to select "Application", then press the ENTER _ button.

  • Page 135: Scanning And Switching Betweenanynet + Devices

    Scanning and Switching between Anynet+ Devices Press the TOOLS button. Press the ENTER _ button to select "Anynet+ (HDMI-CEC)". Press the A or T button to select "Device List", then press the ENTER button. >- Anynet+ devices connected to the TV are listed. If you cannot find a device you want, press the red button to scan for devices.

  • Page 136: Recording

    Recording You can make a recording of a TV program using a Samsung recorder. Press the TOOLS button. Press the ENTER _ button to select "Anynet+ (HDMI-CEC)". Press the A or V button to select "Recording: (device_name)", then press the ENTER _ button.

  • Page 137: Troubleshooting For Anynet

    Troubleshooting for Anynet+ Anynet + does not work. Check if the device is an Anynet + device. The Anynet + system supports Anynet + devices only. Connect only one receiver (home theater). Check if the Anynet + device power cord is properly connected. Check the Anynet + device's Video/Audio/HDMI 1.3 cable connections.

  • Page 138: Troubleshooting

    Appendix Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG Problem Possible Solution Poor picture. Try another channel.
  • Page 139 Problem Possible Solution Screen is black and power indicator On your computer check: Power, Signal Cable. light blinks steadily. The TV is using its power management system. Move the computer's mouse or press any key on the keyboard. Image is not stable and may appear If the setting is not correct, use your computer utility program to change the to vibrate when you have a computer display settings.

  • Page 140: Installing The Stand

    Installing the Stand Attach your LCD TV to the stand. >- Two or more people should carry the TV. >- Make sure to distinguish between the front and back of the stand when attaching it. >- To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left of right sides of the TV.

  • Page 141: Auto Wali-Mountadjustment (Sold Separately)

    Auto Wall-Mount Adjustment (Sold separately) Once the auto wall mount is installed, your TV's position can be easil adjusted. Auto Wall-Mount TV Rear Panel EX-LINK Cable (Not supplied) Entering the menu Press the A, _r, 41 or _ button on your remote control. >- The Wall Mount Adjustment screen is displayed.

  • Page 142: Wall Mount Kit Specifications (Vesa)

    Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury.Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

  • Page 143: Using The Anti-Theft Kensing

    Using the Anti-Theft Kensington Lock >- Applicable to models LN46A95OD1F only. The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use.
  • Page 144 Securing the TV to the Wall CautiOn: Pulling,pushing, O r Climbing on the TVmay cause the TV to fal!, in particular, ensure your children do not hang over or destabilize the TV; doing so may cause the TV to tip over,causing serious injuries or death. FollOW a!l safety precautions provided on the included Safety Rye[.

  • Page 145: Specifications

    Specifications Model Name LN46A950D1F Screen Size 46inches '45.9inches measured diagonally) (Diagonal) PC Resolution 1920 x 1080@60 1920 x 1080@60 Sound lOW X 2 15WX 2 Outpu[ ,Sub woofer: lOW X 2) (Sub woofer: 15W X 2) Dimensions(WxDxH) 45.7 X 4.2 X 26.4 inches 53.7 X 4.4 X 32.3 inches Body ,1160.2 X 107.9 X 669.3 mm)

  • Page 146: E Dimensions

    NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors. © 2008 Samsung Electronics America, Inc.
  • Page 147 NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors. © 2008 Samsung Electronics America, Inc.
  • Page 148 ,,, This product uses some software programs which are distributed under the GPL/LGPL license. Accordingly, the following GPL and LGPL software source codes that have been used in this product can be provided after asking to vdswmanager@samsung.com. GPL software: Linux Kernel, Busybox, Binutils...
  • Page 149 These requirements apply tothe modified work a s awhole. Ifidentifiable sections ofthat work a re not derived from the Program, and can be reasonably considered independent and separate works inthemselves, then t his License, and its terms, donot apply tothose sections when y ou distribute them as separate works.
  • Page 150 9.The Free S oftware Foundation may p ublish revised and/or new versions ofthe General Public License from time t o time. Such n ew versions will b e similar inspirit tothe present version, but m ay d iffer indetail toaddress new problems concerns.
  • Page 151 GNU Lesser General Public License (LGPL) Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL.
  • Page 152 TERMS AND CONDiTiONS FOR COPYING, DiSTRiBUTiON AND MODiFiCATiON 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License").
  • Page 153 5.Aprogram that contains noderivative ofany p ortion ofthe Library, but isdesigned towork with the Library by being compiled orlinked with it,iscalled a"work that uses the Library". Such awork, inisolation, isnot a derivative work o fthe Library, and t herefore falls o utside the scope ofthis License.
  • Page 154 10. E ach time y ou redistribute the Library (or a ny w ork based onthe Library), the recipient automatically receives alicense from the original licensor tocopy, distribute, link w ith ormodify the Library subject tothese terms and conditions. You m ay not i mpose any f urther restrictions onthe recipients'...
  • Page 155 END OF TERMS AND CONDiTiONS Hew to Apply These Terms to Your New Libraries If you develop a new library,and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).
  • Page 156 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Contacte con SAMSUNG WORLDWIDE Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atenci6n al Cliente.

This manual is also suitable for:

Ln46a950d1fLn55a950d1f

Table of Contents
