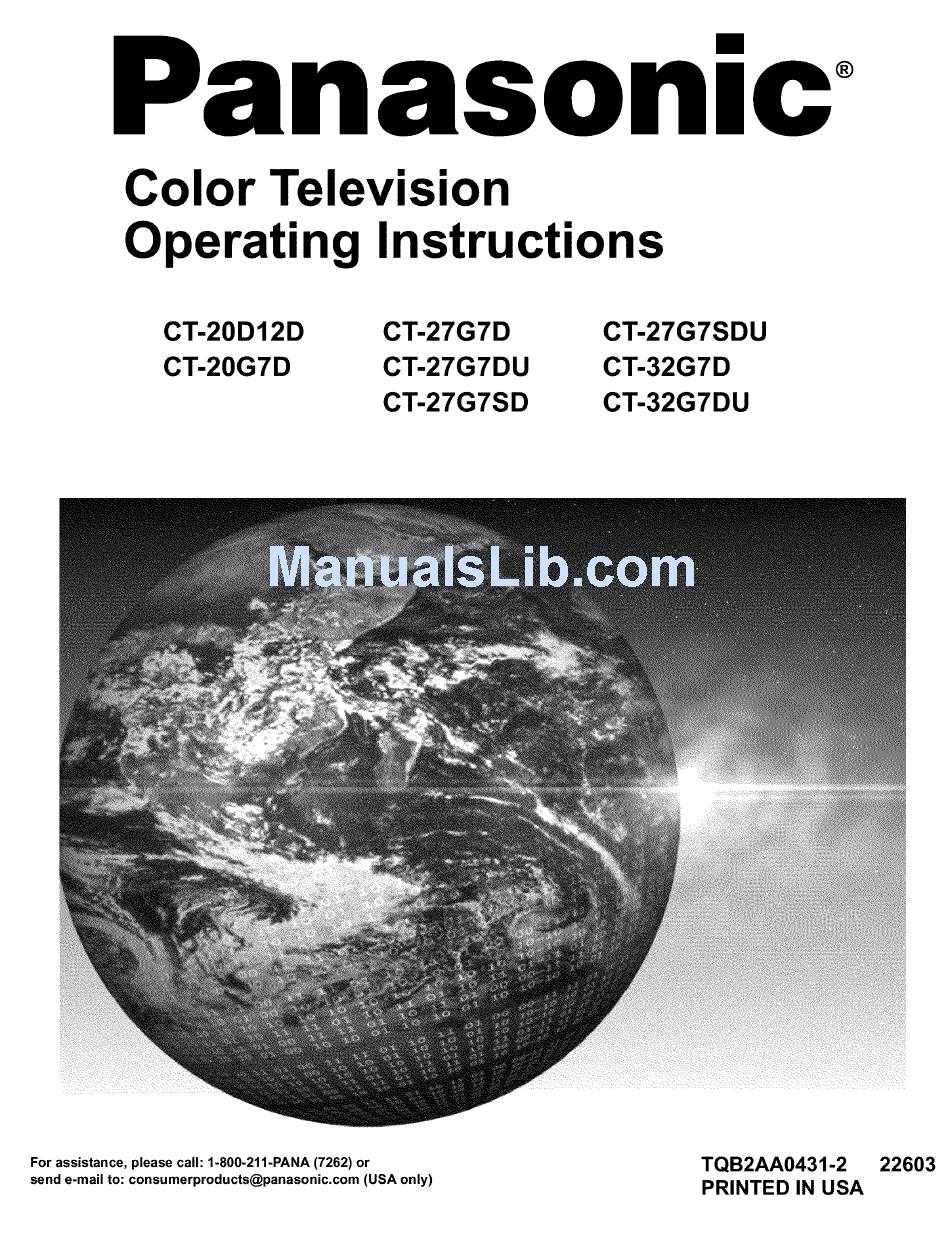

- Page 1 Color Television Operating Instructions CT-20D12D CT-27G7D CT-27G7SDU CT-20G7D CT-27G7DU CT-32G7D CT-27G7SD CT-32G7DU TQB2AA0431-2 22603 For assistance, please call: 1-800-211-PANA (7262) or send e-mail to: consumerproducts@panasonic.com (USA only) PRINTED IN USA...
- Page 2 WARNING: To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel. The exclamation point within a The lightning flash with arrow triangle is intended to tell the intended to tell the user that user...
-
Page 3: Table Of Contents
TABLE OF CONTENTS _; :ii_ Customer Record ..............Care and Cleaning ..............Specifications ................Television Location ..............Optional Cable Connections ............AC Power Supply Cord .............. Cable / Antenna Connection ............©it-;€o"_-J Co" 7m;:_,l, o"D ......7{7, VCR ................... Amplifier (TO AUDIO AMP) ............_tml_"oTm.: Co_'¢"o ©i_;@-_-,¢... -
Page 4: Specifications
The model and serial number of this product are located on the back of the television. You should note the model and serial number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic. Model... -
Page 5: Cable / Antenna Connection
In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it. CT-27G7D, CT-27G7DU: CAUTION: These television receivers for use only with PANASONIC TY-27G22M (TY-27G22M-PC for Canada) stand. Use with other carts (or stands) is capable of resulting in instability causing possible injury. - Page 6 FEATURE COMPARISON CHART MODELS Featu res :!i_ii!ii!!!!!i!ii!i!i!i_ii_;:iiiili:;!_,!i;ii!!iii!i_i!iiiiii! iiiiii_iii_i!iiiiii_i!iiiiii_i!iiiiii_i!iiiiii_i!$i _ii_!i_i_i_!_i_ii_i_i_!_!_!!_i_ii_!_i_!_!_i_i!_i_i_!i ii!ii!!!iiiii!!!i!!!ii!i!iiiiiiiii!iii!i !i!!i_ii_!;!ii!i_iiii_!i!ii_iiiiiiii!_!ii!i!;i_ii!ii!:i!:!i!i!:i :!iii!iil;iiiii!i_ii!!il;ii!i_iil;_i_i;!i!i!ii_!_i!i_!ii!i iiiiii_iii_i!iiiii_i!i_i_iii_ii!i_il _ !_!!!_i_ili iiiili!!ii!ii! ilili!i i i!i i!i!!iiii ili!i ili i " !ii!ii! !i!iii!!!!i !i!! iiiiii!!!iii!ii!iiiii!iiii!i!i!ili!i " !ii!ii! !i!iii!!!!i !i!! iiiiii!!!iii!ii!iiiii!iiii!i i!iiii i ii!iiiiiii!i!i !i!ii!i!i!iii!ii!iii :!iiiii_!iiiii::iliiiiii_iii_iiii:!iiii!ili!!_!i!i!i!i_il ¸i,iiiiili!!i IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS,...
- Page 7 AUTO UP MENU For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed, follow the menus and procedures for setting up the features. IDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH. Press VOL _ to select English, Spanish or French.
-
Page 8: Vcr
OPTIONAL EQUIPMENT CONNECTIONS ...... Follow this diagram when connecting your television to a VCR only. TERMINALS ON BACK OF "rv In comingCable Note: The remote control must be programmed with the supplied codes to operate the VCR..,_1__.;, i_:,, Z'"1 "177"_:, Z'"1... - Page 9 FRONT CONTROL PANEL ,f,,,; ..Use the front panel of the television to use the TV without remote or to use the Audio/Video input jacks (some models) optional equipment. TVNIDEO Press to select VIDEO input mode. Note: The front control panel can be used to access menus and switch video mode when the remote control is not available. FRONT A/V JACKS Jacks used for 1/_"...
- Page 10 REMOTE CONTROL OPERATION ,7:, ,?l,;,,,, big ,?l ,i:_ _:}; , '5' (For models CT-20G7D, CT-27G7D, CT-27G7SD and CT-32G7D only) EUR501450 Precautions ,,_v t- • Replace batteries in pairs. Use two AA batteries: • Do not mix battery types (zinc carbon Remove battery cover by pushing in and up near arrow.
- Page 11 REMOTE CONTROL OPERATION ,7:, ,?l,;.,,, ,:,/g ,?l (For model CT-20D12 only.) iii!!i_:i i! i!!i!4iil ii!iiiiiiil !ii! iiiiiii ii!!ii_ii!ilil !ii iii!ii!ii!i! ii i !iii!iii!iEXiTiiiiii!iiii!iiii!!ii!!!i_i!ii_i!i! !iii_i i!i!iiiii_iii!iiiii!ii_i!!i_i!i _i!_i_iiii_!iiiii_i'7_iiii_i'_!_ii ill'i! i DB_ _ EUR511502 Precautions Replace batteries in pairs. • Use two AA batteries: •...
- Page 12 REMOTE CONTROL OPERATION This chart defines the keys that are opereational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after programming (if needed).
- Page 13 REMOTE CONTROL OPERATION...
- Page 14 REMOTE CONTROL OPERATION The Universal Remote Control can be programmed to operate many manufacturers' components, using the component function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or without a code for the component. Default Modes For Remote Control Determine the manufacturer of the component and look in the table for the code.
- Page 15 REMOTE CONTROL OPERATION The Universal Remote Control is capable of operating many component brands after entering a code. Some components may not operate because the codes are not available due to limited memory. The Universal Remote Control does not control all features found in each model. CABLE Codes For VCR...
- Page 16 REMOTE CONTROL OPERATION Codes for Cable Box Codes for DVD _itsubishi Codes for DBS...
-
Page 17: Picture
ICON MENU NA VIGA TION Press to display the Icons. 'I',1, ÷,1, +,1, Press to select desired icon. ÷,1, ÷_, COLOR ------I----- TINT ---- -- I ----- BRIGHTNESS ------I----- Press to display selected PICTURE ..Icon features. SHARPNESS _______ NORMAL NOI_ Press to select feature. -
Page 18: Audio
MAIN MENU ICONS These charts list all menus under each Icon and which pages to refer to for menus description. Note: *Menus vary depending on model. REFER; REFER PAGE PAGE AUDIO ADJ. IDIOMAJLANGUE MODE (STEREO, SAP or MONO) MODE - (ENGLISH, FRANQAIS, ESPAI_IOL) CLOCK TIME COLOR... - Page 19 ICON MENU OPERATION ,'_,S;:_-' _ ,'_' :'__ ... Note: Refer to page 15 for Icon Menu Navigation procedures. IDIOMAJLANGUE (Menu Languages) In SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPANOL (Spanish) or FRAN(_AIS (French). Press VOL _ to select English, Spanish or French.
- Page 20 ICON MENU OPERATION (Closed Captioning) This television contains a built-in decoder that displays _ (Closed Captioned) text across the screen (white or colored letters on black background). It allows the viewer to read the dialogue of a television program or other information. The program viewed must include Closed Captioning for the feature to work.
- Page 21 ICON MENU OPERATION Clock Set Note: Refer to page 15 for Icon Menu Navigation procedures. Clock Set Set the time of the day. Press _ VOL or VOL_ to select hours AM or PM. Press ,_ to select minutes position. Press _ VOL or VOL_ to select minutes.
- Page 22 ICON MENU OPERATION Note: Refer to page 15 for Icon Menu Navigation procedures. Audio ADJ. MODE - Select STEREO, SAP (Second Audio Program) or MONO. (Use MONO when stereo signal is weak). Press VOL_ to select STEREO, SAP or MONO. Other ADJ.
- Page 23 ICON MENU OPERATION Caption Manual Caption Provide labels for up to 30 stations using up to four characters for each station. Use remote numeric keypad to select desired channel (refer to your local TV guide). Press V to select ENTER CAPTION. Press VOL_ Press _VOL or VOL_...
-
Page 24: Tv Programs
V-CHIP MENU OPERATION Note: Refer to page 15 for Icon Menu Navigation procedures. BLOCKING MESSAGE If V-Chip is enabled and the program exceeds the rating limit set by you, the blocking message will appear and the audio will be muted. Enter your four-digit secret code if you wish to continue viewing the program. -
Page 25: Movies
V-CHIP MENU OPERATION U.S. TV Programs Menu Chart (cont'd) Press or _ to move between different ratings. Use _ VOL or VOL_ to select ratings you want to block (RED) and unblock (GREEN). Note: See the U.S. TV PROGRAMS RATINGS CHART ACTION Press twice to return to MODE in Lock menu. - Page 26 V-CHIP MENU OPERATION U.S. Movies Menu Press VOL_ to select U.S. MOVIES ON or OFF. Press V to selectVIEW NR PROGRAMS? Press VOL_ to select VIEW NR PROGRAMS? YES or NO. Note: Some movies are not rated for a variety of reasons. Old movies and foreign films are usually not rated.
- Page 27 V-CHIP MENU OPERATION Canadian English The V-CHIP used in this TV model allows you to block various types of movies and television programs based on the two rating systems used in Canada. Use the numeric keypad to enter your four digit code. (Use a code that is easy to remember and record it in a safe place.) Press _, to enter the BLOCK PROGRAMS field.
- Page 28 V-CHIP MENU OPERATION Canadian French The V-CHIP used in this TV model also lets you block or unblock Canadian French programs according to various ratings categories. Use the numeric keypad to enter your four digit code. (Use a code that is easy to remember and record it in a safe place.) Press V to enter the BLOCK PROGRAMS field.
- Page 29 RADIO OPERATION ::,_,i,:ii_; ,,,_,::_, ......(For model CT-20D12D only) Some televisions have built-in FM tuner. You can pre-program up to 9 different FM stations for easy access. Press TV/VIDEO button on the remote control twice to get into FM mode. Press ACTION button to display MENU Icons.
- Page 30 TROUBLESHOOTING CHART Before calling for service, determine the symptoms and follow suggested solutions. Adjust Antenna Location and Connection Snowy Video Noisy Audio Adjust Antenna Location and Connection Check Antenna Lead-in Wire Noisy Audio Multiple Image Move television from Electrical Appliances, Lights, Vehicles and Medical Equipment Interference...
- Page 31 LIMITED WARRANTY PANASONIC CONSUMER ELECTRONICS COMPANY, PANASONIC SALES COMPANY, DIVISION OF: DIVISION OF: MATSUSHITA ELECTRIC CORPORATION OF AMERICA MATSUSHITA ELECTRIC OF PUERTO RICO, One Panasonic Way INC., Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park Secaucus, New Jersey 07094...
- Page 32 LIMITED WARRANTY Limited Warranty Limits And Exclusions This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing fixed images (including, among other things, letterbox pictures on standard 4:3 screen TVis, or non-expanded...
- Page 33 CUSTOMER SERVICES DIRECTORY 1-800-332-5368 (Customer Orders Only) Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday; PST) (Visa, MasterCard, Discover Card, American Express, Check)
- Page 34 PRODUCT - LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase. For the termts} of any individual oroduct warranty...
- Page 35 INDEX A Code 12 AC Power Supply Cord 3 Feature Comparison Chart 4 AI Sound 20 FM Radio 27 Rating Systems for Canada 25 Front Control Panel 7 Amplifier Connection Remote Control Operation 8, 9 Antenna Connection Audio 20 Game 21 SAP 20 Auto Power On 18 Screen 2...
- Page 36 Puerto Rico Inc. ("PSC") Mississauga, Ontario Electric Corporation of America Canada L4W 2T3 Ave. 65 de Infanteria, Km 9.5 One Panasonic San Gabriel Industrial Park Carolina, Tel.: (905) 624-5010 Secaucus, New Jersey 07094 Puerto Rico 00985 Fax: (905) 624-9714 www.panasonic.com...
