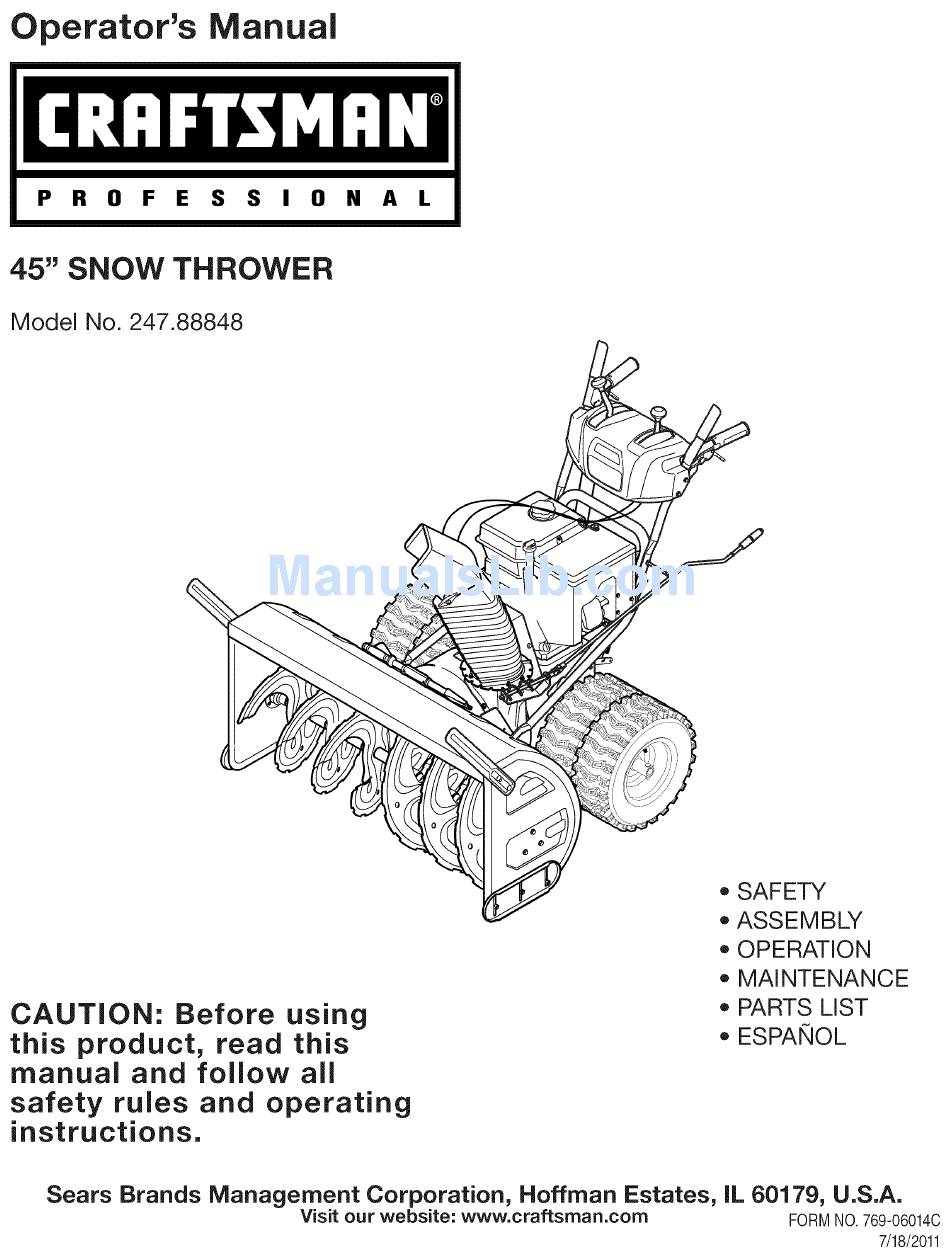

Craftsman Professional 247.88848 Operator's Manual

45" snow thrower
Hide thumbs Also See for Professional 247.88848:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Operator's
Manual
P
R
0
F
E
S
S
I
0
N
A
L
45" SNOW THROWER
Model No. 247.88848
CAUTION:
Before
using
this product,
read this
manual
and follow
all
safety
rules
and operating
instructions.
, SAFETY
, ASSEMBLY
, OPERATION
, MAINTENANCE
, PARTS LIST
o ESPANOL
Sears Brands
Management
Corporation,
Hoffman
Estates,
IL 60179, U.S.A.
Visit our website:
www.craftsman.com
FORMNO. 769-06014C
7/18/2011
