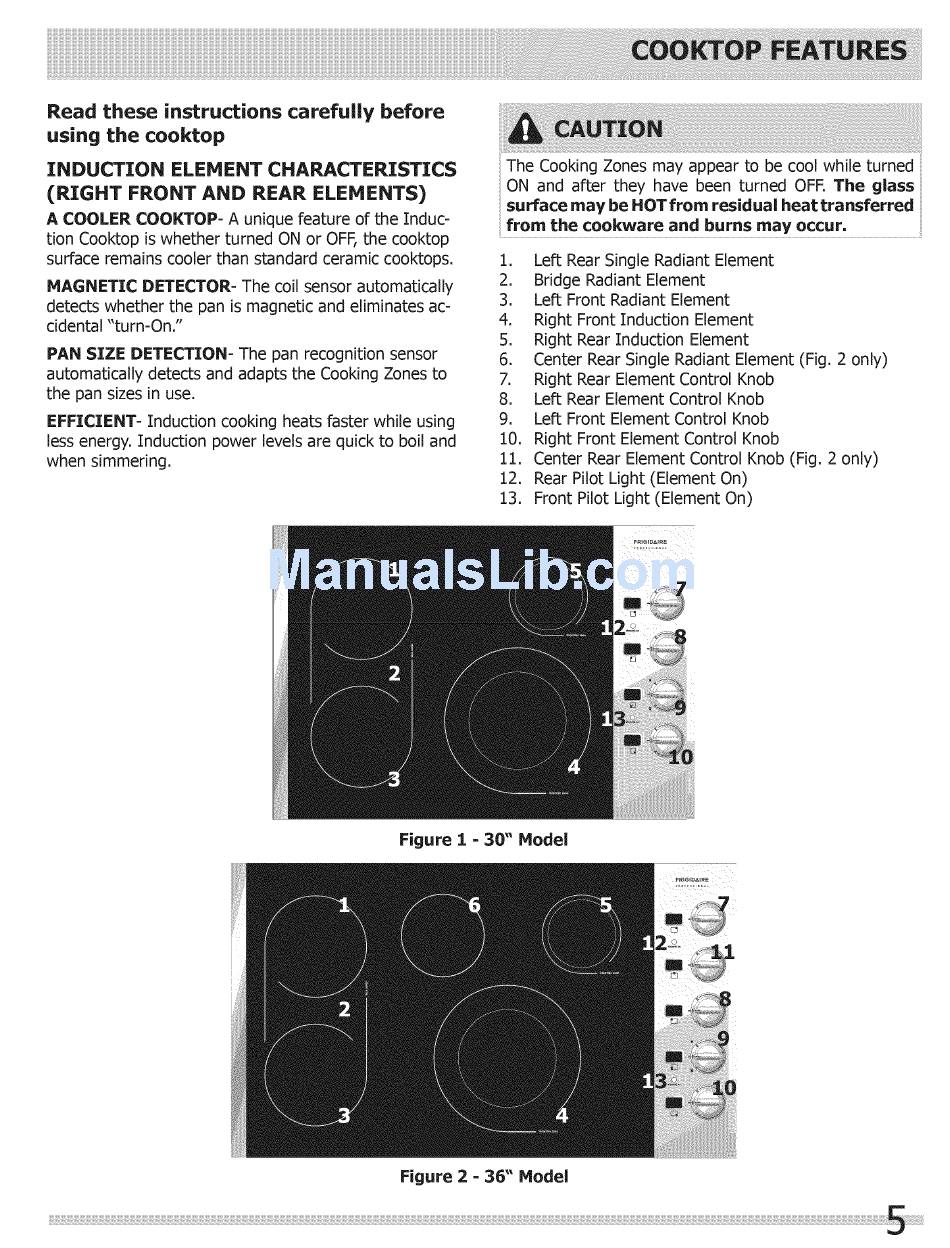

Read these instructions carefully
before
using the cooktop
INDUCTION
ELEMENT CHARACTERISTICS
(RIGHT
FRONT AND REAR ELEMENTS)
A COOLER COOl(TOP- A unique feature of the Induc-
tion Cooktop is whether turned ON or OFF, the cooktop
surface remains cooler than standard ceramic cooktops.
MAGNETIC
DETECTOR- The coil sensor automatically
detects whether the pan is magnetic and eliminates ac-
cidental "turn-On."
PAN SIZE DETECTION-
The pan recognition sensor
automatically detects and adapts the Cooking Zones to
the pan sizes in use.
EFFICIENT- Induction cooking heats faster while using
less energy. Induction power levels are quick to boil and
when simmering.
The Cooking Zones may appear to be cool while turned
ON and after they have been turned OFF. The glass
su trace may be NOT from residual heat transferred
from the cookware
and burns may occur.
1.
Left Rear Single Radiant Element
2.
Bridge Radiant Element
3.
Left Front Radiant Element
4.
Right Front Induction Element
5.
Right Rear Induction Element
6.
Center Rear Single Radiant Element (Fig. 2 only)
7.
Right Rear Element Contro! Knob
8.
Left Rear Element Control Knob
9.
Left Front Element Control Knob
10. Right Front Element Control Knob
11. Center Rear Element Control Knob (Fig. 2 only)
12. Rear Pilot Light (Element On)
13. Front Pilot Light (Element On)
Figure 1 = 30" Model
Figure 2 = 36" Model
