Kenmore 911.93508 Use & Care Manual

30" self-cleaning electric free-standing range
Hide thumbs Also See for 911.93508:
Table of Contents

Advertisement

Quick Links

See also: Use and Care Manual
30" Self-Cleaning
Electric
Free-Standing
Range
Estufa El_ctrica
30" Tipo "lndependiente"
con Autolimpieza
Models,
Modelos
911.93501,93508,
93581,93582,
93587,
93588, 93601,93602,
93607, 93608
m
Z
m
cn
z
m
(n
Z'
O
i=-
229C4020Pl
83-7
Sears, Roebuck
and Co.,
(SR-10452)
Hoffman Estates, IL 60179 U.S.A.
www.searsocom

Advertisement

Table of Contents
loading

Related Manuals for Kenmore 911.93508

Summary of Contents for Kenmore 911.93508

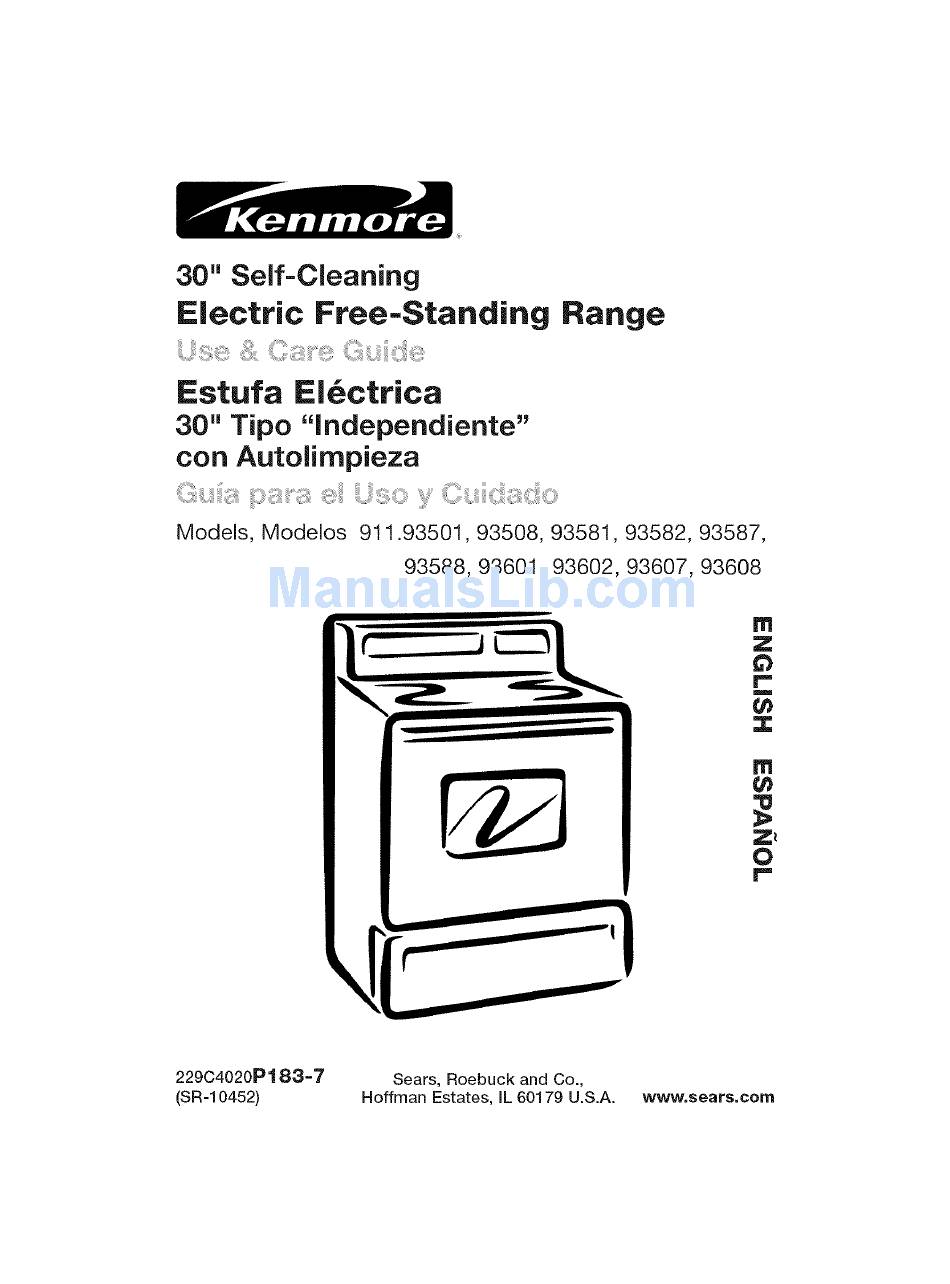

  • Page 1 30" Self-Cleaning Electric Free-Standing Range Estufa El_ctrica 30" Tipo "lndependiente" con Autolimpieza Models, Modelos 911.93501,93508, 93581,93582, 93587, 93588, 93601,93602, 93607, 93608 229C4020Pl 83-7 Sears, Roebuck and Co., (SR-10452) Hoffman Estates, IL 60179 U.S.A. www.searsocom...
  • Page 2 SELF-CLEANING FREE-STANDING RANGE Table of Contents Oven Racks ......Oven Control ......Broiling ......18-19 Range Safety ......Anti-Tip Bracket ....3-4 Self-Cleaning Cycle ..20-21 Preparing Your Oven ....20 Features of Your Range ... 8 Oven Door Gasket ....20 Removal of Packaging Tape ..
  • Page 3 iMPORTANT SAFETY iNSTRUCTiONS SAVE THESE iNSTRUCTiONS Read aJ! instructions before using this appliance. When using gas or electrical appliances, basic safety precautions should be followed, including the following: B. Use the bracket as a template and mark 2 hole positions on the wall and 2 hole positions on the floor.
  • Page 4 iMPORTANT SAFETY Concrete Construction: 1. Hardware required: iNSTRUCTiONS 4 each 1/2 x 11/2"lag bolt 4 each 1/2" O.D. sleeve Anti-Tip Bracket (contd.) anchor Step 2. Drill the recommended size hole for the anchors into the Anti-tip bracket installation concrete at the center of each A.
  • Page 5 IMPORTA#T S AFETY iMPORTANT SAFETY NOTICE! /#STRUCT/O#S The California Safe Drinking Water and Toxic Enforcement requires the governor of California to publish a list of substances known to the state to cause birth defects or other reproductive harm and requires businesses to warn their...
  • Page 6 iMPORTANT SAFETY surfaces near the oven vent openings, oven door and window iNSTRUCTiONS and cooktop surfaces may also be hot enough to cause burns. • ALWAYS KEEP combustible wall coverings, curtains, dishcloths, towels, potholders and other linens a safe distance from the appliance. •...

  • Page 7: Cooking Elements

    iMPORTANT S AFETY • IF THE SELF-CLEANING mode malfunctions, turn the oven off and INSTRUCTIONS disconnect the power supply. Have it serviced by a qualified technician. CAUTION: Never line the drip bowls * PLACE OVEN RACKS in the with aluminum foil.
  • Page 8 OPERATION FEATURESOFYOURRANGE Surface Oven Light Clock and Oven Timer Control indicator Light Oven Vent 4 Removable Cooktop Control Porcelain Enamel 4 Removable Coil Self-Clean Lock Self-Clean Oven interior Broiler Pan 'and Grid Removable Element :::,oo0.°.,o, Number Location Removable Removable Door Storage Drawel Self-Cleaning...
  • Page 9 OPERATION CooktopCooking 1. Center canner over the element. 2. Make sure the canner is flat on the bottom. The sign below each control knob Use recipes and procedures shows you which element is turned on from reputable sources. These by that knob. are available from manufacturers O®...

  • Page 10: Hour/Minute Arrow Pad

    OPERATION OvenControl, Clock, and Timer _*'f--_'l I I_ _" 0 AUTOMATIC OVEN "__1 ovE.o, o_..'>fT'L-_ CLEANING OVEN O MOVE DOOR LATCH TO RIGHT. O TURN OVEN KNOB TO _CLEAN". Your range CLOCK, TIMER, and OVEN operations are simple and easy to understand.
  • Page 11 OPERATION OvenControl,Clock, and Timer(cont.) If the display flashes an "F" followed When the power to your range is by a number and beeps continuously, turned on for the first time, or if you you have a function error code. experience a power failure, the Note the number after the "F."...

  • Page 12: Indicator Lights

    OPERATION After releasing the arrow pad, the TIMER indicator light will blink Clock and Timer three to five times. The countdown will automatically begin. The TIMER indicator light will remain on until the countdown reaches "0." When the timer has started the countdown, you may touch the CLOCK pad to return to the current time of day.

  • Page 13: Baking

    OPERATION Baking The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically. 1, Set the OVEN CONTROL KNOB to the temperature you want to 1.
  • Page 14 6. Turn the OVEN CONTROL KNOB to the baking temperature you want to use. The OVEN ON and AUTOMATIC OVEN indicator lights will glow. 7. When the start time is reached, You can set the oven control to delay the oven will automatically turn on start the oven, cook for a specific and start cooking.

  • Page 15: Oven Cooking Tips

    OPERATION OvenCookingTips Opening the door often to check foods will cause heat loss and poor baking results. It is normal to have some odor when using your oven for the first time. To help eliminate this odor, ventilate Preheating is bringing the oven room by opening a window or using...

  • Page 16: Bakeware

    OPERATION OvenCookingTips(cont.) The Oven Temperature Sensor continuously senses and controls the temperature inside the oven. To keep a constant set temperature, Baking results will be better if baking elements will cycle (turn on and off pans are centered in the oven as during cooking).

  • Page 17: Oven Racks

    OPERATION OvenCookingTips(cont.) You may feel that your new oven cooks differently than the oven it replaced. We recommend that you The oven racks are designed with use your new oven a few weeks to stops, a convenience as well as a become more familiar with it, following safety precaution.

  • Page 18: Broiling

    OPERATION The U.S. Department of Agriculture recommends to cook meat and Broiling poultry thoroughly--meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to Broiling is cooking by direct heat from these temperatures usually protects the upper element.
  • Page 19 OPERATION Broiling (cont.) BROILING GUIDE (Hi Broil) QUANTITY FIRST SECOND AND/OR SHELF SIDE TIME SIDE TIME COMMENTS FOOD THICKNESS )OSITION (MIN.) (MIN.) Space evenly. 3round Beef Ib (4 patties) 7VeilDone W' to 7_" thick 4 Ibs. (12 patties) Beef Steaks Rarer 4"...

  • Page 20: Self-Cleaning Cycle

    CARE ANDCLEANING Self-CleaningCycle The gasket is designed to have a 5"-6" gap at the bottom of the door. This allows for proper air circulation. Door Panel Gasket 1. Remove the broiler pan and grid, oven racks, utensils, and any foil that may be in the oven.

  • Page 21: Preparing Your Oven

    CAREA#D CLEAffiNG Self-Cleaning C ycle(cont.) 1. Make sure the correct time of day is displayed. 2. For best results, follow the steps in PREPARING YOUR OVEN. 1. For best results, follow the steps in PREPARING YOUR OVEN. 3. Slide the self-clean lock handle to 2.

  • Page 22: Walls Of The Oven

    CARE ANDCLEANING Cleaning CLEANING MATERIALS ® Dishwashing detergent ®Warm water CLEANING MATERIALS ® Paper towel ® Dishwashing detergent ®Ammonia ®Warm water ®Abrasive cleaner ®Soft cloth ®Scouring pad Do not use abrasive cleaners, TO CLEAN industrial cleaners, or bleach. Clean after each use. If acidic foods (hot fruit filling, tomatoes, sauerkraut, or sauces with vinegar or lemon juice) spill, use a dry paper towel to wipe up...
  • Page 23 CAREAND CLEANING After cleaning under the cooktop with hot, mild soapy water and a clean Removable Parts cloth, lower the cooktop. Be careful not to pinch your fingers. To lower the cooktop, push the rods back and gently lower the cooktop (on some models) until it rests in place.
  • Page 24 CAREAND CLEAMNG Removable Parts (cont.) Disconnect electrical CLEANING MATERIALS CAUTION: power to the oven at ® Dishwashing detergent the main circuit breaker ®Warm water or fuse box before attempting ®Soft cloth replace the oven light bulb. Do not touch a hot light bulb with Clear wet hands or a wet cloth.
  • Page 25 CARE ANDCLEANING TO CLEAN THE DRIP BOWL For brown food stains - Use RemovableParts (cont.) dishwashing detergent, warm water, plastic scouring pads, mild abrasive cleaners, soap-filled scouring pads, or ammonia. Clean drip bowls after 3. Pull out. 1. Push element each use.
  • Page 26 CARE ANDCLEANING RemovableParts (cont.) TO REMOVE Hinge Lock (Unlocked 1, Fully open the Position) door. CLEANING MATERIALS 2, Push the hinge = Dishwashing detergent locks down ®Warm water toward the door ®Scouring pad or soap-filled frame, to the unlocked steel-wool pad position.

  • Page 27: Door Vent Trim

    CARE ANDCLEANING TO CLEAN INSIDE OF DOOR RemovableParts (cont.) • Because the area inside the gasket is cleaned during the self-clean Removable Oven Door (cont.) cycle, you do not need to clean this by hand. 3. Fully open the Locked door.
  • Page 28 CARE ANDCLEANING Rear drawer Drawer support s rest ng _ front pane! RemovableParts (cont.) on top of gu de ra 17 tipped away from ;;;:222-;;;_Li_] body side TO REMOVE IF DRAWER IS CROOKED 1. Pull the drawer out until it stops. Rear drawer 2.
  • Page 29 BEFORECALLINGFORSERVICE To save you time and money, before making a service call, check the list below for any problem you may feel you have with the performance of your range. If the problem is something you cannot repair, use the Consumer Service Numbers located at the back of this manual.
  • Page 30 BEFORECALLINGFORSERVICE PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Oven Oven control See temperature adjustment temperature calibration, section. seems inaccurate, Oven will Clean cycle is not Oven temperature must drop below not unlock, finished, the lock temperature before the door will unlock. Oven light a.

  • Page 31: Control Knobs

    BEFORECALLINGFORSERVICE PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Oven emits a. Oven insulation may a. Put oven through self-clean cycle odor. emit odor during the to speed up process of odor first few usages. "wearing off." b. Failure to wipe out b. Wipe excess soil off before excess soil.
  • Page 32 "DO-IT-YOURSELF" TEMPERATURE ADJUSTMENT 1. Press and hold, at the same time, the HOUR UP and DOWN You may feel that your new oven arrow pads until the display cooks differently than the oven it shows a two-digit number. replaced. We recommend that you 2.
  • Page 33 NOTES...
  • Page 34 2. Annual Preventive Maintenance _',_ Check at your request W - Warranty MA - Maintenance Agreement Kenmore Appliances are designed, manufactured and tested for years of dependable operation. Yet, any appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program for your product.
