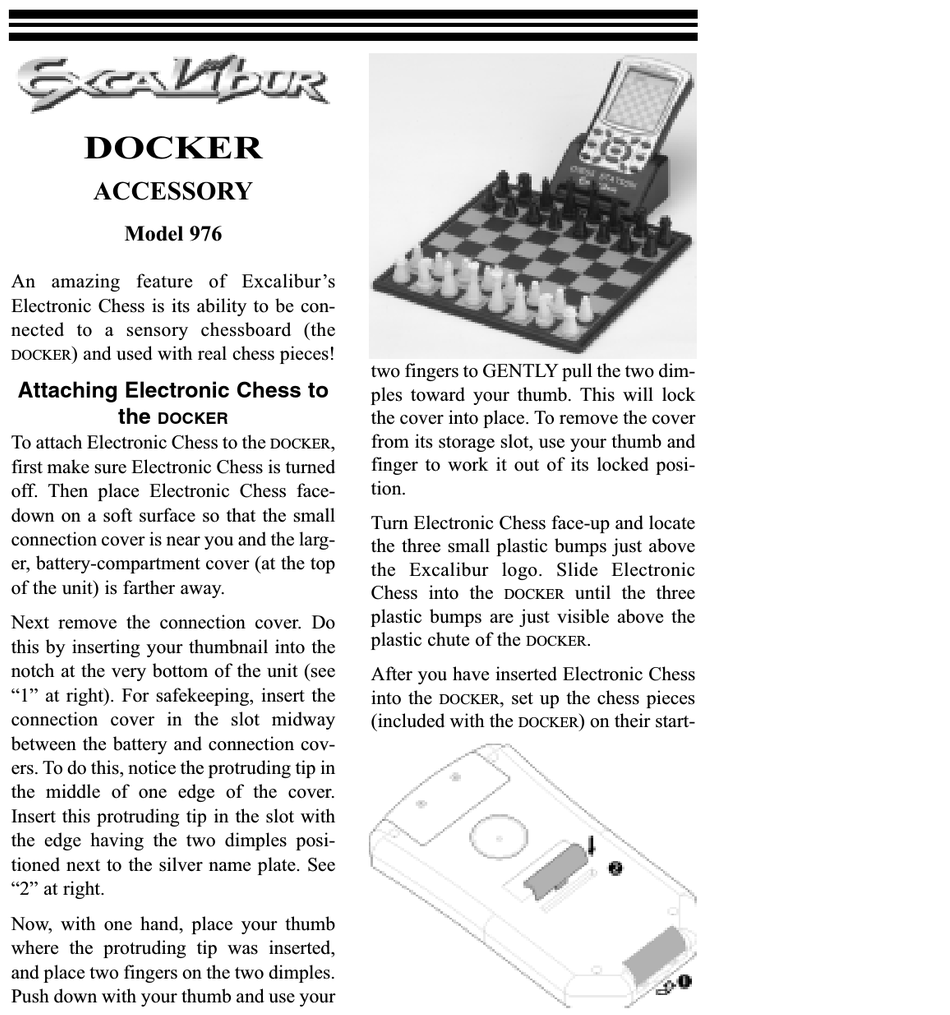

Excalibur Docker 976 Owner's Manual

DOCKER
ACCESSORY
Model 976
An amazing feature of Excalibur's
Electronic Chess is its ability to be con-
nected to a sensory chessboard (the
) and used with real chess pieces!
DOCKER
Attaching Electronic Chess to
the
To attach Electronic Chess to the DOCKER
DOCKER
first make sure Electronic Chess is turned
off. Then place Electronic Chess face-
down on a soft surface so that the small
connection cover is near you and the larg-
er, battery-compartment cover (at the top
of the unit) is farther away.
Next remove the connection cover. Do
this by inserting your thumbnail into the
notch at the very bottom of the unit (see
"1" at right). For safekeeping, insert the
connection cover in the slot midway
between the battery and connection cov-
ers. To do this, notice the protruding tip in
the middle of one edge of the cover.
Insert this protruding tip in the slot with
the edge having the two dimples posi-
tioned next to the silver name plate. See
"2" at right.
Now, with one hand, place your thumb
where the protruding tip was inserted,
and place two fingers on the two dimples.
Push down with your thumb and use your
two fingers to GENTLY pull the two dim-
ples toward your thumb. This will lock
the cover into place. To remove the cover
from its storage slot, use your thumb and
,
finger to work it out of its locked posi-
tion.
Turn Electronic Chess face-up and locate
the three small plastic bumps just above
the Excalibur logo. Slide Electronic
Chess into the until the three
DOCKER
plastic bumps are just visible above the
plastic chute of the .
DOCKER
After you have inserted Electronic Chess
into the , set up the chess pieces
DOCKER
(included with the ) on their start-
DOCKER
