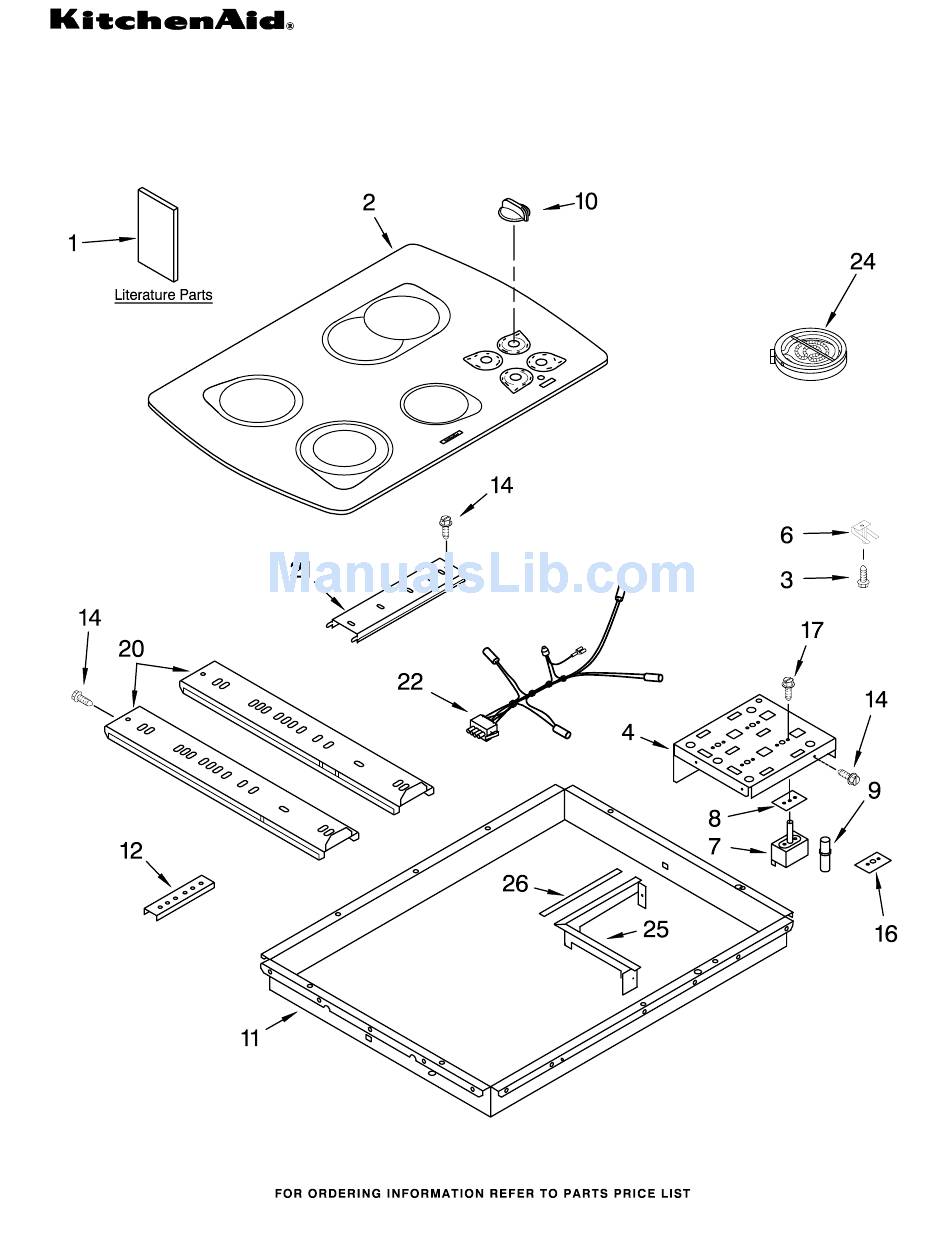

- Page 1 COOKTOP PARTS 30" ELECTRIC BUILT−IN For Models: KECC502GBL06, KECC502GWH06 COOKTOP (Black) (White) Part No. 8186269 12−04 Litho in U.S.A. (cre)
- Page 2 COOKTOP PARTS For Models: KECC502GBL06, KECC502GWH06 (Black) (White) Illus. Part DESCRIPTION Literature Parts 9759087 Installation Instructions 4456012 Wiring Diagram 8285368 Use & Care Guide 3191638 Tips−Safer Cooking 4455462 Energuide Label Cooktop, Glass 4455549 Black 4455300 White 246119 Screw 4455421 Bracket, Switch Mounting 9759094 Spring Locator (8) Switch, Infinite...
- Page 3 OPTIONAL PARTS For Models: KECC502GBL06, KECC502GWH06 (Black) (White) Illus. Part DESCRIPTION Miscellaneous 3172515 Mtg. Hardware Kit 3192408 Bracket, Support (2) FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES−−25FT. LENGTH 4456028 Wire, Jumper 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga.
