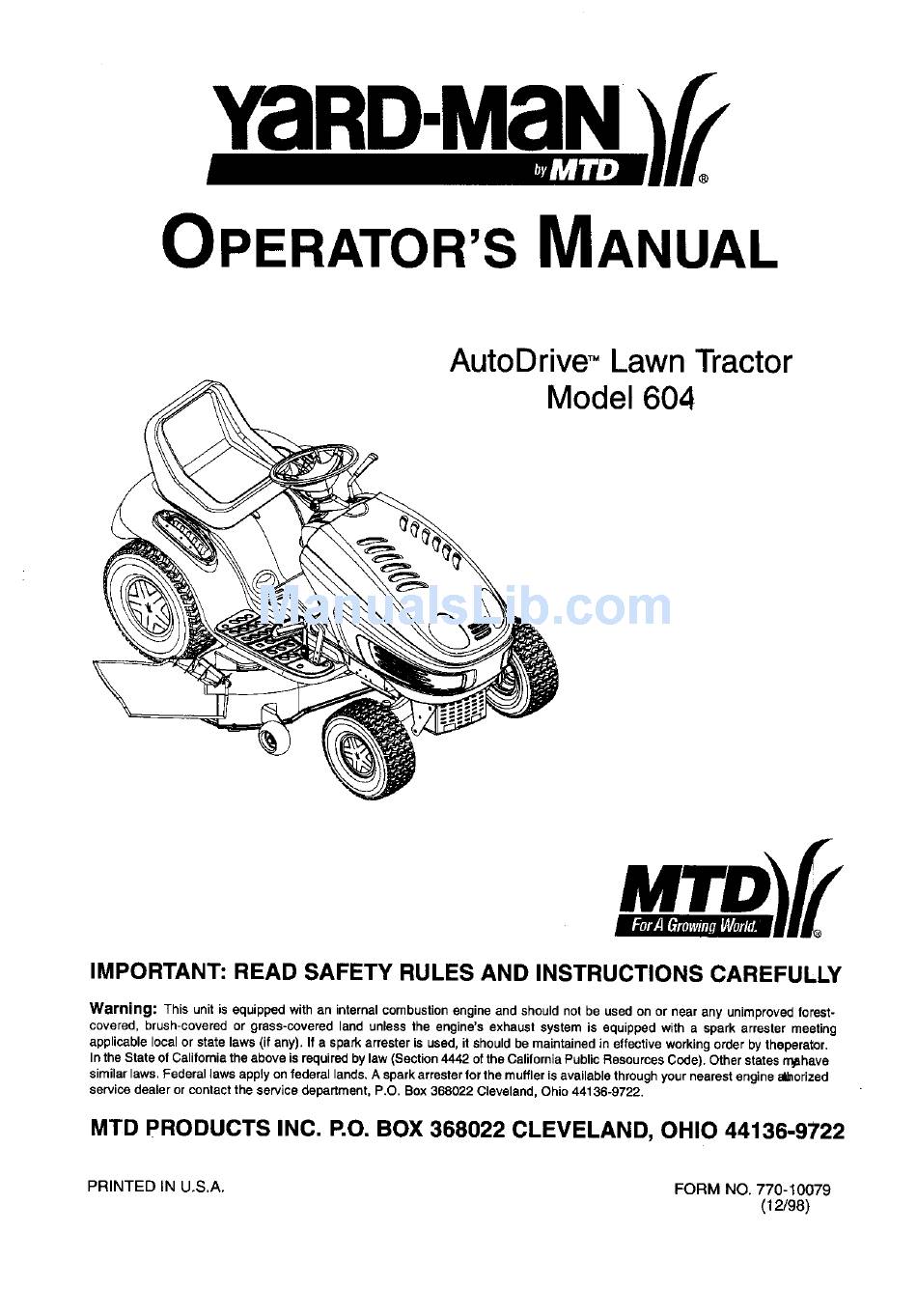

YaRD'MaN
OPERATOR'S
MANUAL
AutoDrive
TM
Lawn Tractor
Model 604
IMPORTANT:
READ SAFETY
RULES AND INSTRUCTIONS
CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by thoperefor.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states mphave
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine ald_orizod
service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.
MTD PRODUCTS
INC. P.O. BOX 368022 CLEVELAND,
OHIO 44136-9722
PRINTED IN U,S.A.
FORM NO. 770-10079
(12/98)
