IMPORTANT

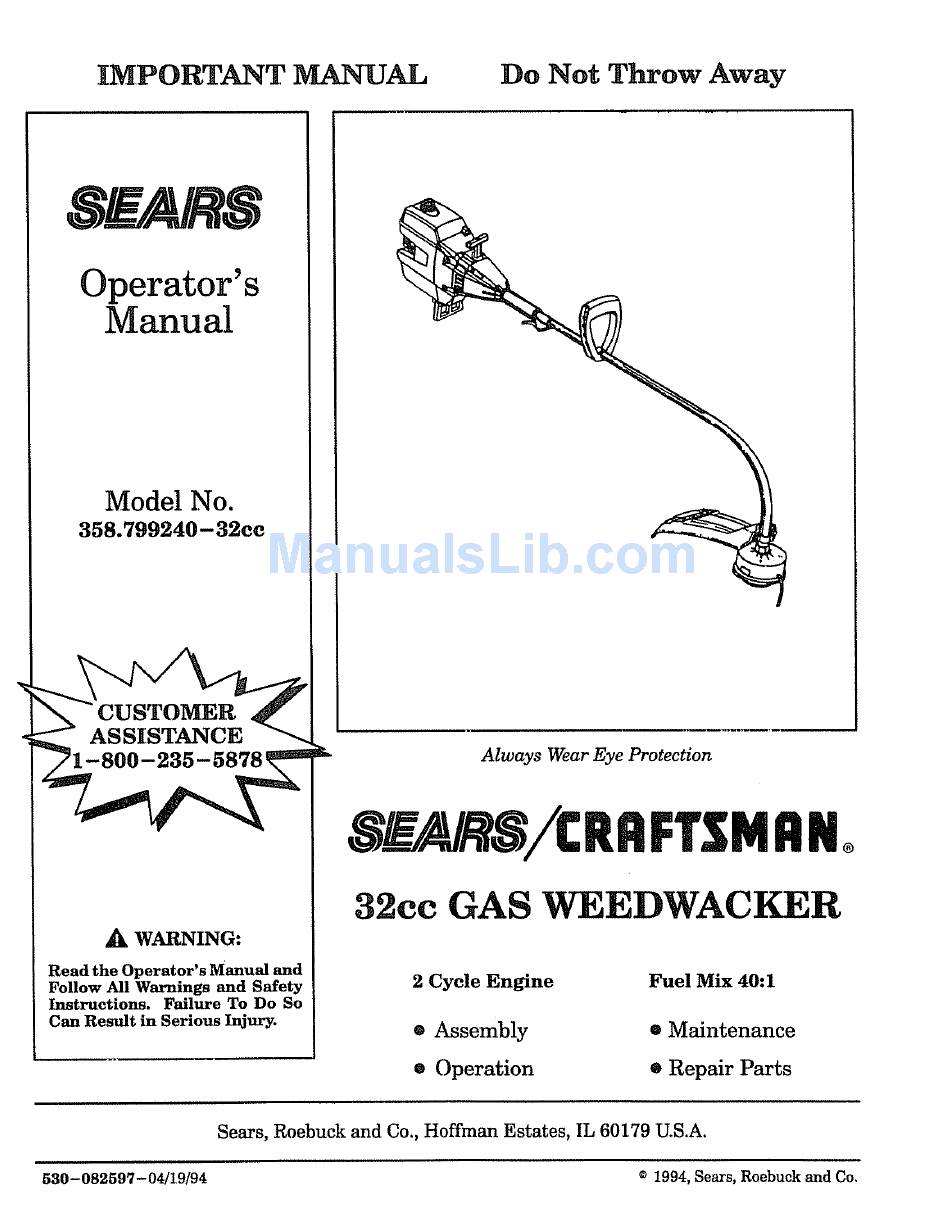

MANUAL
Do Not Throw
Away
Operator'
s
Manual
Model No.
358.799240-32cc
CE
_k WARNING:
Read the Operator's
Manual
and
Follow
All Warnings
and
Safety
Instructions.
Failure
To Do So
Can Result
in Serious
Injury.
Always
Wear Eye Protection
qS/CRR F MnN,o
32cc GAS WEEDWACKER
2 Cycle
Engine
o Assembly
• Operation
Fuel Mix 40:1
• Maintenance
• Repair
Parts
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179
UoS.A.
530-082597-04/19/94
© 1994, Sears, Roebuck
and Co,
