Eureka Tessel Assembly Instructions

Assembly Instructions

Tessel Tents
Component List: 1 Tent Body, 1 Tent Fly,
8 Guy Cords w/ Sliders,
1 Stake Bag with Stakes,
NOTE: Do not drop tent bag or pole bag on its end. Do not bounce tent bag on its end to
get the tent out. These actions may cut the shock cord and/or damage the pole ends.

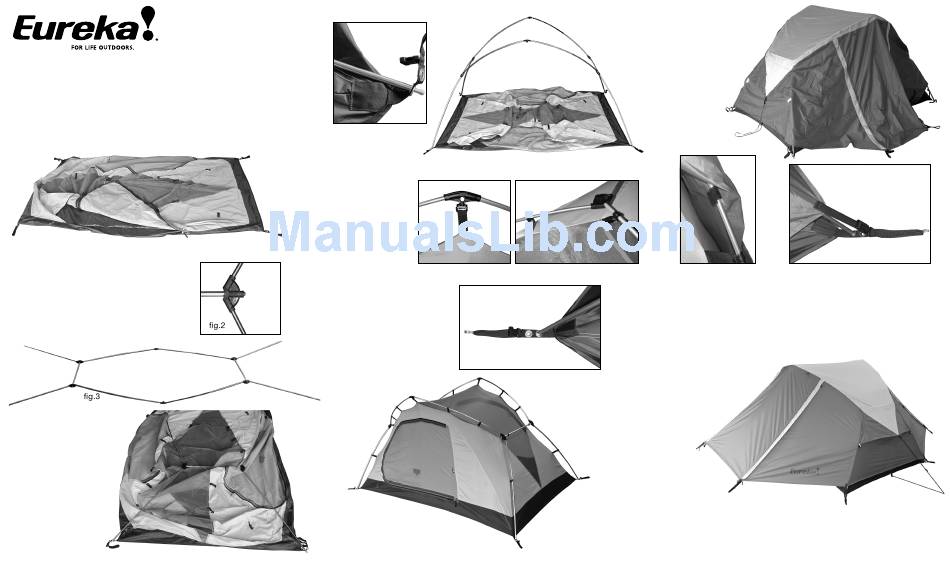

1. Unroll and unfold the tent and lay it on the ground. In windy conditions, stake down
one front corner into wind. See fig.1.
fig.1
2. Build the frame on the ground: Fit each pole to its
mate or hub. The sections are shockcorded. Try to
keep the poles from snapping together, as this can
damage the ends. It is important to make sure that
each section has firmly seated into the hub.
Improperly fit poles may cause the hub to break.
Set the frame over the tent so that the pole posts align to
the tent corners. See fig.2, 3 & 4.
3. Fit the posts into the grommets:
There are webs and grommets
sewn to each corner of the tent.
Start at either end and insert the
locking posts from the base of
the frame poles into one of the
grommets. Repeat at the
opposite end, raising the
frame as you work. See fig.
4, 5 & 6.
REV. A 9.09
4 Piece Frame Assembly,
1 Carry Bag,
1 Pole Bag, 1 Pole Repair Splint
fig.5

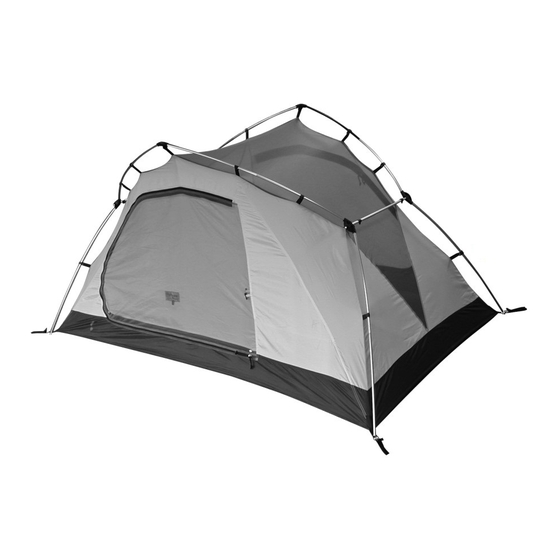

4. Attach the tent body to
the frame: There are two
types of connectors. First,
hang the two hub clips at
the center peak. They just
twist on/off. See fig.7.
Then, work your way down
and across the frame,
attaching the pole clips as
you go. See fig. 8.
5. Stake the tent down: The tent is
now freestanding. Move it to your
desired location. Stake it down
through the web loops. See fig.9.
Stake opposite corners while applying
tension to smooth the floor wrinkles
and square the tent. See fig.10.
fig.4
fig.6
fig.7 fig.8
fig.9
fig.10
Take down: Pull up stakes. Remove the fly and fold it into a long rectangle. Pull poles out of the grommets,
Optional: Add durability and versatility to your tent with our "Lite-Set" Footprint. It's made of the same fabric
6. Attach the fly to the tent:
Drape the fly over the top of
the tent. It only fits one
way. The doors of the fly
align with the doors of
the tent. See fig 11.
fig.11
fig.12
a. Reach under the fly and find the b. At each corner, attach the web buckles, from
hook and loop fasteners. Wrap
them around the poles. See fig.12.
7. Stake out the vestibules: At the front of the tent, pull the stake out loops on the vestibule
taut and stake them down. Make sure that the vestibule is tight across the door. Repeat
with the other vestibule at the rear of the tent.
8. Stake out the side vents: Pull out the vent cord on the side of the tent, stake down and
adjust tension with the slider. It is important to stake these out for proper ventilation.
Pull out the cord attached to the loop at
the tent floor, tie it to the vent stake
and adjust. See fig.14.
Repeat on the other side.
Your tent
is ready!
collapse the frame and stow. Fold the tent into a long rectangle and lay the fly on top along with the bag
of poles. Roll up all and stow in the carry bag.
as the tent's floor: with web loops, grommets, and side release buckles. The Footprint, along with the fly
and poles creates a lightweight, compact basic shelter with a carry weight reduced by more than 25%.
fig.13
the fly, to their mates on the tent web. Pull the
web to adjust tension as needed. See fig.13.
fig.14
