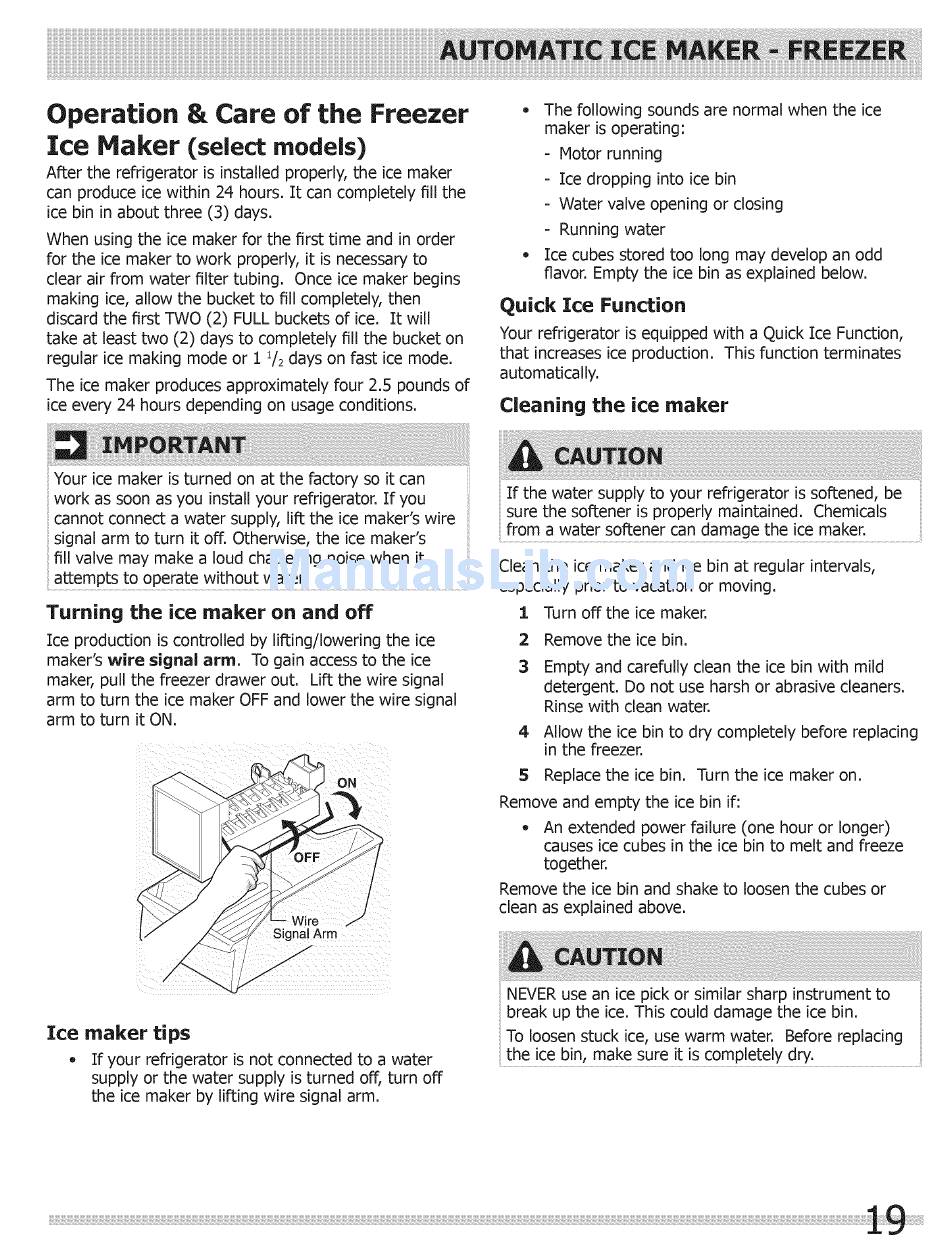

Operation & Care of the Freezer
Ice Maker
(select models)
After the refrigerator is installed properly, the ice maker
can produce ice within 24 hours. It can completely fill the
ice bin in about three (3) days.
When using the ice maker for the first time and in order
for the ice maker to work properly, it is necessary to
clear air from water filter tubing.
Once ice maker begins
making ice, allow the bucket to fill completely, then
discard the first TWO (2) FULL buckets of ice. It will
take at least two (2) days to completely fill the bucket on
regular ice making mode or 1 1/2days on fast ice mode.
The ice maker produces approximately four 2.5 pounds of
ice every 24 hours depending on usage conditions.
-
The following sounds are normal when the ice
maker is operating:
Motor running
Ice dropping into ice bin
Water valve opening or closing
Running water
-
Ice cubes stored too long may develop an odd
flavor. Empty the ice bin as explained below.
Quick Ice Function
Your refrigerator is equipped with a Quick Ice Function,
that increases ice production.
This function terminates
automatically.
Cleaning the ice maker
Your ice maker is turned on at the factory so it can
work as soon as you install your refrigerator. If you
cannot connect a water supply, lift the ice maker's wire
signal arm to turn it off. Otherwise, the ice maker's
fill valve may make a loud chattering noise when it
attempts to operate without water.
Turning the ice maker on and off
Ice production is controlled by lifting/lowering
the ice
maker's wire
signal arm.
To gain access to the ice
maker, pull the freezer drawer out. Lift the wire signal
arm to turn the ice maker OFF and lower the wire signal
arm to turn it ON.
2
J
Signal Arm
Ice maker tips
= If your refrigerator is not connected to a water
supply or the water supply is turned off, turn off
the ice maker by lifting wire signal arm.
If the water supply to your refrigerator is softened, be
sure the softener is properly maintained.
Chemicals
from a water softener can damage the ice maker.
Clean the ice maker and ice bin at regular intervals,
especially prior to vacation or moving.
Turn off the ice maker.
1
2
3
4
Remove the ice bin.
Empty and carefully clean the ice bin with mild
detergent. Do not use harsh or abrasive cleaners.
Rinse with clean water.
Allow the ice bin to dry completely before replacing
in the freezer.
5
Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
o An extended power failure (one hour or longer)
causes ice cubes in the ice bin to melt and freeze
together.
Remove the ice bin and shake to loosen the cubes or
clean as explained above.
NEVER use an ice pick or similar sharp instrument to
break up the ice. This could damage the ice bin.
To loosen stuck ice, use warm water. Before replacing
the ice bin, make sure it is completely dry.
