Frigidaire AGQ6700FS1 Owner's Manual

Towels (_
Heavy Duty ([_D
Normal C_)
Perm Press ([_)
Delicates ([_D
Touch Up ([_D
Timed Dry ([_)

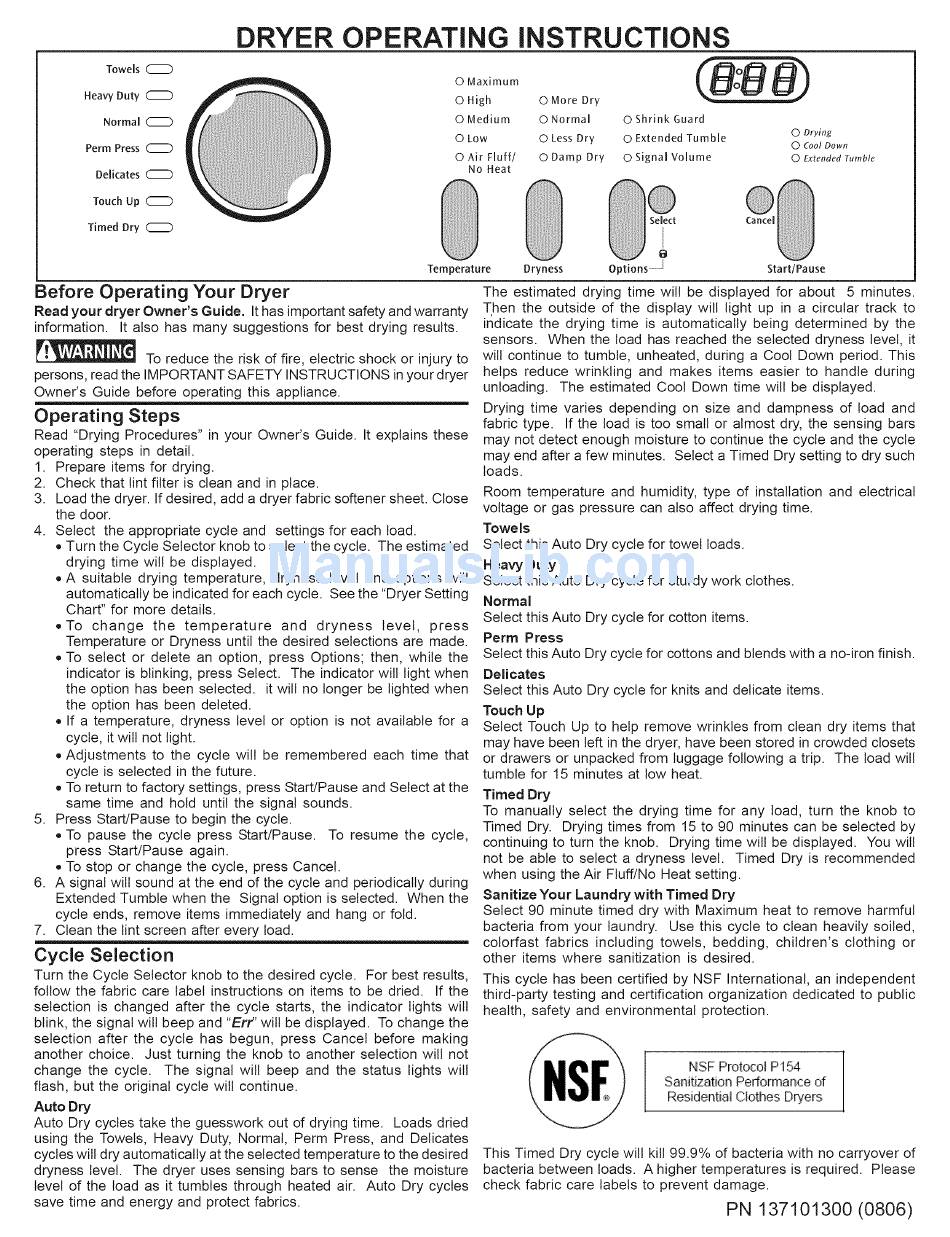

DRYER OPERATING INSTRUCTIONS
Before Operating Your Dryer
Read your dryer Owner's Guide. It has important safety and warranty
information. It also has many suggestions for best drying results.
To reduce the risk of fire, electric shock or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS in your dryer
Owner's Guide before operating this appliance.
Operating Steps
Read "Drying Procedures" in your Owner's Guide. It explains these
operating steps in detail.
1. Prepare items for drying.
2. Check that tint filter is clean and in place.
3. Load the dryer. If desired, add a dryer fabric softener sheet. Close
the door.
4. Select the appropriate cycle and settings for each toad.
, Turn the Cycle Selector knob to select the cycle. The estimated
drying time wilt be displayed.
, A suitable drying temperature, dryness level and options will
automatically be indicated for each cycle. See the "Dryer Setting
Chart" for more details.
,To change the temperature and dryness level, press
Temperature or Dryness until the desired selections are made.
, To select or delete an option, press Options; then, while the
indicator is blinking, press Select. The indicator will light when
the option has been selected, it wilt no longer be lighted when
the option has been deleted.
, If a temperature, dryness level or option is not available for a
cycle, it will not light.
, Adjustments to the cycle will be remembered each time that
cycle is selected in the future.
To return to factory settings, press Start/Pause and Select at the
same time and hold until the signal sounds.
5. Press Start/Pause to begin the cycle.
To pause the cycle press Start/Pause. To resume the cycle,
press Start/Pause again.
, To stop or change the cycle, press Cancel.
6. A signal wilt sound at the end of the cycle and periodically during
Extended Tumble when the Signal option is selected. When the
cycle ends, remove items immediately and hang or fold.
7. Clean the lint screen after every load.
Cycle Selection
Turn the Cycle Selector knob to the desired cycle. For best results,
follow the fabric care label instructions on items to be dried. If the
selection is changed after the cycle starts, the indicator lights will
blink, the signal will beep and "Err' will be displayed. To change the
selection after the cycle has begun, press Cancel before making
another choice. Just turning the knob to another selection wilt not
change the cycle. The signal will beep and the status lights wilt
flash, but the original cycle will continue.
Auto Dry
Auto Dry cycles take the guesswork out of drying time. Loads dried
using the Towels, Heavy Duty, Normal, Perm Press, and Deticates
cycles will dry automatically at the selected temperature to the desired
dryness level. The dryer uses sensing bars to sense the moisture
level of the load as it tumbles through heated air. Auto Dry cycles
save time and energy and protect fabrics.
O Maximum
O High O More Dry
O Medium O Normal
O Low O Less Dry
O Air Fluff/ O Damp Dry
No Heat
O Shrink Guard
O Extended Tumble 0 Drying
0 Cool Down
0 Signal Volume 0 ExtendedTumble
Select Cancel
Temperature Dryness Options J Start/Pause
The estimated drying time will be displayed for about 5 minutes.
Then the outside of the display will light up in a circular track to
indicate the drying time is automatically being determined by the
sensors. When the load has reached the selected dryness level, it
will continue to tumble, unheated, during a Cool Down period. This
helps reduce wrinkling and makes items easier to handle during
unloading. The estimated Cool Down time will be displayed.
Drying time varies depending on size and dampness of toad and
fabric type. If the load is too small or almost dry, the sensing bars
may not detect enough moisture to continue the cycle and the cycle
may end after a few minutes. Select a Timed Dry setting to dry such
loads.
Room temperature and humidity, type of installation and electrical
voltage or gas pressure can also affect drying time.
Towe Is
Select this Auto Dry cycle for towel loads.
Heavy Duty
Select this Auto Dry cycle for sturdy work clothes.
Normal
Select this Auto Dry cycle for cotton items.
Perm Press
Select this Auto Dry cycle for cottons and blends with a no-iron finish.
Delicates
Select this Auto Dry cycle for knits and delicate items.
Touch Up
Select Touch Up to help remove wrinkles from clean dry items that
may have been left in the dryer, have been stored in crowded closets
or drawers or unpacked from luggage following a trip. The load wilt
tumble for 15 minutes at low heat.
Timed Dry
To manually select the drying time for any toad, turn the knob to
Timed Dry. Drying times from 15 to 90 minutes can be selected by
continuing to turn the knob. Drying time will be displayed. You will
not be able to select a dryness level. Timed Dry is recommended
when using the Air Fluff/No Heat setting.
Sanitize Your Laundry with Timed Dry
Select 90 minute timed dry with Maximum heat to remove harmful
bacteria from your laundry. Use this cycle to clean heavily soiled,
colorfast fabrics including towels, bedding, children's clothing or
other items where sanitization is desired.
This cycle has been certified by NSF International, an independent
third-party testing and certification organization dedicated to public
health, safety and environmental protection.
(_ NSF Protocol P154
Sanitization Performance of
Residential Clothes DP/ers
This Timed Dry cycle wilt kill 99.9% of bacteria with no carryover of
bacteria between loads. A higher temperatures is required. Please
check fabric care labels to prevent damage.
PN 137101300 (0806)
