2
Controls ...............8
Oven
Control Functions
................
9
Setting Oven Controls ............
10-14
Self Cleaning
...........................
15-16
General
Care & Cleaning
....... 17-19
Ill,
il
I
Visit the Frigidaire
Web Site at:
http://www.frigidaire.com
Adjusting
Oven Temperature
....... 19
Before You Call
Solutions
to Common
Problems
................
20-21
Warranty
.........................
Back Page
READ AND SAVE
THESE
INSTRUCTIONS
pin 316417101
REVA (0408)
Advertisement
Related Manuals for Frigidaire FGFB75DQA
Summary of Contents for Frigidaire FGFB75DQA

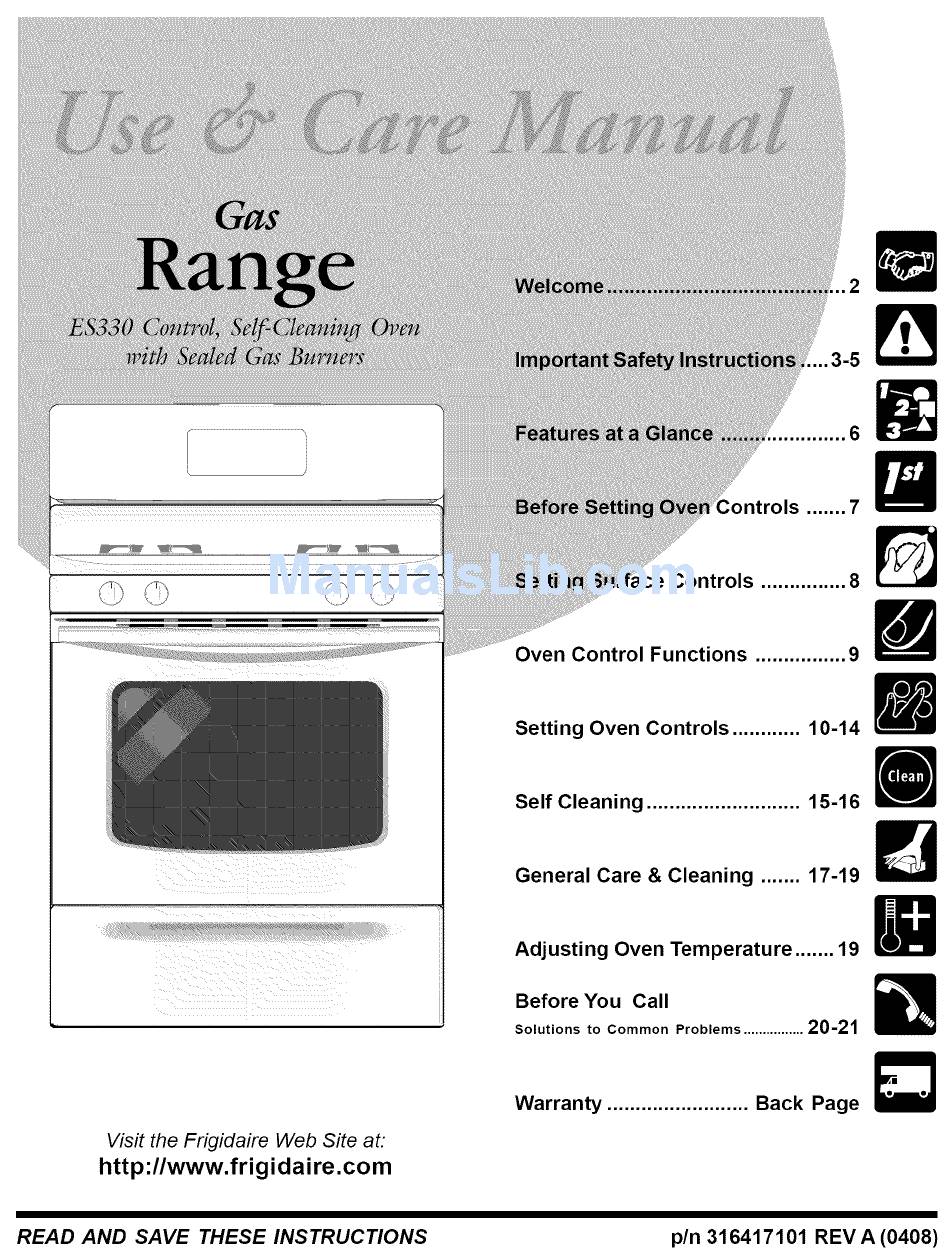

- Page 1 Care & Cleaning ..17-19 Ill, Adjusting Oven Temperature ..19 Before You Call 20-21 Solutions to Common Problems ....Warranty ......Back Page Visit the Frigidaire Web Site at: http://www.frigidaire.com READ AND SAVE THESE INSTRUCTIONS pin 316417101 REVA (0408)
