Eureka Breezeway Assembly Instructions

Assembly Instructions for the Breezeway:
You can usually assemble this Breezeway alone. However, with first
time set-up or with windy conditions, you will need help.
Component List:
1 Screen/Body w/ Hub 1 Tent Bag
4 Poles 1 Stake Bag and Stakes

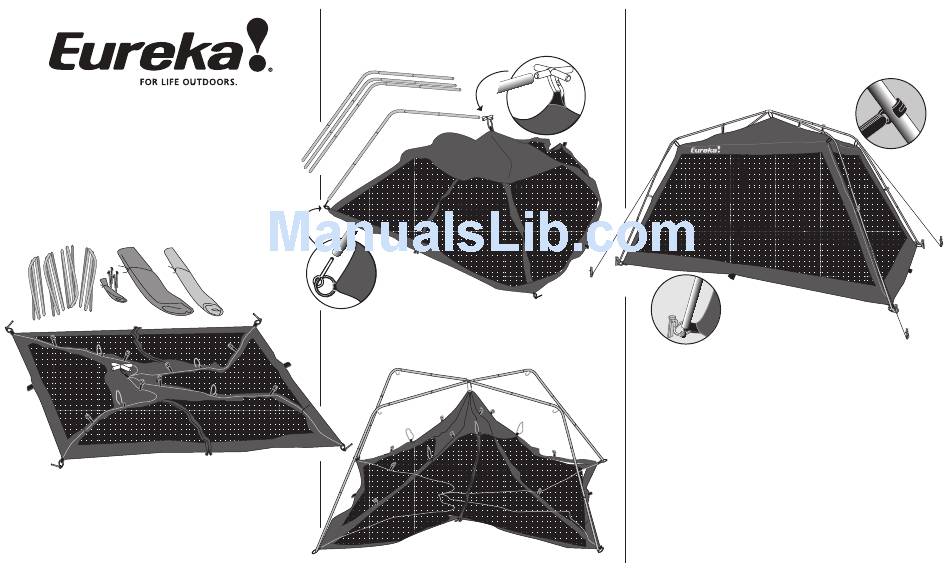

1. Unpack the tent bag, pole bag and separate all of the components.
Unroll and unfold the fabric with the Eureka! label up.
2. Locate the spider hub fitting attached to the center of the roof.
See fig.1.
3. Assemble all of the shock-corded poles. Check and make sure that
each section is fully seated into the next. See fig.2.
4. Slide a top pole section onto a spider hub arm. See fig.3.
5. Check and make sure the hub and fabric are aligned.
Then, insert the proper corner ring & pin into the bottom
pole section. See fig.4.
fig.2
1 Pole Bag
fig.4
fig.1
6. Repeat with a second pole onto the opposite hub arm
to form and arch. Lift the arch; attach the remaining two
poles to erect a free standing unit. See fig. 5.
7. Attach all of the top pole clips. Attach the bungee cords
See fig.6.
8. Stake down all four corner rings and your
fig.3
fig.5
to all the corner hooks. Then attach all remaining clips.
Breezeway is ready. See figs.7 & 8.
®
fig.8
fig.7
YOUR SHELTER IS READY!
Take down:
• Zip the doors closed.
• Unstake the Breezeway.
• Unclip the fabric from the frame.
• Remove the corner pins from the ends of the poles.
• Remove the poles from the hub, unseat each section and
store in the pole bag.
• Fold the fabric into thirds. Place the pole bag on the fabric
and together, roll them up.
• Pack all components into the tent bag.
