Craftsman 944.361460 Owner's Manual

Craftsman 944.361460 Owner's Manual

6 horsepower 21 "multi-cut rotary lawn mower
Hide thumbs

Advertisement

Quick Links

Enlarged version

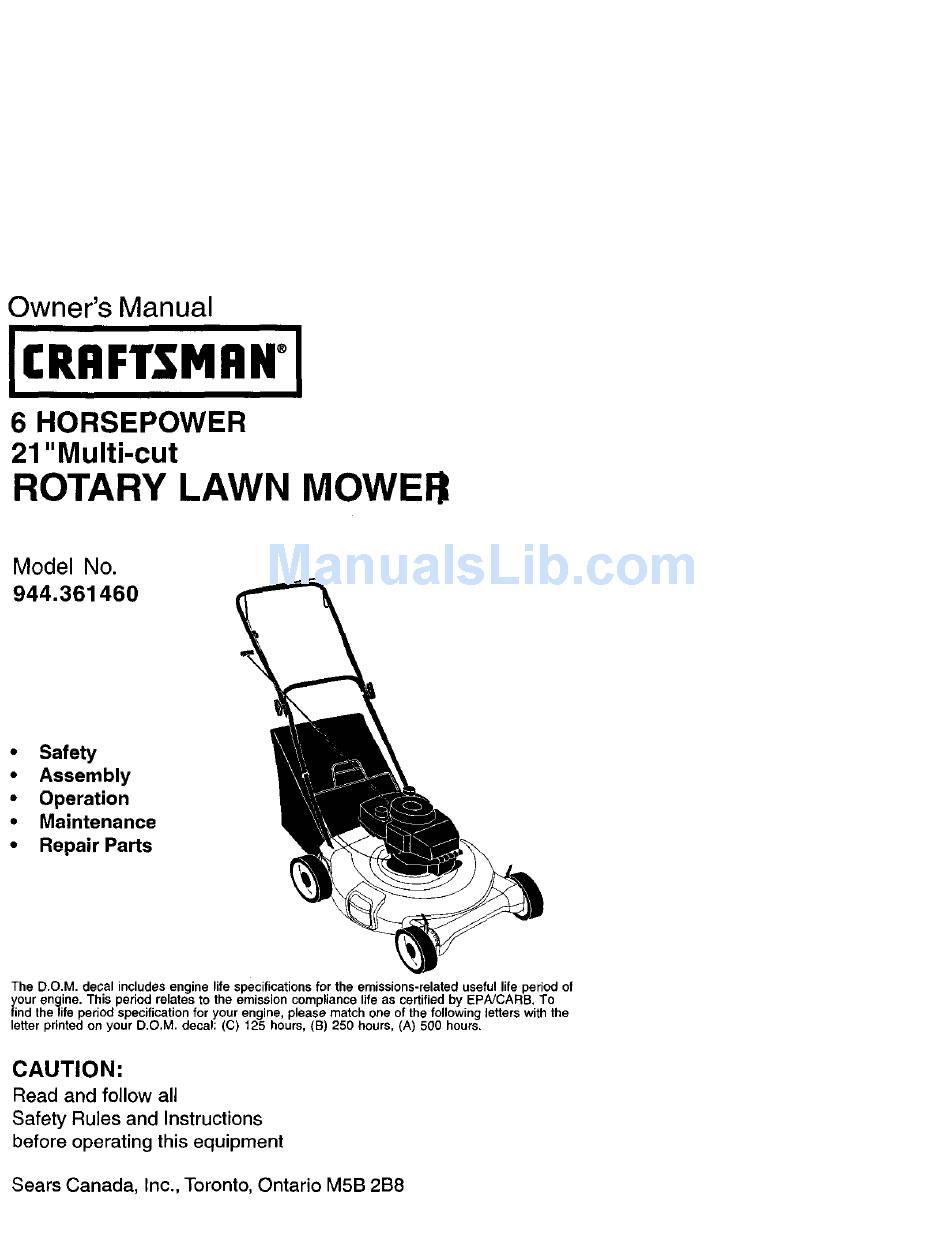

Owner's Manual
[[RIIFTSMIIN° I
6 HORSEPOWER
21 "Multi-cut
ROTARY LAWN MOWER
Model No.
944.361460
•
Safety
•
Assembly
•
Operation
•
Maintenance
•
Repair Parts
The D.O.M. decal includes engine life specifications for the emissions-related
useful life period of
your engine. This period relates to the emission
compliance
life as certified by EPA/CARB.
To
find the/ife period specification
for your engine, please match one of the following letters with the
letter printed on your D.O.M. decal: (C) 125 hours, (B) 250 hours, (A) 500 hours.
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears Canada,
inc., Toronto, Ontario M5B 2B8
