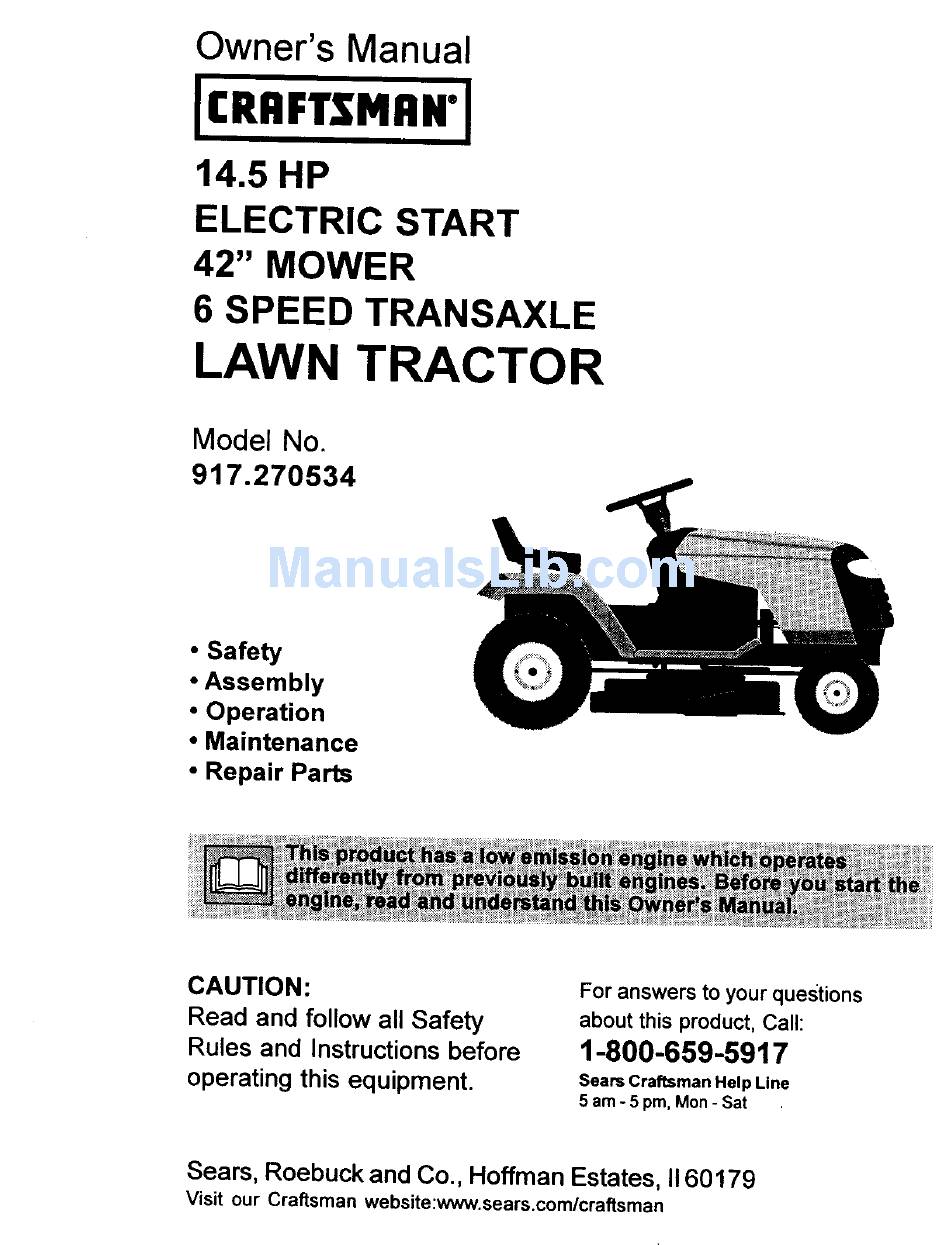

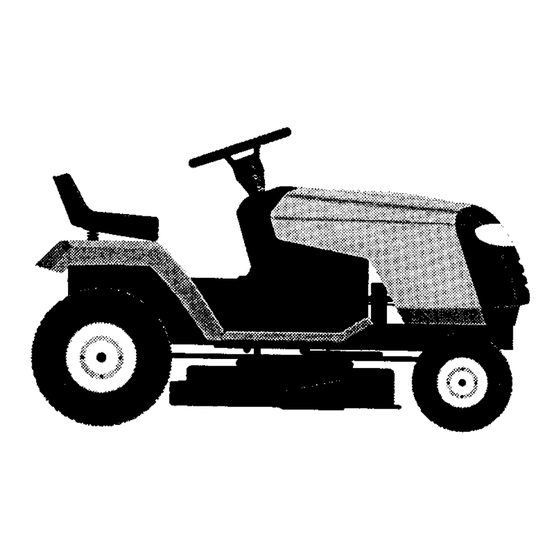

Craftsman 917.270534 Owner's Manual

14.5 hp electric start 42" mower 6 speed transaxle lawn tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
JCRAFTSMAN" I
14.5 HP
ELECTRIC
START
42" MOWER
6 SPEED TRANSAXLE
LAWN TRACTOR
Model No.
917.270534
• Safety
• Assembly
• Operation
• Maintenance
• Repair Parts
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions
about this product, Call:
1-800-659 -5917
Sears Craftsman Help Line
5 am - 5 pm, Mon - Sat
Sears, Roebuck and Co., Hoffman Estates, II 60179
Visit our Craftsman
website:www,
sears.com/craftsman

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 917.270534

Summary of Contents for Craftsman 917.270534

  • Page 1 Call: Read and follow all Safety 1-800-659 -5917 Rules and Instructions before operating this equipment. Sears Craftsman Help Line 5 am - 5 pm, Mon - Sat Sears, Roebuck and Co., Hoffman Estates, II 60179 Visit our Craftsman website:www,...

  • Page 2: Limited 90-Day Warranty

    Repair Parts........3 2 Maintenance Schedule ...... 16 Parts Ordering .....Back Cover LIMITEDTWO YEAR WARRANTY ON CRAFTSMAN RIDINGEQUIPMENTPARTS For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according to the instructions...

  • Page 3: General Operation

    SLOPE OPERATION IMPORTANT: This cutting machine is Slopes are a major factor related to loss- capable of amputating hands and feet of-control and tipover accidents, which and throwing objects. Failure to observe can result in severe injury or death. All the following safety instructions could re- slopes require extra caution.
  • Page 4 Never run a machine inside a closed • Keep children out of the mowing area • and under the watchful care of another area. responsible adult. • Keep nuts and bolts, especially blade • Be alert and turn machine off if children attachment bolts, tight and keep equip- enter the area.

  • Page 5: Customer Responsibilities

    _CAUTION: Tow only the attachments _l_Look for this symbol to point o ut!mpor- rant safety precautions. It means L,AU- that are recommended'by and comply with TION!!! BECOME AWARE!!! YOUR specifications of the manufacturer of your SAFETY IS INVOLVED. tractor. Use common sense when towing. Operate only at the lowest possible speed ,J_CAUTION"...
  • Page 6 Steering Wheel Extension Steering Shaft Sleeve teering Steering Adapter (1) Hex Bolt 3/8-16 x 1 Wheel Insert ",2' washer (1) Hex Bolt Locknut (wl)aL_regeFlat _=_._1[[![!!!1! 5/16-18 Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Knob Keys Video Cassette Slope Sheet (2) Keys...

  • Page 7: Install Steering Wheel

    Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

  • Page 8: Install Seat

    TO ROLL TRACTOR OFF SKID (See Seat Operation section for location function of controls) Bale_ • Press lift lever plunger and raise attachment lift lever to its highest position. • Release parking brake by depressing clutch/brake pedal. • Place gearshift lever in neutral (N) position.

  • Page 9: Check Tire Pressure

    /'CHECKLIST CHECK TIRE PRESSURE The tires on your tractor were overin- BEFORE YOU OPERATE AND ENJOY flated at the factory for shipping pur- YOUR NEW TRACTOR, WE WISH TO poses. Correct tire pressure is important ASSURE THAT YOU RECEIVE THE for best cutting performance.
  • Page 10 These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BATTERY CAUTION REVERSE FORWARD FAST SLOW WARNING E.G,NEON ENG,NEOFF O,LPRESSURE L,G.TSON OVE,_Mp T FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT LOCKED r 'I ATTACHMENT...
  • Page 11 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Attachment Ammeter Clutch Lever Ignition Switch iht Switch Plunger...
  • Page 12 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.

  • Page 13: To Operate On Hills

    TO ADJUST MOWER CUTTING TO OPERATE ON HILLS HEIGHT CAUTION: Do not drive up or down The position of the attachment lift lever hills with slopes greater than 15 ° and do not drive across any slope. determines the cutting height. •...

  • Page 14: Add Gasoline

    BEFORE STARTING THE ENIGNE TO START ENGINE CHECK ENGINE OIL LEVEL When starting the engine for the first ti or if the engine has run out of fuel, it wi • The engine in your tractor has been take extra cranking time to move fuel shipped, from the factory, already filled from the tank to the engine.

  • Page 15: Mowing Tips

    MOWING TIPS • If grass is extremely tall, it should be mowed twice to reduce load and • Tire chains cannot be used when the possible fire hazard from dried mower housing is attached to tractor. clippings. Make first cut relatively •...

  • Page 16: General Recommendations

    MAINTENANCE SCHEDULE _"_ ,_n_._o_ _" c'_" AS YOU COMPLETE ,_,_'. _._ c::B::;o::ion Check Operator Presence Interlock Systems Check for Loose Fasteners " Sharpen/Replace Mower Blades _VW,: Lubrication Chart I Check Battery Level Clean Battery and Terminals Check Transaxle Cooling ; Adjust Blade Bait(s) Tension Adjust Motion Ddve Belt(s) Tension ¥#s...

  • Page 17: Brake Operation

    TRACTOR • Install new or resharpened blade with trailing edge up towards deck as Always observe safety rules when shown. performing any maintenance. IMPORTANT: To ensure proper assem- BRAKE OPERATION bly, center hole in blade must align with If tractor requires more than six (6) feet star on mandrel assembly.
  • Page 18 BATrERY NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting ir Your tractor has a battery charging cold weather, these multi-viscosity oils system which is sufficient for normal use. will result in increased oil consumption However, periodic charging of the battery when used above 32°F, Check your with an automotive charger will extend...

  • Page 19: Engine Cooling

    ENGINE COOLING FINS • Clean cartridge by tapping gently on flat surface. If very dirty or damaged, Remove any dust, dirt or oil from engine replace cartridge. cooling fins to prevent engine damage • Reinstall cartridge, nut, precleaner, from overheating. cover and secure with knob(s).
  • Page 20 CLEANING We do not recommend using a garden hose to clean your tractor unless the • Clean engine, battery, seat, finish, etc. electrical system, muffler, air filter and of all foreign matter. carburetor are covered to keep water out • Keep finished surfaces and wheels Water in engine can result in a short- free of all _asoline,...
  • Page 21 TO LEVEL MOWER HOUSING Check adjustment on right side of tractor. Adjust the mower while tractor is parked Measure distance "D" directly in front on level ground or driveway. Make sure and behind the mandrel at bottom edge tires are properly inflated (See "PROD- of mower housing as shown.
  • Page 22 • Road test tractor for proper stopping ,TO REPLACE MOWER BLADE distance as stated above. Readjust i DRIVE BELT necessary. If stopping distance is sti The mower blade drive belt may be greater than six (6) feet in highest replaced without tools. Park the tractor gear, further maintenance is neces- on leve_ sudace.
  • Page 23 TO ADJUST STEERING WHEEL TO START ENGINE WITH AWEAK ALIGNMENT BATTERY If steering wheel crossbars are not • iL CAUTION: Lead-acid batteries horizontal (left to right) when wheels are generate explosive gases. Keep sparks, positioned straight forward, remove flame and smoking materials away from steering wheel and reassemble batteries.
  • Page 24 REPLACING BATTERY INTERLOCKS AND RELAYS Loose or damaged wiring may cause _,CAUTION: Do not short battery your tractor to run poorly, stop running, or terminals by allowing a wrench or any prevent it from starting. other object to contact both terminals •...
  • Page 25 Move throttle control lever to slow • Check that holes "A" in governor control lever and hole in governor position. With finger, rotate and hold plate line-up. If holes "A" are not throttle lever against idle speed aligned, loosen clamp screw and screw.

  • Page 26: Engine Oil

    ethanol or methanol) can attract moistu_ Immediately prepare your tractor for which leads to separation and formatior storage at the end of the season or if the of acids during storage. Acidic gas can tractor will not be used for 30 days or damage the fuel system of an engine more.

  • Page 28: Troubleshooting Chart

    TROUBLESHOOTINGCHART PROBLEM CAUSE CORRECTION Lossofpower • Cutting too much • Set in "Higher Cut" position/ grass/too fast. reduce speed. • Throttle in "CHOKE" • Adjust throttle control. position. • Build-up of grass, • Clean underside of mower leaves and trash housing.
  • Page 29 TROUBLESHOOTING CHART !PROBLEM CAUSE CORRECTION i Mower blades will not • Frozen idler pulley. • Replace idler pulley. rotate (Cont'n) • Frozen blade mandrel, • Replace blade mandrel. Poor grass discharge • Engine speed too slow. • Place throttle control in "FAST" position.
  • Page 30 NOTES...
  • Page 31 TRACTOR-- MODEL NUMBER 917.270534 SCHEMATIC BATTERY FUSE STARTER AMMETER (OPTIONAL) BLA_K L ..CLUTCH / BRAKE (PEDAL SEAT SWITCH IGNITION (NOT OCCUPIED) SWITCH BLACK GROUNDING _*cK (CLUTCH OFF) CONNECTOR (OPTIONAL) SPARK IGNITION PLUG l'..-FUELI UNIT • PLuGsGAP BLUE TWIN CYL. ENGINES) •...
  • Page 32 TRACTOR -- MODEL NUMBER 917.270534 ELECTRICAL...
  • Page 33 Nut Keps Hex 1/4-20 Unc 4207J Cable Ground 6ga 12" black 121305X Switch Plunger NCGray 163968 Switch Ign DeRa Push-In 140403 Key Ign Molded Craftsman, Delta 170217 Harness Ign 71110408 Bolt BIk Hex 1/4-20unc x 1/2 131563 CoverTerminal Red 145673...

  • Page 34: Chassis And Enclosures

    TRACTOR -- MODE L NUMBER 917.270534 CHASSIS AND ENCLOSURES 26 25 3""'_. "_ 209 .._ JJ I...
  • Page 35 TRACTOR - MODEL NUMBER 917.270534 CHASSIS AND ENCLOSURES KEY PART NO. NOI DESCRIPTION 169831 Chassis Lt Stamping 169061 Drawbar 17060612 Screw 3/8-16 x 3/4 Washer 13/32 x 3/4 x 16 Ga. 19131216 155272 Bumper Hood/Dash 155924)(012 Saddle SLKSCRE FLT SDL 126471X Clip Insulator .406 Mtg Hole 168348X610...

  • Page 36: Ground Drive

    TRACTOR-- MODEL NUMBER 917.270534 GROUND DRIVE ..49 _ 51"t- 35 36 26_N...
  • Page 37 TRACTOR - MODE L NUMBER 917.270534 GROUND DRIVE PART KEY P/u_r DESCRIPTION DESCRIPTION Transaxle (See Breakdown) 127783 Pulley Idler V Groove Plastic ..Peedess206-545C 154407 Bellcrank Clutch Gm Dry St! 146682 Spri_j Return Brake T/a Zinc 123205X Retainer Belt Style Spring 123666X Bolt Hex Hd 3/8-16unc x 1-1/2 Pulley Transaxle 18/20"...
  • Page 38 TRACTOR - MODEL NU MBER 917.270534 STEERING _ t_ ..I P-_'_"...
  • Page 39 TRACTOR- MODEL NUMBER 917.270534 STEERING KEY PART DESCRIPTION 139768 Wheel Steering Opp Sears BIk 154427 Axle Asm Front Lt 156483 Spindle Asm Lh 157473 Spindle Asm Rh 6266H Washer Thrust ,75 x 1.230 121748X Washer 25/32 x 1-5/8 x 16 Ga. Washer 27/32 x 1-1/4 x 16 Ga.
  • Page 40 TRACTOR - MODEL NUMBER 917.270534 ENGINE I OPTIONAL EQUIPMENT Spark Arrester...
  • Page 41 TRACTOR -- MODEL NUMBER 917.270534 ENGINE KEY PART NO. NO. DESCRIPTION Control TWch LH IV 1 80 20 22 162157 1_2_10 Screw Hex Thd Cut 1/4-20x5/8 T Engine (See Breakdown) ..Briggs, Model No 28U707-1174-E3 Muffler Exh LT B&S 14HP IC OHV 137352 165291 Gasket Eng 1 313 Id Tin Plated...

  • Page 42: Seat Assembly

    TRACTOR- MODEL NUMBER 917.270534 SEAT ASSEMBLY p,..._ 8 .y 9 KEY PART PART DESCRIPTION DESCRIPTION 140122 Seat 121248X Bushing Snap BIk Nyl 50 Id 140551 Bracket Pvt St 14 72050412 Bolt Rdhd Sht Nk 1/4-20x1-1/2 71110616 Bolt Fin Hex 3/8-16unc X 1 134300 Spacer Split 28x 96 Yel Zinc 19131610...

  • Page 43: Wheels And Tires

    Decal V-Belt Sch 133644 Decal Maint Cust Sears Domesti 160396 171760 163207 Decal Fender Sd 6/42 Decal Replcmnt Sears 163204 Decal Fender Craftsman White 157199X428 Pad Footrest 149515 138311 Decal Battery Dngr/Psn Eng Decal Handle Lft Height Adjust Acme 174675...

  • Page 44: Lift Assembly

    TRACTOR - MODEL NUMBER 917.270534 LIFT ASSEMBLY...
  • Page 45 TRACTOR - MODEL NUMBER 917.270534 LIFT ASSEMBLY K]EY PART DESCRIPTION 159460 Wire Asm InnedSprg W/plunger LT 159471 Shaft Asm Lift 105767X Pin Groove 1 500 Zinc 12000002 E Ring #5133-62 19211621 Washer PItd 21/32 X 1 X 21ga 120183X Bearing Nylon BIk 629 Id 125631X Grip Handle Fluted BIk 122365X...

  • Page 46: Mower Deck

    TRACTOR - MODE L NUMBER 917.270534 MOWER DECK .146 _147 142 19 F...
  • Page 47 TRACTOR-- MODEL NUMBER 917.270534 MOWER DECK PART PART DESCRIPTION DESCRIPTION 165892 Mower Deck Assembly, 42" 137729 Screw, Thd. Roll 1/4-20 x 5/8 STD533107 Bolt 133944 Washer, Hardened 138017 Bracket Assembly, Sway Bar, 155066 Roller Assembly, Cam Follower Front 131340 Bolt, Shoulder #10-24 Grade 5 Locknut 165460...
  • Page 48 TRACTOR- MODEL NUMBER 917.270534 PEERLESS TRANSAXLE--MODEL NUMBER 206-545C "r/'-"...
  • Page 49 TRACTOR - MODEL NUMBER 917.270534 PEERLESS TRANSAXLE--MODEL NUMBER 206-545C PART KEY PART DESCRIPTION DESCRIPTION 772147 Transaxle Cover 41A 790079 Brake Lever Screw 1/4 - 20 x 1-1 /4" 780086A Needle Bearing 5/8" 792073A 770128 Transaxle Case 42A 792085A Screw 1/4 - 20 x 2 1/4" 776395 Countershaft 792075...
  • Page 50 TRACTOR -- MODEL NUMBER 917.270534 BRIGGS & STRA'I-rON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E3 552 II 691O1 1033 VALVE OVERHAUL KIT 868 _ 1022 _ 51A _.
  • Page 51 TRACTOR -- MODEL NUMBER 917.270534 BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E3 240_ 127, LMTICARBUR ETOR PART NUMBER LOCATIONS 186__ 947(_ THIS CARBURETOR SERV|CES BOTH CHOKE-A-MATIC AND MANUAL CHOKE SYSTEMS 121 CARBURETOR OVERHAUL 358 ENGINE GASKET 104_ 1270 26_@ 9870 98 691 @ 634A €'_ 634 c._...
  • Page 52 TRACTOR -- MODEL NUMBER 917.270534 BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E3 : 305A 1005 1044 _ 75 C_ 1051 _- 1036 EMISSIONS LABEL...
  • Page 53 TRACTOR -- MODEL NUMBER 917.270534 BRIGGS & STRATrON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E3 PART PART DESCRIPTION DESCRIPTION 496412 Cylinder Assembly 94896 Screw (Flywheel Guard) 399265 Bushing/Seal 690602 Bushing-Throttle Shaft 391086 -_ Sea_-Oil 498030 Idle Mixture Kit 494238 Sump*Engine 94098 •...
  • Page 54 TRACTOR-- MODEL NUMBER 917.270534 BRIGGS & STRA'I-I'ON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E3 PART PART DESCRIPTION DESCRIPTION 783693713 Gear-Pinion (For Steel 94930 Screw (Cylinder Shield) Ring Gear Only) 693551 Motor-Starter (For Steel Gear-Pinion (For Aluminum Ring Gear Only) 783A 693059 Ring Gear Only) 497595 Motor-Starter (For Plastic...
  • Page 55 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL SIGHTING -_. CUT, GUIDE TH" _ Operate your Tractor up and down the face of slopes (not greater than 15 ), never across the face. Make turns gradu- ally to prevent tipping or loss of control.
  • Page 56 For repair of major brand appliances in your own home... no matter who made it, no matter who sold it! _!iii!;_!iiiiii_i 1-800-4-MY-HOME sM Anytime. day or night (1-8oo-.69-.863) www.sears.com To bring in products such as vacuums, lawn equipment and electronics for repair, call for the location of your nearest Sears Parts &...
