KNOW
YOUR ELECTRONIC RECIPROCATING
SAW

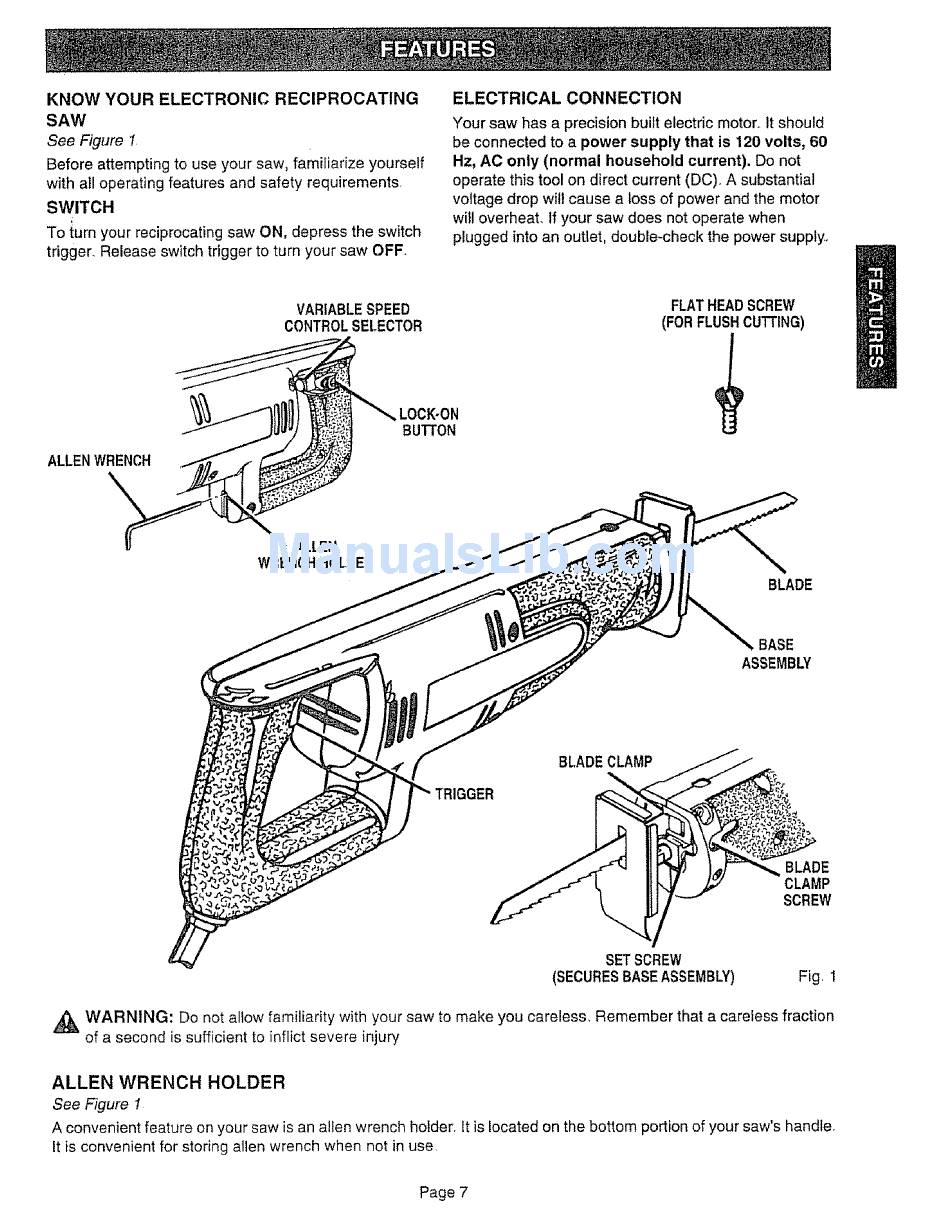

See Figure 1
Before attempting to use your saw, familiarize yourself
with all operating features and safety requirements
SWITCH
To turn your reciprocating saw ON, depress the switch
tdgger_ Release switch trigger to turn your saw OFF.
ELECTRICAL CONNECTION
Your saw has a precision built electric motor. It should
be connected to a power supply that is 120 volts, 60
Hz, AC only (normal household current). Do not
operate this too! on direct current (DC). A substantial
voltage drop will cause a loss of power and the motor
wil! overheat. If your saw does not operate when
plugged into an outlet, double-check the power supply°
ALLENWRENCH
VARIABLE SPEED
CONTROLSELECTOR
LOC_ON
BUTTON
FLATHEADSCREW
(FOR FLUSHCUTTING)
ALLEN
WRENCHHOLDER
BLADE
BASE
ASSEMBLY
BLADE CLAMP
BLADE
CLAMP
SCREW
SETSCREW
(SECURESBASEASSEMBLY) Fig. 1
,_ WARNING: Do not allow familiarity with your saw to make you careless, Remember that a careless fraction
of a second is sufficient to inflict severe injury
ALLEN WRENCH HOLDER
See Figure 1
A convenient feature on your saw is an a!len wrench holder, It is located on the bottom portion of your saw's handle.
It is convenient for storing allen wrench when not in use
