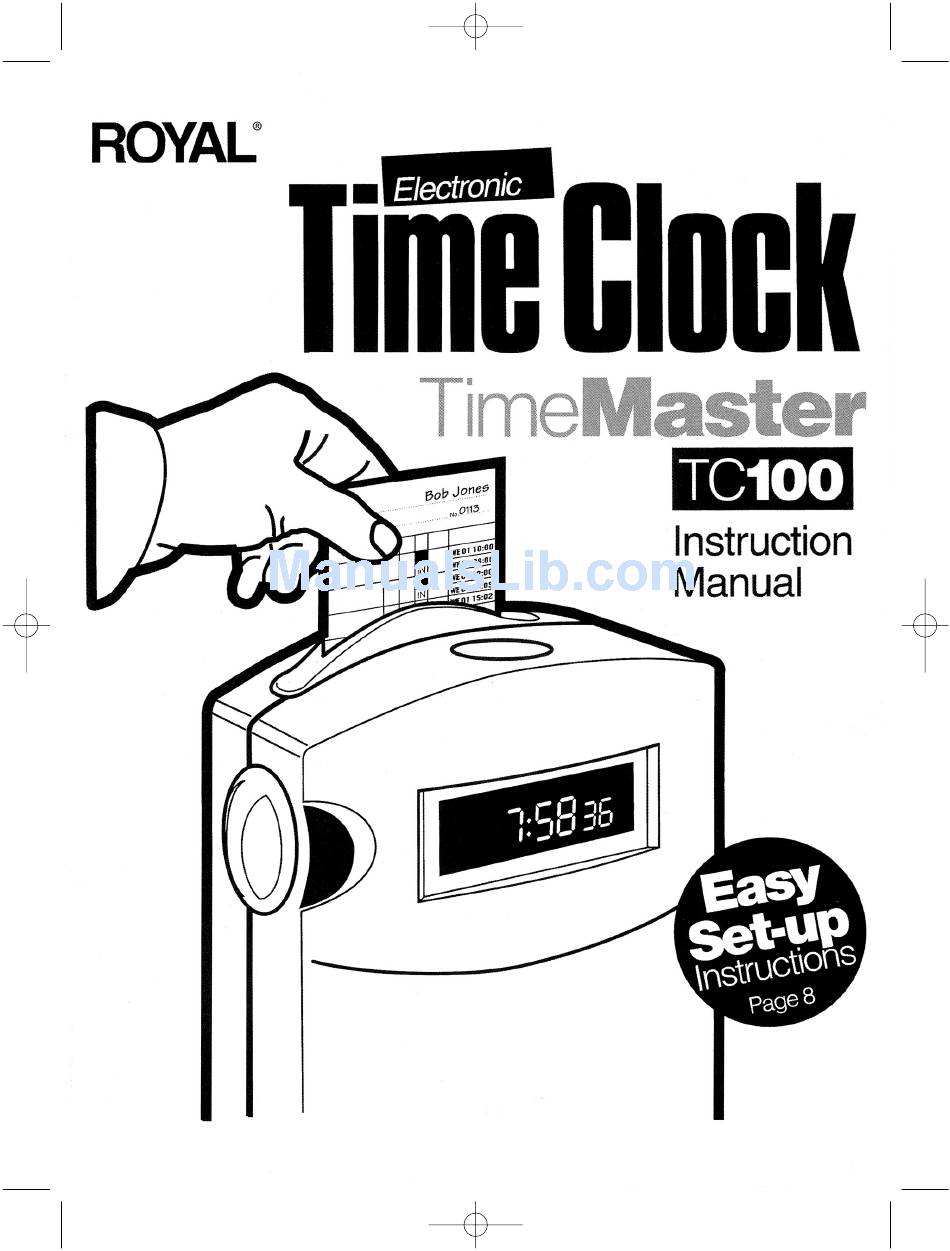

- Page 1 EnglishVersion 12/6/05 11:06 AM Page 1...
- Page 2 EnglishVersion 12/6/05 11:06 AM Page 2...
-
Page 3: Table Of Contents
EnglishVersion 12/6/05 11:06 AM Page 3 TABLE OF CONTENTS Introduction........................1 Parts Check List .......................2 Safety Instructions ....................3 Components ......................4 Cover Removal / Replacement .................5 Regular Time / Overtime Printing ................6 Ink Roll Replacement ....................7 Easy Set Up Instructions ..........8 Manual / Automatic Print Activation ................8 Program Mode Description ..................9 Print Format P1 .......................10 Daylight Savings Time Ahead / Back P3 / P4 ............11... - Page 4 EnglishVersion 12/6/05 11:06 AM Page 4...
-
Page 5: Introduction
Time Clock. Please retain this guide for further reference. The ROYAL CONSUMER PRODUCT SUPPORT HOTLINE gives you the opportu- nity to call for operational assistance and problem resolution. Please call toll-free:... -
Page 6: Parts Checklist
Make sure that you have an appropriate AC power source near the place you’ve cho- sen to install the time clock. Royal offers a complete line of accessories for your clock - including replacement ink roll and timecards - to make replacement of parts quick, safe, and inexpensive. To reorder supplies, please see the Accessories page at the end of this instruction manual or call the Royal Supply Center at 1-888-261-4555. -
Page 7: Safety Instructions
EnglishVersion 12/6/05 11:06 AM Page 3 SAFETY INSTRUCTIONS Always follow basic safety precautions when using this product to reduce risk of injury, fire, or electric shock. Read and understand all instructions in the owner’s manual. Do not install the TC100 in places subject to high humidity and excessive dust, in areas exposed to direct sunlight or in places subject to temperatures below 32°F (0°C) or above 104°F (40°C). -
Page 8: Components
EnglishVersion 12/6/05 11:06 AM Page 4... -
Page 9: Cover Removal / Replacement
EnglishVersion 12/6/05 11:06 AM Page 5... -
Page 10: Regular Time / Overtime Printing
EnglishVersion 12/6/05 11:06 AM Page 6... -
Page 11: Ink Roll Replacement
EnglishVersion 12/6/05 11:06 AM Page 7 INK ROLL REPLACEMENT... -
Page 12: Easy Set Up Instructions
EnglishVersion 12/6/05 11:06 AM Page 8 SET UP INSTRUCTIONS HOW TO USE YOUR TC100 TIME CLOCK Step 1: Remove the front cover - see enclosed instruction sheet on page 5. Step 2: Program the Date & Time and Print Method using the 3 buttons: Mode, Select, Setting: Date &... -
Page 13: Program Mode Description
EnglishVersion 12/6/05 11:06 AM Page 9 PROGRAM MODE To program the date, time, and other settings, you must access the control panel behind the front cover (see instructions on page 5 for removing the front cover, if needed). The 3 buttons used for programming are: Mode Used to enter and select the desired program mode. -
Page 14: Print Format P1
EnglishVersion 12/6/05 11:06 AM Page 10 PRINT FORMAT PROGRAM MODE P1 There are six print formats available: Setting Number Month, Date, Time, Week Day (Default Setting) Date, Time, Week Day Time, Week Day Month, Date, Time Date, Time Time The default print format is Setting #1. To select another print format: Unlock and remove the cover (see page 5 if needed). -
Page 15: Daylight Savings Time Ahead / Back P3 / P4
EnglishVersion 12/6/05 11:06 AM Page 11 DAYLIGHT SAVINGS TIME The TC100 can be programmed to automatically adjust for Daylight Savings Time. PROGRAM MODE P3 - Daylight Savings Time (DST) - AHEAD To program the TC100 to automatically turn the time ahead one hour. (For example, at 2:00 AM on the first Sunday in April.) Press Mode until “P3”... -
Page 16: Wall Mount Installation
EnglishVersion 12/6/05 11:06 AM Page 12 WALL MOUNT INSTALLATION NOTE: Do not mount the TC100 directly to plasterboard, paneling, brick, or concrete block. Rather, using appropriate fasteners, secure a board to the wall and then mount the TC100 to the board. At a height convenient for all members of the work force and within 5 ft. -
Page 17: Time Cards And Print Alignment
The Part Number for the Royal brand time cards is 013702 (250 time cards per pack). We have tested many brands of time cards and have found the following other brands and... -
Page 18: Maintenance And Troubleshooting
13 for the adjustment screw instructions. Other Questions / Problems Make sure you have followed all the instructions in this booklet. If you have addition- al questions, please call Royal Customer Support in the U.S.A. at 1-800-272-6229 or in Canada at 1-888-266-9380. -
Page 19: Accessories Order Form
EnglishVersion 12/6/05 11:06 AM Page 15 ROYAL TC100 Electronic Time Clock ACCESSORIES ORDER FORM ITEM PART DESCRIPTION NUMBER 1. Replacement Key Set (2 keys) 10490022 2. Ink Roll IR40T (2 per package) 013110 3. Time Cards (250 time cards per pack) 013702 4. - Page 20 EnglishVersion 12/6/05 11:06 AM Page 16...
- Page 21 Floor, in Somerset, NJ 08875 USA warrants that your NEW Royal Electronic Cash Register or Time Clock (“Product”) is free of defects of workmanship and materials. If there is a defect or malfunction of this Product, Royal will repair the Product free of charge as follows: PARTS: New or comparable rebuilt parts in exchange for defective parts for ONE YEAR from the date of purchase.
- Page 22 • Be sure to include your complete name, address and day-time telephone number. • Bring or ship, prepaid and insured, via a traceable shipping method the above Product to the nearest Royal Authorized Service Center location or to the Royal Corporate Service Center. The Royal and/or the Service Center cannot be held responsible for any loss or damage that occurs while in transit.
