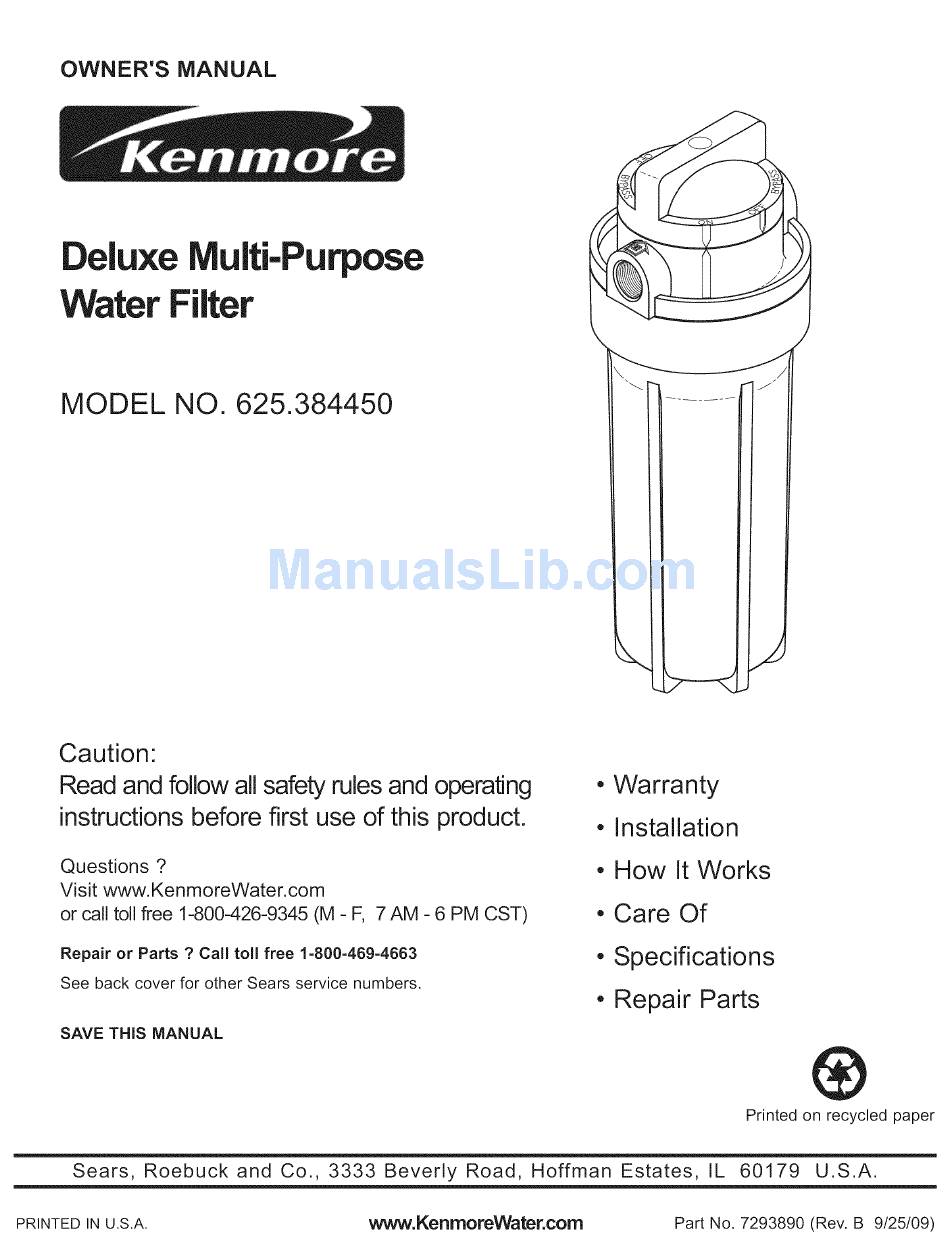

OWNER'S
MANUAL
Deluxe
Iti-Purpose
;r Filter
MODEL NO. 625.384450
Caution:
Read and follow all safety rules and operating
instructions before first use of this product.
Questions
?
Visit www.KenmoreWater.com
or call toll free 1-800-426-9345
(M - F, 7 AM - 6 PM CST)
Repair or Parts ? Call toll free 1o8004694663
See back cover for other Sears service numbers.
SAVE THiS MANUAL
• Warranty
• Installation
• How It Works
• Care Of
• Specifications
• Repair Parts
®
Printed on recycled paper
Sears,
Roebuck
and Co.,
3333
Beverly
Road
Hoffman
Estates,
IL
60179
U.S.A.
PRINTED IN U.S.A.
www.KenmoreWater.com
Part No. 7293890 (Rev. B 9/25/09)

Advertisement

loading

Related Manuals for Kenmore 625.384450

Summary of Contents for Kenmore 625.384450

  • Page 1 OWNER'S MANUAL Deluxe Iti-Purpose ;r Filter MODEL NO. 625.384450 Caution: Read and follow all safety rules and operating • Warranty instructions before first use of this product. • Installation • How It Works Questions Visit www.KenmoreWater.com • Care Of or call toll free 1-800-426-9345 (M - F, 7 AM - 6 PM CST) Repair or Parts ? Call toll free 1o8004694663 •...

  • Page 2: Water Filter

    This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Sears, Roebuck and Co., Hoffman Estates, IL 60179 14-1/4" 5-1/4" 5-1/4" Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 3 Y For cold water use only. Do not install on a hot water Occur. line. Y Not to be used on water that is microbiologically unsafe or of unknown quality without adequate disin- fection before or after the system. Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 4 Massachusetts, review plumb- ing code 248-CMR of the Commonwealth Massachusetts before proceeding with the installation. Adjustable Filter Wrench Deluxe Multi-Purpose Water Filter, including 25 micron Sediment Cartridge Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...

  • Page 5: Your Installation

    Make a simple sketch of your proposed installation, ]i] IJI Water Filter a list of plumbing materials you will need. Obtain COLD everything you need before starting the installation. Figure Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 6 2" under the filter for Optional 3/4" Hex Union 3/" removing Shutoff Nipple Fitting sump (to change Valve (2) the cartridge). Nipple Figure Figure See Note in Figure 3 Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...

  • Page 7: Water Flow

    To restore, buy and install a #4 copper wire across the filter, tightly clamped at both ends, as shown in Figure 10. Clamp Figure Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 8 10. After it cools, apply 4 wraps of Teflon tape to the threads on the sweat adaptor fitting. Apply flux and Figure continued Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 9 2" clearance from the filter head and install the filter cartridge (See under the filter for sump removal when changing Page 11). filter cartridge. Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 10 Average car- tridge life when filtering water to one faucet is 6 months or more. This average time varies depending on the type of cartridge and water conditions. Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 11 Turn to the right grease. Carefully press into the groove in the to tighten __._ sump. Figure 10. Taste and Odor Cartridges: A taste and odor car- continued Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 12 To remove the sump, turn it to the left (See Figure 14 on Page 11). Figure Move Slide Down II ] Push/Slide I Jl Button Valve Turning Range Figure Figure Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 13 In The Commonwealth Of Massachusetts: The Commonwealth of Massachusetts requires instal- lation be performed by a licensed plumber. Plumbing code 248-CMR of the Commonwealth of Massachusetts must be followed in these cases. Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com...
  • Page 14 Key No. Part No. Description 7164944 _ Head Assembly 42-34345 O=ring, 3=7/8" I.D. x 4.1/8" O.D. 7156543 Sump 42-34334 Wrench, Adjustable 7293890 Owner's Manual 42-38478 Sediment Cartridge, 25 micron 42-38480 Sediment Cartridge, 5 micron 42-34370 Taste & Odor Cartridge • 42-34373 Taste &...
  • Page 15 Questions? Call The Kenrnore Water Line 1=800=426=9345 or visit KenrnoreWater.corn...
  • Page 16 iiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_ ..Your Home iiiiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiiiii For repair - in your home - of all major brand appliances, iiiiiiiiiiiiiiiiiiii lawn and garden equipment, or heating and cooling systems, iiiiiiiiiiiiiiiiiiii no matter who made it, no matter who sold it! iiiiiiiiiiiiiiiiiiii For the replacement parts, accessories iiiiiiiiiiiiiiiiiiii...
  • Page 17 MANUAL DEL PROPIETARIO Filtro de agua multipropbsito de lujo MODELO No. 625.384450 Precauci6n: Antes de usar este producto por primera • Garantia vez, lea y siga todas las reglas de seguri- dad y las instrucciones de operaci6n. • Instalaci6n • C6mo funciona 2.,Tiene preguntas? Visite el sitio web www.KenmoreWater.com •...
  • Page 18 Esta garantia le otorga derechos legales especificos, yes posible que usted tenga otros derechos, los cuales varian de una jurisdicci6n a otra. Sears, Roebuck and Co., Hoffman Estates, IL 60179 14-1/4" 5-1/4" 5-1/4" &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 19 • Es importante asentar correctamente el aro t6rico en la ranura del vaso colector para evitar que haya p6rdidas de agua. &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-8001426-9345 o visite el sitio web KenmoreWater.com.
  • Page 20 I II Llave ajustable para el filtro Filtro de agua multiprop6sito de lujo, con cartucho filtrante para sedimentos de 25 micras &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 21 Obtenga todo lo que necesite antes de comenzar la instalaci6n. &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 22 (a fin de paso 3/4 pulg. 3/4 pulg. cambiar el cartucho). opcional Figura Figura Vea la nota en la Figura 3 &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 23 No. 4 e instMelo encima del filtro, fijSndolo firmemente con abrazaderas Abrazadera ambos extremos, como se ilustra en la Figura 10. Figura &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 24 10. Cuando se haya enfriado el metal, aplique 4 vueltas cinta de TeflolY '_a la rosca del adaptador para estaho. Figura continfla &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 25 5. Antes de abrir el paso de agua, retire el vaso colector del cabezal del filtro e instale el cartucho filtrante. (Vea la pSgina 11.) &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 26 6 meses o mas. Dicha duraci6n promedio varla segfin el tipo de cartucho y las condiciones del agua. gTiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 27 Limpie el aro t6rico y lubrlquelo con grasa de silicona, introdfizcalo cuidadosamente la ranura del vaso colector. Gire _ laderecha para apretarlo ___ Figura continfia &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 28 (Vea la Figura Fig. 14 de la pfgina 11.) selector deslizante otdn h/Slide Rango de giro de la vfilvula Figura Figura &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 29 En tales casos, se debe cumplir con el c6digo de plomer_a 248-CMR del Estado de Massachusetts. &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 30 Sears Parts at 1-800-469-4663. No se inctuye. • No debe usarse en apticaciones para toda la casa. LTiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 31 &Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345 o visite el sitio web KenmoreWater.com.
  • Page 32 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances...
