Summary of Contents for Zotac nForce 630i - ITX
- Page 2 Electronic Emission Notices WARNING! Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
NForce 610i/630i-ITX series Motherboard Table of Contents Motherboard Specifications ------------------------------------------------------------------- 4 Motherboard Layout------------------------------------------------------------------------------ 5 Hardware Installation ---------------------------------------------------------------------------- 7 Safety Instructions ----------------------------------------------------------------------------- 7 Preparing the Motherboard ------------------------------------------------------------------ 7 Installing the CPU ------------------------------------------------------------------------------ 7 Installing the CPU Fan ------------------------------------------------------------------------ 8 Installing Memory DIMMs -------------------------------------------------------------------- 8 Installing the Motherboard ------------------------------------------------------------------- 8 Installing the I/O Shield ----------------------------------------------------------------------- 9 Connecting Cables and Setting Switches ------------------------------------------------ 9... - Page 4 Table of Contents Advanced Chipset Features ----------------------------------------------------------------- 21 Integrated Peripherals Menu ---------------------------------------------------------------- 22 Power Management Setup Menu ---------------------------------------------------------- 23 PnP/PCI Configuration ------------------------------------------------------------------------ 24 PC health status -------------------------------------------------------------------------------- 25 Frequency/Voltage Control ------------------------------------------------------------------ 25 Load Fail-safe Defaults ----------------------------------------------------------------------- 26 Load Optimized Defaults --------------------------------------------------------------------- 26 Set Supervisor/User Password ------------------------------------------------------------- 26 Save &...
-
Page 5: Motherboard Specifications
NForce 610i/630i-ITX series Motherboard Motherboard Specifications q Chipset NVIDIA MCP73 Series q Size Mini-ITX form factor of 170mm x 170mm q Microprocessor support Intel LGA 775 Celeron® , Pentium® 4, Pentium® D, Core 2 Series q Operating systems: Supports Windows XP 32bit/64bit and Windows Vista 32bit/64bit q System Memory support Supports DDRII533/667(DDRII800 for NForce630i series). -
Page 6: Motherboard Layout

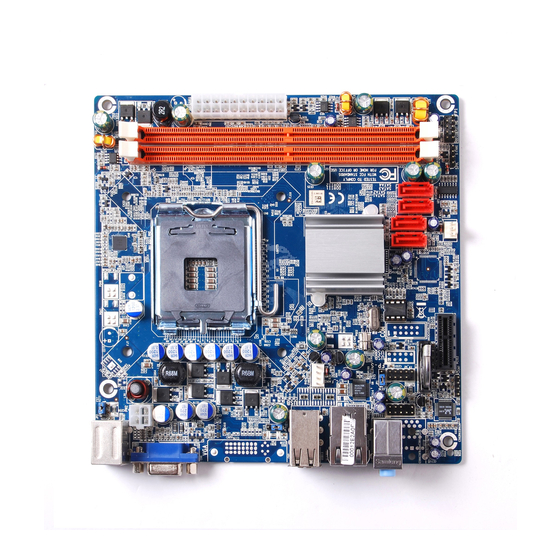

Motherboard Layout Motherboard Layout Figure 1 shows the motherboard and Figure 2 shows the back panel connectors. 13 14 15 16 Chiset C FAN1 PCIEX1 S FAN1 SPDIF Figure 1. Board Layout 24-pin ATX Power Connector-PW1 Clear CMOS Jumper Hard Disk Connector-IDE Backpanel connectors Front Panel Header-FP1 P/S port 5V standby selection Power... - Page 7 NForce 610i/630i-ITX series Motherboard Figure 2: Backpanel connectors 1. PS/2 Mouse Port 2. PS/2 Keyboard Port 3. VGA Connector 4. DVI Connector(optional for NForce630i-ITX) 5. USB Connectors 6. Port 2-Channel 4-Channel 6-Channel Blue Line-In Rear Speaker Out Rear Speaker Out Green Line-Out Front Speaker Out...
-
Page 8: Hardware Installation
Hardware Installation Hardware Installation This section will guide you through the installation of the motherboard. The topics covered in this section are: q Preparing the motherboard v Installing the CPU v Installing the CPU fan v Installing the memory q Installing the motherboard q Connecting cables and setting switches Safety Instructions To reduce the risk of fire, electric shock, and injury, always follow basic safety precations. -
Page 9: Installing The Cpu Fan
NForce 610i/630i-ITX series Motherboard Installing the CPU Fan There are many different fan types that can be used with this motherboard. Follow the instruction that came with your fan assembly. Be sure that the fan orientation is correct for your chassis type and your fan assembly. Installing Memory DIMMs Your new motherboard has two 1.8V 240-pin slots for DDR2 memory. -
Page 10: Installing The I/O Shield
Hardware Installation Installing the I/O Shield The motherboard kit comes with an I/O shield that is used to block radio frequency transmissions, protects internal components from dust and foreign objects, and promotes correct airflow within the chassis. Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield into place and make sure it fits securely. -
Page 11: 24-Pin Atx Power Connector-Pw1
NForce 610i/630i-ITX series Motherboard 4-pin ATX Power Connector-PW PW is the main power supply connector located along the edge of the board next to the DIMM slots. Make sure that the power supply cable and pins are properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the connector and make sure it is secure. -
Page 12: Serial Port Header-Com
Hardware Installation Serial Port Header-COM COM-Pin Definition Signal Signal SPDIF Out Header(optional) This header provides a SPDIF (Sony/Philips Digital Interface)output to digital multimedia device through coaxial connector. SPDIF-Pin Definition Signal SPDIF-out +3.3V Speaker Header-SPK SPK-Pin Definition Signal SPK- Hard Disk Connector-IDE The motherboard has a 32-bit Enhanced PCI IDE and Ultra DMA 66/100/133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 66/100/133... -
Page 13: Front Panel Header-Fp1
NForce 610i/630i-ITX series Motherboard Front Panel Header-FP The front panel header on this motherboard is one connector used to connect the fol- lowing four cables: q PWRLED Attach the front panel power LED cable to these two pins of the connector. The Power LED indicates the system’s status. -
Page 14: Front Pannel Audio Header-Fp_S1
Hardware Installation Front Pannel Audio Header-FP_S The audio connector supports HD audio standard and provides two kinds of audio output choices: the Front Audio, the Rear Audio. The front Audio supports re-tasking function. FP_S-Pin Definition Assignment Assignment MIC2(L) Reserved FAVDIO-JD MIC(R) Key(No pin) -ACZ-DET... -
Page 15: Fan Connectors
NForce 610i/630i-ITX series Motherboard Fan Connectors There are two Fan Connectors on the motherboard. The fan speed can be detected and viewed in the PC Health Status section of the CMOS Setup. SYS FAN Connector Sense +12V CPU FAN Connector Control Sense +12V... -
Page 16: Configuring The Bios
Configuring the BIOS Configuring the BIOS This section discusses how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. This section includes the following information: q Enter BIOS Setup q Main Menu q Standard CMOS Features q Advanced BIOS Features q Advanced Chipset Features... -
Page 17: Main Menu
NForce 610i/630i-ITX series Motherboard Main Menu The main menu allows you to select from the list of setup functions and two exit choices. Use the Page Up and Page Down keys to scroll through the options or press Enter to display the associated submenu. Use the # $ arrow keys to position the selector in the option you choose. -
Page 18: Standard Cmos Features Menu
Configuring the BIOS Standard CMOS Features Menu The Standard CMOS Features menu is used to configure the standard CMOS information, such as the date, time, HDD model, and so on. Use the Page Up and Page Down keys to scroll through the options or press Enter to display the sub-menu. Use the # $ arrow keys to position the selector in the option you choose. -
Page 19: Halt On
NForce 610i/630i-ITX series Motherboard Halt On Halt On determines whether or not the computer stops if an error is detected during power on. Use the Page Up and Page Down keys to scroll through the options or press Enter to display the Halt On sub-menu. Use the # $ arrow keys to position the selector in the option you choose. -
Page 20: Advanced Bios Features
Configuring the BIOS Advanced BIOS Features Access the Advanced BIOS Features menu from the CMOS Utility Setup screen. Use the Page Up and Page Down keys to scroll through the options or press Enter to display the sub-menu. Use the # $ arrow keys to position the selector in the option you choose. -
Page 21: Hard Disk Boot Priority
NForce 610i/630i-ITX series Motherboard Hard Disk Boot Priority Press Enter to display Hard Disk Boot Priority menu,then some of the peripheral equipment pluged will be displayed. q Bootable Add-in Cards Use this option to bootable add-in cards. q Virus Warning Allow you to choose the Virus Warning feature for IDE Hard Disk boot sector protection. -
Page 22: Advanced Chipset Features
Configuring the BIOS q Full Screen LOGO Show This option allows you to enable or disable the display of the full-screen logo when the system boots. Use the Page Up and Page Down keys to toggle between Enable and Disable. q Small LoGo (EPA) Show This option allows you to enable or disable the display of the Small LoGo when the system boots. -
Page 23: Integrated Peripherals Menu
NForce 610i/630i-ITX series Motherboard Integrated Peripherals Menu Select Integrated Peripherals from the CMOS Setup Utility menu and press Enter to display the Integrated Peripherals menu. q IDE Function Setup Use this option to set IDE function q MCP Storage Config Use this option to set MCP Storage q OnChip USB Use this option to set OnChip USB... -
Page 24: Power Management Setup Menu
Configuring the BIOS Power Management Setup Menu Select Power Management Setup from the CMOS Setup Utility menu and press Enter to display the Power Management Setup menu. q ACPI Function This function on the Power Management Setup menu allows you to enable or disable the ACPI function. -
Page 25: Pnp/Pci Configuration
NForce 610i/630i-ITX series Motherboard PnP/PCI Configurations Select PnP/PCI Configuration from the CMOS Setup Utility menu and press Enter to display the PnP/PCI Configuration menu. q Init Display First This function on the PnP/PCI Configuration menu allows you to define if the initial display is in the PCI slot, onboard or PCI Express slot. -
Page 26: Pc Health Status
Configuring the BIOS PC health Status PC health Status from the CMOS Setup Utility menu and press Enter to Select display the System Monitor menu. All of the values shown in are dynamic and change as the speed and voltages of the various components change with system usage. -
Page 27: Load Fail-Safe Defaults
NForce 610i/630i-ITX series Motherboard Load Fail-Safe Defaults Press <Enter> on this item and then press the <Y> key to load the Fail-Safe BIOS default settings.You can try to Load Fail-Safe Default when the system is unstable. Load Optimized Defaults Press <Enter> on this item and then press the <Y> key to load the optimal BIOS default settings.The BIOS optimized defaults settings helps the system to operate in optimum state.Always load the Optimized defaults after updating the BIOS or after clearing the CMOS values. -
Page 28: Save & Exit Setup
Configuring the BIOS The BIOS Setup program allows you to specify two separate passwords: v Supervisor Password When a system password is set and the Password Check item in Advanced BIOS Features is set to Setup, you must enter the supervisor password for enter- ing BIOS Setup and making BIOS changes. -
Page 29: Exit Without Saving
NForce 610i/630i-ITX series Motherboard Exit Without Saving Press <Enter> on this item and press the <Y> key. This exits the BIOS Setup without saving the changes made in BIOS Setup to the CMOS. Press <N> or <Esc> to return to the BIOS Setup Main Menu. FLASH Update Procedure The program AWDFLASH.EXE is included on the driver CD (D:\Utility\AWDFLASH. -
Page 30: Installing Drivers And Software
Installing Drivers and Software Installing Drivers and Software Note: It is important to remember that before installing the driver CD that is shipped in the kit, you need to load your operating system. The motherboard supports Windows XP 32bit and 64bit and is Vista-capable. The kit comes with a CD that contains utility drivers and additional software. Drivers Installation 1. - Page 31 NForce 610i/630i-ITX series Motherboard...
- Page 32 Installing Drivers and Software 3. Follow the below for HDA sound driver installing. 4. At last,you can open below page that provides information about the hardware devices on this motherboard,and check whether finish your installation.
-
Page 33: Realtek Hd Audio Driver Setup
NForce 610i/630i-ITX series Motherboard Realtek HD Audio Driver Setup Getting Started After Realtek HD Audio Driver being installed (insert the driver CD and follow the on-screen instructions),“Realtek HD Audio Manager” icon will show in System tray as below. Double click the icon and the control panel will appear: Sound Effect After clicking on the “Sound Effect”... -
Page 34: Frequently Used Equalizer Setting
Installing Drivers and Software Frequently Used Equalizer Setting Realtek recognizes the needs that you might have.By leveraging our long experience at audio field,Realtek HD Audio Sound Manager provides you certain optimized equalizer settings that are frequently used for your quick enjoyment. How to Use Other than the buttons “Pop”... -
Page 35: Playback Control
NForce 610i/630i-ITX series Motherboard Playback control Mute You may choose to mute single or multiple volume controls or to completely mute sound output. Tool Show the following volume control √ This is to let you freely decide which volume control items to be displayed, total 13 items to be chosen. -
Page 36: Audio I/O
Installing Drivers and Software Mute You may choose to mute single or multiple volume controls or to completely mute sound input. Tool √ Show the following volume controls This is to let you freely decide which volume control items to be displayed. Advanced controls. -
Page 37: Speaker Configuration
NForce 610i/630i-ITX series Motherboard Speaker Configuration Step : Plug in the device in any available jack. Step : Dialogue “connected device” will pop up for your selection. Please select the device you are trying to plug in. If the device is being plugged into the correct jack,you will be able to find the icon beside the jack changed to the one that is same as your device. -
Page 38: S/Pdif
Installing Drivers and Software S/PDIF Short for Sony/Philips Digital Interface,a standard audio file transfer format.S/PDIF allows the transfer of digital audio signals from one device to another without having to be converted first to an analog format. Maintaining the viability of a digital signal prevents the quality of the signal from degrading when it is converted to analog. -
Page 39: Microphone
NForce 610i/630i-ITX series Motherboard Microphone This page is designed to provide you better microphone / recording quality. Below picture indicates both “Noise Suppression” & “Acoustic Echo Cancellation” are both enabled. Noise Suppression If you feel that the background noise, especially the sound generated from the fan inside PC, is too loud? Try “Noise Suppression”, which allows you to cut off and suppress disturbing noise. -
Page 40: Audio Demo
Installing Drivers and Software Audio Demo The section “3D Audio Demo” grants you another possibility to enjoy your sound. The Audio Demo allows you to listen to sound in an extraordinary way. Information This section provides information about your current system audio device. -
Page 41: Sata Raid User Manual
NForce 610i/630i-ITX series Motherboard SATA RAID User Manual Setting up the BIOS 1. Setting your computer, then press Delete to enter the Bios setup. The BIOS CMOS Setup Utility window appears. 2. Use the arrow keys to select Integrated Peripherals, then press Enter. The I n t e g r a t e d P e r i p h e r a l s w i n d o w appears. -
Page 42: Entering The Raid Bios Setup
SATA RAID User Manual Entering the RAID BIOS Setup 1. After rebooting your computer, wait until you see the RAID software promptint you to press F10. 2. The NVIDIA RAID Utility –Define a New Array window appears 3. In the RAID Mode field, use the UP or Down ARROW key to select a RAID Mode. The supported RAID modes include Mirroring (RAID 1), Striping (RAID 0) and Stripe Mirroring (RAID 0+1), Spanning(JBOD) and RAID 5. -
Page 43: Installing The Raid Drives
NForce 610i/630i-ITX series Motherboard 7. After that, then Array List screen displaying the RAID array you created will appear. If you want to set the disk array as boot device, use the UP or DOWN ARROW key to select the array and press B.The Boot section will show Yes. 8. - Page 44 SATA RAID User Manual 2. Press F6 and wait a few moments for the Windows Setup screen to appear. 3. Specify the NVIDIA drivers. (1) Insert the floppy that has the RAID driver, press S, then press Enter. (2) Select “NVIDIA RAID CLASS DRIVER” and then press Enter.
- Page 45 NForce 610i/630i-ITX series Motherboard (3) Press S again at the Specify Devices screen, then press Enter. (4) Select “NVDIA Nforce Storage Controller” and then press Enter. 4. Press Enter to continue with Windows XP Installation. Be sure to leave the floppy disk inserted in the floppy drive until the blue screen portion of Windows XP installation is completed, then take out the floppy.
