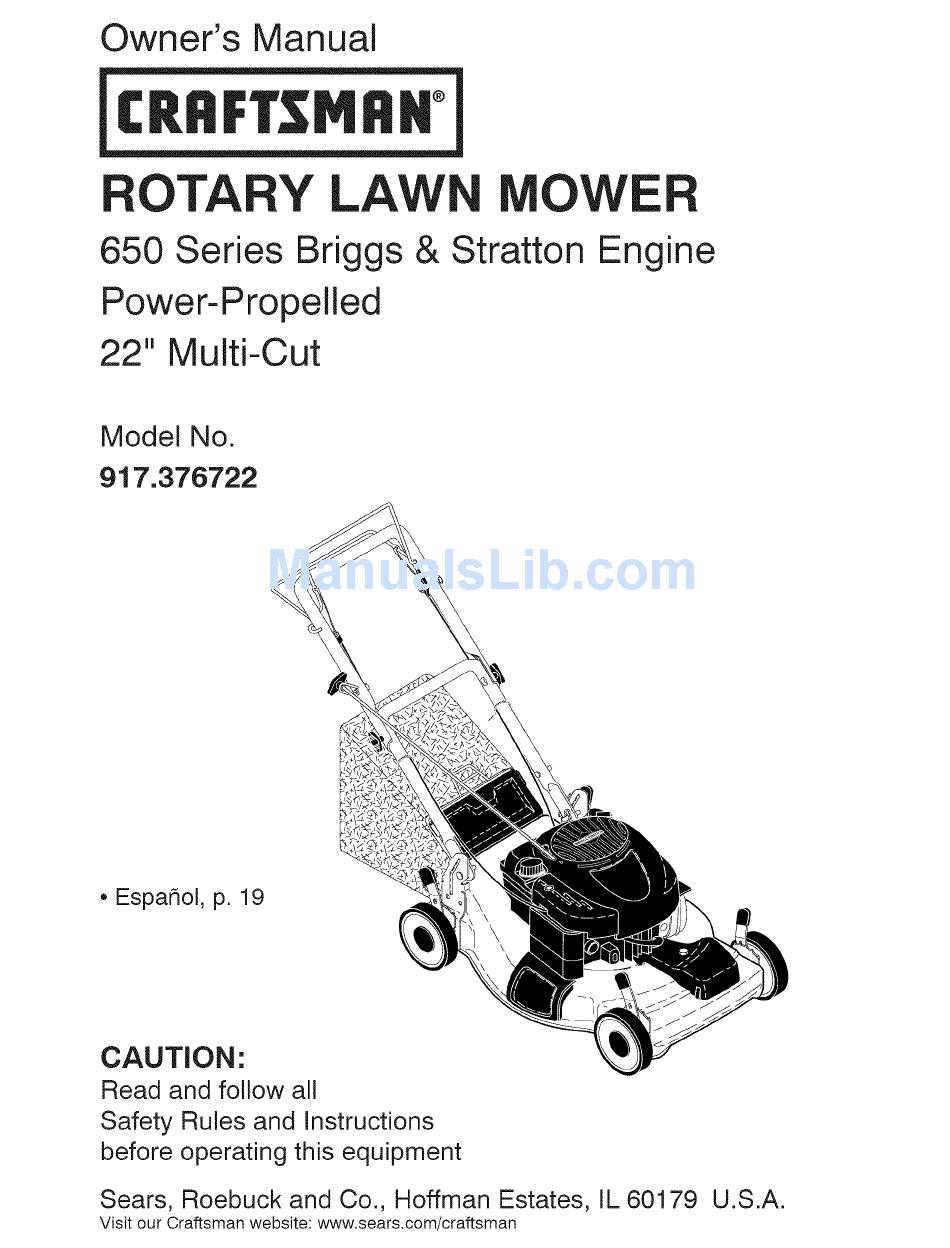

Owner's Manual
CRRrTSMRH'°
ROTARY LAW
OW
650 Series Briggs & Stratton Engine
Power-Propelled
22" Multi-Cut
Model No.
917.376722
• Espahol,
p. 19
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating
this equipment
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179
Visit our Craftsman website: www.sears.com/craftsman
U.S.A.
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Craftsman 917.376722
Summary of Contents for Craftsman 917.376722
- Page 1 650 Series Briggs & Stratton Engine Power-Propelled 22" Multi-Cut Model No. 917.376722 • Espahol, p. 19 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment U.S.A. Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit our Craftsman website: www.sears.com/craftsman...
- Page 2 Schedule ......Sears Service ......Back Cover 2=YEAR FULL WARRANTY CRAFTSMAN LAWN MOWER If this Craftsman Lawn Mower fails due to manufacturer defects in material workmanship within two years from the date of purchase, return it to any Sears store, Parts &...
- Page 3 I. GENERAL OPERATION Always wear safety goggles or safety glasses with side shields when operating • Read, understand, and follow mower. instructions on the machine and in the manual(s) before starting. Be thoroughly II. SLOPE OPERATION familiar with the controls and the proper Slopes are a major...
- Page 4 Never fill containers inside a vehicle, Keep nuts and bolts, especially blade a truck or trailer bed with a plastic liner. attachment bolts, tight and keep equip- Always place containers on the ground ment in good condition. away from your vehicle before filling.
- Page 5 Repair Protection Agreements Congratulations on making a smart pur- • Fast help by phone- phone sup- chase. Your new Craftsman® product port from a Sears representative designed and manufactured for years products requiring in-home repair, plus dependable operation. But like all prod- convenient repair scheduling.
- Page 6 Engine Power Rating Information The gross power rating for individual gas engine models is labeled in accordance with SAE (So- ciety of Automo-tive Engineers) code J 11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in accordance with SAE J 1995 (Revision 2002-5).
- Page 7 KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual future reference. These symbols may appear...
- Page 8 )resence control bar The operation of any lawn mower can result in foreign objects thrown into the eyes, which can result in severeeye damage,Always Drive wear safety glasses or eye shields while control bar operating your lawn mower or performing any adjustments or repairs,We recom- DRIVE CONTROL...
- Page 9 TO CONVERT MOWER Discharge deflector Your lawn mower was shipped ready to be used as a mulcher. To convert to bagging or discharging: REAR BAGGING Open rear door and remove mulcher plug. Store mulcher plug in a safe place. • You can now install the grass catcher optional clipping...
- Page 10 TO EMPTY GRASS CATCHER Engine Lift up on grass catcher using the oil cap frame handle. Remove grass catcher with clippings from under lawn mower handle. Empty clippings from bag. NOTE: Do not drag the bag when empty- ing; it will cause unnecessary wear.
- Page 11 TO STOP ENGINE MULCHING MOWING TIPS To stop engine, release operator pres- iMPORTANT: For best performance, ence control bar. keep mower housing free of built-up grass and trash. See "CLEANING" in the START ENGINE Maintenance section of this manual. NOTE: Due to protective coatings on the...
- Page 12 MAINTENANCE BEFORE AFTER EVERY EVERY EVERY BEFORE EACH EACH 25 HOURS SCHEDULE HOURS OR SEASON HOURS STORAGE v" Check for Loose Fasteners v" v" _it Clean / Inspect Grass Catcher * Check Tires Check Drive Wheels v" Clean Lawn Mower ..v"...
- Page 13 LAWN Use block of wood between blade and MOWER lawn mower housing and tighten Always observe safety rules when per- blade bolt, turning clockwise. forming any maintenance. Recommendedtighteningtorque:35-40ft.lbs. TIRES IMPORTANT: Blade bolt is heat treated. * Keep tires free of gasoline, oil, or insect If bolt needs replacing,...
- Page 14 ENGINE engine will smoke heavily from the muffler on startup. LUBRICATION Always be sure to retighten oil dipstick Use only high quality detergent oil rated with before starting engine. API service classification SG-SL. Select the Reconnect spark plug wire to spark plug. oil's SAE viscosity grade according...
- Page 15 We do not recommend using a garden ,ACAUTION: Disconnect spark plug wire hose to clean lawn mower unless from spark plug and place wire where electrical system, muffler, air filter and cannot come in contact with plug. carburetor are covered to keep water Clean the underside...
- Page 16 Mowing Mowing ENGINE position [-'i _osition ENGINE SPEED Your engine speed has been factory set. Do not attempt to increase engine speed or it may result in personal injury. If you believe that engine is running too fast or too slow, take your mower to a Sears cotter _/} __Handle...
- Page 17 MOWING Operator NOTE: Fuel stabilizer is an acceptable POSITION alternative in minimizing the formation control bar fuel deposits during storage. stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least //// 10 minutes...
- Page 18 CAUSE PROBLEM CORRECTION Stale fuel. Does not start Empty fuel tank and refill tank with fresh, clean gasoline. (continued) Water in fuel. Empty fuel tank and refill tank with fresh, clean gasoline. Spark plug wire Connect wire to plug. disconnected. Bad spark plug.
- Page 19 Ias tiendas Sears, at Centro de Repuestos y Reparaci6n, o a otro comercio donde se vendan los equipos Craftsman, a efectos de que se Ia reparen sin costo (o bien se Ia reemplacen, en caso que no sea posible repararta).
- Page 20 I. OPERAClON , Siempre use gafas de seguridad o anteojos con protecci6n lateral cuando opere la sega- • Antes de empezar, debe familiarizarse dora. completamente con los controles y el uso correcto de la maquina. Para esto, debe leer y comprender todas las instrucciones II.
- Page 21 Nunca repostar la maquina al interior de un Mantenga las tuercas y los pernos, espe- local. cialmente los pernos del accesorio de la Nunca guardar la m@.quinao el contenedor cuchilla, apretados y mantenga el equipo en buenas condiciones. de gasolina donde hay una llama abierta, chispa o luz piloto como una caldera u otros •...
- Page 22 • Ayuda r_pida pot tel6fono - soporte tele- Congratulaciones per su buena compra. nuevo producto Craftsman® est& disehado f6nico pot parte de un representante Sears y fabricado para funcionar de modo fiable por sobre productos que requieren un arreglo en muchos ahos.
- Page 23 Lea estas instrucciones y este manual completamente antes de tratar de montar u operar su sega- dora nueva. IMPORTANTE: Este cortacesped viene SIN ACEITE O GASOLINA en el motor. Su segadora nueva ha sido montada en la f&brica con la excepci6n de aquellas partes que se de- jaron sin montar por razones de envio.
- Page 24 FAMILIARICESE CON SU SEGADORA LEA ESTE MANUAL DEL DUENO Y LAS REGLAS DE SEGURIDAD ANTES DE OPARAR SU SEGADORA. Compare las ilustraciones con su segadora para familiarizarse con la ubicaci6n de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simboloe pueden apareeer eobre su segadora...
- Page 25 Barra de control que exige la presencia del operador La operaci6n de cualquier segadora puede hacer que SEGURIDAD salten objetos extraflos dentro de sus ojos, Io que puede producir daflos graves en estos. Siempre use anteojos de seguridad o protecci6n para PARA Barra de ENGANCHAR...
- Page 26 Desviador PARA CONVERTJR LA SEGADORA de la descarga Su segadora fue enviada lista para usarse como acolchadora de capa vegetal. Para convertirla a una operaci6n de ensacado o de descarga: SEGADORAS CON DESCARGA TRASERA • Abra la puerta trasera y remueva la tap6n acolchadora.
- Page 27 .Tapa del deposito de aceite Tapa del rellenador gasolina Cebador ANTES DE HACER ARRANCAR AGREGUE GASOLINA MOTOR Llene el estanque de combustible hasta la parte inferior del cuello de relleno del AGREGUE ACEJTE estanque de gasolina. No Io Ilene demasiado. Su segadora fue enviada sin aceite en el motor, Use gasolina regular, sin plomo, nueva y lim- Para el tipo y el grado del aceite a utilizar, yea...
- Page 28 CONSEJOS PARA SEGAR Y ACOL- PARA PARAR EL MOTOR CHAR • Para parar el motor, suelte la barra de con- troles que exigen la presencia del operador. IMPORTANTE: Para obtener el mejor PARA HACER ARRANCAR EL MOTOR rendimiento mantenga la caja de la segadora AVlSO: Debido alas capas protectoras del mo- sin acumulacion...
- Page 29 PROGRAMA ANTES DESPUES CADA CADA CADA ANTES DEL DE CADA DE CADA 25 HORAS O ALMACE- MANT :N|M|ENTO HORAS TEMPORADA HORAS NAMIENTO Revisar si hay Sujetadores Sueltos Limpiar/Inspeccionar el Recogedor de Cesped Controlar los Neumaticos Controlar las Ruedas Motrices Limpiar la Segadora ..
- Page 30 PARA CAMBIAR LA CUCHILLA SEGADORA Siempre observe las reglas de seguridad Ponga el adaptador de la cuchilla en el ando haga el mantenimiento. cigueflal del motor. AsegQrese que la ranura del adaptador y que el chavetero del cigue- LLANTAS flal esten alineados. •...
- Page 31 Parar de afladir aceite cuando se alcanza la solamente por uno que sea aprobado por el fabricante. De el nOmero del modelo de la serial de Ileno (FULL) en la varilla. Esperar un segadora cuando Io ordene. minuto para dejar que el aceite se arregle. ContinOe agregando cantidades pequeas CAJA DE ENGRANAJES...
- Page 32 LIMPIEZA Mantenga las superficies pulidas y las rue- das sin gasolina, aceite, etc. IMPORTANTE: Para obtener el mejor rendimineto, No recomendamos el uso de una manguera mantenga la caja de la segadora sin acumulacion de jardfn para limpiar la segadora a menos de cesped y basura.
- Page 33 MOTOR Vuelva a montar el mango superior y todas las partes removidas del mango inferior. VELOClDAD DEL MOTOR La velocidad det motor ha sido ajustada en la f&- Posici6n r _q Posici6n f-<-_ brica. No trate de aumentar la velocidad del motor segar pues se pueden producir lesiones personales.
- Page 34 ACEITE DEL MOTOR MOTOR SISTEMA DE COMBUSTIBLE Drene el aceite (con el motor caliente) y c&mbielo con aceite de motor limpio. (Vea "MOTOR" en la IMPORTANTE: Es importante evitar que secci6n de Mantenimento de este manual.) se formen depositos de coma en partes ClLINDRO fundamentales del sistemade combustible...
- Page 35 SOLUCI6N DE PROBLEMAS - Vea la section apropiada en el manual amenos este dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECCION Falta de Eleve la altura de corte. Cuchilla desgastada, doblada fuerza o suelta. Eleve la altura de corte. AItura de las ruedas dispareja.
- Page 36 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.376722 -/" 9 30...
- Page 37 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917,376722 PART PART PART DESCRiPTiON DESCRIPTION DESCRiPTiON 194203X479 404763 Upper Handle 401179X004 Axle Arm Assembly Danger Decal 183567 Selector Knob 17600406 Engine Zone Control Cable 701037 Screw, Serrated, Type TT 850733X004 1/4-20...
- Page 38 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.376722...
- Page 39 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917,376722 PART PART DESCRiPTiON DESCRiPTiON 407816 Drive Control Assembly (Includes Cable) 73800400 Locknut 1/4-20 19!039 Bearing, Wheel Adjuster 406558 Spring 175262 Pan Head Tapping Screw #!0-24 x 2-3/4 408861 Kit, Wheel Adjuster, RH...
- Page 40 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 124T02-0736=EA 847J 287_ J 1330 REPAIR MANUAL J 1329 REPLACEMENT ENGINE...
- Page 41 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 124T02-0736=EA 977 CARBURETOR 276 @ GASKET SET 127_ 1370 633 _(_76 276@ 121 CARBURETOR OVERHAUL KIT 633@ 276 © ,27(} 1036 EMISSIONS LABEL ] 66i' 670 @ _o._...
- Page 42 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 124T02-0736=EA 358 ENGINE GASKET SET 163 _ 585 5_'_,_ PART PART DESCRIPTION DESCRIPTION 697322 Cylinder Assembly 690548 Tappet-Valve Camshaft 399269 Kit-Bushing/Seal 691449 Short Block 299819s Seal-Oil (Magneto Side) 792741 Manifold-intake 493279 Sump-Engine 497465 Gasket-intake 691160 Head-Cylinder...
- Page 43 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 124T02-0736=EA PART PART DESCRiPTiON DESCRiPTiON 695892 Housing-Blower 691031 • SeaI-ORing 691108 Screw (Blower Housing) (Dipstick Tube) 690450 Shield-Cylinder 692047 Assembly-Dipstick/Tube 690345 Screw (Cylinder Shield) 493880s Terminal-Spark Plug 690662 Nut (Flywheel) 697338 Seal-Valve 790817 Armature-Magneto 691155 Seat-Valve (intake)
- Page 44 AuCanadapourserviceenfrangais: ........Pare pedir servicio de reparacidn a domicilio, y pare ordenar piezas: 1-800-LE-FOYER iiiiiiiiiiiiiiiiii!iiiiiiii!! 1-888-SU-HOGAR ® (1-800-533-6937) ,_iiiiiiiiiiiiii!!iiiiiiiliiii ..www.sears.ca ,,iiiiii!!iiiiiiii!!iiiiiii!i!!iiiiiiii (1-888-784-6427) ,_!!iiiii;;ili!!iiiiiiii;;;iii!!iiiiii_' _iiiiiiiii;;ii!!i!!iiiiiiii;;;i!!iiiiii ..,_i!iiiii!!iiiiiiii!!i!ii!i!iiiiiiii!!iiiii_'_ © Sears Brands,LLC ® Registered Trademark / TMTrademark / SMService Mark of Sears Brands, LLC ®...
