Instruction
Manual
I CRRFTSMRN°I
2.6 cu.in./42cc
2-Cycle
GASOLINE
CHAIN
SAW
Model No.
358.350600
- 18 in. Bar
•
Safety
• Assembly
•
Operation
•
Maintenance
•
Parts
List
•
Espa_ol
For Occasional
Use Only
WARNING:
Read and follow all Safety
Rules and Operating
Instructions
before first use of this product.
For answers
to your questions
about this product:
Call 7 am-7
pm, Mon-Sat;
Sun, 10 am-7
pm
1-800-235-5878
_Hours listed are Central Time)
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.
530163074
7/10/02
Advertisement
Table of Contents
Related Manuals for Craftsman 358.350600
Summary of Contents for Craftsman 358.350600

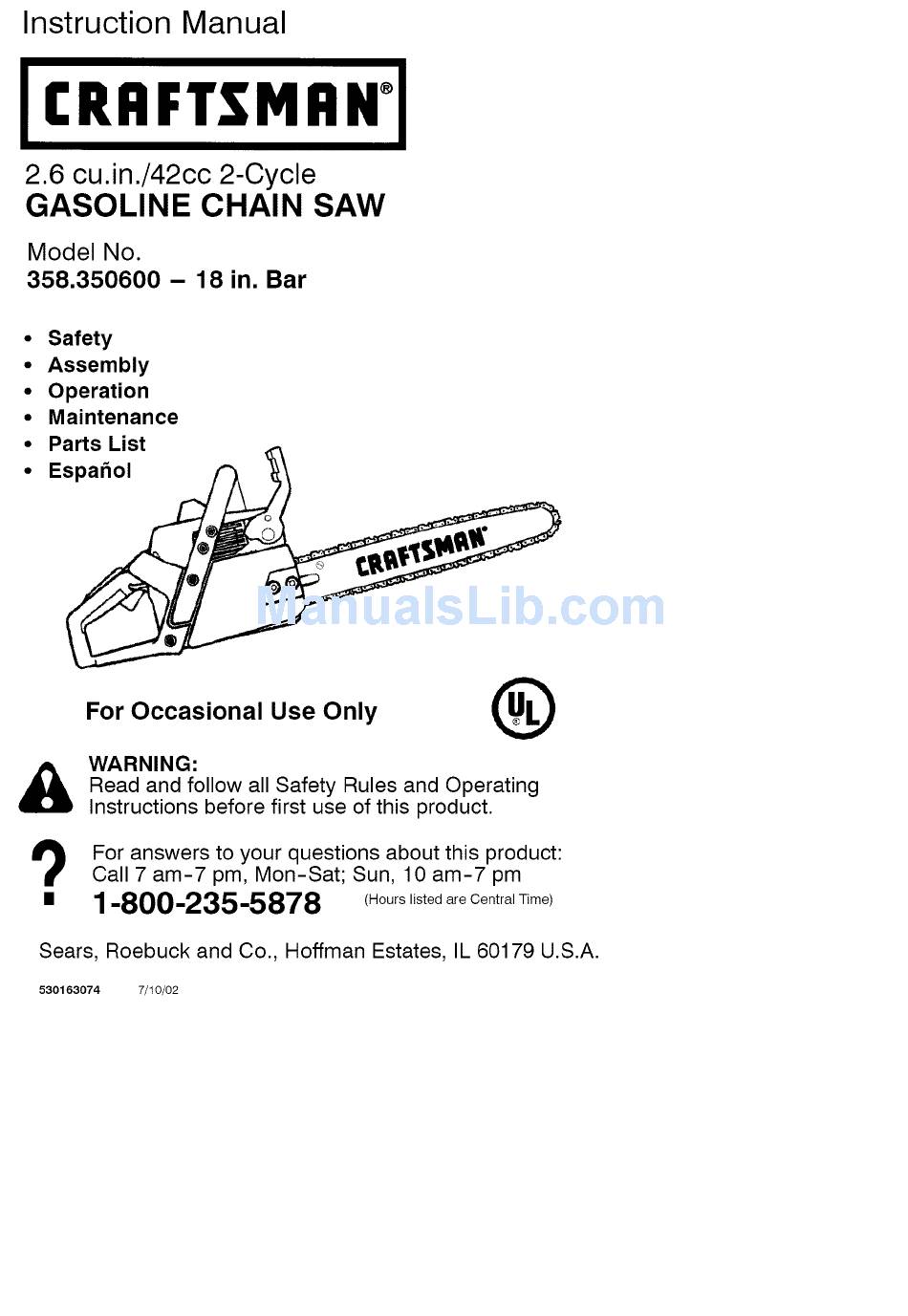

- Page 1 Instruction Manual I CRRFTSMRN°I 2.6 cu.in./42cc 2-Cycle GASOLINE CHAIN Model No. 358.350600 - 18 in. Bar • Safety • Assembly • Operation • Maintenance • Parts List • Espa_ol For Occasional Use Only WARNING: Read and follow all Safety Rules and Operating Instructions before first use of this product.
