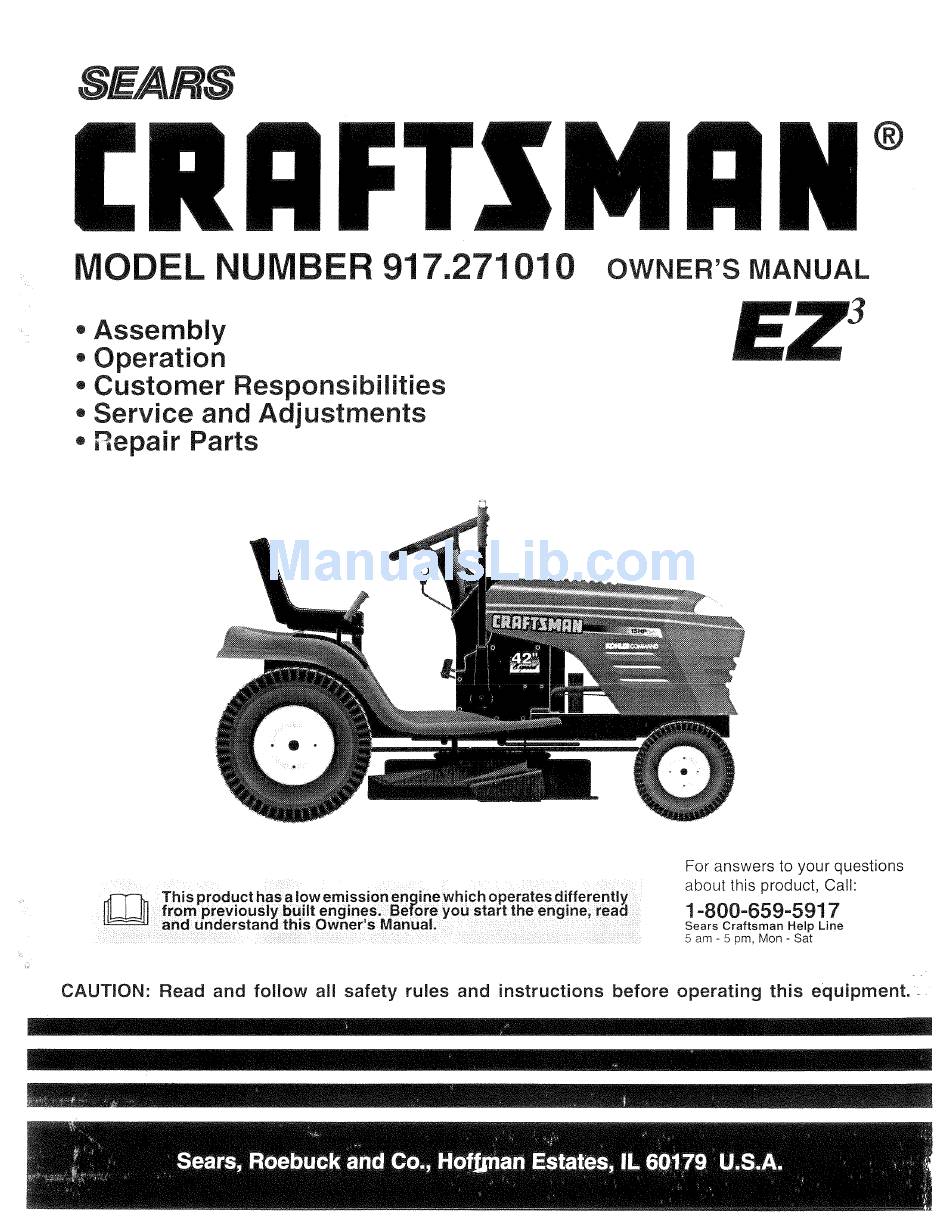

Sears Craftsman EZ3 917.271010 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
<
MODEL NU
BER 917.271010
OWNER'S
MANUAL
, Assembly
, Operation
, Customer
Responsibilities
• Service
and Adjustments
• Repair
Parts
For answers to your questions
about this product, Call:
1-800-659-5917
Sears
Craftsman
Help
Line
5 am - 5 pm, Mon - Sat
CAUTION:
Read
and
follow
all
safety
rules
and
instructions
before
operating
this
equipment.
