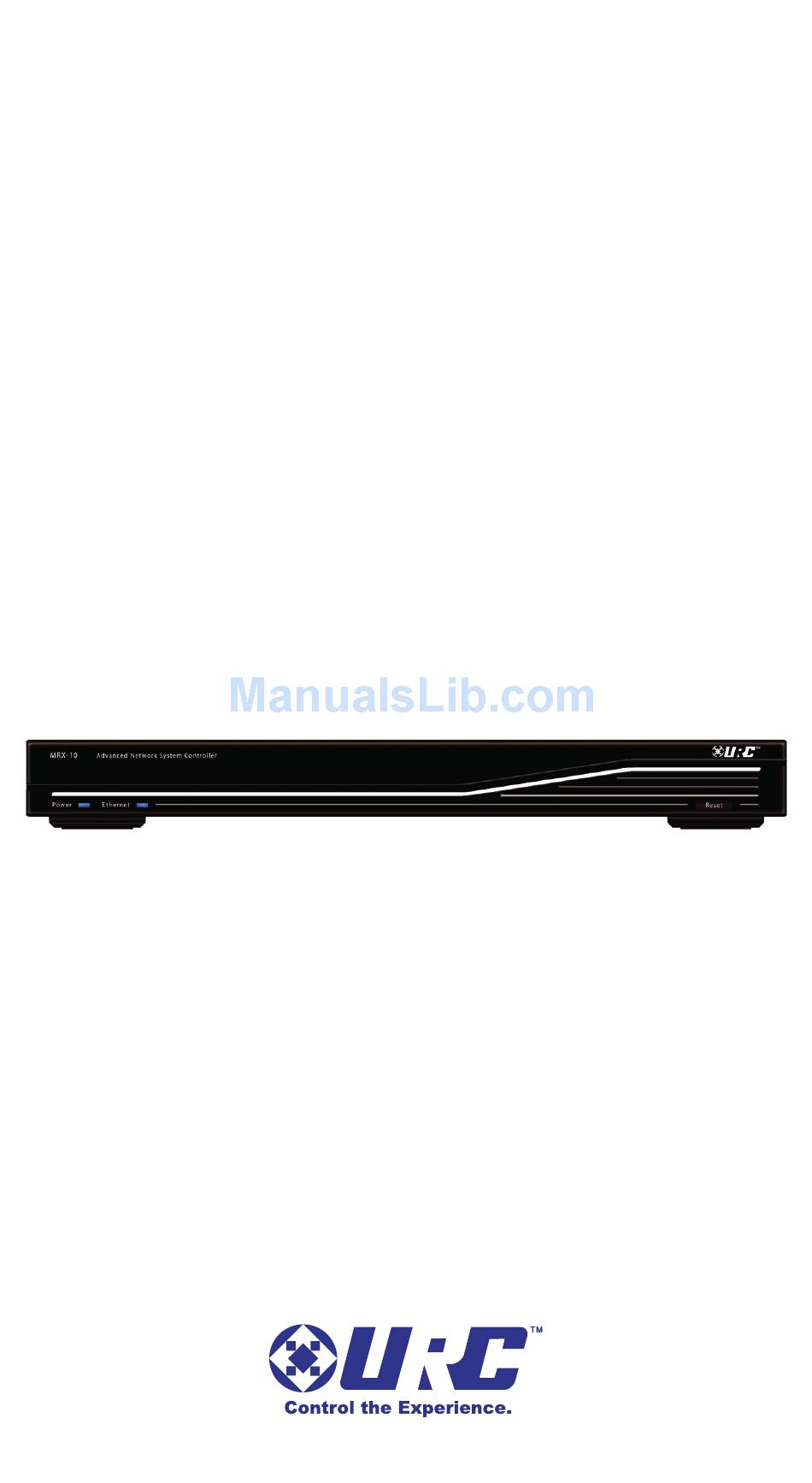

  • Page 1 MRX-10 Owner’s Manual Advanced Network System Controller...
  • Page 2 The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER- ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.

  • Page 3: Table Of Contents

    ABLE ONTENTS Introduction Features and Benefits Parts Guide Front Panel Descriptions Rear Panel Descriptions Specifications USA Limited Warranty Statement Federal Communication Commission Interference Statement Regulatory Information to the user Declaration of Conformity...

  • Page 4: Introduction

    MRX-10 A DVANCED ETWORK YSTEM ONTROLLER Introduction The MRX-10 Advanced Network System Controller controls all MRX series connected devices throughout the entire home. Press a button on a Total Control remote or keypad to issue a command from the MRX-10 to turn off the lights in every room all while watching a movie.

  • Page 5: Front Panel Descriptions

    MRX-10 A DVANCED ETWORK YSTEM ONTROLLER Front Panel Descriptions The front panel consists of 2 indicator lights which will illuminate when in use. Power LED Ethernet LED Total Control llumination Reset Power LED: Indicates that the MRX-10 is powered on when lit. Ethernet LED: Indicates the network connectivity status of the MRX- 10.

  • Page 6: Rear Panel Descriptions

    MRX-10 A DVANCED ETWORK YSTEM ONTROLLER Rear Panel Descriptions The rear panel ports are: RS-232 IR Outputs: #1-8 Sensors Ports RFTX-1 DC 12V Relay: NO, 12V Out Trigger In Power NC, COM DC 12V Power: Attach the included 12V DC 3.5A power supply here. LAN Connection: RJ45 standard 10/100 Ethernet connection to the local network.

  • Page 7: Specifications

    MRX-10 A DVANCED ETWORK YSTEM ONTROLLER Specifications Input & Outputs: 12V/.2A: Two (Programmable) IR: Eight adjustable output USB: One (for future use) Ethernet: One 10/100 RJ45 port (Indicator 2LED) RS-232: Four, supporting TX, RX and GND Sensor: Four, supporting Video or Voltage sensing (requires URC sensors) Relays: NO, NC or COM Frequency: 2.4GHz (Two-way RF)

  • Page 8: Usa Limited Warranty Statement

    UNIVERSAL REMOTE CONTROL, INC. warrants this prod- uct against defects in material or workmanship for a period of one (1) year and as set forth below. Universal Remote Control will, at its sole option, repair the product using new or comparable rebuilt parts, or exchange the product for a comparable new or rebuilt product.
  • Page 9 ETWORK YSTEM ONTROLLER LIMITATION OF REMEDIES UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDI- TION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN...

  • Page 10: Federal Communication Commission Interference Statement

    MRX-10 A DVANCED ETWORK YSTEM ONTROLLER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a res- idential installation.

  • Page 11: Regulatory Information To The User

    ) marked power adaptor & same ratings described on the product label (12Vdc,3.5A). Declaration of Conformity “Hereby, Universal Remote Control Inc. declares that this MRX-10 is in compliance with the Essential requirements and other relevant pro- visions of Directive 1999/5/EC.”...

  • Page 12: Declaration Of Conformity

    MRX-10 A DVANCED ETWORK YSTEM ONTROLLER Declaration of Conformity Company Name Universal Remote Control Inc. Company Address 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A www.universalremote.com Contact Info rmation Phone: (914)835-4484 Fax: (914)835-4532 Brand Name UNIVERSAL remote control Product Name NETWORK BASE STATION...
  • Page 13 Page 10...
  • Page 14 OCE-0099A Rev 01...
