Universal Remote Control DMS-100 Owner's Manual

Single zone amplifier
Hide thumbs Also See for DMS-100:
Table of Contents

Advertisement

Quick Links

Download this manual
DMS-100 Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Universal Remote Control DMS-100

Summary of Contents for Universal Remote Control DMS-100

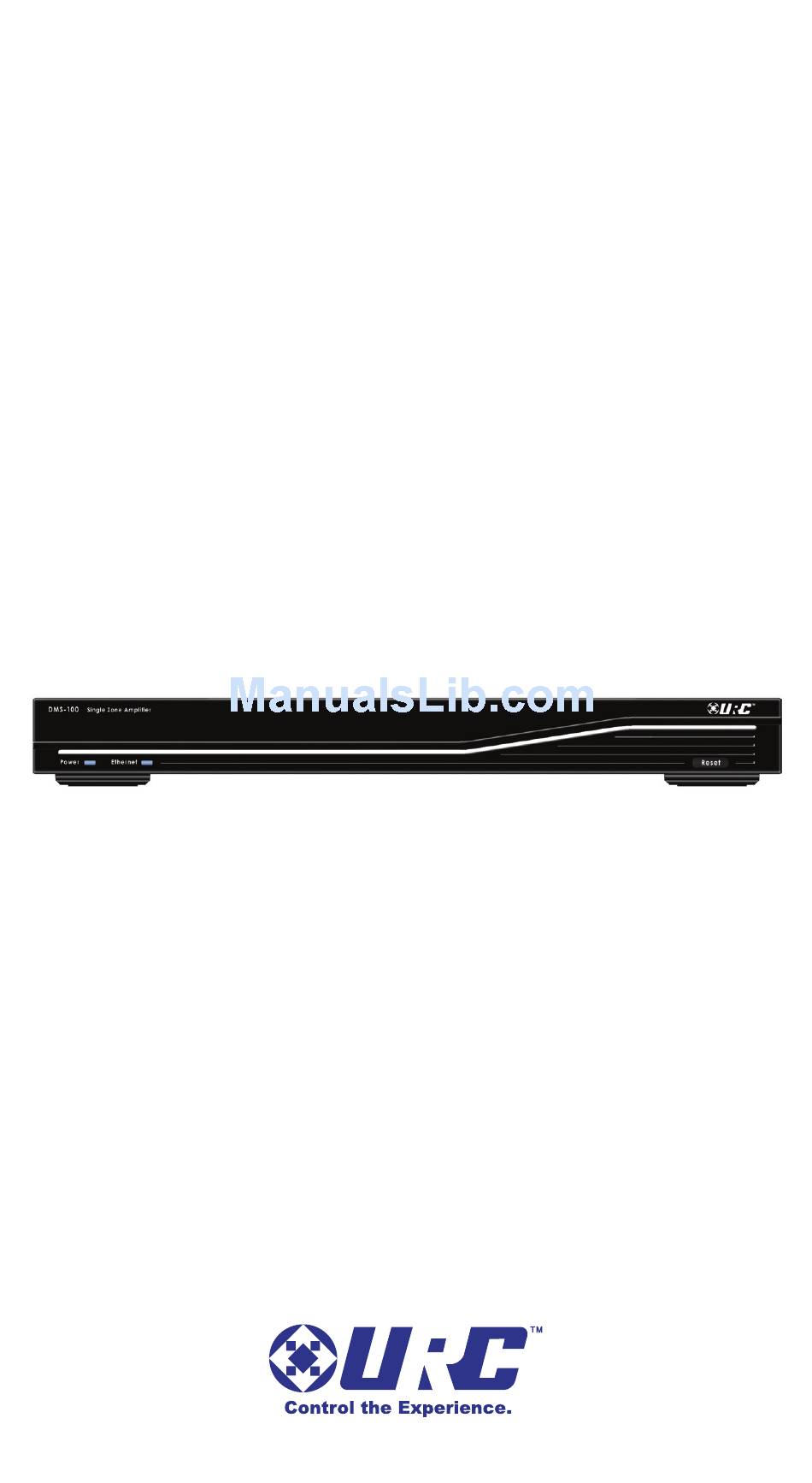

  • Page 1 DMS-100 Owner's Manual...
  • Page 2 The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER- ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.

  • Page 3: Table Of Contents

    ABLE ONTENTS Congratulations! Features and Benefits Parts Guide Front Panel Description System Features Rear Panel Description USA Limited Warranty Statement Specifications System Configuration for Internal LAN Network Europe Certificate Of Conformity Page 1...

  • Page 4: Congratulations

    DMS-100 S INGLE MPLIFIER Congratulations! You’ve purchased the finest music distribution system available today. The DMS-100 is a native to the network, CD quality digital music distribution system with an available range of keypads and remote controls that not only fully control your music but control all of your other audio video components.

  • Page 5: Features And Benefits

    DMS-100 S INGLE MPLIFIER Features and Benefits • One audio input streams to other Total Control amplifiers. • Preamp output for connection to local amplifier. • Scalable solution; install as an additional zone with a DMS-1200 system, or install multiple DMS-100s to create customized multi-zone system.

  • Page 6: Front Panel Description

    DMS-100 S INGLE MPLIFIER Front Panel Description Power and LAN LEDs LEDs indicate that the DMS-100 is connected to power and to the local area network. Automatic Power Off The DMS-100 is powered off and is in an automatic stand by state when no zones are active. Reset Button The front panel reset button offers the end user a quick way to reconnect the DMS-100 to the local area network.

  • Page 7: System Features

    DMS-100 S INGLE MPLIFIER System Features Pristine Audio Quality Unlike other digital music systems, the DMS system streams all music uncompressed at pure CD quality levels. You enjoy all the detail of your original source. Room Linking Any room can be linked with any other room to listen to the same source.

  • Page 8: Rear Panel Description

    DMS-100 S INGLE MPLIFIER Rear Panel Description 110V-220V Power Connection The IEC power socket enables either UL/CSA approved 110V power cords or CE approved 220V power cables to be used with the DMS-100. The internal power supply automatically switches from 110V to 240V. Network Connection A 10/100 LAN connection ensures that the DMS-100 will receive all network streams from other DMS or SNP sources.
  • Page 9 DMS-100 S INGLE MPLIFIER System Features Analog Audio Input Connect a music source to the DMS-100 to listen locally to an AV receiver. Preamp Zone The preamp zone enables use of external power amplifiers for a room with a need for more or less power than 50 watts per channel.

  • Page 10: Important Safety Instructions

    MPORTANT AFETY INSTRUCTIONS Important Safety Instructions This unit shall be connected to a mains socket outlet with a protective grounded connection or equivalent. CAUTION: To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.
  • Page 11 MPORTANT AFETY INSTRUCTIONS Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. In the event of malfunction, un plug lmmediately. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 12: Usa Limited Warranty Statement

    UNIVERSAL REMOTE CONTROL, INC. warrants this prod- uct against defects in material or workmanship for a period of one (1) year and as set forth below. Universal Remote Control will, at its sole option, repair the product using new or comparable rebuilt parts, or exchange the product for a comparable new or rebuilt product.
  • Page 13 USA W ARRANTY LIMITATION OF REMEDIES UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN TORT...

  • Page 14: Specifications

    PECIFICATIONS Specifications Network One 10/100 Ethernet port (Indicator Two LED) IR One Way & IP Two Way Control: Indicators: One Power Blue LED - Blink when resetting/One Network Blue LED indicator Zones of Stereo Audio: One (preamp and speaker output are linked) Rated Wattage per Channel: 50 watts per channel at 8 ohms, stable to 4 ohms...

  • Page 15: System Configuration For Internal Lan Network

    DMS-100 S YSTEM ONFIGURATION System Configuration for Internal LAN Network Cable Modem WiFi Router Internet MFS-8 DMS-100 Follow the steps below to connect a DMS-100 to a LAN network. 1. Connect the Internet to the coaxial CABLE port in the rear of the cable modem.

  • Page 16: Europe Certificate Of Conformity

    ERTIFICATE ONFORMITY Europe Certificate Of Conformity Universal Remote Control, Inc. declares that this product complies with the requirements CE/LVD (Low Voltage Directive, 2006/95/EC). Certificated Attestation of compliance “E8N 10 10 75224 001” is issued according to the Directive 2004/108/EC relating to electromagnetic...
  • Page 17 Page 16...
  • Page 18 Page 17...
  • Page 19 Page 16...
  • Page 20 OCE-0099C Rev 01...
