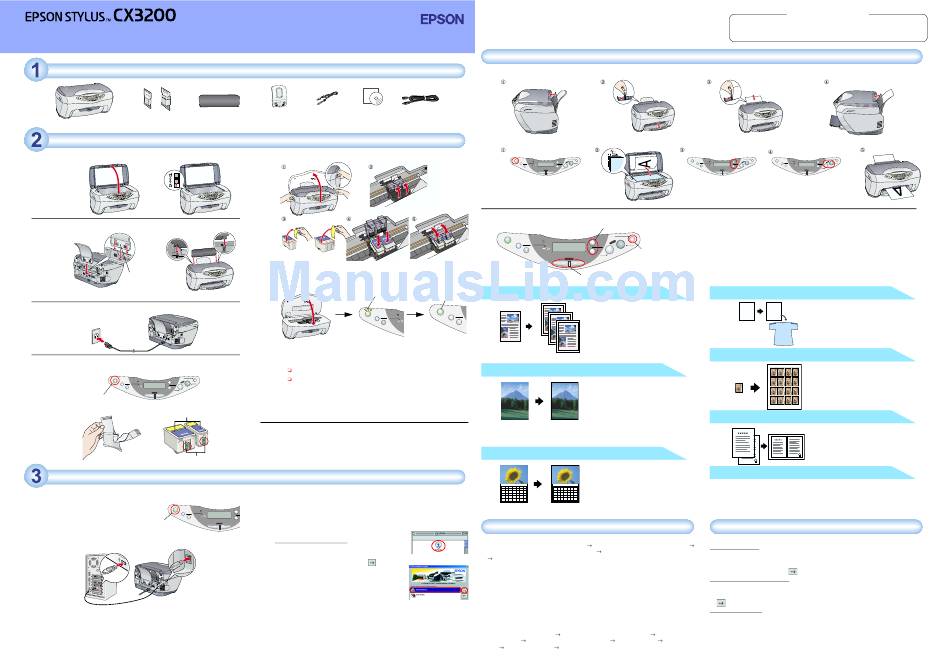

Epson Stylus CX3200 Setup Manual

Setup
4033391-00
xxx
Unpacking Unpacking Unpacking Unpacking
ink cartridges feeder guard
The contents may vary in certain locations. Remove all tapes and protective materials following the Notice Sheet.
Setting Up the Stylus CX Setting Up the Stylus CX Setting Up the Stylus CX Setting Up the Stylus CX
1. Unlocking
2. Attaching the Parts
Set the paper support to
align with the arrows on
this product.
Attach the panel in order to view the supported language.
3. Plugging in the Power Cord
4. Installing the Ink Cartridges
1. Press the P On button to turn on this product.
On
Stop
Return to Top
Error
Scan
Reset Color
Recall Copies
Save(3sec) Reset all(3sec) Enter
Value
B&W
Menu
Press the P On button.
2. Open the ink cartridge packages.
Do not remove the blue portion of the tape seal
from the top of the cartridges.
Do not touch this part.
Setting Up the Computer Setting Up the Computer Setting Up the Computer Setting Up the Computer
1. Connecting
1. Turn off your Stylus CX.
On
Note: Error
Scan
Recall Reset
Save(3sec) Reset all(3sec)
Do not turn on this product until a
Press to turn off.
message prompts you to do so.
2. Connect the USB cable.
Note:
If the "Add New Hardware Wizard" dialog box appears, click Cancel and
disconnect the USB cable from this product.Then return to step 1. Connecting.
USB cable CD-ROM
paper support
Be sure to use the USB cable
that comes with this product.
3. Insert the ink cartridges as illustrated below.
Note:
Install both ink cartridges. This product does not work unless both cartridges are
installed properly.
4. Close the scanner unit.
Flashing
On
Error
Scan
Recall Reset
Save(3sec) Reset all(3sec)
Ink charging starts. It takes about one and a half minutes. While charging, this
product produces a variety of mechanical sounds. This is normal. When the P
On light stops flashing, ink charging is complete.
c Caution:
Do not turn the power off during the ink charging process.
Do not load paper until ink charging is complete.
Note:
The ink cartridges packaged with this product are partly used during the initial
setup to fully charge the print head. This one-time process consumes a
considerable amount of ink but subsequent cartridge sets will last for their full
rated life.
5. Selecting Language
You can select your preferred language for use on the LCD panel. For details, see
Chapter 1 in the Copy Guide.
This product is now ready to make copies. See "Using the Copy Feature". If you want to
print data or scan images, set up your computer as described below.
2. Installing the Software
c Caution for Macintosh users:
Turn off all virus protection programs before you install the software.
Co
For Mac OS X users, see "Installing the Software for Mac OS X".
V
Menu 1. Make sure that this product is off.
2. Insert the software CD into the CD-ROM drive.
For users of Mac OS 8.6 to 9.x:
Double-click the EPSON icon in the EPSON folder.
3. The EPSON Installation Program dialog box appears.
Select Install Software, and then click .
4. Follow the on-screen instructions.
5. For users of Mac OS 8.6 to 9.x
After installing the software, choose Chooser from the
Apple menu, and then select the icon for this product
and the port that this product is connected to.
Note for Windows users:
You may need to restart your computer while installing the software. If a message
instructing you to restart appears, remove the software CD, then click Restart. After
restarting make sure this product is off, then reinstall the software.
This product is now ready to print and scan. The Reference Guide includes detailed
information about printing and scanning. To view the Reference Guide, see "Viewing the
Reference Guide".
English
Using the Copy Feature Using the Copy Feature Using the Copy Feature Using the Copy Feature
1. Preparation
power cord
Power cord may come
attached in some countries.
2. Making a Copy
On Stop
Return to Top
Error
Scan
Recall Reset Color
Save(3sec) Reset all(3sec) Copies Enter
Value
B&W
Menu
Press the P On button.
Select Various Copy Modes and Other Options
On
Error
Scan
Recall Reset
Save(3sec) Reset all(3sec)
Menu
Standard Copy Standard Copy Standard Copy Standard Copy
On
On
Scan
Recall
Save(3sec)
BorderFree Copy BorderFree Copy BorderFree Copy BorderFree Copy
Small Margin Copy Small Margin Copy
Small Margin Copy Small Margin Copy
8 8
1 2 3 1 2 3
4 5 6 7 8 9 10
4 5 6 7 8 9 10
11 12 13 14 15 16 17 11 12 13 14 15 16 17
18 19 20 21 22 23 24
18 19 20 21 22 23 24
25 26 27 28 29 30 31 25 26 27 28 29 30 31
Installing the Software for Mac OS X Installing the Software for Mac OS X Installing the Software for Mac OS X Installing the Software for Mac OS X
For users of Mac OS 8.6 to 9.x
1. Make sure that this product is off and insert the software CD into the CD-ROM drive.
2. Double-click the Mac OS X Driver folder.
Double-click your preferred language folder.
EPSON Installation Program Double-click the EPSON TWAIN 5 Installer icon. Follow the on-screen instructions to
dialog box
install EPSON TWAIN.
If the Authorization window opens, click the key icon, enter the administrator's name
and password, click OK, and then click Continue.
3. After installing EPSON TWAIN, double-click the EPSON Scan to File folder in your
preferred language folder, and then double-click the EPSON Scan to File Installer icon
to install EPSON Scan to File.
4. After installing EPSON Scan to File, double-click the Printer Driver folder in the Mac OS
X Driver folder, and then double-click CX3200.pkg in your preferred language folder to
install the printer software.
5. After installing the software, follow the instruction below to select this product:
Double-click Macintosh HD. Double-click the Applications folder.
Utilities folder. Double-click the Print Center icon.
USB. Select this product. Click Add.
c
Cautions
to avoid damage to your
equipment.
On Stop
Return to Top
Error
Scan
Recall Reset Color
Save(3sec) Reset all(3sec) Copies Enter
Value
B&W
Menu
Press the Copies/Value buttons
to set the number of copies.
Copies/Value buttons This product provides you with a variety of copying options. You can choose from various
formats and use many different types of paper.
Stop
Return to Top
1. Press one of the Menu buttons until
Color
Copies
Enter
Value 2. Press one of the Copies/Value buttons until the desired copy mode appears.
Stop button
B&W
3. Use the Menu and Copies/Value buttons to make other copy settings.
4. Press the Stop button. The settings you made appear on the LCD panel.
See the Copy Guide for the available menu items in each copy mode.
Menu buttons
Mirror Copy Mirror Copy Mirror Copy Mirror Copy
You can copy the original image to various
sizes or types of single sheet paper. 5
Use the Copies/Value buttons to select
Standard from the Copy Mode menu.
Note:
In the Reduced Margin Copy mode, you can
make a copy with a 3-mm bottom margin on
Repeat Copy Repeat Copy Repeat Copy Repeat Copy
paper.
You can copy to the full page (including the
margin area) of paper.
Use the Copies/Value buttons to select
Borderfree from the Copy Mode menu.
2-up Copy 2-up Copy 2-up Copy 2-up Copy
Note:
Because this feature enlarges the image to a
size slightly larger than the paper size, the
portion of the image that extends beyond the
edges of the paper will not be printed.
You can make copies with a 1.5-mm margin
Auto Fit Page Auto Fit Page Auto Fit Page Auto Fit Page
around all edges of paper.
Use the Copies/Value buttons to select Small
You can make a copy with enlarging or reducing each page of your document
Margin from the Copy Mode menu.
automaticaly to fit the size of paper set in the sheet feeder.
Use the Copies/Value buttons to select Auto Fit Page from the Reduce/Enlarge
menu.
Viewing the Reference Guide Viewing the Reference Guide Viewing the Reference Guide Viewing the Reference Guide
To learn more about this product, see the Online Reference Guide.
Double-click the EPSON TWAIN folder.
For Windows users
Double-click the EPSON TWAIN folder.
1. Insert the software CD into the CD-ROM drive. The Installer dialog box appears.
If the dialog box does not appear, double-click SETUP.EXE in the CD-ROM.
2. Select User Guides and click
For users of Mac OS 8.6 to 9.x
1. Insert the software CD into the CD-ROM drive.
2. Double-click the EPSON icon inside the EPSON folder, then select User Guides and click
.
For Mac OS X users
1. Insert the software CD into the CD-ROM drive.
2. Double-click the Manual folder inside the EPSON folder, then double-click the REF_G
folder in your preferred language folder. Then double-click the INDEX.HTM.
Double-click the
Click Add Printer. Select EPSON
Cautions and Notes
must be observed Notes contain important
information and useful tips on the
operation of this product.
On Stop
Return to Top
Error
Scan
Recall Reset Color
Save(3sec) Reset all(3sec) Copies Enter
Value
B&W
Menu
Press the B&W Copy button (to copy in
grayscale), or the Color Copy button
(to copy in color).
Copy Mode appears on the LCD panel
You can create the mirror image of an original
5 image on Iron-On Cool Peel Transfer Paper
(image flipped from right to left).
Use the Copies/Value buttons to select Mirror
5 from the Copy Mode menu.
You can create multiple copies of an image on
a sheet of paper.
Use the Copies/Value buttons to select Repeat
from the Copy Mode menu.
You can put two pages of the original images
on a sheet of paper.
Use the Copies/Value buttons to select 2-up from
the Copy Mode menu.
.
