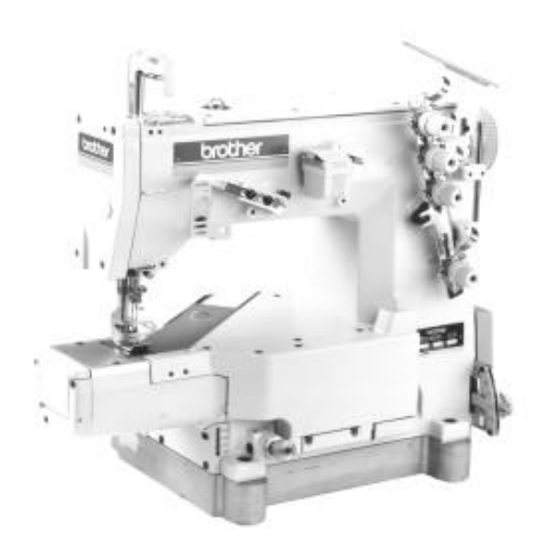

FD3-B251 B252
Cylinder Bed Bottom Covering Stitcher
Cylinder Bed Top And Bottom Covering
Stitcher

Specifications

FD3 - B25 2 - 021-3 /
A
A
1
2
B
011
Plain stitching
021
Tape attaching
033
Covering (4 row differential feed dog)
Covering (3 row adjustable differential
035
feed dog)
Hem stitching (The guide on the front
051
cover)
Hem stitching (The guide on the needle
053
plate)
061
Elastic hemming (With puller)
Elastic lace attaching (With top metering
071
and right knife)
Elastic lace attaching (With pulse motor
075
drive top metering and right knife)
0X1
Hem stitching (With left knife)
/
B C
Model
Bottom covering stitcher
Top and bottom covering
stitcher
Specifications
/
D
No. of needles / Needle
C
gauge
2 needles
1
3.2 mm
2 needles
2
4.0 mm
2 needles
3
4.8 mm
2 needles
4
5.6 mm
2 needles
5
6.4 mm
3 needles
6
4.8 mm
3 needles
7
5.6 mm
3 needles
8
6.4 mm
D
No accessories
TC1
Air-type tape cutter
TC3
Solenoid-type tape cutter
Automatic tape cutter (Stitch number
ATC1
type)
TFV
Automatic tape feeder (Vertical)
TFH
Automatic tape feeder (Horizontal)
PM1
Pulse motor drive top metering device
* Built in –075 specification, PM1 can not be
attached to the machine after purchase.
2000.7
Device
FD3 B251, B252 1/23

Advertisement

loading

Related Manuals for Brother FD3-B251

Summary of Contents for Brother FD3-B251

  • Page 1: Specifications

    FD3-B251 B252 Cylinder Bed Bottom Covering Stitcher Cylinder Bed Top And Bottom Covering Stitcher Specifications FD3 - B25 2 - 021-3 / No. of needles / Needle Model gauge Bottom covering stitcher 2 needles Top and bottom covering 3.2 mm...
  • Page 2 Specifications 2-Needle 3-Needle Sub- Application class Stitch pattern Stitch pattern Gauge Gauge B251 B252 B251 B252 -011 Plain stitching -021 Tape attaching Covering -033 (4 row differential feed dog) Covering -035* (3 row adjustable differential feed dog) Hem stitching -051: Guide front cover attaching -051 type -053...
  • Page 3 Max. speed Stitch length Needle bar Height of Needle size Differential (rpm) (mm) stroke (mm) presser foot feed ratio (mm) (mm) UYX128 1.0 - 4.2 31.0 0.6 - 1.4 6,000 (#65 - #90) UYX128 1.0 - 4.2 31.0 0.6 - 1.4 6,000 (#65 - #90) UYX128...
  • Page 4 Optional device TC1 Air-type tape cutter Parts Tape cutter device set air Voltage Tape attaching <021> Elastic lace attaching <071, 075> For Japan S28466-001 S28467-001 For export S28466-002 S28467-002 TC3 Solenoid-type tape cutter Parts Tape cutter device set solenoid Voltage Tape attaching <021>...
  • Page 5 TFH Automatic tape feeder <Horizontal> Parts <021> Voltage Horizontal tape feed set For Japan S11259-200 For Japan S11259-201 For export 110 V S11259-202 For export 220 V S11259-203 For export 230 V S11259-204 For export 240 V S11259-205 For export 380 V S11259-206 For export 415 V S11259-207...
  • Page 6 Joint box assy Part name Part code Q’ty Joint box assy S18854-001 * Use this for wiring when using many devices together. Box set plate (B) assy Part name Part code Q’ty Box set plate (B) assy S18852-001 * Use this when hanging the boxes of ATC1 and PM1 under the table. FD3 B251, B252 6/23 2000.7...
  • Page 7 Air tube joint Ref. Part name Part code Q’ty Elbow union S04896-000 T – union S28469-000 Triple joint (3) S28470-000 Triple joint (4) S28471-000 Triple joint (5) S28472-000 * Use this when using more than one air-driven device together. Knee lifter device Ref.
  • Page 8 Special parts to use when using spun thread or cotton thread Ref. Part name Part code Q’ty Guide base S28941-001 Washer 105161-004 Screw, pan SM3.57-40 6 062670-612 Thread guide (M) holder S28942-001 Screw, pan SM3.18-40 5 062660-512 Thread guide (M) S28943-001 Set screw, socket (CP) SM3.18 146427-001...
  • Page 9 Synchronizer Ref. Part name Part code Q’ty Synchronizer #17-2 J80347-001 Synchronizer guide S28963-001 Set screw, socket (CP) SM4.37 014680-622 * When using the synchronizer, use the motor and V belt listed below. Motor Single-phase MD-601R 3-phase MD-611R V-belt Semi-submerged type table M 36 Raised type table M 40...
  • Page 10 Conversion parts for installing the table * For table dimensions and installation, refer to the instruction manual supplied with the machine. Raised type Semi-submerged type Ref. Part name Part code Q’ty Head plate assy S28830-001 Bolt, M8 55 211964-001 Nut, 1 M8 021080-106 Washer, spring 2-8 028080-242...
  • Page 11 Puller Ref. No. Part name Part code Q’ty <061> For elastic hemming 100-3 Plastic gear (U30) S28278-000 102-3 Plastic gear (D15) S28283-000 Option parts 100-2 Plastic gear (U26) S28277-000 102-2 Plastic gear (D13) S28282-000 Option parts 100-1 Rubber roller (U) S28276-000 102-1 Rubber roller (D) assy...

  • Page 12: Gauge Parts List

    Gauge parts list B251 B251 B251 B251 B251 Model B252 B252 B252 B252 B252 Specifications 011-1 011-2 011-3 011-4 011-5 Label S08678-001 S08678-002 S08678-003 S08678-004 S08678-005 Plain stitching B251 B252 Application No. of needles Needle gauge (mm) S28770-001 S28772-001 S28774-001 S28776-001 S28778-001 Needle clamp...
  • Page 13 Gauge parts list B251 B251 B251 B251 B251 B251 Model B252 B252 B252 B252 B252 B252 Specifications 011-6 011-7 011-8 021-1 021-2 021-3 Label S08678-006 S08678-007 S08678-008 S08678-009 S08678-010 S08678-011 Plain stitching B251 B252 Tape stitching B251 B252 Application No. of needles Needle gauge (mm) S28780-001...
  • Page 14 Gauge parts list B251 B251 B251 B251 B251 Model B252 B252 B252 B252 B252 Specifications 021-4 021-5 021-6 021-7 021-8 Label S08678-012 S08678-013 S08678-014 S08678-015 S08678-016 Tape attaching B251 B252 Application No. of needles Needle gauge (mm) S28776-001 S28778-001 S28780-001 S28782-001 S28784-001 Needle clamp...
  • Page 15 Gauge parts list B251 B251 B251 B251 B251 B251 Model B252 B252 B252 B252 B252 B252 Specifications 033-3 033-4 033-5 033-6 033-7 033-8 Label S08678-064 S08678-065 S08678-066 S08678-067 S08678-068 S08678-069 Covering B251 B252 B251 B252 Application No. of needles Needle gauge (mm) S28774-001 S28776-001...
  • Page 16 Gauge parts list Model B252 B252 Specifications 035-7 035-8 Label S28933-001 S28933-002 B252 Application No. of needles Needle gauge (mm) S28782-001 S28784-101 Needle clamp assy S08836-201 S08838-201 Presser foot assy S28931-001 S28932-001 Needle plate S28239-001 Main feed dog Differential feed Ref.
  • Page 17 Gauge parts list B251 B251 B251 B251 B251 B251 Model B252 B252 B252 B252 B252 B252 Specifications 051-2 051-3 051-7 051-8 053-2 053-3 Label S08678-057 S08678-058 S08678-062 S08678-063 S08678-090 S08678-091 Hem stitching B251 B252 B251 B252 Application No. of needles Needle gauge (mm) S28772-001...
  • Page 18 Gauge parts list B251 B251 B251 B251 B251 Model B252 B252 B252 B252 B252 Specifications 053-7 053-8 061-1 061-2 061-3 Label S08678-095 S08678-096 S08678-074 S08678-075 S08678-076 Hem stitching Elastic hemming (with puller) B251 B252 B251 B252 Application No. of needles Needle gauge (mm) S28782-001...
  • Page 19 Gauge parts list B251 B251 B251 B251 B251 Model B252 B252 B252 B252 B252 Specifications 071-1 071-2 071-3 071-4 071-5 Label S08678-023 S08678-024 S08678-025 S08678-026 S08678-027 Elastic lace attaching B251 B252 (With top metering and right knife) Application No. of needles Needle gauge (mm) S28770-001...
  • Page 20 Gauge parts list B251 B251 B251 B251 B251 Model B252 B252 B252 B252 B252 Specifications 071-7 071-8 075-1 075-2 075-3 Label S08678-029 S08678-030 S08678-048 S08678-049 S08678-050 Elastic lace attaching Elastic lace attaching (With top metering and right knife) (With pulse motor drive top metering and right knife) B251 B252 B251...
  • Page 21 Gauge parts list B251 B251 B251 B251 Model B252 B252 B252 B252 Specifications 075-4 075-5 075-7 075-8 Label S08678-051 S08678-052 S08678-054 S08678-055 Elastic lace attaching (With pulse motor drive top metering and right B251 B252 knife) Application No. of needles Needle gauge (mm) S28776-001...
  • Page 22 Gauge parts list B251 B251 B251 B251 Model B252 B252 B252 B252 Specifications 0X1-2 0X1-3 0X1-7 0X1-8 Label S08678-081 S08678-082 S08678-083 S08678-084 Hem stitching (With left knife) B251 B252 B251 B252 Application No. of needles Needle gauge (mm) S28772-001 S28774-001 S28782-001 S28784-101 Needle clamp...
  • Page 23 Needle plates for ATC1, TC1, TC3 Tape attaching <021> No. of needles Needle gauge (mm) S11570-101 S11571-001 S11572-001 S11573-001 Needle plate No. of needles Needle gauge (mm) S11574-001 S11575-001 S11576-001 S11577-001 Needle plate Elastic lace attaching (w / top metering device and edge trimming device) <071, 075> No.
