JVM1340AW—GE SpacemakerXL Microwave Oven

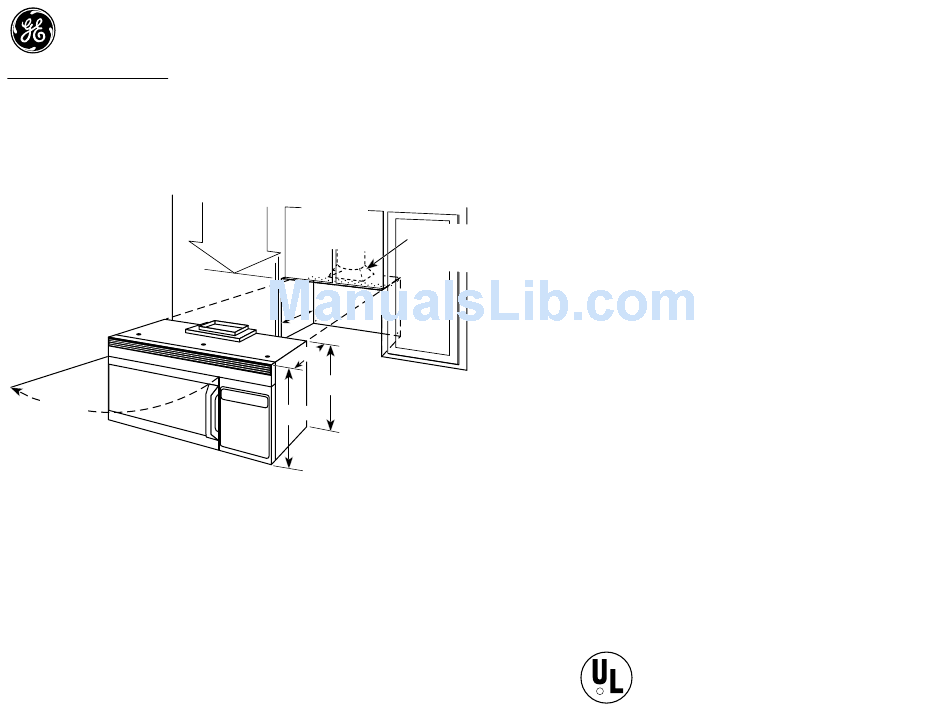

Dimensions (in inches)
21-3/4"
Door open
Revised 3/96
30"
66" MIN.
MIN.
Mounting
width
height
required
from
floor
12"
MAX.
14
16-1/2
16-1/4
Note: Requires 120V grounded outlet. Electrical receptacle must be
located in cabinet above SpacemakerXL microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
Exhaust outlet
detailed, easy-to-follow installation instructions and convenient full-size
connects to
3-1/4" X 10" duct
templates are packed with the SpacemakerXL microwave oven.
Important Information: When installing the SpacemakerXL
microwave oven over a range, allow minimum of 2" from bottom of
SpacemakerXL microwave oven to top of range backguard to allow
for removal of light covers.
Ventilation Options: The SpacemakerXL microwave ovens are designed
for adaptation to the following three types of ventilation:
• Outside exhaust (vertical—as shown)
• Outside exhaust (horizontal)
• Recirculating (non-vented ductless—see Filter Kit drawing)
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
