CAUTION: The power supply must be OFF when
inserting or removing components. These instructions
assume the panel has a standard cover which exposes
INSTALLATION
There are two recommended ways to install the RSP12
Remote Control Smart Sweeper — in a Lighting
Automation Panel (LAP) or in an Accessory Cabinet near
a Lighting Automation Panel
Installation in a Lighting Automation Panel
A complete LAP assembly includes the following TLC
components:
Tub
RTUB12, -24 or -48
Cover
RCOV12xx, -24xxx or -48xxx
Interior
RINTER0012RC, -0024RC or -0048RC*
Power Supply
RPWRxxx
Relays
RR7P or RR9P
* RINTER0012RC and -0024RC accept one RSP12, RINTER0048RC accepts one or two
Details for assembling a complete Lighting Automation
Panel are outlined separately in the RINTER installation
instructions. Once the panel is assembled and relays are
connected to the motherboard, the RSP12 may be
installed.

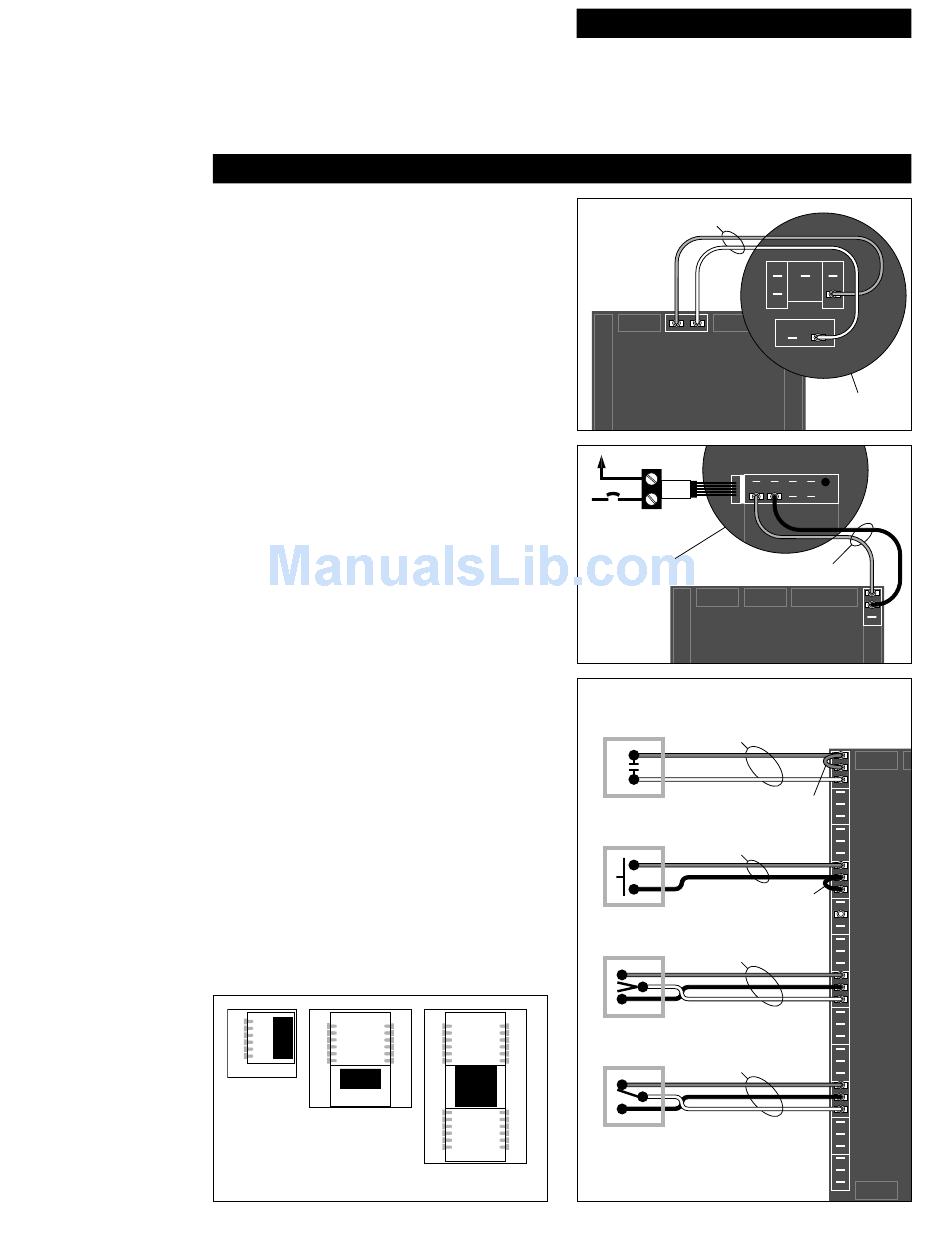

Basic Installation Steps
1. Mount the RSP12(s) on the panel accessory bracket.
2. Wire 24V rectified power from the panel motherboard
to the blue and white power input tabs on the RSP12.
3. Wire red and black connections for each relay from
the panel motherboard to relay outputs on the RSP12.
4. Wire any 2- or 3-wire switch to the individual switch
inputs and/or the Master switch input on the RSP12
(not on the panel motherboard).
5. Select additional control functions.
Installation in an Accessory Cabinet near the LAP
Accessory cabinets with covers include:
RBS1
Accepts one (1) RSP12
RBS2
Accepts two (2) RSP12s
Mount the RSP12 in the accessory cabinet and wire the
same as above.
12-RELAY
LIGHTING
AUTOMATION
PANEL
24-RELAY LIGHTING
AUTOMATION PANEL
1. MOUNT RSP12 IN PANEL
Catalog Number: RSP12
both line-voltage and low-voltage sections. The line-
voltage sections must be covered to avoid exposure to
live high-voltage wiring.
2.
WIRE
24 VOLT
RECTIFIED
POWER
CIRCUIT
MOTHERBOARD
3.
WIRE
RELAYS
4. WIRE ANY 2- OR 3-WIRE SWITCHES
MOMENTARY
PUSH BUTTON
MOMENTARY
48-RELAY LIGHTING
AUTOMATION PANEL
18/2 AWG
24V
RECT
BLUE
24VRECT ACC
24VAC
BLUE WHITE
RSP12
LOAD
RED
BLACK
YELLOW
RRxP RELAY
ON TLC PANEL
RSP12
20/2 AWG 1000 FT. MAX.
JUMP RED TO BLACK
MAINTAINED
ISOLATED
CONTACT
20/2 AWG 1000 FT. MAX.
JUMP BLACK TO WHITE
2-WIRE
20/3 AWG 1000 FT. MAX.
STANDARD
3-WIRE
20/3 AWG 1000 FT. MAX.
STANDARD
3-WIRE
MAINTAINED
2
4V
PILOT
RECT
COMMON
YELLOW
BLUE
COM
ON TLC PANEL
MOTHERBOARD
WHITE
1
20/2 AWG
RED
BLACK
BLUE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RSP12
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
