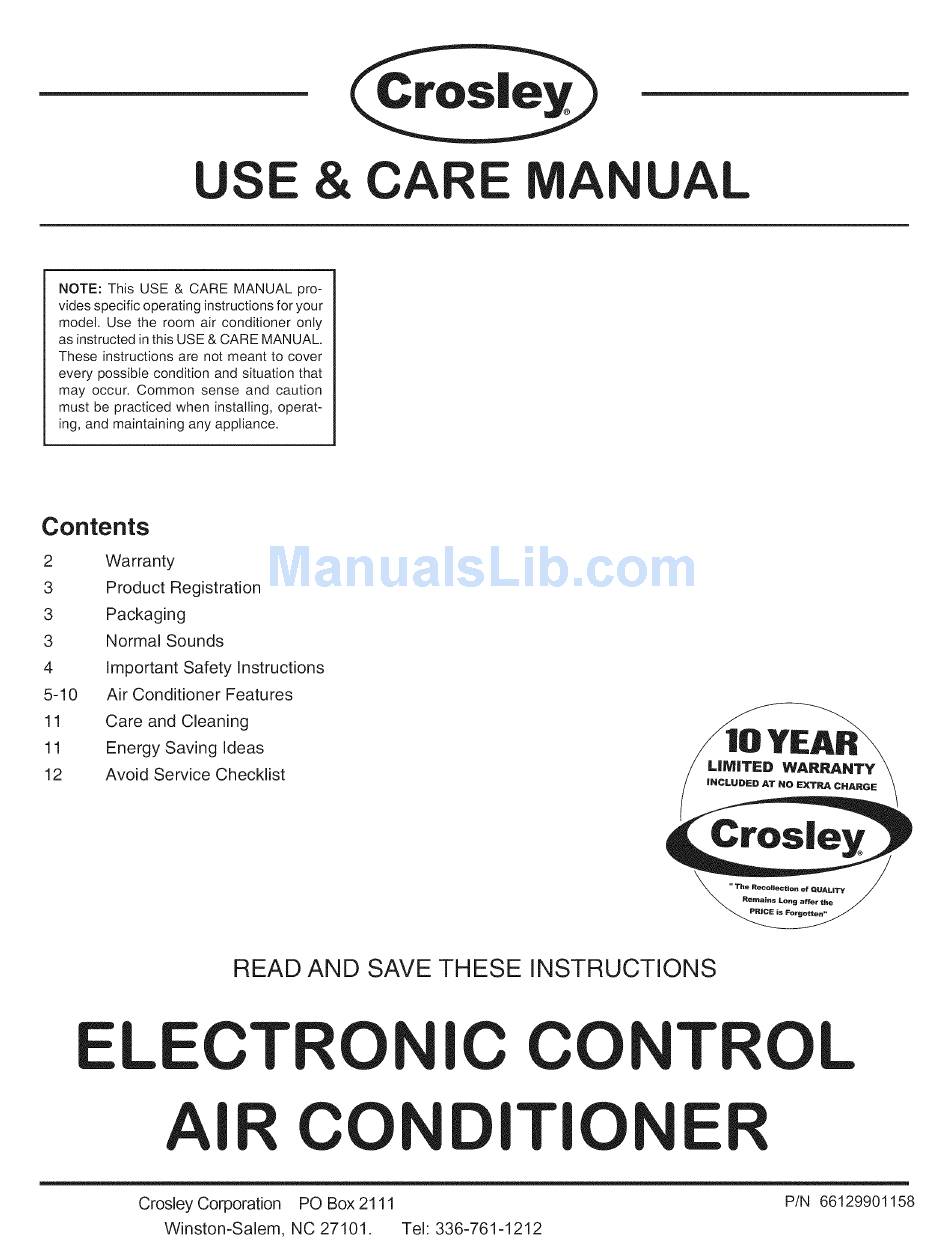

Packaging Normal Sounds Important Safety Instructions 5-10 Air Conditioner Features Care and Cleaning Energy Saving Ideas Avoid Service Checklist READ AND SAVE THESE INSTRUCTIONS ELECTRONIC CONTROL AIR CONDITIONER Crosley Corporation PO Box 2111 P/N 66129901158 Winston-Salem, NC 27101. Tel: 336-761-1212...
Your appliance is warranted by Crosley. Crosley has authorized Frigidaire Consumer Services and their authorized servicers to perform service under this warranty. Crosley authorizes no one else to change or add to any of these obligations under this warranty.
Product Registration Record Your Model and Serial Numbers Record in the space provided below the model and serial numbers. On all models, the serial plate is located on the outside of the cabinet. Model No. Serial No. Register Your Product The self-addressed PRODUCT REGISTRATION...
Read all instructions before using this air conditioner. important Safety instructions _®ARN_NG For Your Safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings. The power supply cord with this air conditioner contains...
Page 5
Air Conditioner Features ELECTRONIC CONTROL OPERATING iNSTRUCTiONS Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the touch pad alone or with the remote.
Air Conditioner Features (continued) TO CHANGE TEMPERATURE YOU WILL SEE: SETTING: Note: Tap or hold either up( ,_ ) or down( V ) button until the desired temperature is seen on the display. This tempera- ture wilt be automatically maintained anywhere between 60°F DO THS: (16°C) and 90°F (32°C).
Page 7
Air Conditioner Features (continued) TO OPERATE ON FAN ONLY: YOU WILL SEE: DO THIS: Note: Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air. (Remember PRESS MODE to open the vent during this function, but keep it closed during BUTTON cooling for maximum cooling efficiency.) You can choose any fan speed you prefer.
Page 8
Air Conditioner Features (continued) YOU WILL SEE: SLEEP FEATURE: LIGHT On Note: In this "MODE" the selected temperature will increase by 2 degrees F 30 minutes after the mode is selected. DO THIS: temperature will then increase by another 2 degrees F after an additional 30 minutes.
Page 9
Air Conditioner Features (continued) REMOTE SENSING FEATURE YOU WILL SEE: (on some models): LIGHT pulsing On & Off intermittently. Note: This feature can be activated from the remote control ONLY, the unit must be in a cooling mode. To activate the remote sensing feature, point the remote control towards the unit and press the remote sensing button.
Page 10
Air Conditioner Features (continued) ADDITIONAL THINGS YOU SHOULD KNOW Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with. quickly. This prevents overheating of the compressor and possible circuit breaker tripping.
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the Care and Cleaning unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils.
Avoid Service Checklist Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship materials in this appliance. OCCURRENCE SOLUTION Air conditioner will not operate. Wall plug disconnected.
