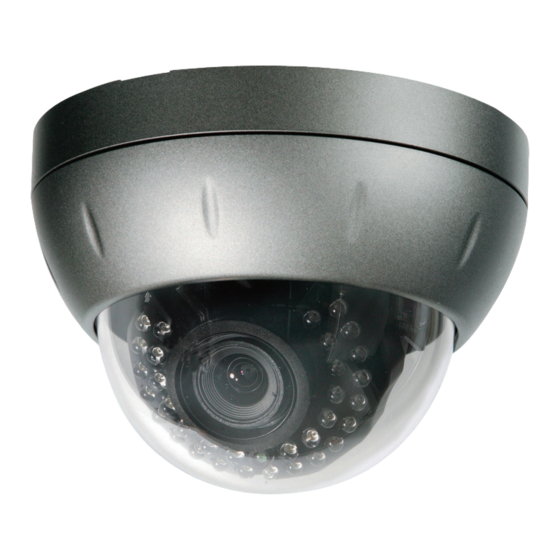

Speco CVC5735DNV Instruction Manual

Intense-ir camera
Hide thumbs Also See for CVC5735DNV:
Table of Contents

Advertisement

Quick Links

Download this manual

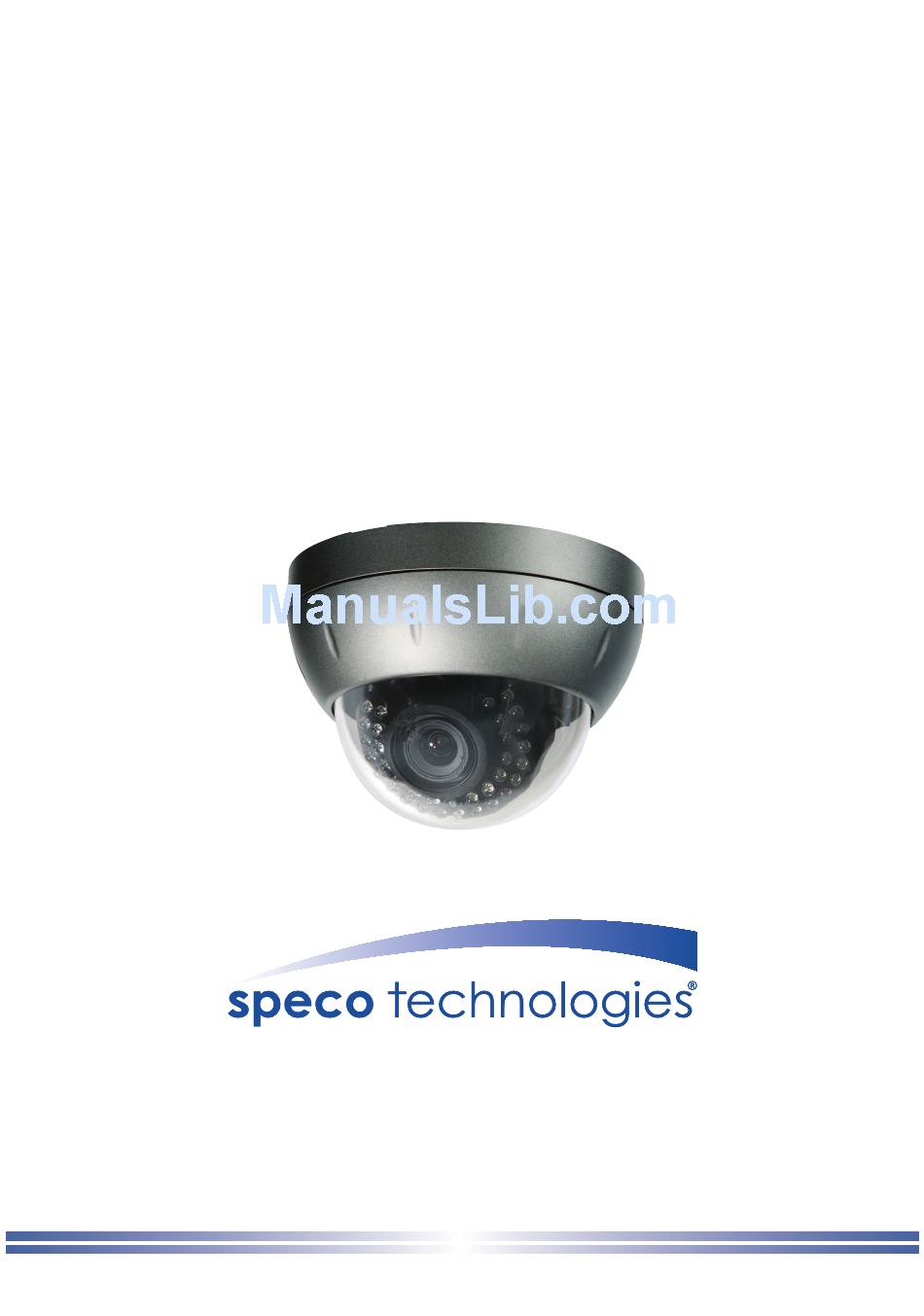

INSTRUCTION
MANUAL
Intense-IR Camera
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
CVC5735DNV / CVC5735DNVW
CVC5835DNV / CVC5835DNVW
CVC5935DNV / CVC5935DNVW
Rev. 6/20/2012

Advertisement

Table of Contents
loading

Related Manuals for Speco CVC5735DNV

Summary of Contents for Speco CVC5735DNV

  • Page 1 INSTRUCTION MANUAL Intense-IR Camera CVC5735DNV / CVC5735DNVW CVC5835DNV / CVC5835DNVW CVC5935DNV / CVC5935DNVW Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 6/20/2012...

  • Page 2: Table Of Contents

    Contents Contents ............1 ◑ Precautions ..........2, 3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-8 ◑ Specifications ..........9-11 ◑ Camera Dimension ........12 ◑ OSD Menu Details ........13- 37 ◑...

  • Page 3: Precautions

    Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of the where temperatures are between cause the camera to work improperly.
  • Page 4 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.

  • Page 5: Safety Instructions

    Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑...

  • Page 6: Package Contents

    Package Contents Please make sure that the following items are included in the Package: 1) CVC5735DNV, CVC5735DNVW, CVC5835DNV, CVC5835DNVW, CVC5935DNV, CVC5935DNVW • 1 Video Test Connector, Power Jack • 1 Wrench • Set Screw - 3 Tapping Screws 4x25 - 1 Hexagon Socket Screw M5x8 - 5 -...

  • Page 7: Camera Installation

    CAMERA INSTALLATION - 6 -...
  • Page 8 CAMERA INSTALLATION Compatibility 1) CVC5735DNV, CVC5735DNVW, CVC5835DNV, CVC5835DNVW, CVC5935DNV, CVC5935DNVW INTWM INTPM - 7 -...

  • Page 9: Camera Installation

    CAMERA INSTALLATION CVC5735DNV, CVC5735DNVW, CVC5835DNV, CVC5835DNVW, CVC5935DNV, CVC5935DNVW DOME BASE ASSEMBLY TAPPING SCREW 4X25, 3EA DOME COVER ASSEMBLY HEXAGON SOCKET SCREW M5x8, 1EA - 8 -...

  • Page 10: Specifications

    Intense - IR Vandal Dome Camera DC Auto Iris Varifocal Lens(4mm-9mm) / IR LED Built-in 33 pcs ■ CVC5735DNV ■ CVC5735DNVW 600TV Lines DC Auto Iris Varifocal Lens (4mm-9mm) True Day/Night Capability ICR-IR Cut Filter Removable 850nm IR LEDs x 33pcs SPECIFICATIONS CVC5735DNV / CVC5735DNVW MODEL...
  • Page 11 Intense - IR Vandal Dome Camera DC Auto Iris Varifocal Lens(2.8mm-12mm) / IR LED Built-in 33 pcs ■ CVC5835DNV ■ CVC5835DNVW 600TV Lines DC Auto Iris Varifocal Lens (2.8mm-12mm) True Day/Night Capability ICR-IR Cut Filter Removable 850nm IR LEDs x 33pcs SPECIFICATIONS CVC5835DNV / CVC5835DNVW MODEL...
  • Page 12 Intense - IR Vandal Dome Camera DC Auto Iris Varifocal Lens(9mm-22mm) / IR LED Built-in 33 pcs ■ CVC5935DNV ■ CVC5935DNVW 600TV Lines DC Auto Iris Varifocal Lens (9mm-22mm) True Day/Night Capability ICR-IR Cut Filter Removable 850nm IR LEDs x 33pcs SPECIFICATIONS CVC5935DNV / CVC5935DNVW MODEL...

  • Page 13: Camera Dimension

    CAMERA DIMENSION 1) CVC5735DNV, CVC5735DNVW, CVC5835DNV, CVC5835DNVW, CVC5935DNV, CVC5935DNVW 5.47” dia 5.47” dia 3.93” dia - 12 -...

  • Page 14: Osd Menu Details

    OSD Control Button 1. Type A, Type B, Type C of OSD button could be used when it needs to OSD control. 2. Type D is extra Option (wired Remote controller) - 13 -...
  • Page 15 How to Set Up the camera menu Setup Menu ● - 14 -...
  • Page 16 - 15 -...
  • Page 17 - 16 -...

  • Page 18: Menu Set Up

    Menu Set Up Menu items can be selected by using the OSD buttons of the camera 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT COLOR 5.3DNR 6.SPECIAL...
  • Page 19 3. Change menu settings using the Left or Right button. * Available values or Status are displayed by pressing the Left or Right buttons. Press the button until desired value / status is displayed. 4. After Changing the setting move the arrow indicator to EXIT and press the SET button to EXIT.
  • Page 20 NOTE * When DC is selected, the brightness can be adjusted. The brightness control range is 1 ~ 100. Lens BRIGHTNESS RETURN 3. Press the RETURN to return to the SETUP menu. Exposure This function is used to select Automatic or Manual shutter speed control. 1.
  • Page 21 EXPOSURE SHUTTER AUTO MIDDLE SENS-UP AUTO D-WDR RETURN NOTE *Shutter: Select Shutter using the Up or Down button, you can adjust the shutter speed from 1/60, FLK, 1/250~1/100,000. →FLK: Select FLK mode if flickering occurs; caused by the unmatched frequency of electric light.
  • Page 22 * RETURN: Select Return to save the changes in the EXPOSURE menu and retun to the SETUP menu. NOTE * Pressing the SET button in AUTO mode allows adjustment of image brightness by increasing or decreasing the shutter speed (x2 ~x256). * The higher the level, the brighter the image becomes, but it is possible that an after image (ghosting) could appear.
  • Page 23 POSITION SIZE PICTURE 1 PICTURE 2 * HSBLE: HSBLC function is especially effective for reading car number plates at the night time. You can select and define the required observation area for the target object and ignore a strong light area. Press the "ENTER"...
  • Page 24 HSBLC OFF HSBLC ON * D-WDR: This camera which is using 3D-DNR DSP provides intelligent light level control to overcome even strong backlight conditions. →OFF: D-WDR function does not operate. When there are simultaneous bright & dark image area WDR makes them both distinct and can be selected as OUTDOOR and INDOOR.

  • Page 25: White Balance

    White Balance The White Balance function is used to control the “on-screen” colors. 1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the Left or Right button. SETUP 1.LENS 2.EXPOSURE...
  • Page 26 Day / Night Picture can be displayed in either colour of black and white. 1. Select DAY / NIGHT using the Up or Down button on the SETUP menu screen. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET...
  • Page 27 IR SMART GAIN SIZE AREA RETURN AREA SMART IR OFF SMART IR ON → AUTO: The mode will automatically switches to COLOR in normal condition and switches to BW mode when ambient illumination is low. Press the SET button to set the switching time or D→N(AGC), N→D(AGC) in AUTO mode. DAY &...
  • Page 28 3DNR 3DNR is used to reduce the level of background noise in a low luminance environment. 1. Move the arrow indicator to 3DNR by using the Up and Down button. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET...
  • Page 29 Special When the SETUP menu screen is displayed, select SPECIAL using the Up and Down buttons. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET 9.EXIT Select one of the mode using the Up and Down button. SPECIAL 1.
  • Page 30 NOTE * When CAMERA TITLE is set to OFF, the CAMERA TITLE is not displayed on the monitor. 1-3) Press the SETUP button. CAMERA TITLE 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z →...
  • Page 31 NOTE * In cases where the wrong Camera ID has been input..Move the cursor to CLR and press SETUP button to erase characters from left to right, and repeat the above steps to input the characters again. 1-5) To select the position where the Camera ID should be displayed on the screen. ①...
  • Page 32 ③ Select a new position by using the four C A M 1 directional button, Press the SET button to confirm the position. 2. D - EFFECT Move the cursor to D-EFFECT and press the SET button to set the other image functions. D-EFFECT FREEZE MIRROR...
  • Page 33 * V-FLIP : Flip the image vertically on the screen. * ROTATE : Flip the horizontal image vertically on the screen. * OFF : Disabled. MIRROR ON MIRROR OFF 2-2) D - ZOOM: Digital zoom available, range x1 ~ x32. PAN : The pan range can be controlled between -10 ~ + 100 TILT : The tilt range can be controlled between -10 ~ + 100 D-ZOOM...
  • Page 34 2-3) GAMMA : Desired gamma values can be adjusted between 0.05 ~ 1.00. 2-4) NEG. IMAGE : ON : Activates negative image just like film OFF : Normal image 2-5) RETURN : Move the arrow indicator to RETURN after complete the setup to return to SPECIAL menu. 3.
  • Page 35 4. PRIVACY Hide an area you want to hide on the screen. 4-1). When the SPECIAL menu screen is displayed, press the Up and Down buttons to set to PRIVACY. PRIVACY AREA SELECT AREA1 AREA DISPLAY COLOR RETURN POSITION SIZE 4-2).
  • Page 36 ③ Move the arrow indicator to WIDTH to make desired width of cells to increase or decrease by using the Left / Right button between the level 0 ~ 100. ④ Move the arrow indicator to HEIGHT to make desired height of cells to increase or decrease by using the Left / Right button between the level 0 ~ 100.
  • Page 37 ADJUST 1. When the SETUP menu screen is displayed, select ADJUST using the Up and Down buttons. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET 9.EXIT 2. Select the desired mode by using Up or Down button. ADJUST SHARPNESS MONITOR...
  • Page 38 RESET Resets the camera settings to the factory defaults. SETUP RESET 1.LENS FACTORY 2.EXPOSURE RETURN 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET 9.EXIT EXIT Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu. SETUP 1.LENS 2.EXPOSURE...

  • Page 39: Trouble Shooting

    Trouble Shooting PROBLEM POSSIBLE CAUSE ☞ Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞ Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞...
  • Page 40 - 39 -...
  • Page 41 - MEMO - - 40 -...
  • Page 42 - MEMO - - 41 -...
  • Page 43 - MEMO - - 42 -...
  • Page 44 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
