Craftsman Weedwacker 172.74533 Operator's Manual

4.0 amp 12" electric trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

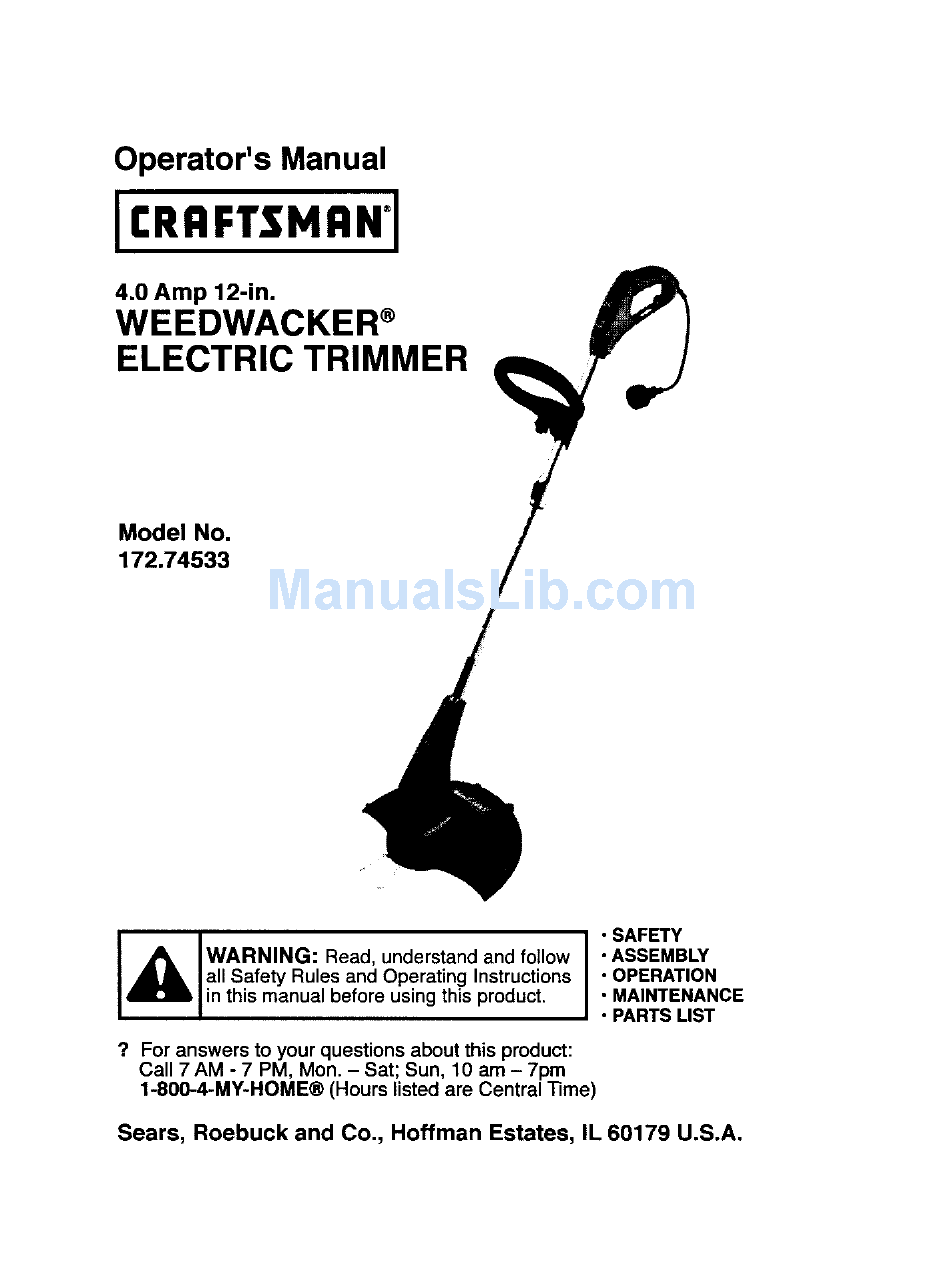

Operator's Manual
4.0 Amp 12-in.
WEEDWACKER ®
ELECTRIC TRIMMER
Model No.
172.74533
I
_1_
IWARNING:
Read, understand and follow
_lall
Safety Rules and Operating
Instructions
_lin
this manual before using this product.
i • SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
? For answers to your questions
about this product:
Call 7AM
- 7 PM, Mon. - Sat; Sun, 10 am - 7pm
1-800-4-MY-HOME®
(Hours listed are Central 13me)
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Craftsman Weedwacker 172.74533

Summary of Contents for Craftsman Weedwacker 172.74533

  • Page 1 Operator's Manual 4.0 Amp 12-in. WEEDWACKER ® ELECTRIC TRIMMER Model No. 172.74533 • ASSEMBLY IWARNING: Read, understand and follow • OPERATION _lall Safety Rules and Operating Instructions i • SAFETY • MAINTENANCE _lin this manual before using this product. • PARTS LIST ? For answers to your questions about this product: Call 7AM...
  • Page 2 ONE YEAR FULL WARRANTY ON CRAFTSMAN WEEDWACKER ELECTRIC TRIMMER If this Craftsman Electric Trimmer fails due to defects in material or workmanship within one year from the date of purchase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will replace it, free of charge.
  • Page 3 The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and their explanations deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
  • Page 4 GENERAL SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS/PLAN AHEAD SYMBOL MEANING WARNING: If correctly used, this line trimmer/ edger is a quick, easy to handle and efficient tool; if used improperly or without the due precautions it could become a dangerous tool. For pleasant and safe work, ALWAYS strictly comply with the safety rules that are contained i in this manual.
  • Page 5 GENERAL SAFETY INSTRUCTIONS cont. 11. DO NOT operate this unit while tired, ill or under the influence of alcohol, drugs, or medication. 12. Children MUST NOT operate the unit. 13. Secure hair above shoulder length. DO NOT wear loose clothing or jewelry;...
  • Page 6 ELECTRICAL SAFETY 1. Double insulated tools are equipped with a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet.
  • Page 7 SPECIFIC SAFETY RULES FOR LINE TRIMMERS / EDGERS 1. ALWAYS avoid accidental starting. DO NOT carry a plugged in trimmer with you finger on the switch. Be sure the switch is in the OFF position BEFORE plugging it in. 2. DO NOT carry the trimmer by the cord or yank cord to disconnect it from power receptacle.
  • Page 8 14. ALWAYS keep ventilation openings clear of debris. 15. BEFORE using the grass trimmer, remove any stones, sticks, debris or objects that could be entangled or thrown by the grass trimmer. WARNING: Some dust particles created by lawn and garden tools contain chemicals known to cause cancer, birth defects or other reproductive harm.
  • Page 9 Your line trimmer / edger has many built-in convenience features for fast, efficient trimming and edging. These features include length-adjustable handle, adjustable trimmer head, a trigger switch with lock-off to help prevent accidental starts. Bump line feed. An easy-grip handle for comfort and convenience.
  • Page 10 UNPACKING (See Fig. 2) Fig. 2 The trimmer is fully assembled except for the guard and edge guide, that must be attached. Remove the trimmer (1), guard (2) and edge guide (3) from the carton and examine carefully. NOTE: Do not discard box or packing material...
  • Page 11 INSTALL THE EDGE GUIDE (Fig. 4) Fig. 4 1. Remove the edge guide screws (1) from the guard (2). 2. Align the two holes on the edge guide (3) with the two holes (4) on the small side of the guard. 3.
  • Page 12 ADJUST THE HEIGHT (Fig. 6, 6a) 1. Press down on the height adjustment latch (1) to release the height adjustment lock, then pull or push the shaft (2) to the desired height. 2. Release the latch, then pull up on the shaft until it locks into position. Fig.
  • Page 13 up or holding the grass trimmer. IAI w '"""° "F°"'c°nnec*n"°u outlet, always turn the switch to the off position. Failure to do so could result in accidental star[-up causing serious personal injury. THE CU'I-I'ING LINE A double-wound cord of monofilament cutting line is pre-installed on the grass trimmer.
  • Page 14 REPLACE THE SPOOL (Fig.g) Fig. g 1. Replace the spool (2) with a new pre-wound spool (71-85945) 2. Insert the end of one line through an eyelet (1) in the spool housing. Insert the other line through the other eyelet. 3.
  • Page 15 OPERATING INSTRUCTIONS your finger on the switch. DO NOT push the lock-off button or I WARNING: To avoid injury, DO NOT carry the grass trimmer with squeeze the trigger when the grass trimmer is turned over. ON/OFF SWITCH (Fig. 11) Your grass trimmer is equipped with a trigger switch (2) and a lock-off button (1).
  • Page 16 OPERATING INSTRUCTIONS cont. To Turn Off Trimmer (Fig.11) CAUTION: Allow 5 seconds or more for the grass trimmer to stop rotating after releasing the trigger switch. DO NOT invert the grass trimmer or place hands under the guard until the grass trimmer has come to a complete stop.
  • Page 17 OPERATING INSTRUCTIONS cont. TRIMMER TIPS Before Each Use • Make sure the protective guard is tightly installed. "13ghten the guard screw. Be sure not to over tighten. • Before trimming, inspect the area for string, wire, branches, or other material that may become entangled in the cutting line or thrown.
  • Page 18 OPERATING INSTRUCTIONS cont. Be sure the trimmer is shut off. iAIw..o; urno"' etoo'anO outlet BEFORE any maintenance on the grass trimmer GENERAL MAINTENANCE Keep your grass trimmer clean and in good repair for maximum long-lasting performance. Before each use, inspect the switch and cord for damage. Check for damaged, missing, or worn parts.
  • Page 19 WEEDWACKER ELECTRIC TRIMMER - MODEL NUMBER 172.74533 our tool. The Model Number will be found on the Nameplate. Always mention the Model Number in all correspondence regarding Description Quantitv Pa_ NO. Description Quantity 11nnPl 41N017 _lf-t_nninn _P.r_w_T_ 1R-P, rinht hA ndlP. 18nNPN _witnh r.IRmn 740001...
