Page 1: Color Monitor
® EPSON 14" Super VGA Color Monitor- (Models A882441 and A882459) User’s Guide... - Page 2 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 IMPORTANT NOTICE DISCLAIMER OF WARRANTY Epson America makes no representations or warranties, either express or implied, by or with respect to anything in this manual, and shall not be liable for any implied warranties ofmerchantability and fitness for a particular purpose or for any indirect, special, or consequential damages.
-
Page 4: Important Safety Instructions
Important Safety Instructions Although this monitor is designed to assure your safety, improper use can cause electric shock or fire hazard. In order not to defeat the safeguards incorporated in the monitor, observe the following safety instructions: Read all of these instructions and save them for later reference. Follow all warnings and instructions in this manual and marked on the monitor. - Page 5 14. Do not allow anything to rest on the power cord. Do not place a cord where it may be stepped on. 15. Do not replace the video interface cable with a non-shielded cable 16. Unplug the monitor from the computer and the wall outlet before cleaning.
-
Page 6: Table Of Contents
Contents ....... Introduction Energy Star Compliant ..... Where to Get Help Electronic Support Services Unpacking the Monitor . -
Page 7: Introduction

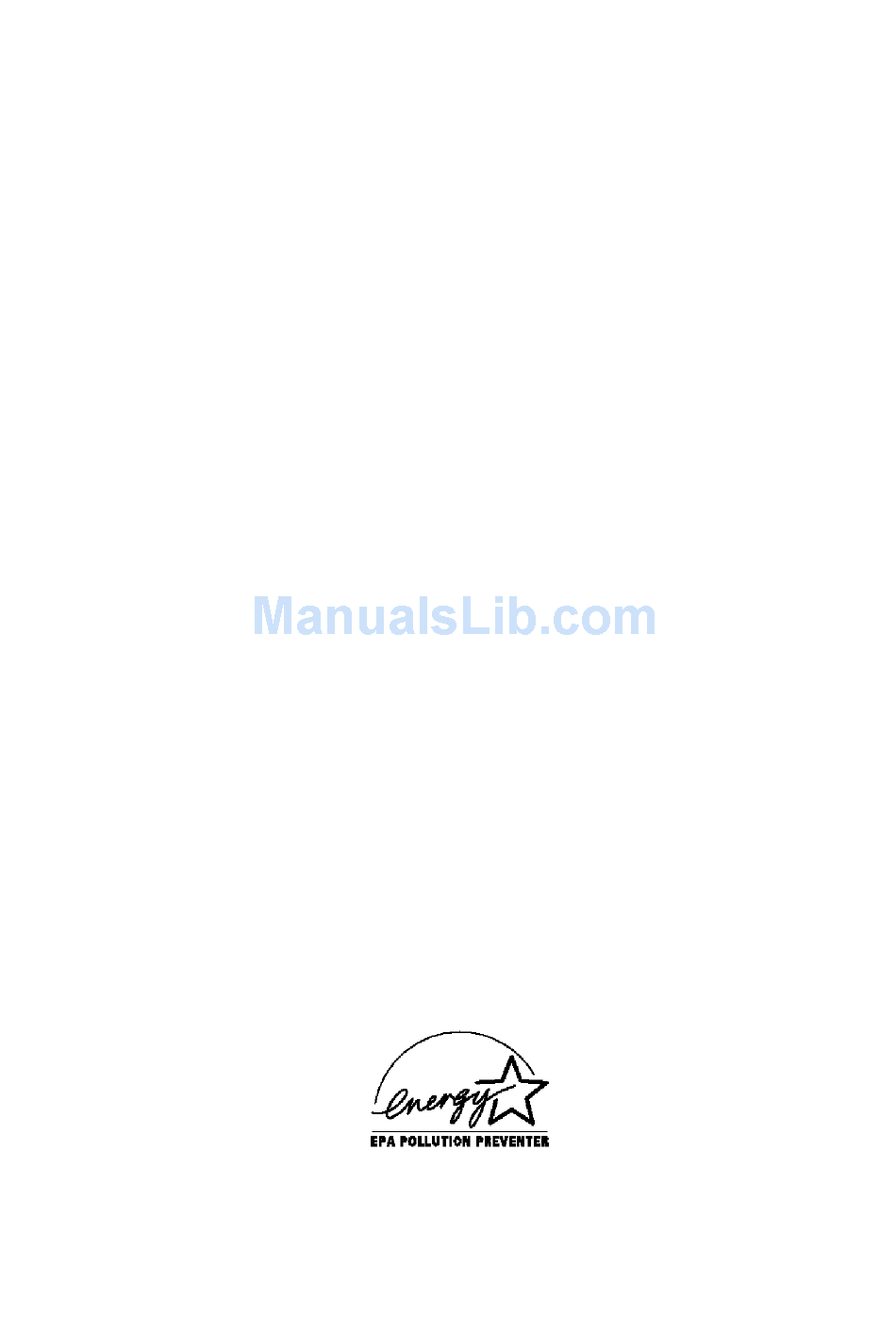

This manual describes how to set up and use the monitor. It also provides troubleshooting information and specifications. Energy Star Compliant Your EPSON monitor complies with the U.S. Environmental Protection Agency’s Energy Star program, which promotes the manufacture of energy-efficient printers, computers, and monitors. -
Page 8: Where To Get Help
If you purchased your monitor in the United States or Canada, EPSON provides customer support and service through a network of Authorized EPSON Customer Care Centers. EPSON also provides the following services when you dial (800) 9224911: o Technical assistance with the installation, configuration,... -
Page 9: Electronic Support Services
EPSON products is through the online services below. EPSON bulletin board service You can call the EPSON Bulletin Board Service (BBS) at (310) 782-4531. No membership is required. Make sure your communications software is set to 8 data bits with no stop bit, 1 parity bit, and a modem speed up to 28.8 Kbps. -
Page 10: Unpacking The Monitor
Tilt and swivel base o Warranty card o Registration card. If anything is missing or damaged, contact your EPSON representative Be sure to keep the monitor’s original box and packing materials in case you need to transport the monitor later. -
Page 11: Attaching The Tilt And Swivel Base
Attaching the Tilt and Swivel Base Before you attach the tilt and swivel base, cover your work area with a blanket or foam pad to avoid scratching the monitor. Then follow these steps: Carefully set the monitor face down on the padding so the bottom of the monitor is facing you. - Page 12 Insert the hooks into the slots on the monitor. Slide the base toward the front clicks into position. Carefully turn the monitor over so it rests on its base Note Always remove the tilt and swivel base before packing and transporting the monitor.
-
Page 13: Selecting A Location For The Monitor
Selecting a Location for the Monitor Follow these guidelines when you select a location for the monitor: Read the safety instructions at the beginning of this manual. Use a large, sturdy desk that can support the weight of the computer, monitor, and any peripheral devices. The desk should also provide ample space to hold your equipment and work materials. - Page 14 Follow these steps to connect the monitor to your computer: Make sure the monitor, computer, and any peripheral devices are turned off. Turn the monitor around so its back is facing you. Plug the end of the video cable into the video connector on the back of the computer and tighten the two screws on the cable connector.
-
Page 15: Turning On The Monitor
Turning On the Monitor Turn on the monitor by pressing the power button located at the front right of the monitor. Then turn on the computer. After a few seconds, an image appears on the screen. The power indicator is green when you first turn on the monitor and when the monitor is in the full-power state. -
Page 16: Accessing The Monitor Controls
Accessing the Monitor Controls The image control box contains the image controls for the monitor. It is located at the bottom left of the monitor. To access the controls, you need to open the control box cover. Place your finger at the left side of the cover and pull it gently forward until the cover opens. - Page 17 The following table summarizes the functions of the monitor’s controls. Control Icon Vertical center Vertical size Horizontal center Horizontal size Contrast Brightness Power button Function Centers the image vertically. Turn the control clockwise to move the image up: turn it counterclockwise to move the image down.
-
Page 18: Cleaning The Monitor
Cleaning the Monitor To keep the monitor operating at its best, it is important to clean it regularly. Follow these steps: Turn off the monitor and unplug the power cord from the wall outlet. Also disconnect the video interface cable from the computer. - Page 19 The electrical outlet may not be functional. Test the outlet by plugging in a lamp or other device. The power indicator is on, but there is no image on the screen. Make sure the computer is turned on. Make sure the video interface cable is properly connected to the monitor and the video interface on the computer.
- Page 20 The input signals may be outside the monitor’s horizontal and vertical frequency ranges (30 to 50 KHz horizontal and 50 to 90 Hz vertical). Make sure the input signals are within the specified ranges. Make sure your computer’s video adapter is set up for use with the monitor and that any DIP switches or jumpers in the computer or on a video adapter card are set properly.
-
Page 21: Specifications
Video and Synchronization Signals Video Bandwidth Signal cable Horizontal frequency Vertical frequency A882441, A882459 14 inches (356 mm) diagonal 13.2 inches (335 mm) diagonal 1024 x 768, non-interlaced 9.6 x 7.3 inches (245 x 185 mm) 90° 0.28 mm Non-glare tinted 0.35/0.45 mm... -
Page 22: Scanning Modes
D-type connectorpin assignments Signal Green Blue Ground Self test Red return Green return Blue return Scanning Modes Resolution 640 x 350 640 x 400 640 x 480 800 x 600 1024 x 768 * Interlaced Power Supply Input voltage VGA Color Monitor 14"... - Page 23 Display Power Management Environment Requirements Operating temperature H um i d i t y Safety Standards Physical Characteristics Net weight Width Height Depth 40° F to 85° F (5° C to 35° C) 8% to 80% noncondensing UL, CSA, FCC-B, DHHS 25 lb (11.3 Kg) 14 inches (356 mm) 15.3 inches (387 mm)
- Page 24 Tel: (562) 232-8966 Fax: (562) 233-3197 Epson Costa Rica, S.A. San Jose, Costa Rica Tel: (506) 234-6666 Fax: (506) 225-5709 Epson Mexico, S.A. De C.V. Mexico, D.F., Mexico Tel: (525) 395-9944 Hotline: (91800) 50326 Fax: (525) 395-9499 Epson Do Brasil São Paulo, SP Brazil...
- Page 25 EPSON International Marketing Locations Epson Deutschland GmbH Zülpicher Straße 6, 40549 Düsseldorf 11 Germany Tel: (49) (211) 56030 Telex: (41) (211) 504-7787 Epson Iberica, S.A. Avda. de Roma 18-26 08290 Cerdanyola del valles Barcelona, Spain Tel: (34) (3) 582-1500 Fax: (34) (3) 582-1555 Telex: 50129 Epson Hong Kong Ltd.
- Page 26 Distributors South America SISCO São Paulo, SP Brazil Tel: (5511) 549-4846 Fax: (5511) 549-4571 McSilver, S.A. Bogota, Colombia Tel: (571) 270-4303 Fax: (571) 230-9205 C.I.L.D.S.E. Quito, Ecuador Tel: (593) 2-54-3418 Fax: (593) 2-55-4780 A.J. Vierci & CIA Asuncion, Paraguay Tel: (595) 21-449-220 Fax: (595) 21-449-514 Infocenter Asuncion, Paraguay...
- Page 27 Caribbean Caribbean Computer Systems, Ltd. Bridgetown, Barbados Tel: (809) 429-7050 Fax: (809) 427-6509 Computer Business Systems Kingston, Jamaica Tel: (809) 925-8600 Fax: (809) 925-8115 Boolchand Pessomal N.V. Curacao, Netherlands Antilles Tel: (599) 961-2262 Fax: (599) 961-4345 Micro International, S.A. Santo Domingo, Republica Dominicana Tel: (809) 533-8110 Fax: (809) 535-3218 Complete Computer Systems...
